Твердосплавный стальной концевой измеритель пробки SKD11 с реверсивным держателем с черной ручкой и красной ручкой зеленого цвета
- Category: Gauges >>>
- Supplier: Shenzhen Hosun Precision Co. Ltd.
Share on (62067684082):
Product Overview
Description
Product Description

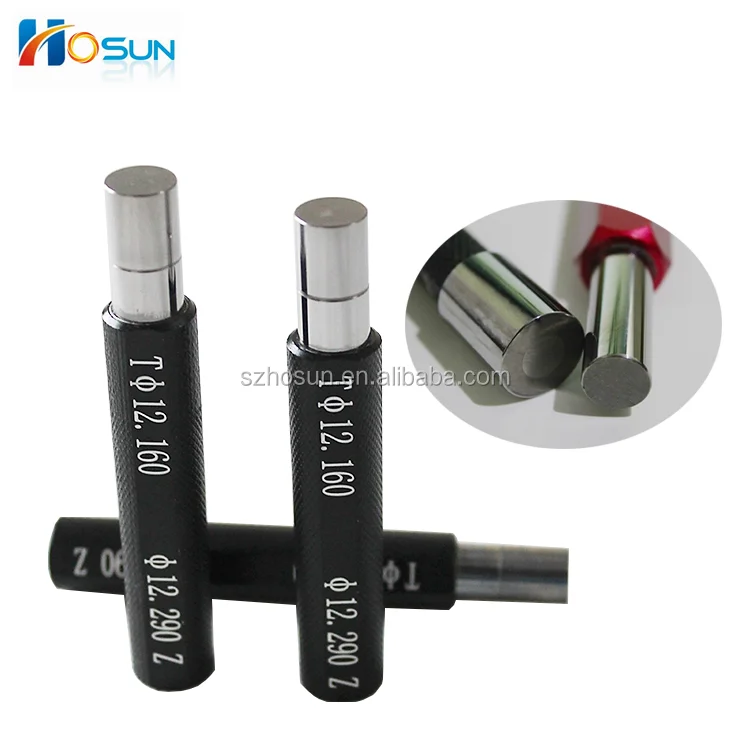

Carbide Plain Plug Gauge
Plain Cylindrical plug gauges are used to check the inside diameter limits on parts
They are available in GO and NOGO. The GO cylindrical gauge should go on or in a cylindrical component and the NOGO should not. When the GO gauge enters and the NOGO gauge is unable to enter, the parts is within tolerance
They are available in GO and NOGO. The GO cylindrical gauge should go on or in a cylindrical component and the NOGO should not. When the GO gauge enters and the NOGO gauge is unable to enter, the parts is within tolerance
Gauge Diameter Range: Metric 0.3-25mm / Inch 0.012"-0.985"
Available Choice of Materials: Steel / Carbide / Ceramic
Gauge Length: standard 50mm , or customized
Gauge Tolerance : GO + / NOGO - , Class XXX, Class XX, Class X, Class Y, Class Z, and Class ZZ

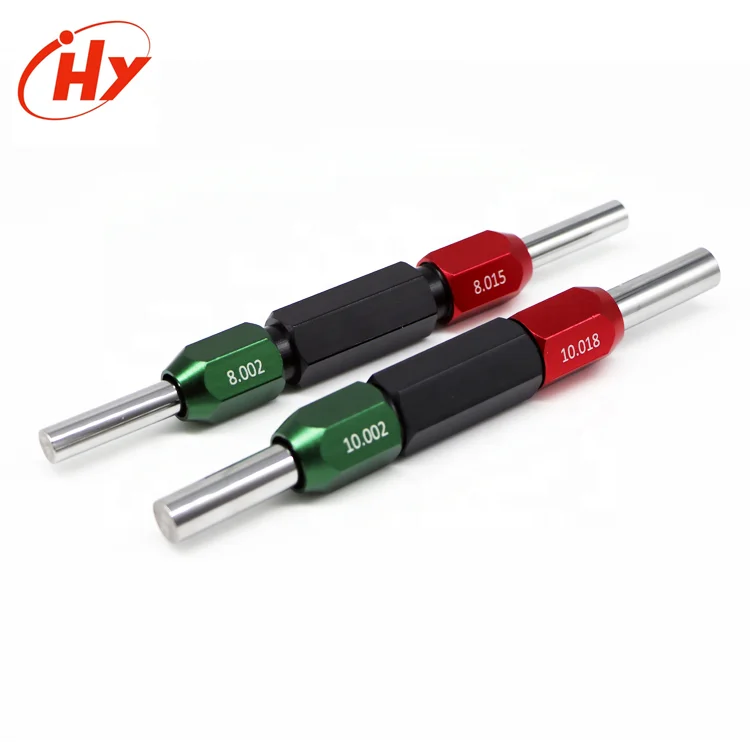

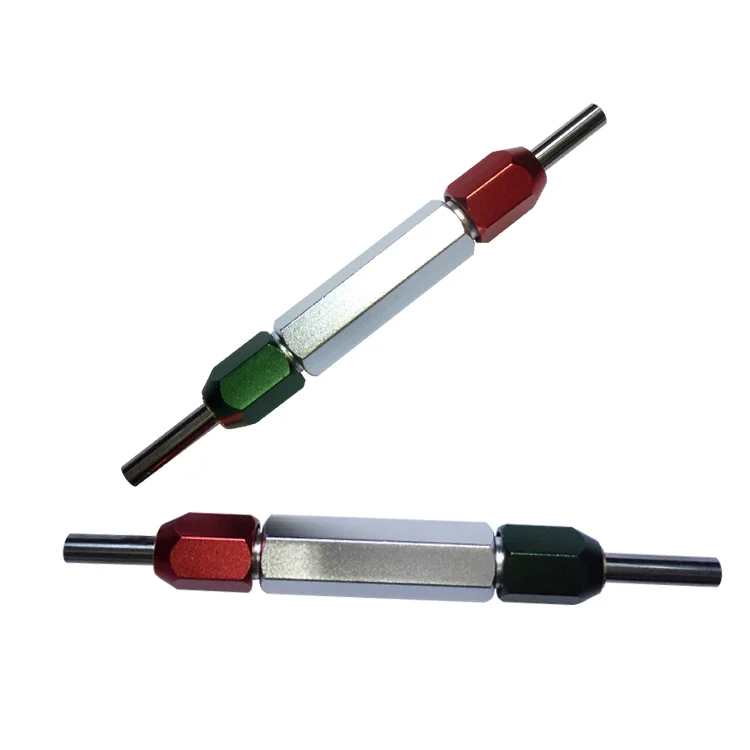

Supplied as either: Double Ended or Single Ended
Laser Engraving: GO/NOGO Sizes will be stated as standard , your logo can be available accept
Detailed Images
Gauge Material : | Carbide Steel | ||||
Handle Material : | Aluminum Alloy | ||||
Diameter size : | 0.100 to 25.000mm | ||||
Length : | 50mm | ||||
Tolerance : | +/-0.001mm , +/-0.0005mm | ||||

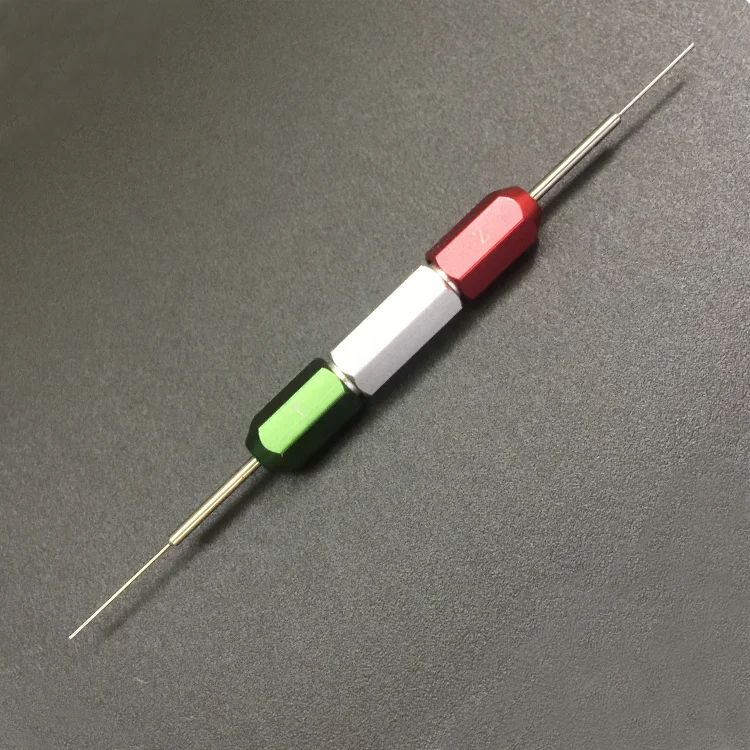

Small Clamping Range Handle
Used for pin gauge with diameter 0.3-14mm
Big Clamping Range Handle
Mainly used for pin gauge with diameter 14-25.4mm
About us
Shenzhen Hosun Precision Co.,Ltd, localed in shenzhen city ,China mainland,joined Alibaba in 2018 to develop international trade
Dedicated to mainly produce high precision mold hardware parts and measuring tools , welcome customized non-standard products from your request
