1.29 inch SSD1351 Oled 128RGBx96 touch screen display media china factory
1.29 inch SSD1351 Oled 128RGBx96 touch screen display media china factory

1.29 inch SSD1351 Oled 128RGBx96 touch screen display media china factory

Share on (62067698679):


Price:RUB 594.62

Quantity:


Product Overview

Description

Product Description

Product Description

Features:

  1. Structure: COG
  2. Number of Pixels: 128RGBx96
  3. LCD display mode: Mono OLED
  4. Color: 262,144 Colors
  5. Control/drive IC:  SSD1351
  6. LCD connection: FPC,39 Pins
  7. Power Supply Voltage: 2.6-3.5V
  8. Frame Rate: 90 Frames/Sec
  9. Brightness: 90(Typ) cd/m2
  10. Supplied Externally: 13V
  11. Interface:Parallel/SPI
  12. Folding Ability: Folding Type
  13. Assembly: Soldering

Mechanical data:

Outline: 33x25.8x1.2mm

Active area: 26.279x19.708mm





Temperature range:

Item

Min.

Max.

Operating Temperature (°C)

-40

85

Storage Temperature (°C)

 -40

85





OEM & ODM are accepted.



Various LCD Display Mode Available

Various Temperature Range Available

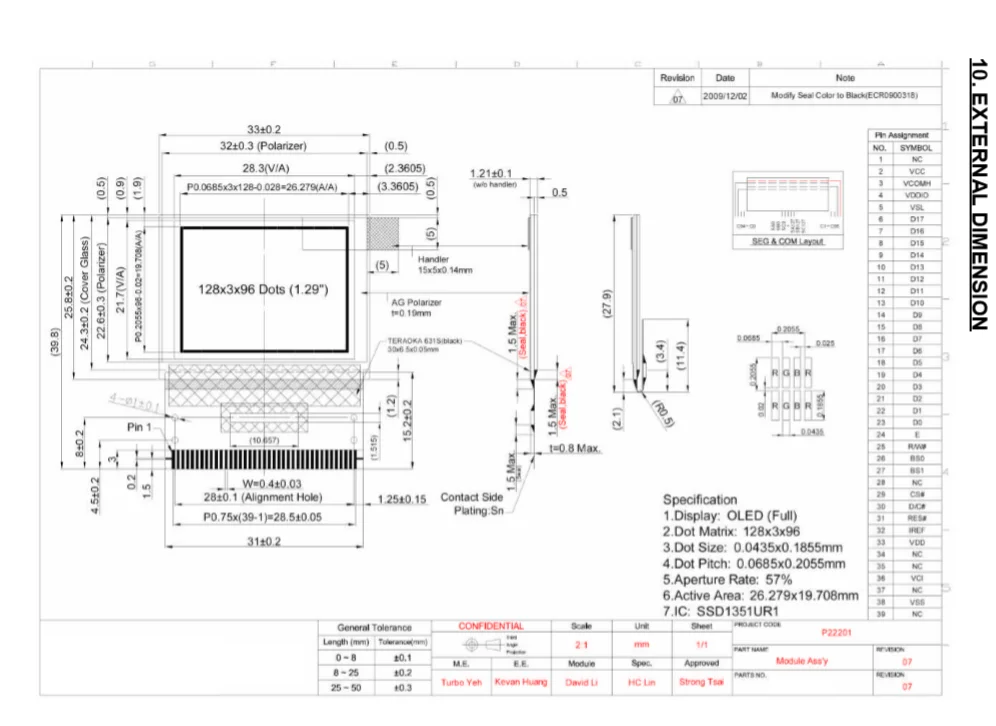

Outline Drawing:

1.29inch oled display.png



TFT HOT SALE





1.14 TFT.png





ABOUT US





1.14 SPI.png

Process Flow

 produce process.png

Trade Information:
Trade Terms: EXW, FOB, CIF, DDU
Payment Terms: T/T, PayPal, Western Union, Escrow
Payment Condition: 40% in Advance as Deposit, 60% Balance before Shipment
Lead Time: 2-6 Working Weeks
Shipping: By sea, Air and Express
