Cardlan Metal Bus Validator with IP 56 for Waterproof Cashless Card Payment System
- Category: >>>
- Supplier: Shenzhen,Cardlan,Technology,Co.,Ltd
Share on:
Product Overview
Description

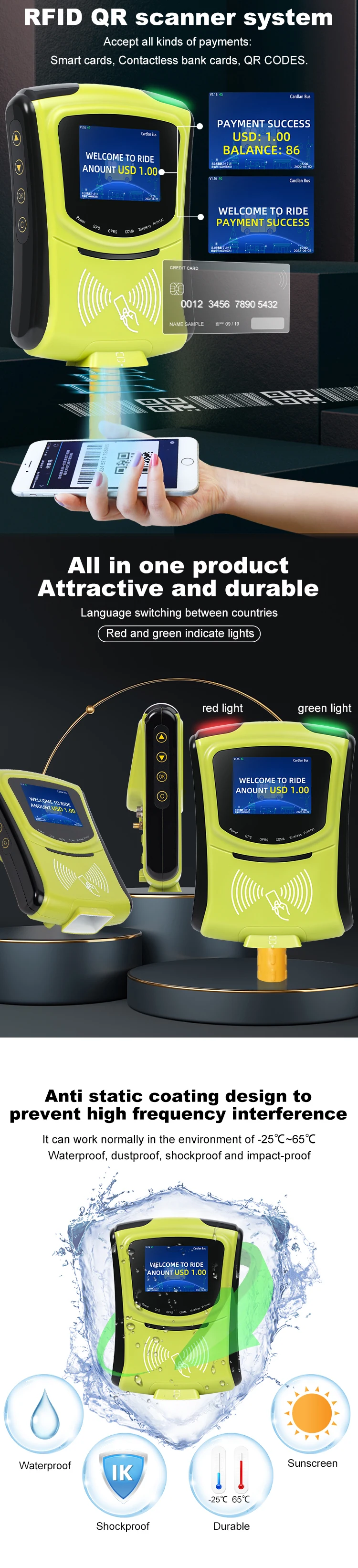

Cardlan Metal Bus Validator with IP 56 for Waterproof Cashless Card Payment System
Company Information
Factory Card Reader with qr code scaner
Shenzhen Cardlan Technology Co. Ltd was established in 2000 in Shenzhen Longgang District.We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems. Cardlan has done so many kinds of project in foreign countries, such as Myanmar, Cambodia, United Kingdom, Chile, Zimbabwe, Thailand, United States, Tajikistan,Dubai, Russia,Qatar...
Product Description
How the system works?
Application:
1. Bus, Taxi, Metro, Highway, Supermarkets, Gas station, Kiosk, Store, Theater and so on fast payments fields;
2. Government, Institution, Company, Factory, School, Hospital, Hotel;
3. Urban public transportation ticket payment system, Company shuttle bus ticket payment system , School shuttle bus payment system
Features:
1. Made of industrial grade material, Fully adapt to special circumstances on bus
2. Sealed, dustproof, waterproof, shockproof and anti-electromagnetic interference
3. Dedicated stable power supply, voltage overload protection
4. With the most advanced Linux system, high-definition LCD display
5. WIFI Communication + USB data acquisition, support remote upgrading
6. Contactless smart card, read/write capability, light display for reading card
7. Live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card";
8. Support Mifare1 card, CPU card
9. With Thermal printing module, can connect to POS58 slip printer
10. Optional GPS positioning module, for global positioning satellite positioning;
11. Great stability of data storage, data kept as long as 10 years even with power outage
12. Card Capacity: 91,880,000 pcs;
13. Can check the nearest 20 records, to prevent ticket payment dispute.
Technical specifications:
Model: | CL1306 bus pos terminal |
Dimension: | 200*151*61.5mm |
Material: | Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference |
Display: | 3.5 inch LCD display,320x240 |
Operating system: | Linux 2.6 system |
CPU: | N32905 processor,ARM9 core @ 240MHZ |
Memory: | 32MBytes SDRAM,128MB NANDFlash |
Data capacity: | 259840 pcs of detailed data for console storage, unlimited data at GPRS storage |
Card capacity: | 91,880,000 pcs |
Black list: | 91,880,000 pcs (download thru PC with USB) |
Working Voltage: | DC 8V-50V |
Operating temperature: | -25℃~65℃ |
Storage temperature: | -40℃~85℃ |
Humidity: | 0-95% RH non condensing |
Lighting: | Red, Green light |
Sound prompt: | Buzzer, single channel speaker (voice report) |
Voice report prompt: | 16KHz,16bit single channel voice report prompt |
Keypad: | 4 command buttons |
RFID: | Can read and write ISO14443 TYPE A\\B Electronic tag (Incl. Combi-Card ) |
Read card distance: | 0~50mm |
Supporting card: | Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card |
Frequency: | 13.56MHz |
Interfaces/Connectors: | RS232, RS485, USB |
Printer modules: | Can be connected to slip printer-POS58 |
Width of receipt: | Based on printer configuration |
Positioning mode: | GPS |
Power consumption: | ≤10W |
Communication Modules: | GPRS(900Mhz/1800Mhz), or CDMA(800Mhz) |
WIFI: | Supporting 802.11n/b/g standards,150Mbps,2.4Ghz |
UnionPay: | Compatible for PBOC3.0 UnionPay card |
Upgrading: | Connect USB to PC, upgrade with GPRS |
Data collection: | WIFI, GPRS, USB,3G,4G |
Our Services
Order Inquiry
We offer 24-hour online service, and door-to-door installation service. Our hardware carry one-year warranty and software have lifetime maintenance service.
CL1306 Installation
l First Step for Installation of Software, engineer will guide as below:
Remote Control to help install the software managment.( Teamviewer)
And follow engineer's guide to operate.
l Second Step, to Install the Hardware:
1. Accessories of Bus POS Terminal
l A 1.5m long power line which ends with aviation ports
l A heightening back pad
l 8 screws (There are 4 long screws and 4 short screws. The long screws are used when the back pad is used. The short screws are used if the back pad is not used. The board may be damaged if you use the long screws.)
l Two fixed U-shaped buckles
2. Effect Drawing after Installation
Front and Back View
Another way of installation:

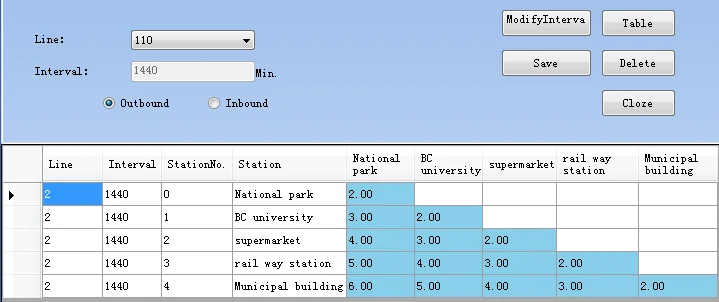

More products of Cardlan Bus payment Software platform as below:

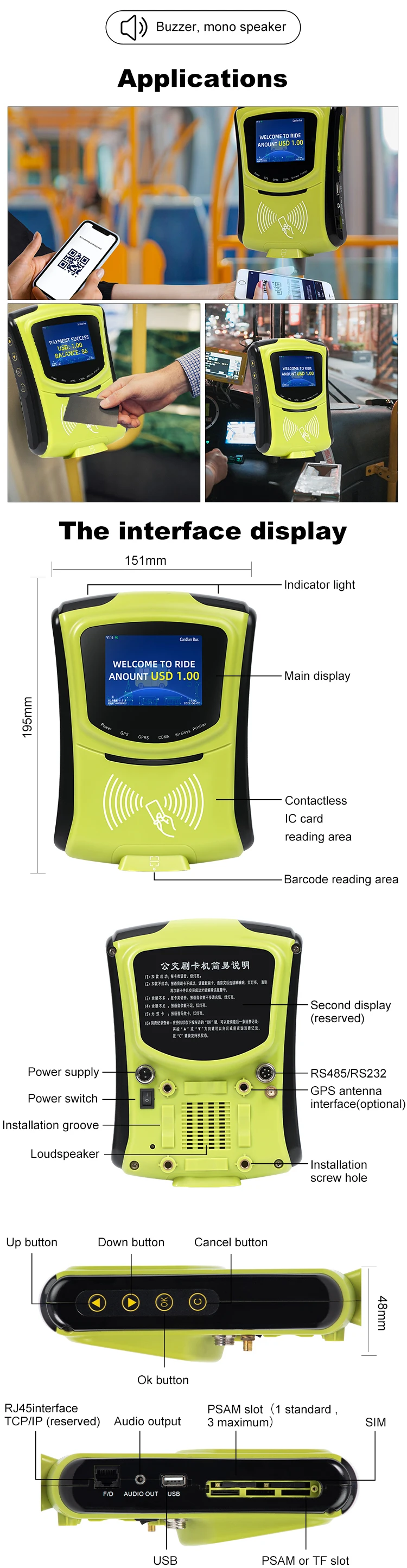

CL1306 details
Certifications
Quality control
Strictly hightemperature/low temperature testing, Vibration testing, to make sure products can meet the extreme environment on bus.
FAQ
Our hardware have got CE/FCC approvals, and if you have any more questions, please contact Kathy at +86-13530321253,she can speak English, welcome inquiry!~
Q: Are you trading company or manufacturer?
A: We are factory for 22 years for public transportation payment ,which include hardware and software.
Q: Do you sell the machine and management software system together?
A: We can sell them together , also you can only buy hardware machine or system.
Q: How to set the machine and the software management ?
A: we can provide you the whole set instruction book of the machine and the system, you can do as the instruction. wealso can send engineers to your country to set up the machine and adjust the whole system for you.
Q: Do you provide samples for testing?
A: yes, we could offer the samples for your inspection,and also offer SDK for your secondary development.
Q: what is your payment terms?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% TT in advance,balance payment before delivery.
