1080P@60Hz HDMI extender over cat6 150m no signal loss

Product Overview

Description

1080P@60Hz HDMI extender over Cat6 150m no signal loss



This 150m HDMI Extender can transmit high definition signal of Blu ray DVD player, PC and other equipment via CAT5E/6 cable, support the highest resolution of 1080P transmission distance up to 150 meters. The product is stable, easy to install, and highly practicable, It can be used in major projects, meeting halls and other places.





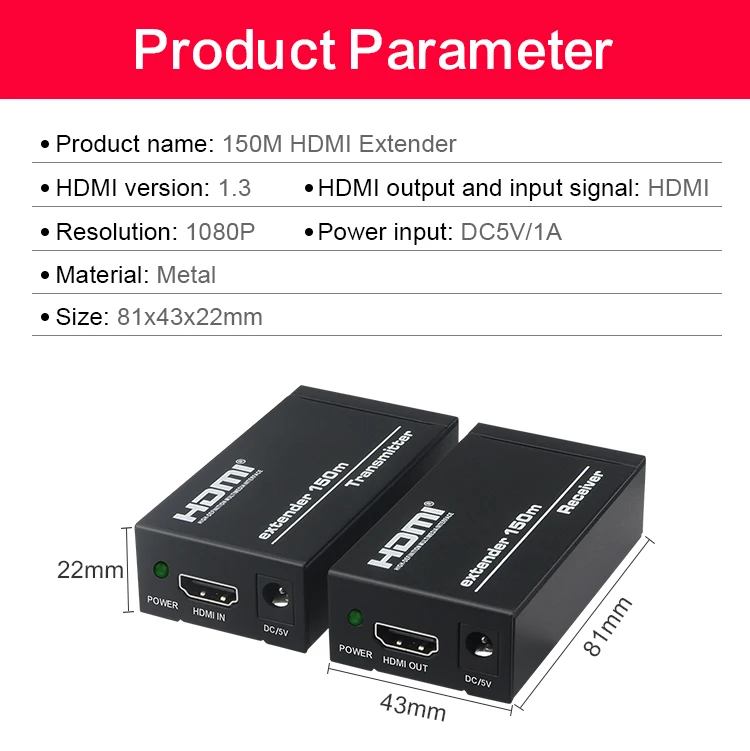

Features & Specifications:



1.Support HDMI 1.3 version

2.Support 3D

3.Support the highest resolution up to 1080P/60/50/30/25/24Hz,720p/50/60Hz..

4.Support sound sampling frequency: 44.1KHz ,48KHz and 96KHz, etc

5.No delay and no signal loss

6.Support 36 bit deep color

7.Support the Max transmit distance: When input 1080P ,the max distance is 150M

8.Power input: DC5V/1A

9.Dimension (length x width x height): 50mmx41mmx25mm

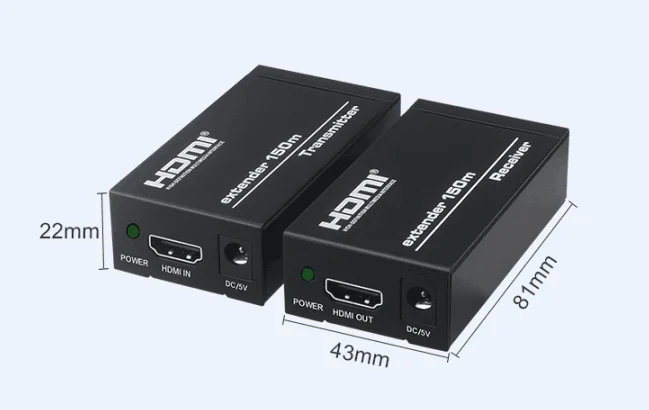

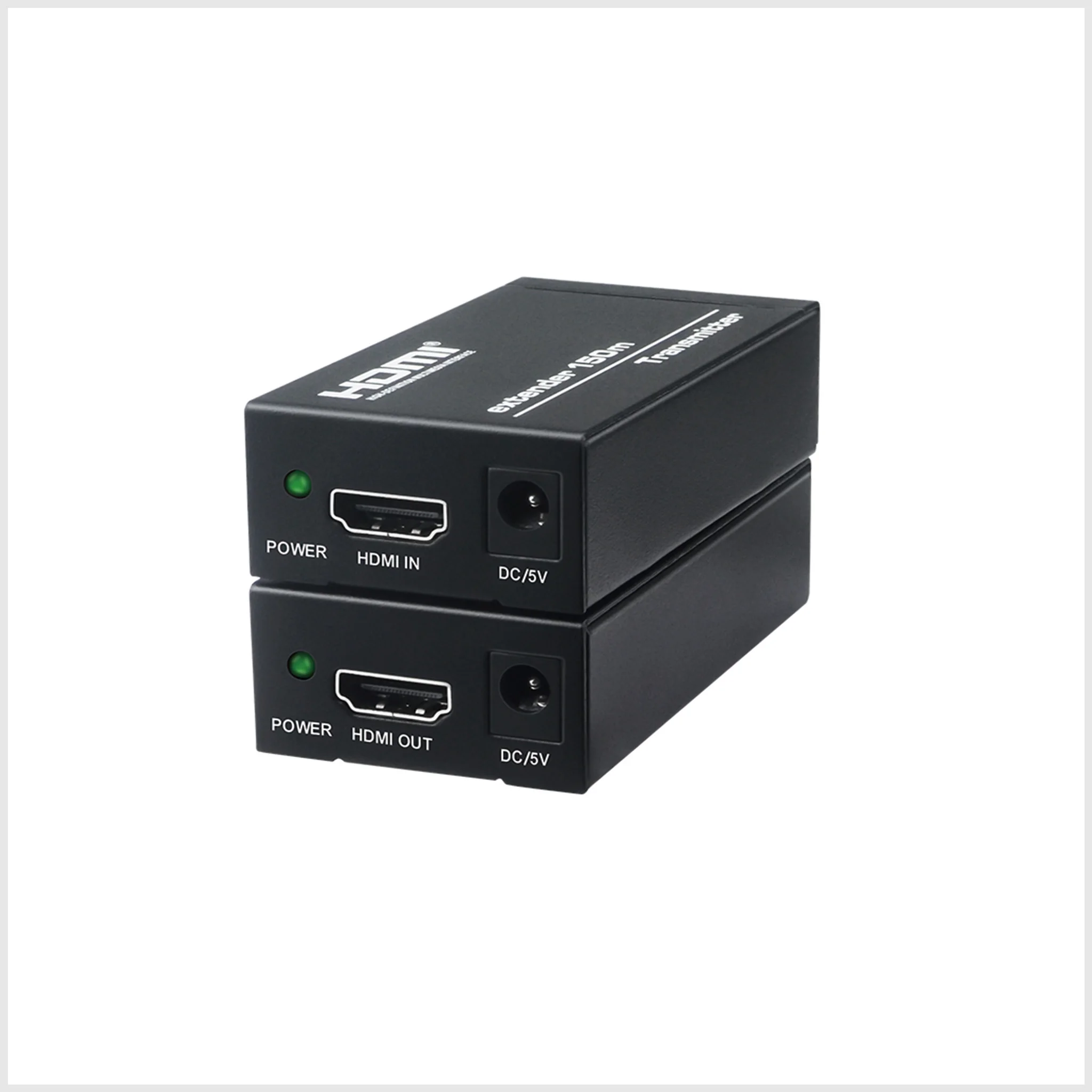

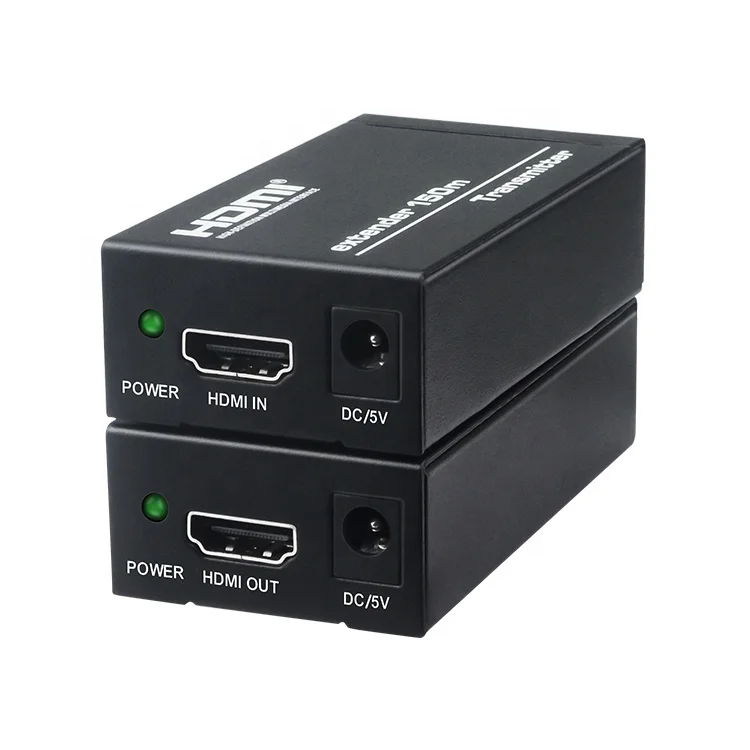

Physical interface diagram:

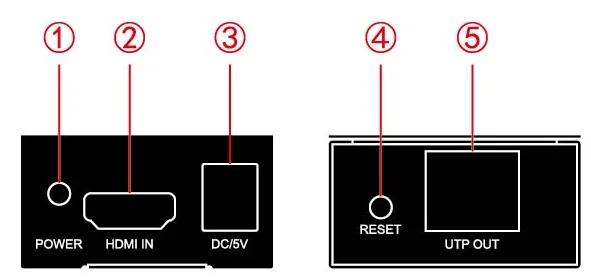

1. Transmitter





1. Power: This LED illuminates when the device is connected to power

2. HDMI IN: HDMI source input

3. DC5V: 5 Volt adapter

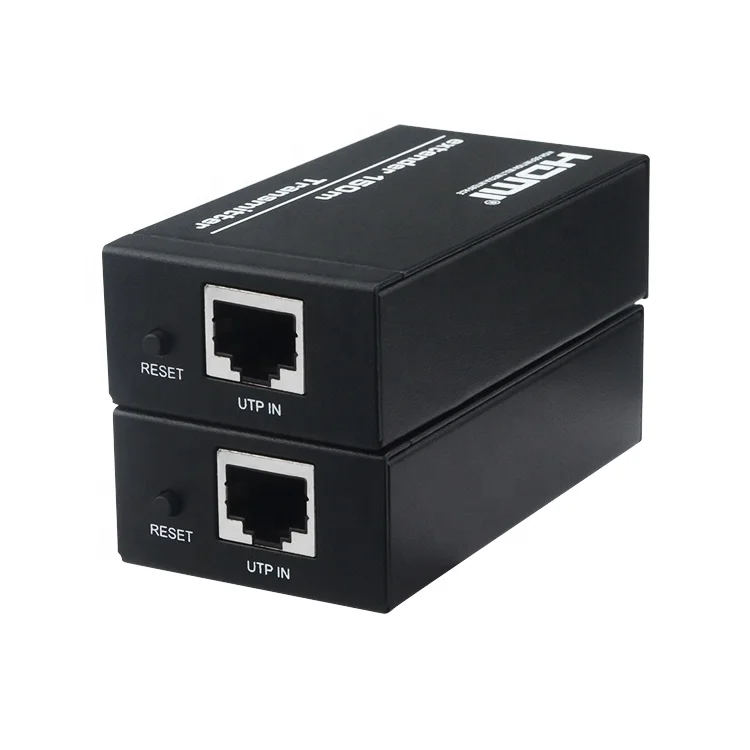

4. RESET: Reset button

5. UTP: Connect this port with Cat5e/6 cable

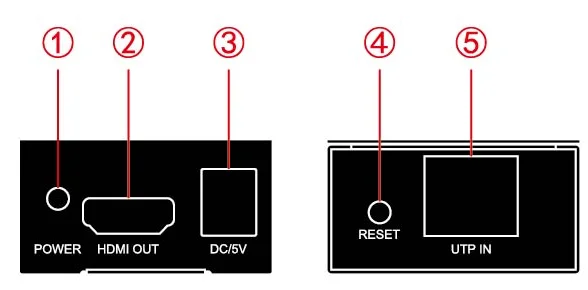

2. Reciever





Power	This LED illuminates when the device is connected to power
HDMI IN	HDMI source input
DC5V	5 Volt adapter
RESET	Reset button
UTP	Connect this port with Cat5e/6 cable

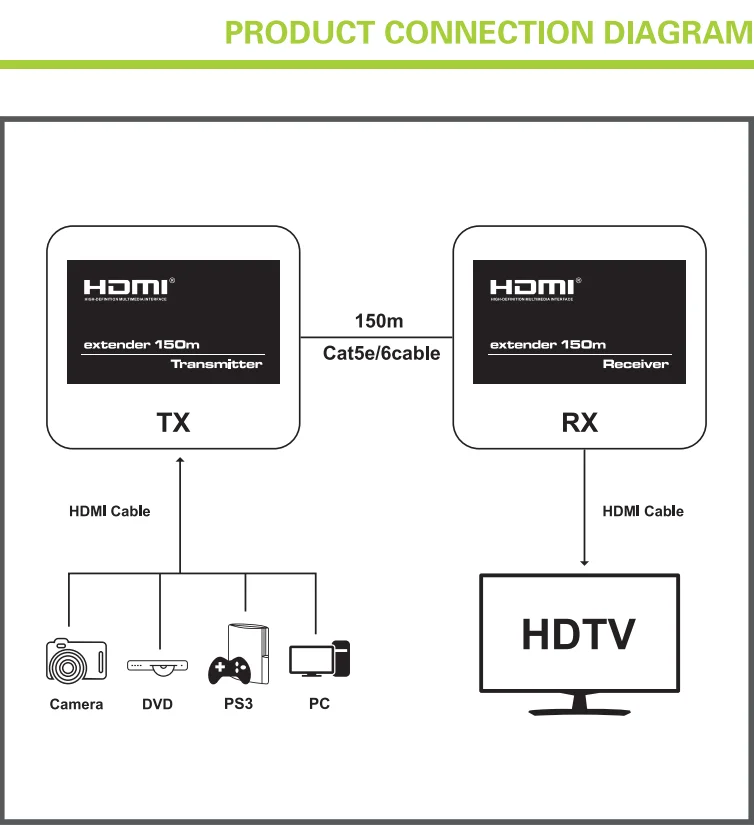

Application diagram:



Connection and Operation :

1: Connect the HDMI source device and HDMI Transmitter with HDMI cable.

2: Connect the HDMI receiver and the display device with HDMI cable.

3: Connect the UTP port of HDMI receiver and HDMI transmitter with cat5e/6 cable

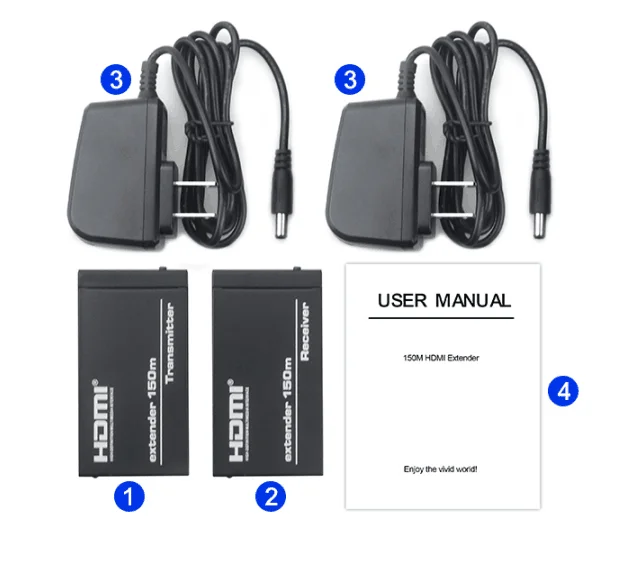

The Package includes :

1: HDMI Transmitter      x1pc

2: HDMI Receiver        x1pc

3: Power adapter 5V/1A   x2pcs

4: User manual          x1pc
