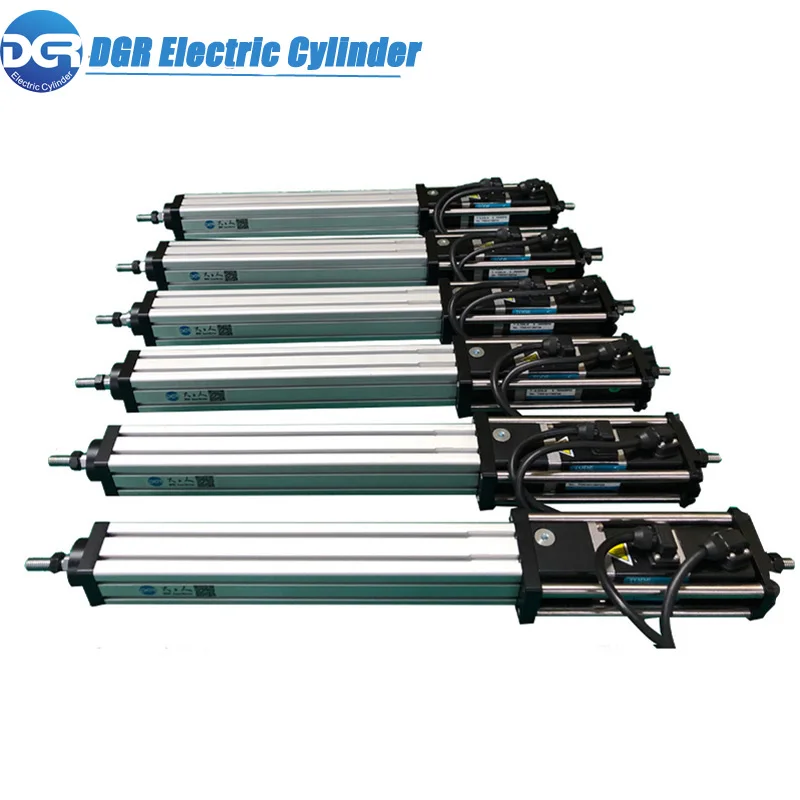

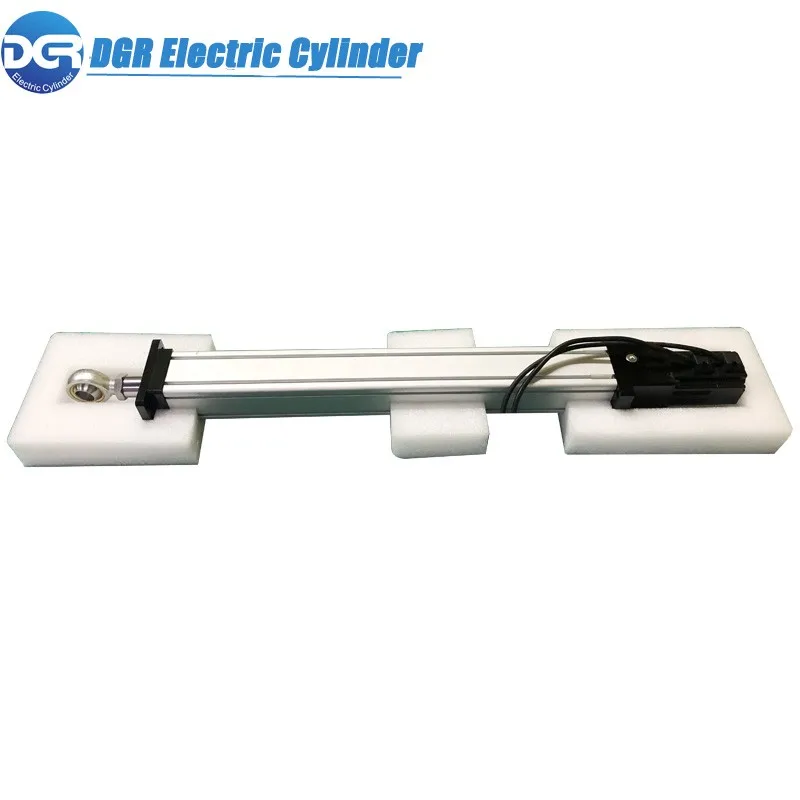

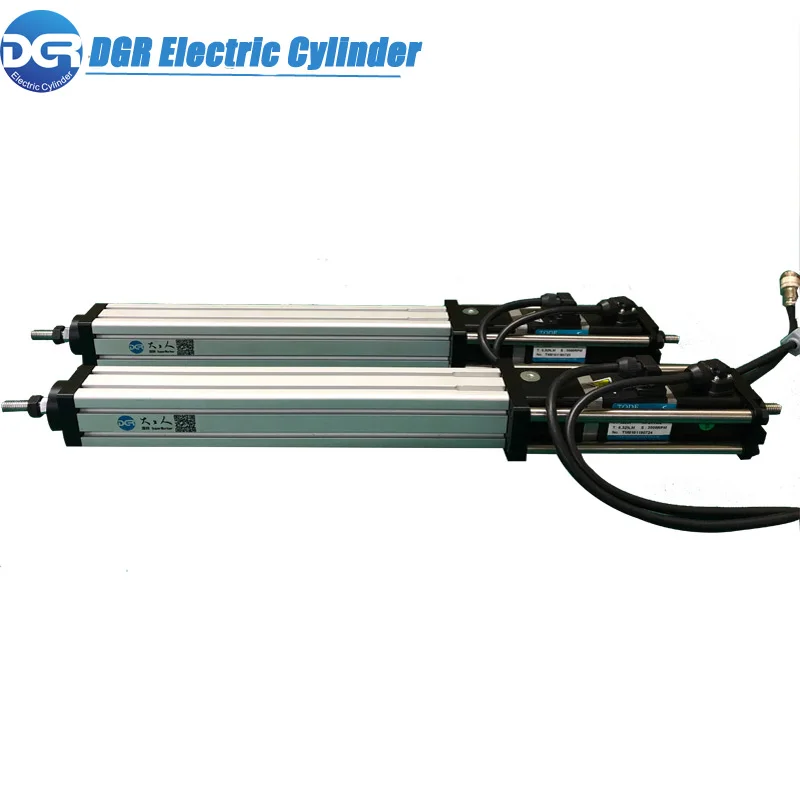

12v 24v 36v 48v DC Mini Linear Actuator IP68 Waterproof Stainless Steel

DGR-EC-39 12v 24v 36v 48v DC Mini Linear Actuator IP68 Waterproof Features :

High Accuracy

High precision, the processing of key parts is completed by CNC machining, and the machining accuracy is within 0.02mm.

High Reliability

Highly reliable, safety factor>2 ( PS: safety factor for key parts > 4), which is in compliance with metallurgical standard.

Long Life

Run over a distance of 100,000km

Wide Thrust Range

Select famous branded roller ball screws, ball screws and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.

Careful Material Selection

1.Select aluminum alloy for cylinder body, simple and light, beautiful appearance
2.Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)
3.Select internationally branded bearings and gears to achieve the best mechanical performance in mechanical structure
4.Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.

Refined Design and Processing

1.The connection between the screw nut and the piston rod is rigid
2.Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.
3.All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
4.Electric cylinder comes with anti-rotation mechanism by default
5.Professional machining processing equipment minimizes the cost.

6. Adopt domestic ball screw and bearing products, light load output, high cost performance

Excellent Service

1.Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)
2.DGR Electric cylinder can be custom engineered for customer's particular application.
3.5 years' experience in electric cylinder production.
4.All customer requirements will be responded within 12 hours

Duty Cycle

Ball screws are used for frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.

Complete Testing

Professional factory inspection: including appearance, mechanical properties, stability, noise decibels, etc.

Wide Selection of Motors

1.A variety of AC servo motors or stepper motors for option: such as Delta, Mitsubishi, Panasonic, Yaskawa and other brands
2.Motor comes with brake to ensure secure operation.

DGR-EC-39 12v 24v 36v 48v DC Mini Linear Actuator IP68 Waterproof

Entertainment

Six degrees of freedom motion platform widely used in a variety of simulation, entertainment equipment, robotic arms, dynamic seats in movie theaters.

VR Simulations

Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator

Automobile industry

Electric cylinder servo press is widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;

3D Robotic Billboard

The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.

Automation Industry

The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc

Shenzhen DGR Electric Cylinder Technology Co., Ltd.compared with other systems that use hydraulic pressure or air pressure as the drive source, the electric cylinder is directly controlled by an electric motor, and no intermediate medium such as oil and gas is needed to transmit power.

This can avoid systematic errors due to oil leakage and air leakage, so the electric control system has superior control performance, faster speed, higher carrying capacity and longer life than the hydraulic system.
