Chafing dishes hydraulic rotary dampers soft close damper
- Category: >>>
- Supplier: Xiamen Jingzhong Mold Co. Ltd.
Share on (62068440236):
Product Overview
Description
product picture
The lid is hinged so it won't become misplaced,
while the soft-close feature prevents guests from slamming the lid down and causing scratches.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
Hydraulic rotary dampers are used to control the dampening force, soften the movements and reduce speed.

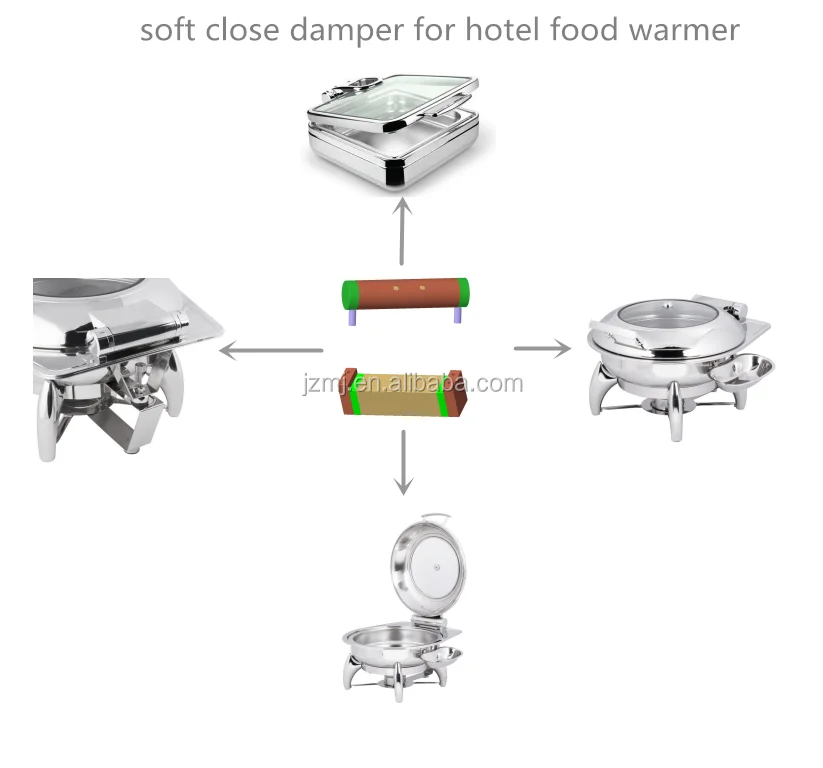

When dampers are used in the buffet heating stove, the cover can open and close slowly and softly.
JZ soft-closing dampers can not only effectively avoid damaging impacts and reduce noise, but also extend the equipment’s lifetime.
You will never need to be worried about the heavy cover trapping someone’s fingers anymore.
Product Description
| Model | Torsion |
damping direction |
Max. angle |
Operating temperature |
Weight (set) |
Body material | Oil type |

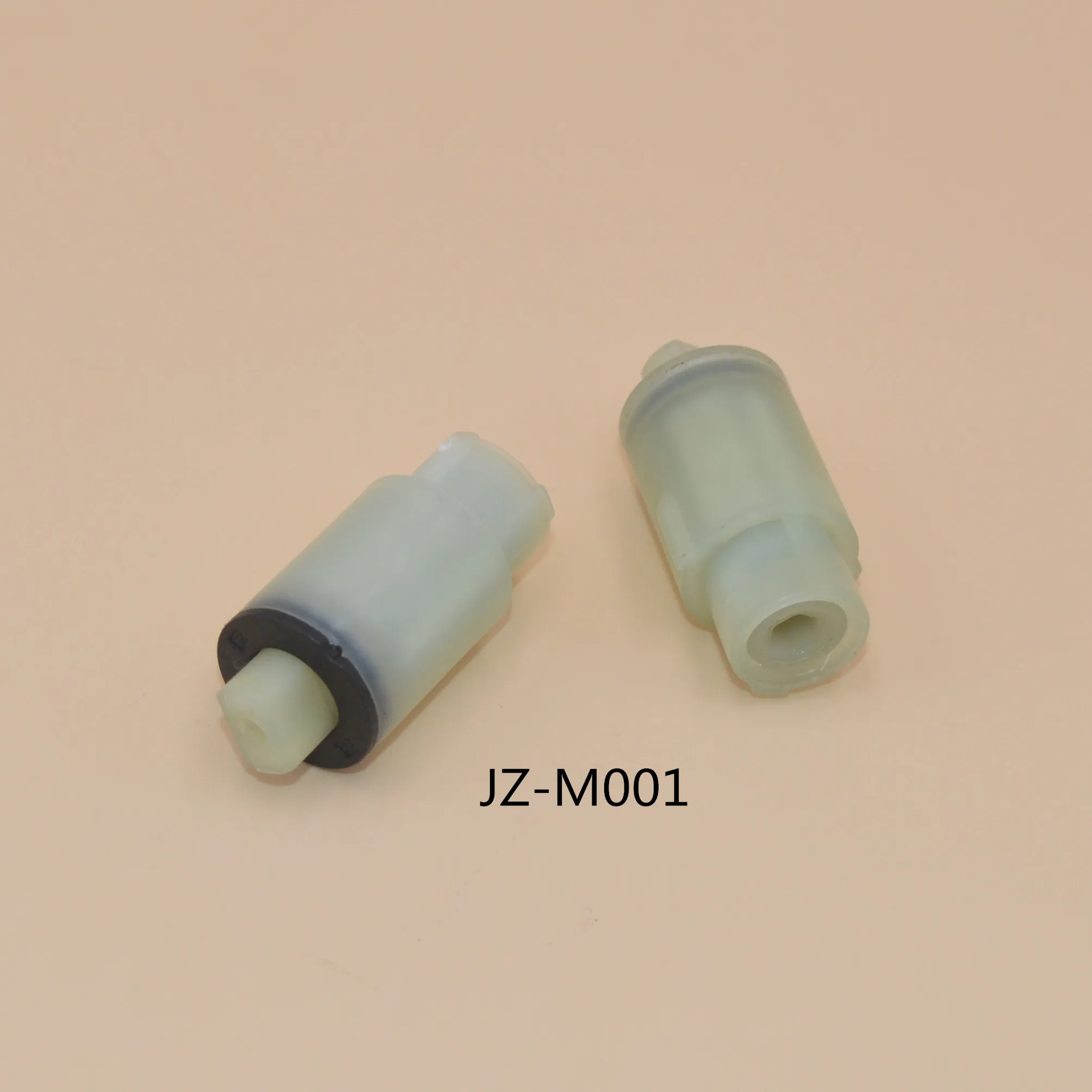

| JZ-M001 |
3Nm |
clockwise | 115° | -5~50℃ | 32g ± 1g |
PA66+50%GF 50%Glass Fiber) |
Silicone oil |
Max. angle 115°
Rotor shaft material PA66+50%GF (Nylon PA66+50%Glass Fiber)
Operating temperature -5 - 50°C
Weight(set) 32g±1g
Body material PA66+50%GF (Nylon PA66+50%Glass Fiber)
This product is manufactured in Xiamen,China.
------APPLICATIONS------
Buffet heating stoves

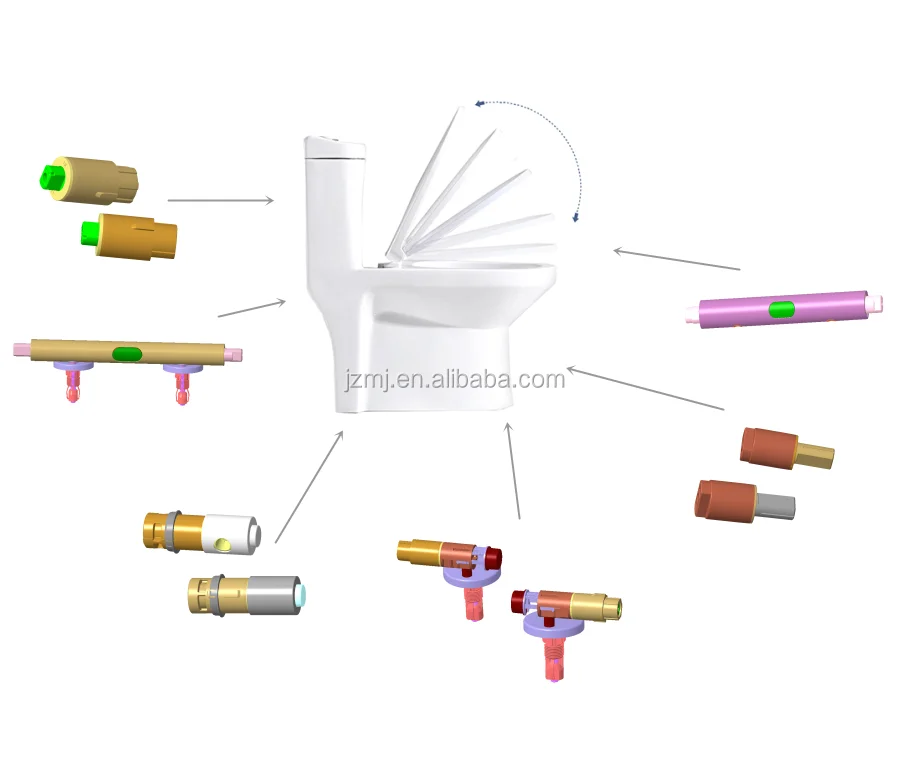

Toilet covers and seats
Washing machine covers
Other large-sized lids
Characteristics
| Damper characteristics vary according to the ambient temperature.In general, | ||||
| the damper characterics become weaker as rhe temperature increase,and become | ||||
| stronger as the tempereture decrease.This is because the viscosity of the oil inside | ||||
| the damper varies according to the temperature.When the temperature return to | ||||
| normal,the damper characteristics will return to normal as well. The changes in the | ||||
| time it takes for the lid to close are shown in the graph down below. | ||||
| The JZ-M001 series is a fixed type,its torque is non-adjustable.However,a customized | ||||
| order for torque between the range of 1~3Nm is possible by changing the oil viscosity. | ||||
| The damper's working angle is 115°,as shown delow. | ||||
| Rotating the damper beyond this angle will cause damage to the damper.Pls ensure | ||||
| that an external stopper is in place.The working angle based on the width across flat | ||||
| for fixing,located towards the rear end of the main body.The position where the rotation | ||||
| is complete is at 90° with respect to the width accross flat. |
our dampers
Packaging & Shipping

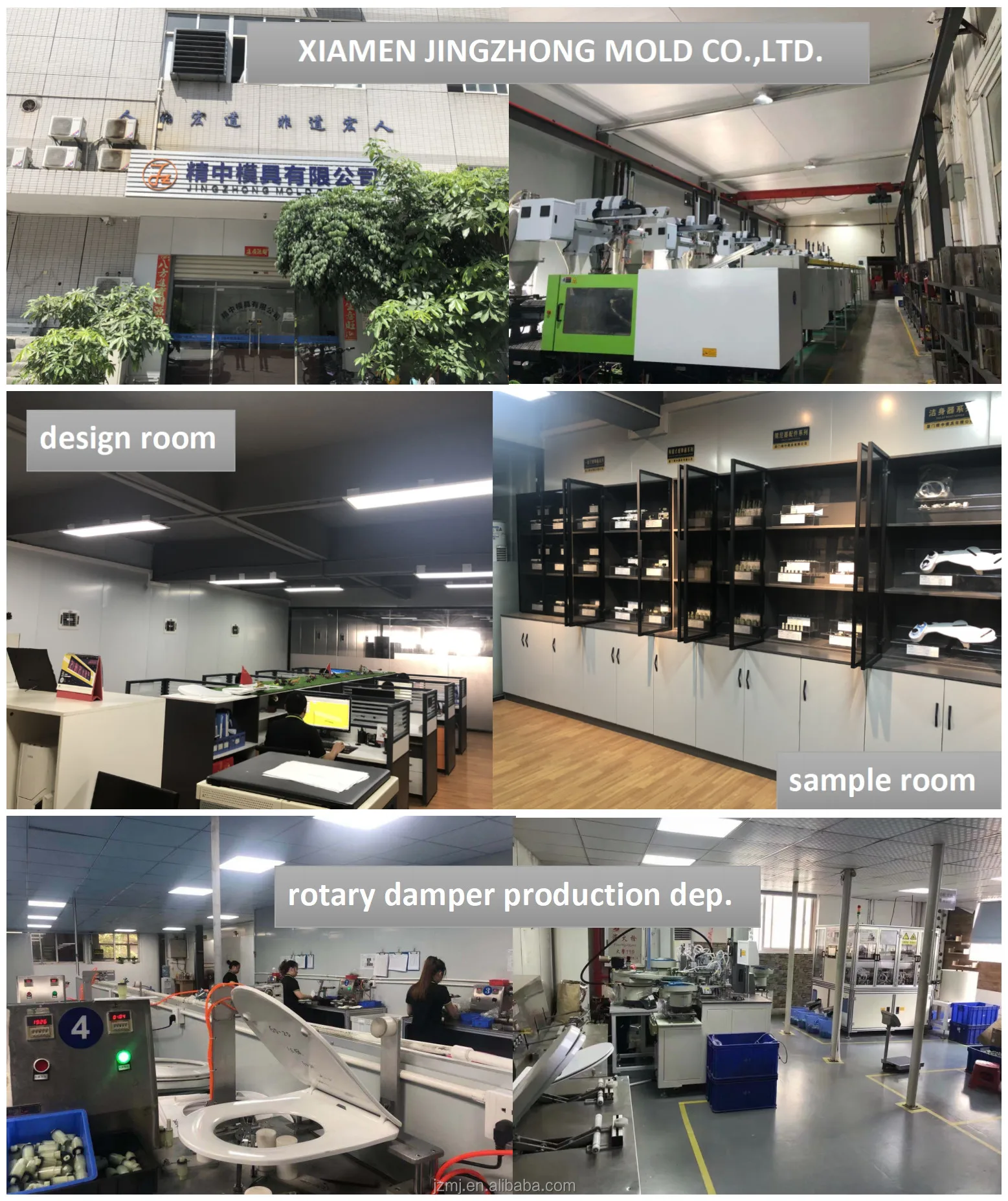

About us
