ZONTAI Paper Slitter and Rewinder Machine Slitting Rewinder 200m/min Production Capacity 1600m 2000mm Max. Workable Width

Share on (62068442858):


Price:

Quantity:


Product Overview

Description







Product Description

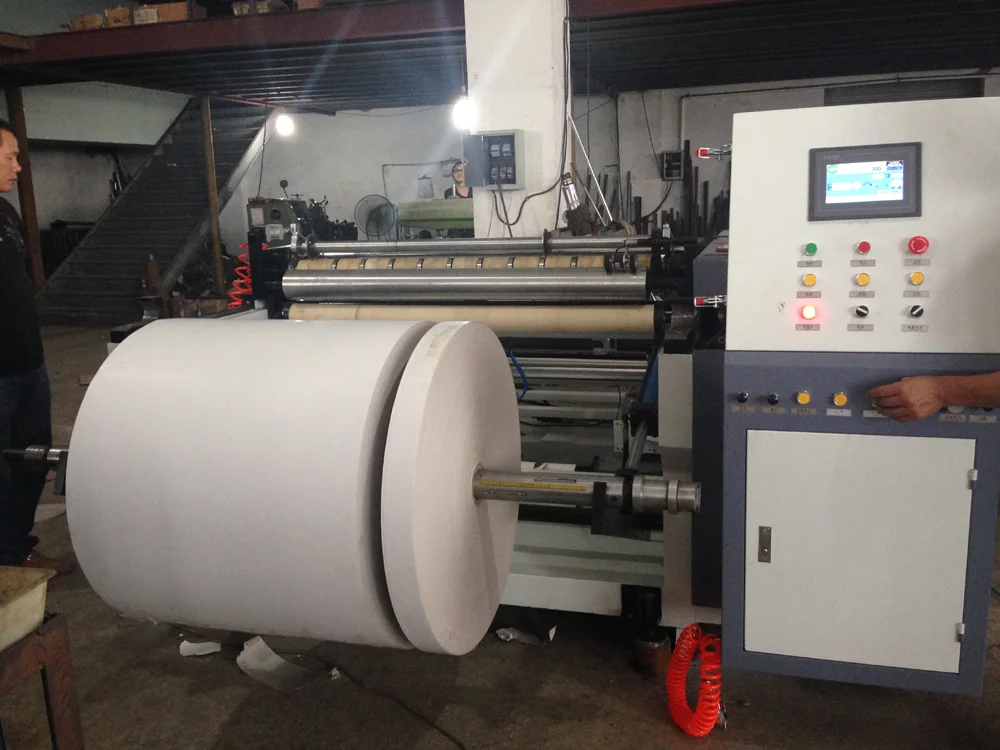

ZTM-B Paper Slitter and Rewinder Machine




Main technical parameter
Max width of material
1600mm/2000mm
Max unwind diameter
Ø1500mm
Max rewind diameter
Ø1500mm
Slitting speed
250m/min
Weight
4500kg
overall dimension (L X W X H)
4.9mx2.80mx1.8m
Min.slitting size
50mm
power supply
380V, 3phases




Main Features

1)  This slitting machine is suitable for slitting big jumbo roll of adhesive label paper, craft paper etc.

2). It adopts PLC with touch screen for convenient operation.
3)  Unwind part uses Pneumatic brake, and PLC calculates the diameters automatically to achieve constant tension.
4)  Rewind part is driven by vector motor, constant liner speed.
5)  rewind part uses hydraulic lifter to lift rewind rolls.
6)  Hydraulic auto loader is used for unwind mother roll, and auto unloader in rewind roll, it save human cost and time.
7)  EPC system is used in this machine, the photocell and hydraulic webguide are for optional.
8)  This system has advantages of Start Buffer, Stop without loose; Meter setting; Speed Setting; Diameter calculate etc.

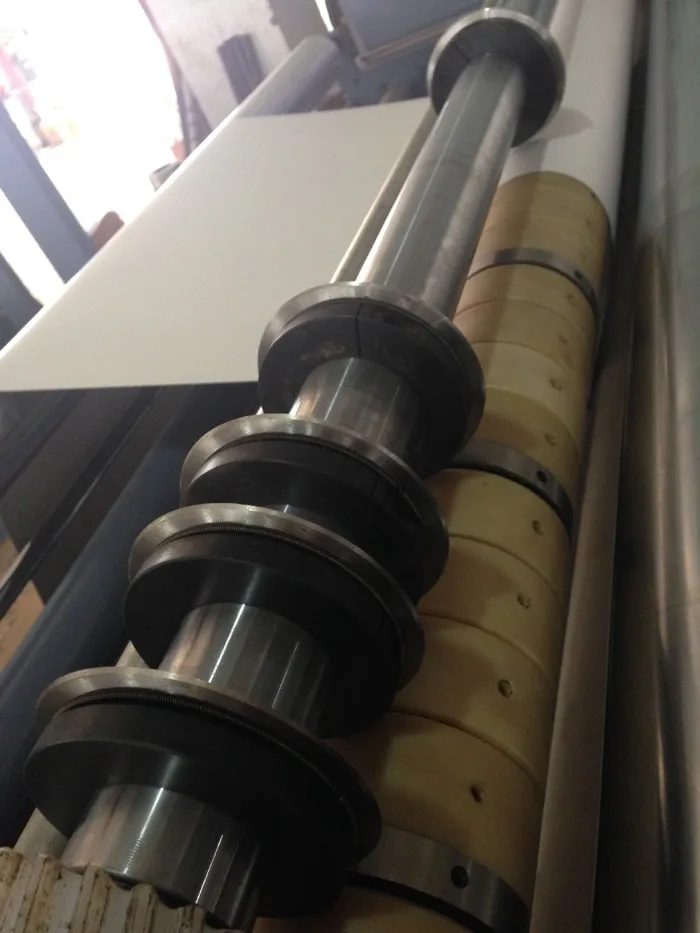

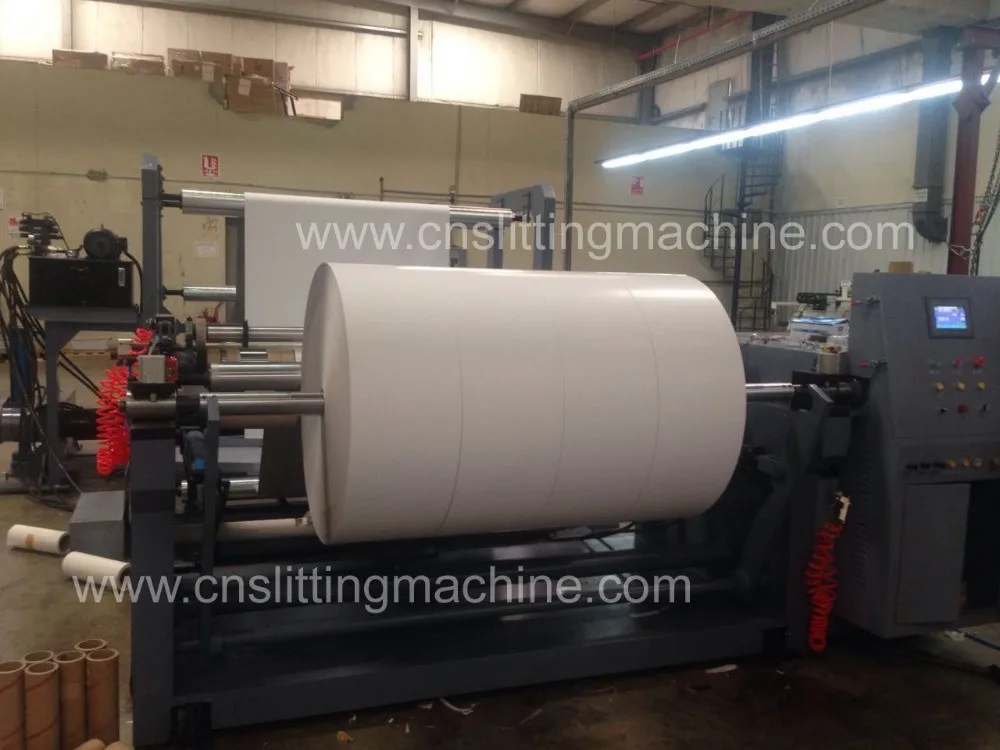

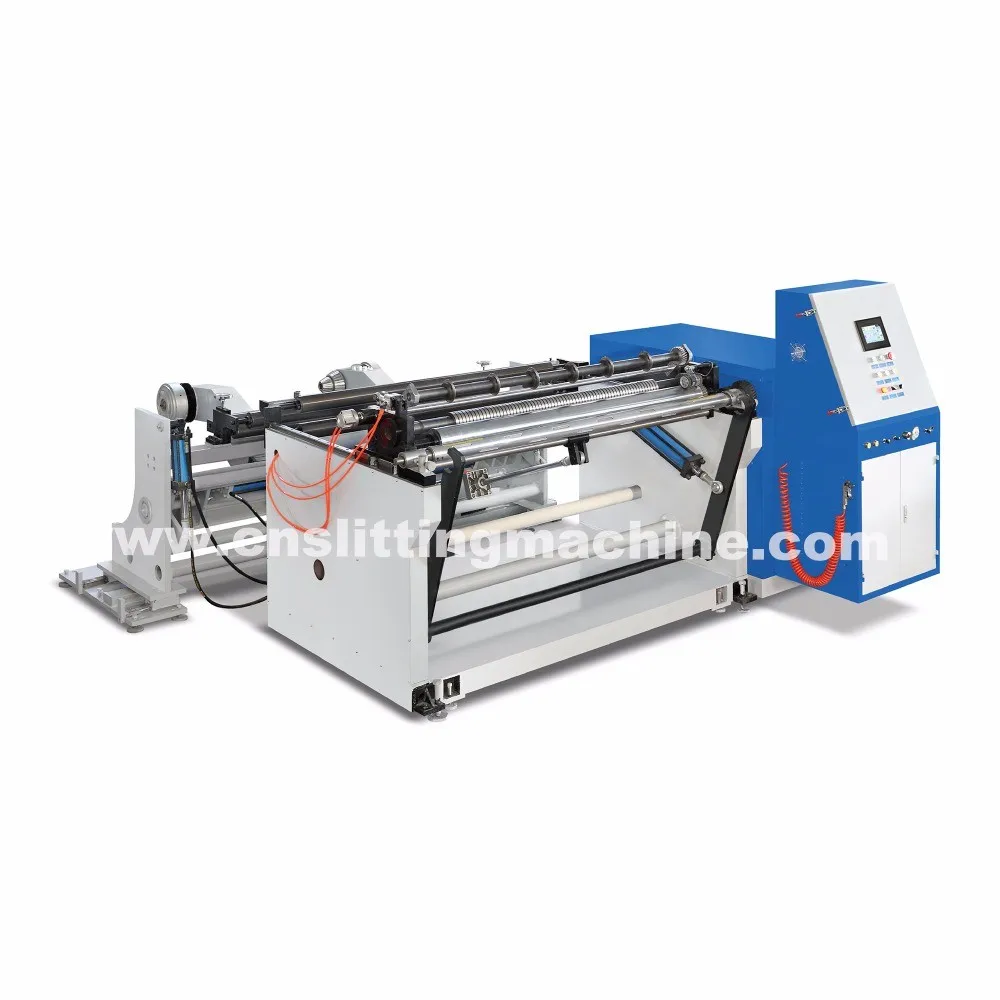

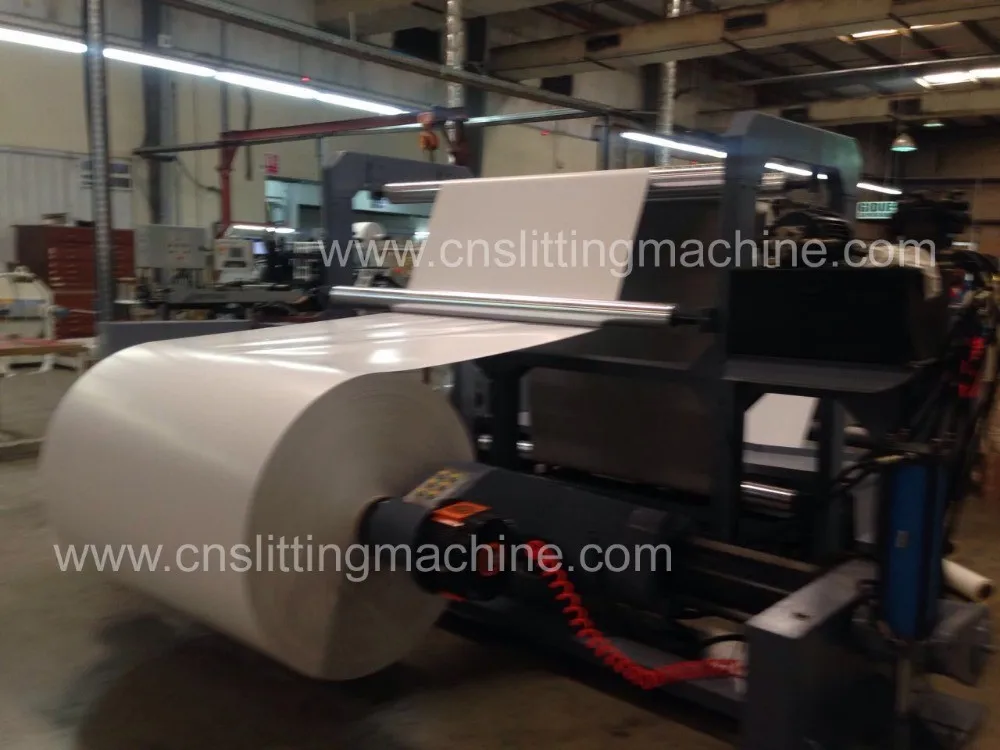

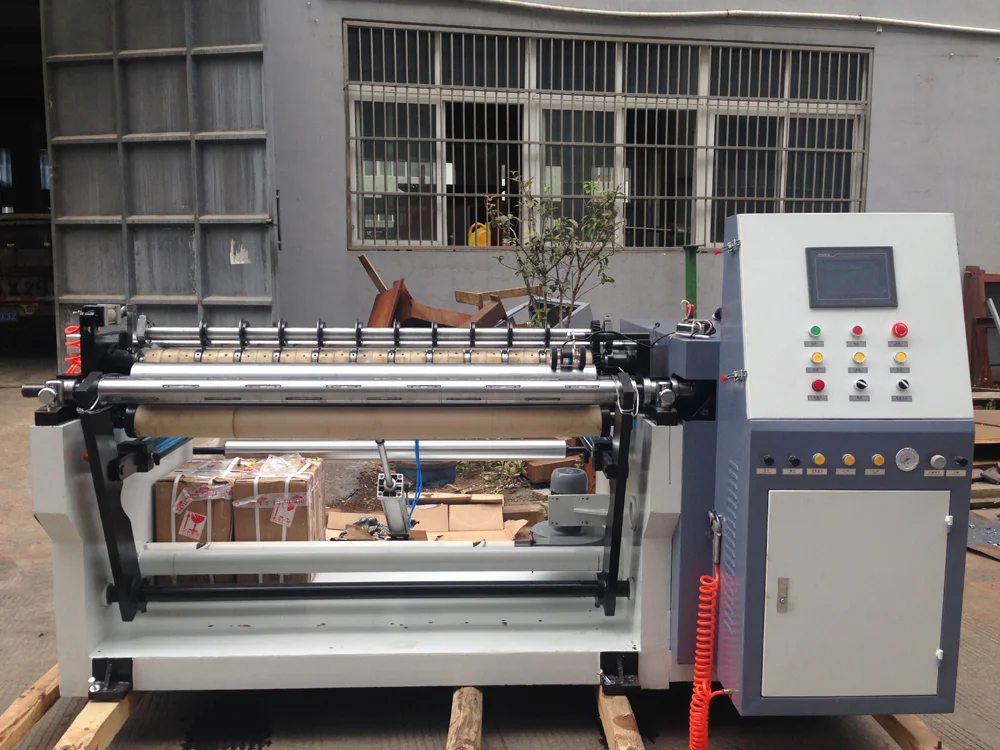

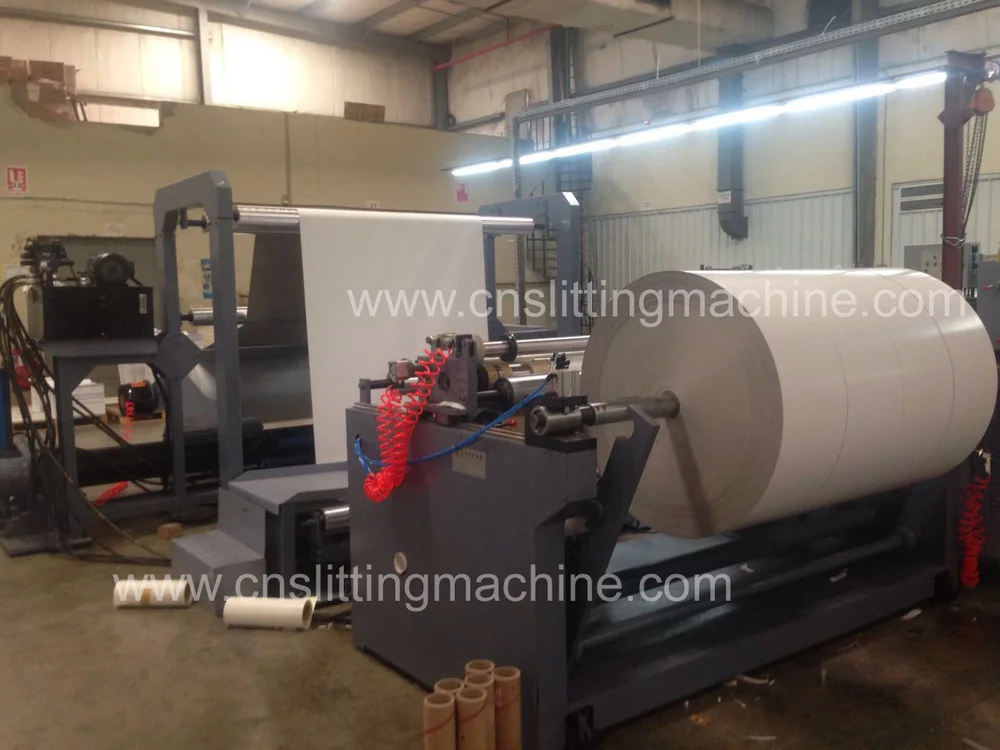

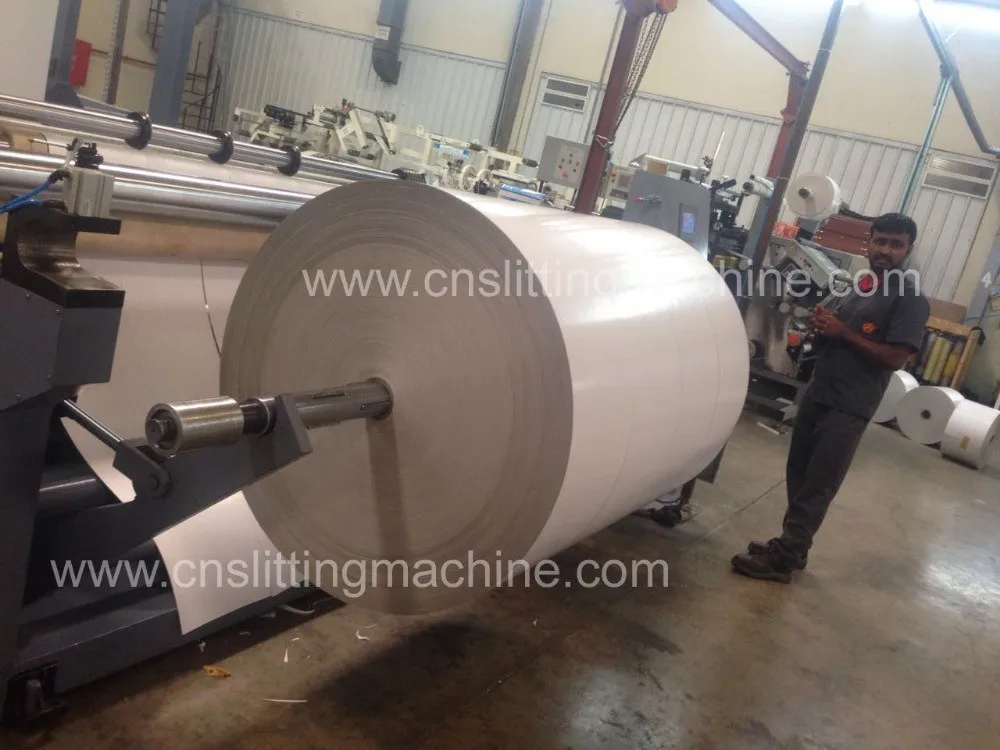

Detailed Images
