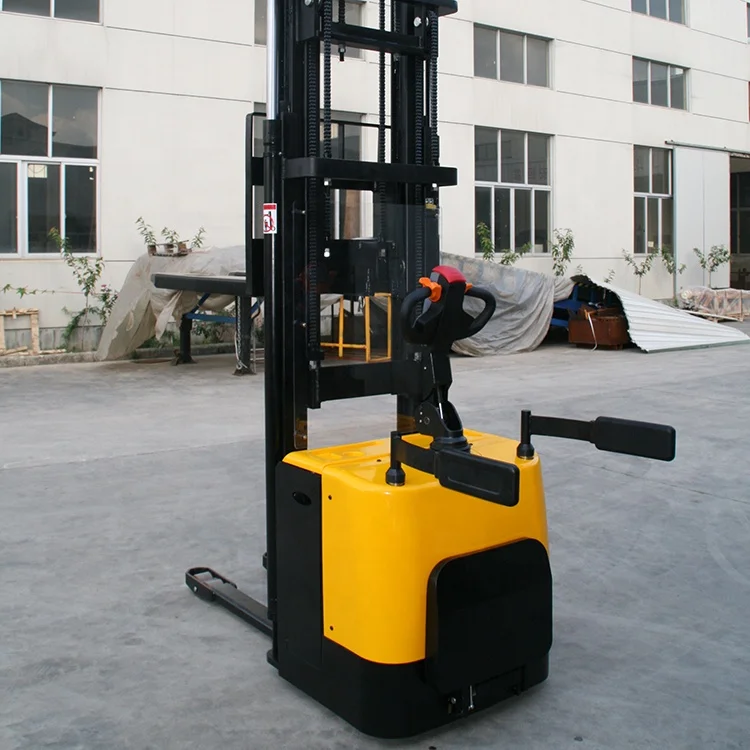

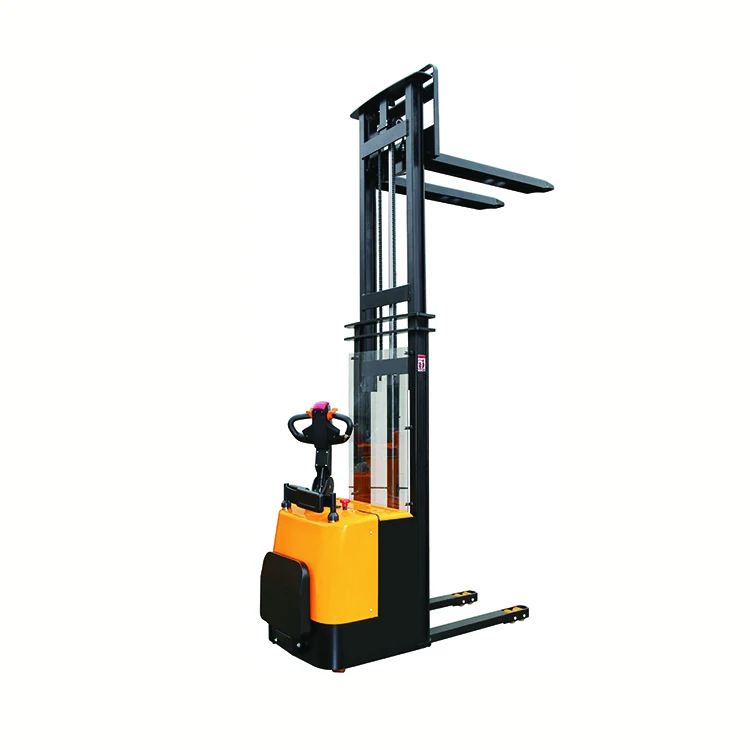

Electric stacker manual forklift material handling equipment
- Category: Forklifts >>>
- Supplier: Ningbo Cholift Forklift Co. Ltd.
Share on (62068526735):
Product Overview
Description
Product Details
| Feature | full electric stacker | |
| Model | QDA-E | |
| Drive | Battery | |
| Load Capacity | kg | 1000 |
| Load Center | mm | 500 |
| Center of drive axle to fork | mm | 780 |
| Wheel Base | mm | 1355 |
| Weight with Battery | kg | 1220 |
| Wheel | PU | |
| Overal Height | mm | 2050 |
| Min. Fork Height | mm | 85 |
| Lowered Mast Height | mm | 2080/1830 |
| Max. Lifting Height | mm | 3000 |
| Ground Clearance | mm | 30 |
| Overal Length | mm | 1750 |
| Overal Wideth | mm | 790 |
| Fork dimansion | mm | 60/142/1070 |
| Fork Wideth | mm | 570/660 |
| Drive speed, laden / unladen | km/h | 3.5/4 |
| lift speed, laden / unladen | m/s | 0.1/0.2 |
| Turning Radius | mm | 1390 |
| Travel Brake | Electromagnetic brake | |
| Drive Motor power | kw | 0.75 |
| Lifting motor power | kw | 2 |
| Battery Voltage/ nominal capacity | V/Ah | 24/75, 24/120 |
| Battery Size ( Length*Wideth*Height) | mm | 650*197*530 |
| Steering | Power Steering |
