IP68 3 Wires 2.5mm Power Cable LED Flood Lighting 2pin 3pin Waterproof Connector
- Category: D-Sub Connectors >>>
- Supplier: Shenzhen Weichat Technology Co. Ltd.
Share on (62068531577):
Product Overview
Description

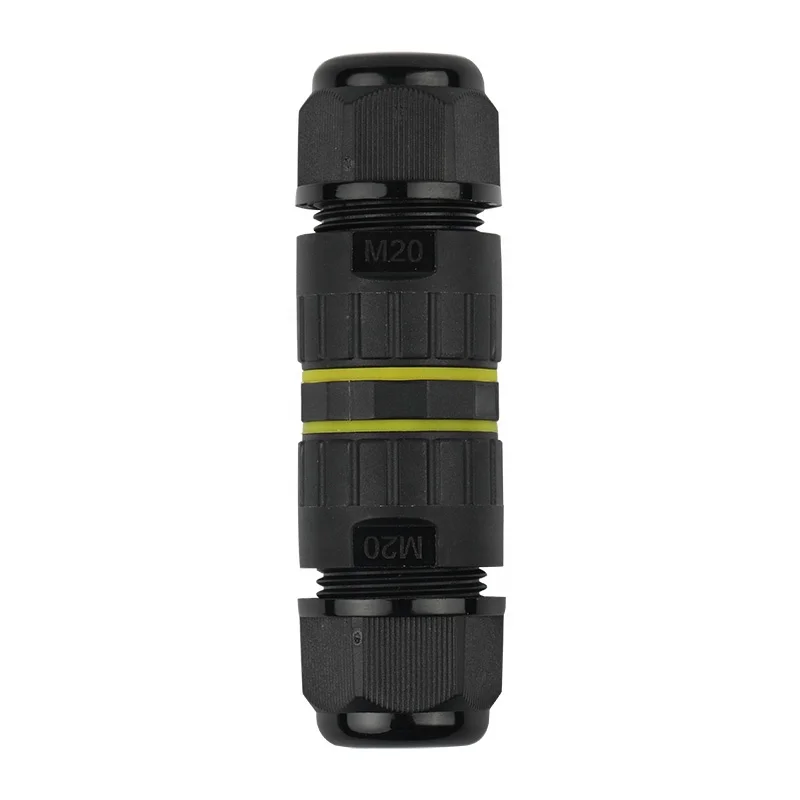

IP68 3 Wires 2.5mm Power Cable LED Flood Lighting 2pin 3pin Waterproof Connector
Product Description
| WHAT ARE THE DETAILS OF E-WEICHAT WATERPROOF CONNECTORS? | |

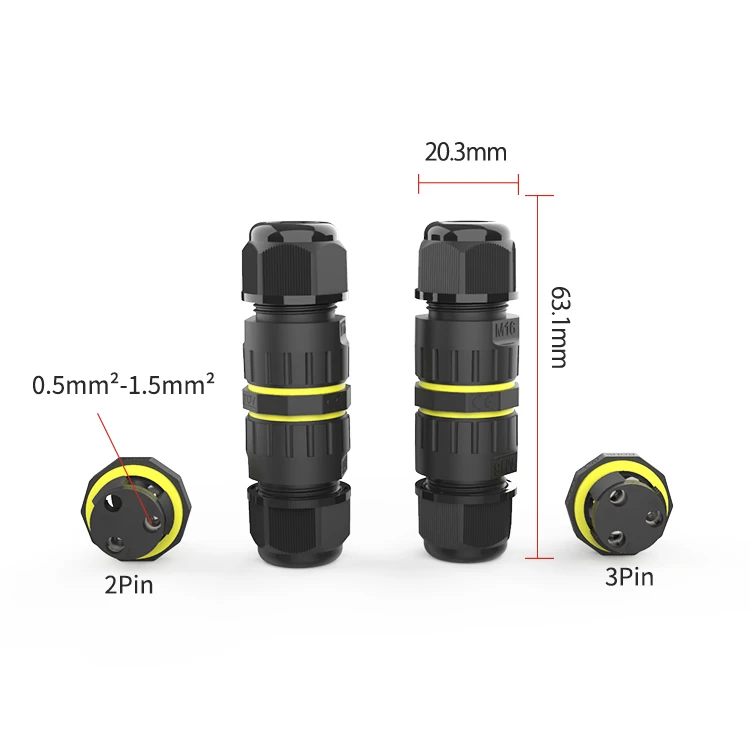

| Number of Poles | 2 Pin/ 3 Pin |
| Operating current | 17.5A |
| Operating voltage | 400V |
| MECHANICAL CHARACTERISTICS | |
| Protection against solid/water (IP) | IP68(4m, 365 days) |
| CABLE CHARACTERISTICS | |

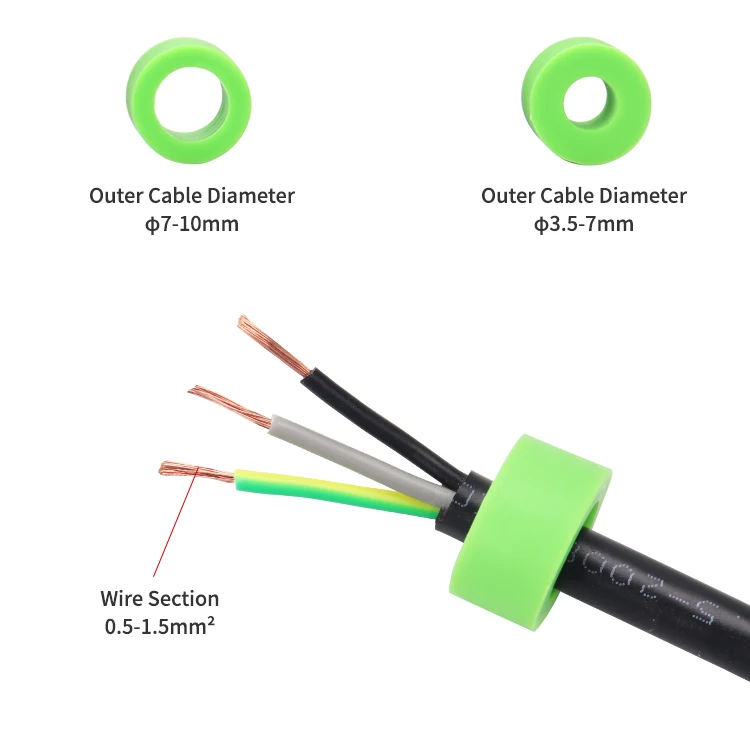

| Wire cross-section min.-max. (stranded cable) | 0.5mm² - 1.5mm² |
| Wire cross-section min.-max. (solid cable) | 0.5mm² - 1.5mm² |
| Cable Diameter min-max | 3.5-7mm; 7-10mm (for cables with diameter cables please take the proper accessory) |
| WORKING CHARACTERISTICS | |
| Temperature | -40℃ - 105℃ |
| MATERIAL CHARACTERISTICS | |
| Connector housing | PA66 UL94-V2 |
| Cable gland | |
| Sealing | Silicone |
| Contacts | Nickel-plated Brass |
| Screws | Zinc |
| Material properties | Halogen Free |
Click here for more information!
Why choose us?
| Why Choose E-Weichat IP68 Waterproof Connector |
A full range of IP68 rated environmentally sealed circular power connectors designed to provide secure, robust and watertight connections in heavy-duty, industrial & harsh environment applications.
Click here for more information!
Application
E-Weichat ip68 waterproof connector has applied for LED(Architectural lighting/Floodlight/Wall Luminaires/Street light/indoor appliances/Urban luminaires/Spotlights).
Product Details
| Product Details Pictures |
| 01 | UL Nylon PA66 Raw Material E-Weichat ip68 waterproof connector made of high-quality raw material, with highly reliable performance. |
| 02 | Strict Quality Control Strict production process. Intergrity, Quality, Excellence. |

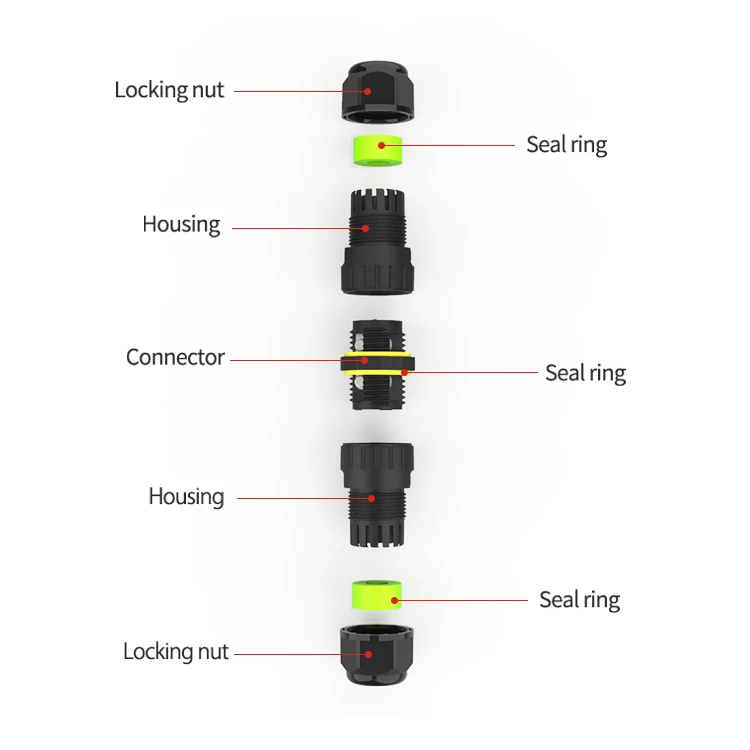

| 03 | High Tenacity Tighten Claw Special design for the claw and seal, more easy to install, larger locking wire range, and anti-elongation. |

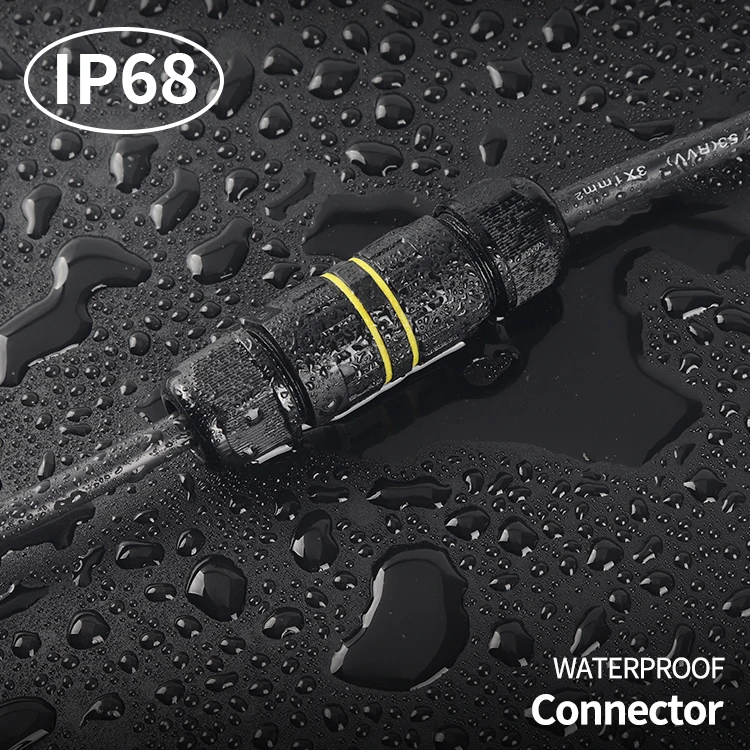

| 04 | IP68 Waterproof Rate Suitable for outdoor lighting quick connection and external wiring. |
Related Items
Factory Show
Shenzhen Weichat Technology Co., Ltd
Shenzhen Weichat Technology, established in 2016, is a professional manufacturer engaged in the research, development, production, sale and service of IP68 Waterproof Connectors, Cable Gland, Push Wire Connector.
We are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including injection molding machine; Automatic assembly machine; CCD tester machine and punch machine.
In addition, we have obtained ISO90001/TUV/UL/SAA/CE/ROHS certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as (Europe/USA/Australia).
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Packaging & Shipping
Trade term: EXW, FOB, CIF Port: Shenzhen Sample Availability: Yes Packing: carton box
Payment: T/T, Western Union, etc.
Shipment: ocean or air transportation, international express.
Normal lead time: 2 days for sample order; 7-15 days for the production.
FAQ
1. Can I use it under the water?
Our connector is reached IP68, you can use it underwater.
2. Can I have a sample order?
Yes, welcome order samples to test and check quality.
3. What about the lead time?
We have this item in stock, mass production needs further discussion.
4. What's your after-sales service?
We provide technical support for you, also can help you to solve your customers' problem.
5. Could I print my logo on the waterproof connectors?
Yes. We welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our sample.
6. Which kind of wire connector can I use?
Kindly tell us your cable diameter, wire cross-sections to help us recommend the suitable models.
