Medical automatic human sperm quality semen analysis analyzer price

 Medical automatic human sperm quality  semen analysis analyzer price

Functions and configuration of sperm quality analysis system

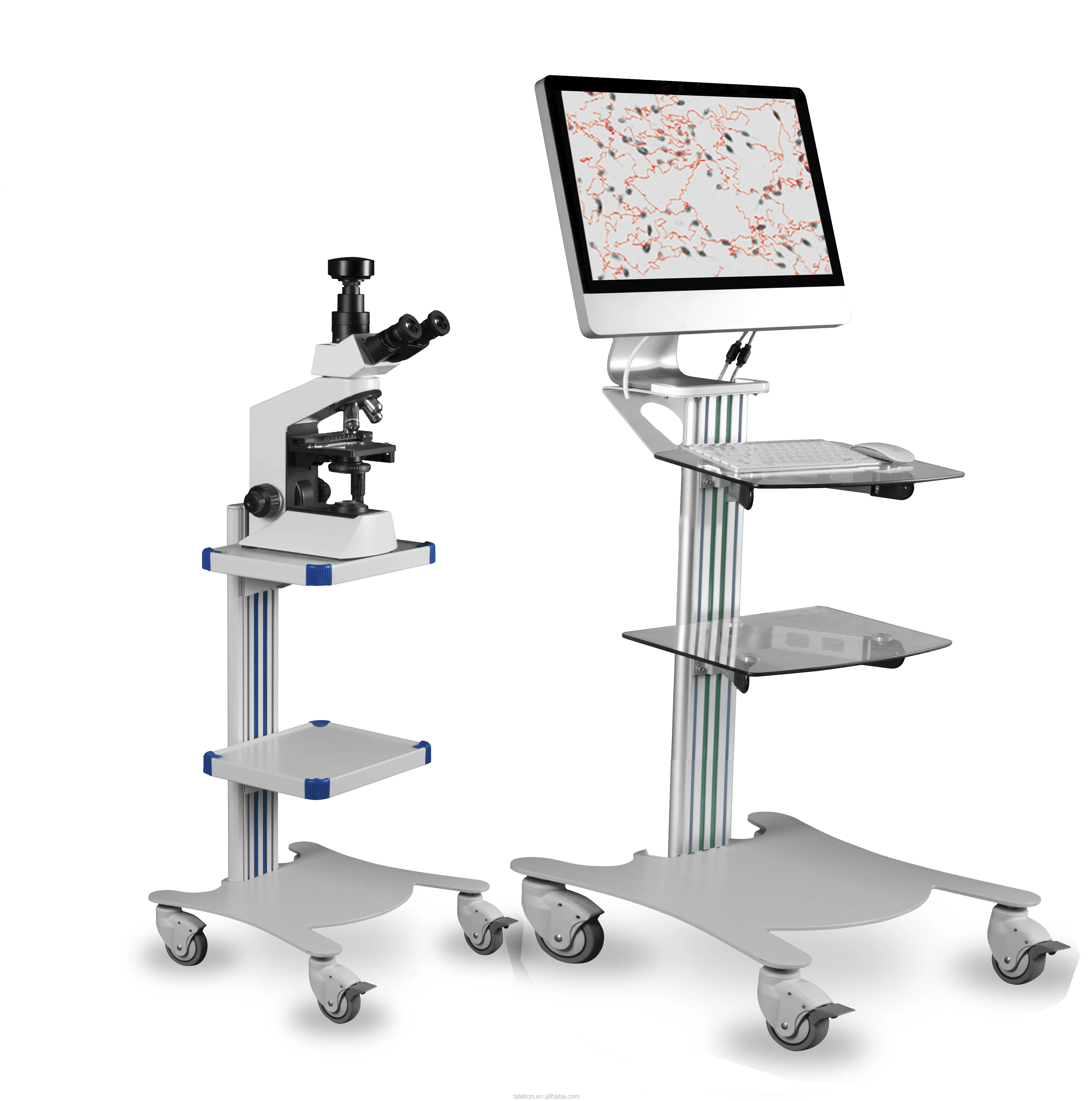

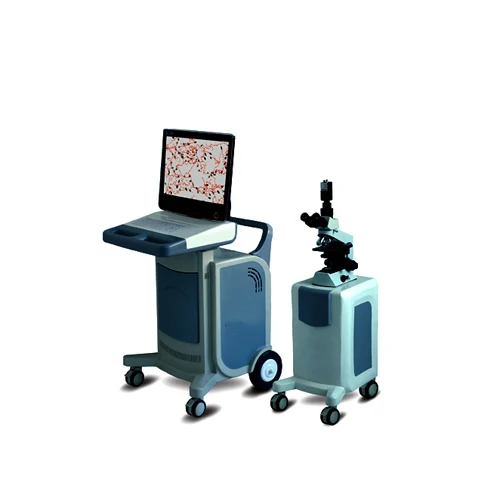

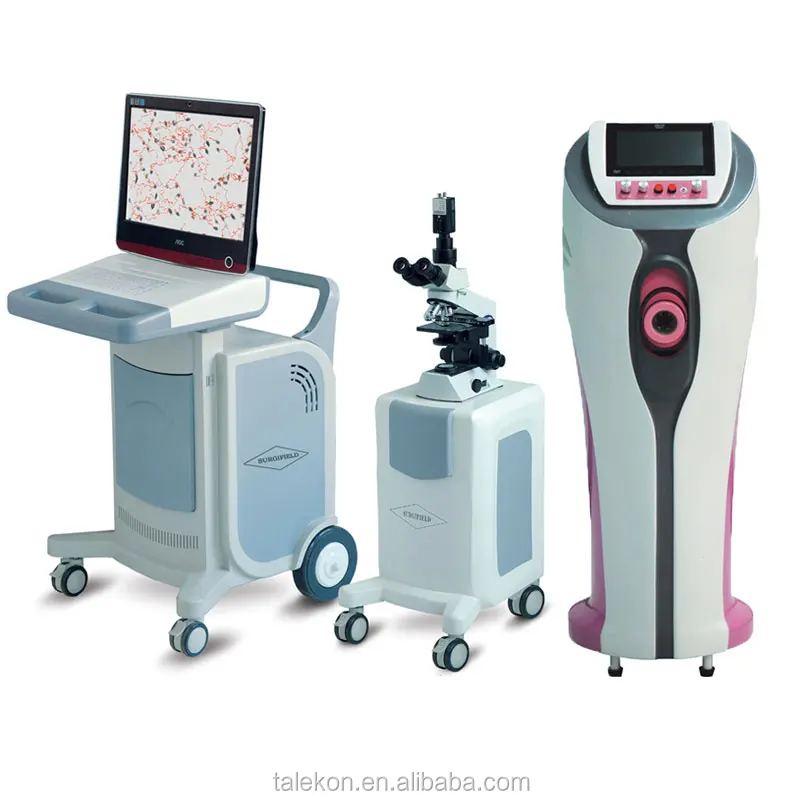

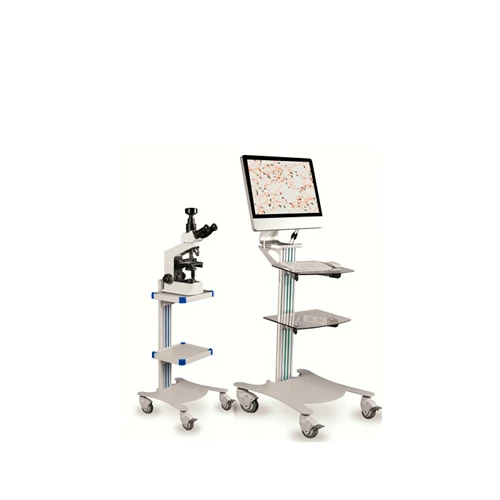

Apparatus Introduction

It's a kind of high-tech intelligent product used in modern reproductive medicine with the combination of computer image processing technology and advanced artificial intelligence technology .It can be used for automatic identification of sperm and automatic tracking of sperm movement fast ,finishing the analysis for a number of parameters in conformity with the WHO international standards and taking comprehensive quantitative analysis of sperm activity and static characteristics.It is suitable for clinical semen test ,providing an important scientific basis for male fertility .

Apparatus Features

1. It Can filter out all kinds of impurities which are different from sperm to ensure the

accuracy of test.

2. Scatheless test can ensure the sperm'  s natural motion state and monolayer

sampling.

3. All the data and dynamic static images of sperm examination for patients are

digitally stored. It can used for variedly querying, modifying, adding up, and printing

inspection reports, and also be shared to within the networking freely.

4, Advanced morphological analysis software, clearly and intuitively colorful picture.

Examination Items

1. Sperm density,survival rate of the sperms,the movement locus of sperms ,and distribution curve of sperms movement .

2. Average speed ,total number of the sperms ,total numbers of motile sperms ,survival rate of  the sperms in the curvilinear motion of the sperms .

3. Average speed ,total number of the sperms ,total numbers of motile sperms ,survival rate of the sperms in the rectilinear motion of the sperms .

4. Average speed ,total number of the sperms ,total numbers of motile sperms ,survival rate of the sperms in the average path motion of the sperms .

5. Graded speed of sperms motion :the survival rate of A rapid motion forward, B slow motion forward, C non travel forward , D hyperslow or motionless of the sperms

6. The side-way amplitude of sperms ,sperm wing,whipping frequency of sperms ,the rate of rectilinear motion ,total number .

7. Linear speed ,average speed of motion ,the sperm's number of linear motion.

 Technical Parameters

Maximum of the tested sperms :1000

The range of test speed :0--180 µ m/s

The frame number of picture :0--75

Resolution of particle diameter : 0--150 µ m/s

The analysis time :1--5 seconds or longer

Group number of collected images :1--15 groups

Applicable magnification of microscope objective lens :10×. 20× .25×. 40×

The displayed content of sperm test system is no less than :1) distribution curve of static sperms.

2) the features data of semen and statistical data from analysis of all the main functions.

3) Sperm dynamic trajectory curve .

4) Display various sperms motion speed and energy isarithmic map of sperms.

5) Case information for management such as patient's name .

The output content from sperms test system is no less than :

1)the main technical data of sperms .

2)Sperm dynamic trajectory curve.

3)Analysis and determinant histogram

4)Case information for management such as patient's name .

1. Technical support by 18 hour-online service provided.


2. Technical documents service provided.


3. Operation training service provided.


4. Spare parts replacement and repair service provided


5. 18 Month Warranty provided.
