2019 LED SKD bulb making machine / LED lamp gluing machine /LED bulb gluing making machine

Project:

Automatic Dispensing Glue Machine(4 heads)

Dimension:

L500mm*W500mm*H680mm

Quantity:

1set

Description:

Desktop multi-station round disk design, improve space utilization .

Independent self research and development of dispensing system software, the simple understanding interface , easy to master

Can replace 5 to 10 workers, cost savings, productivity increased substantially

The accuracy is high, it economizes glue, finished product without trimming

Workshop environment improvement, customer satisfaction, enhance plant exploration.

Features:

1.Casing materials choose 3 mm thick cold plate, solid and stable, beautiful appearance

2. The industrial PLC, text control, convenient operation, feel comfortable

3. Precision motor drive, reciprocating move precision and reliability .

4. Pneumatic parts adopt imported pneumatic components, fast response speed, long service life

5.The unique rotary valve design, the glue is rapid, Stable glue exudation without glue leaking and dripping.

6.Four indexing disk design and improve the efficiency and capacity up to 1500 pieces per hour

7.Programmed to whole point dispensing, can also be segmented circular point glue, single point /dot dispensing

8. Adjusted hand wheel + slider design,set position more easily

Tech-specifications:

1.

Tech-specifications:

Control mode: PLC

Programming:Text demonstration programmer

Drive Mode:Micro stepping motor/belt

Rotary disk diameter:240mm

Max dispensing diameter:110mm(4 heads)

Motor Speed:0-300 round/min

Position accuracy:±0.1mm

Z axis adjust type:Trapezoidal screw

Z axis adjust Range:250mm

Z axis throw:30mm

Environment requirement:

Working power:AC220V/50~60Hz/200W

Gas pressure:0.4~0.6Mpa(without mist)

Working Temperature:Room temperature

Quotation:

USD2300 FOB ZHONGSHAN.

1,suitable glue:300ml one-component silicone glue.

2,Fixture:handsel the fixture of E27&E14 each machine .

Remark :

1.

shipment:

The buyer is responsible for the shipment .

2.

Delivery:

Within 7 days after receipt your deposit .

3.

Payment Term:

30% deposit ,the balance before shipment .

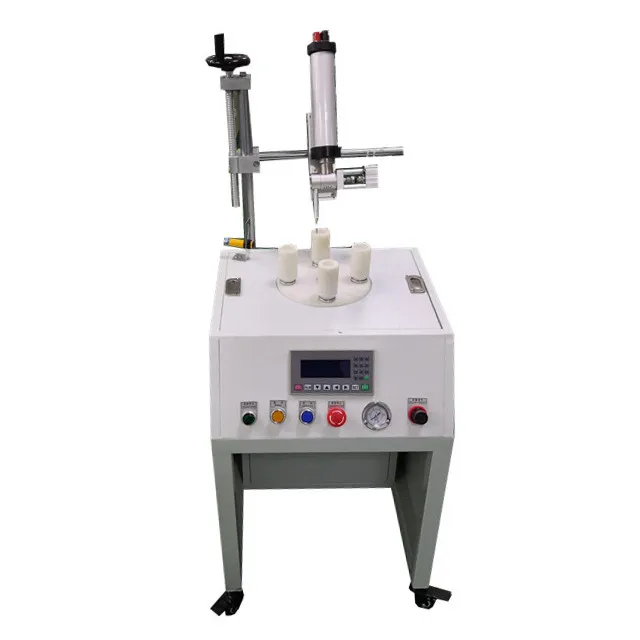

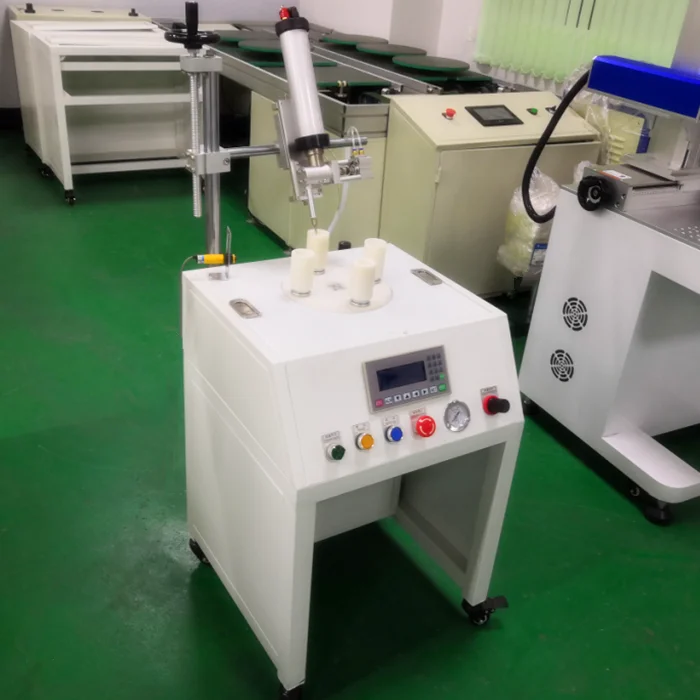

Reference picture:
