PE-20WD type automatic laser scribing equipment is suitable for monocrystalline silicon and polycrystalline silicon solar cell scribing processing, equally average transverse cutting 56 * 156 mm specifications cell.
Devices have automatic operation function, including automatic material feeding, automatic identification, automatic scribing, automatic splitting, automatic sorting, automatic discharging, dust filter dust removal.
II. Product Features
1. Adopting advanced fiber laser source which is suitable for long service life, free of maintenance, 24 hours continual working with excellent beam quality;
3. High conversion efficiency: lower operation cost, compact equipment volume;
4. Self-developed software with powerful function and humanized operation design.
III. Product Structure
1.The machine is fully enclosed except two connecting ports for loading and unloading.
2. Front port adopted high-tech automatic feeding mechanism.
3. Automatic positioning mechanism
4. Automatic adsorption and extraction dust removal system
5. High-speed motion scribing laser head
6. Automatic breaking mechanism
7. Automatic detection and automatic identification system
8. Front port adopted high-tech automatic sorting, unloading mechanism.
IV. Technical Data
Laser power
20W
Pulse frequency
35KH
Scribing speed
220mm/s
Spot diameter
0.03mm
positioning accuracy
±0.05mm
Dividing
1/2
Scribble time
0.9s/p
Processing time
1500p/h
Fragmentation rate
≤0.3%

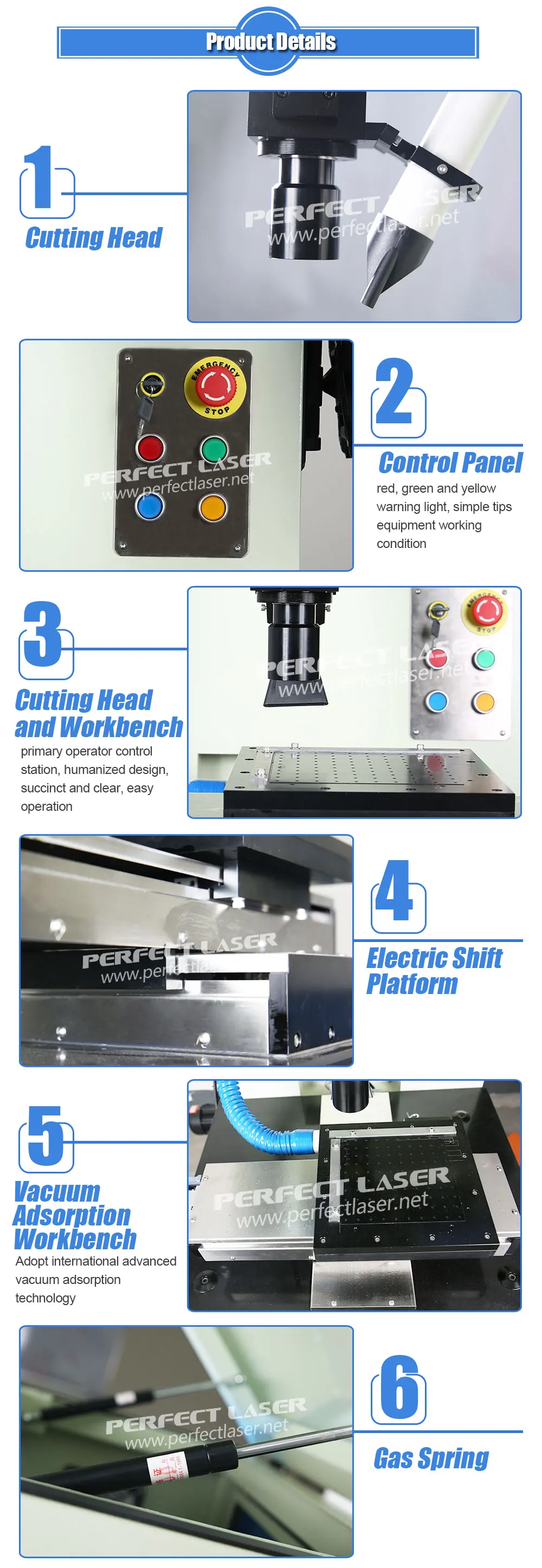

Detailed Images
Terms &Conditions :
1.Payment terms: T/T, L/C, West Union, paypal 2. Delivery lead time: 5-7 working days after receipt of the advance payment. 3. Delivery method: by sea or air shipment. 4. Packing: compound wooden cases with exporting standard.
Guarantee :
We have one year guarantee for the machine.We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine.
Welcome inquiry! photos, videos, PDF are all available!We will response within 2 hours.
