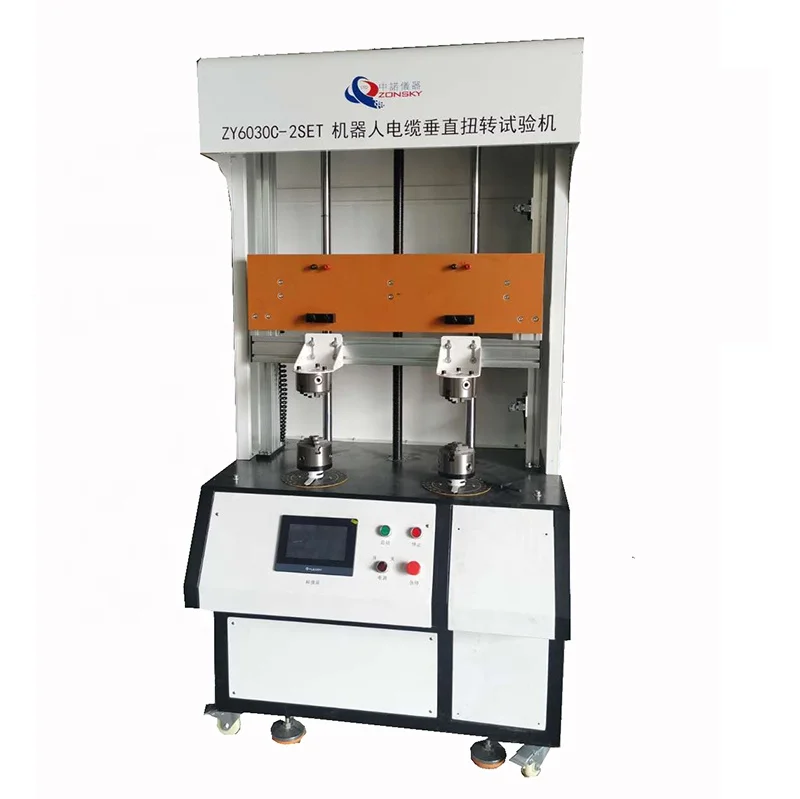

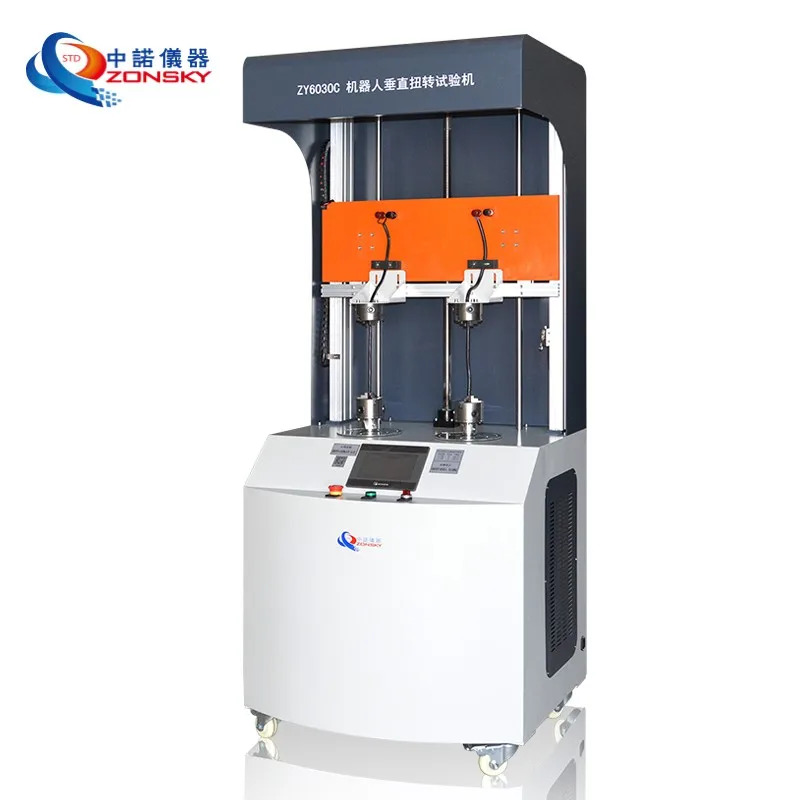

2 Sets Robot Cable Torsion Testing Machine

1. Application

Suitable for high flexible cable testing requirements such as TUV, VDE, UL, etc. The structure of the machine is a tandem 2-station, which is mainly used for the repeated torsion test of the longitudinal installation of the metal wire to detect the plastic deformation performance and the obvious defects of the metal wire in the repeated torsion test.

2. Standards

Comply with the standards of CRIA 0003.2-2016 "Industrial Robot Special Cable Part 2: Test Method" standard of China Robot Industry Alliance Standard;

Meets TUV Rheinland 2 PfG 2577/08.16 Appendix H standard requirements.

3. Technical parameters

(1) Test station: 2 stations

(2) Maximum diameter of sample: Ф3~20mm

(3) Motor: Japan Matsushita servo motor

(4) Power supply: 220V, 50/60Hz 10A

(5) Control mode: touch screen control

(6) Counting digits: 0-99999999 times

(7) Bending angle:±180° digital setting

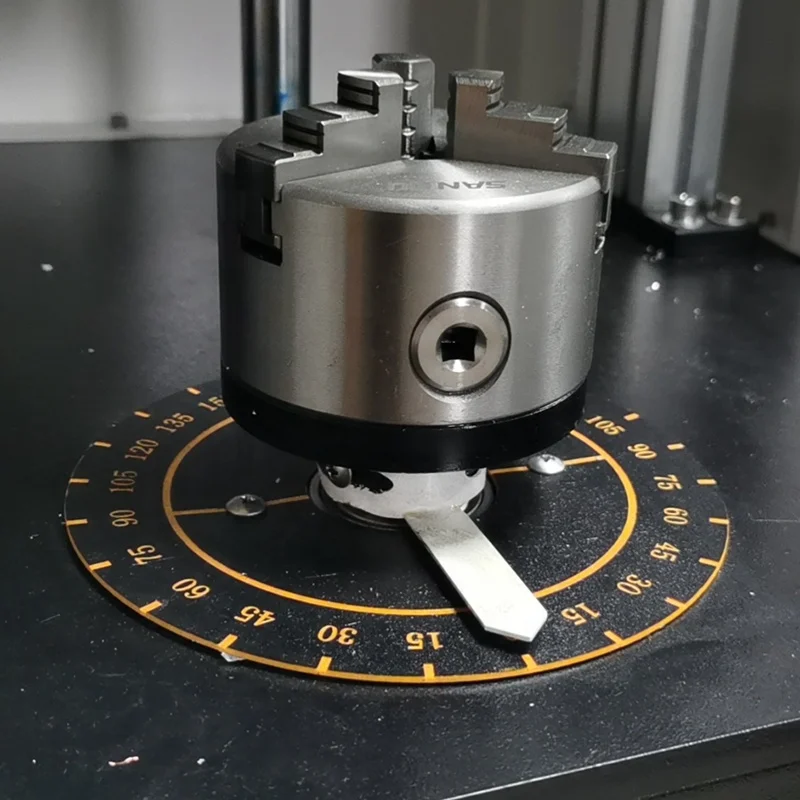

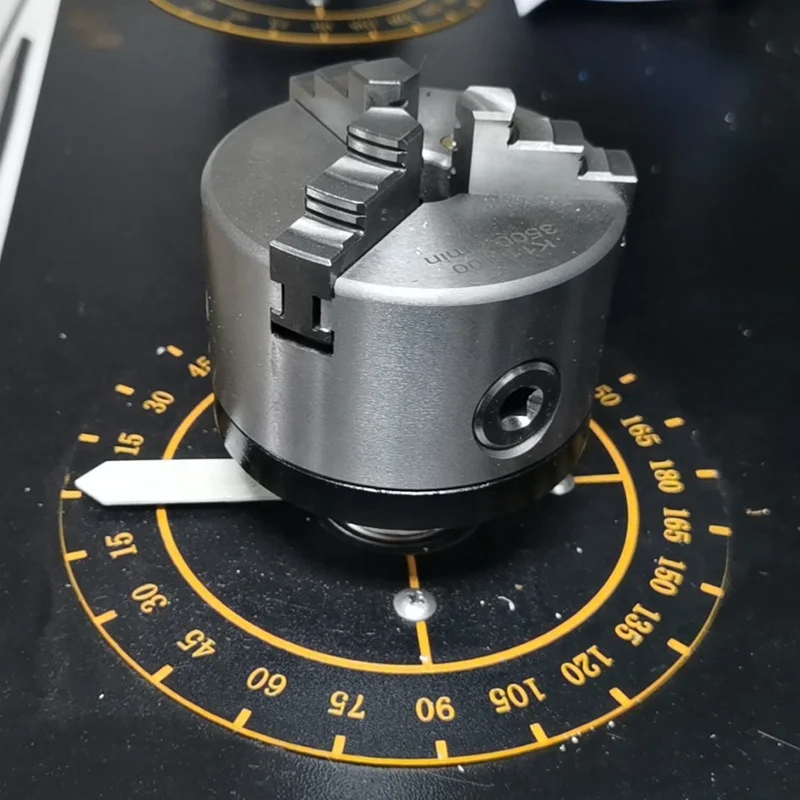

(8) The distance between the fixture and the torsion point: 50~500mm adjustable

(9) Turning speed of sample: 0~60 times/min is adjustable (Note: test cycle is composed of 4 steps)

(10) Machine material: Main part: 45# high-quality steel structure; power and transmission: imported industrial synchronous belt and synchronous wheel; test bending cylinder: high quality PVC cylinder, wall thickness about 10mm

(11) Machine size: W1080 * D900 * H1430 mm
