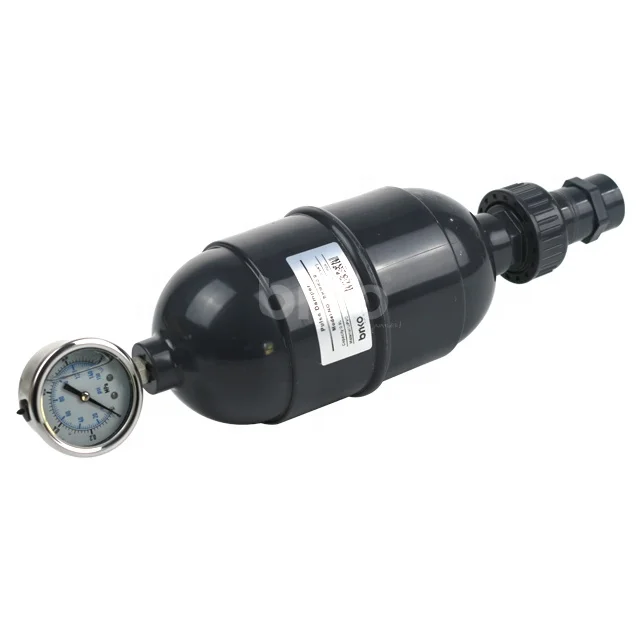

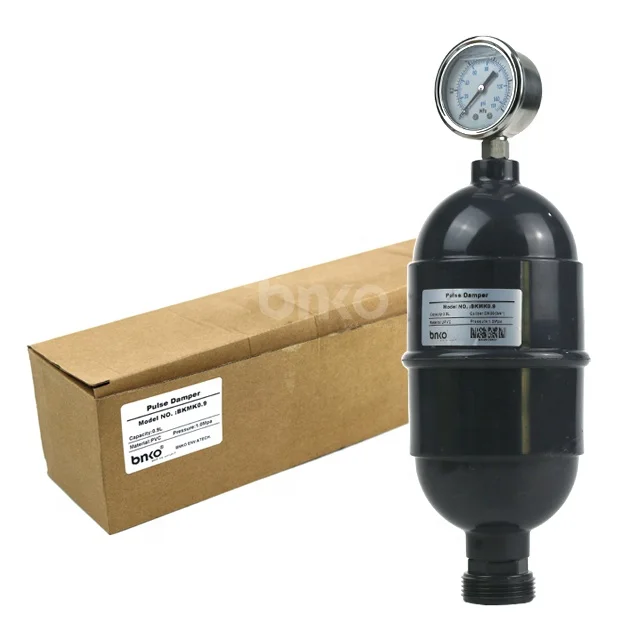

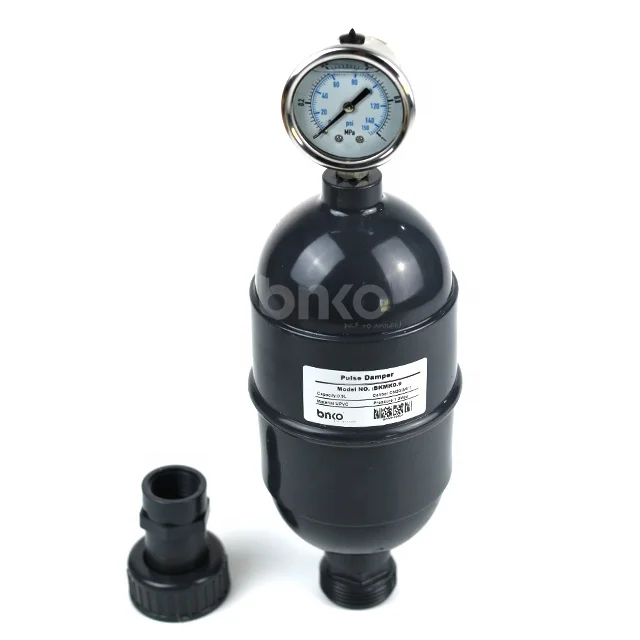

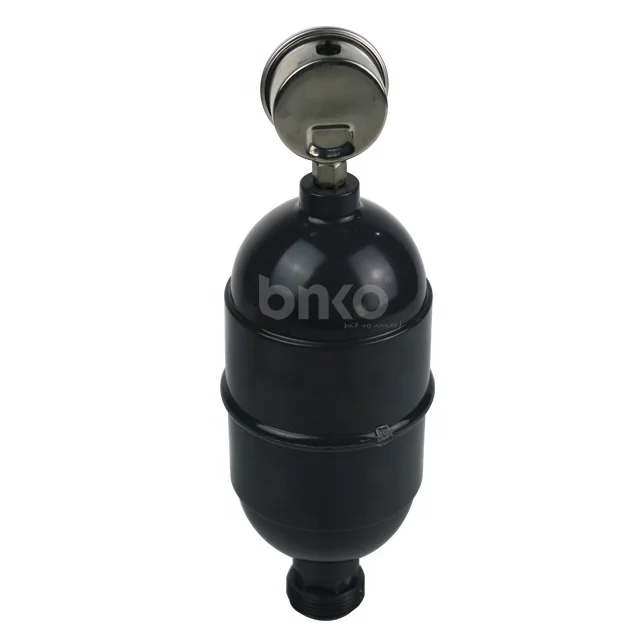

0.9L UPVC material gasbag Chemical dosing metering pump parts AIR Pulsation Damper

AIR Pulsation Damper:

Pulsation dampers are liquid pressure vessels that is to slow down the impulse hunting of liquid medicine discharged from metering pump. There are mainly three types of pulsation dampers: Air Pulsation Damper,Diaphram Pulsation Damper, Bladder Pulsation Damper. The pulsation cuased by the metering pump can be effectively reduced up to 95% with the suitable damper size installed in the pumping system.

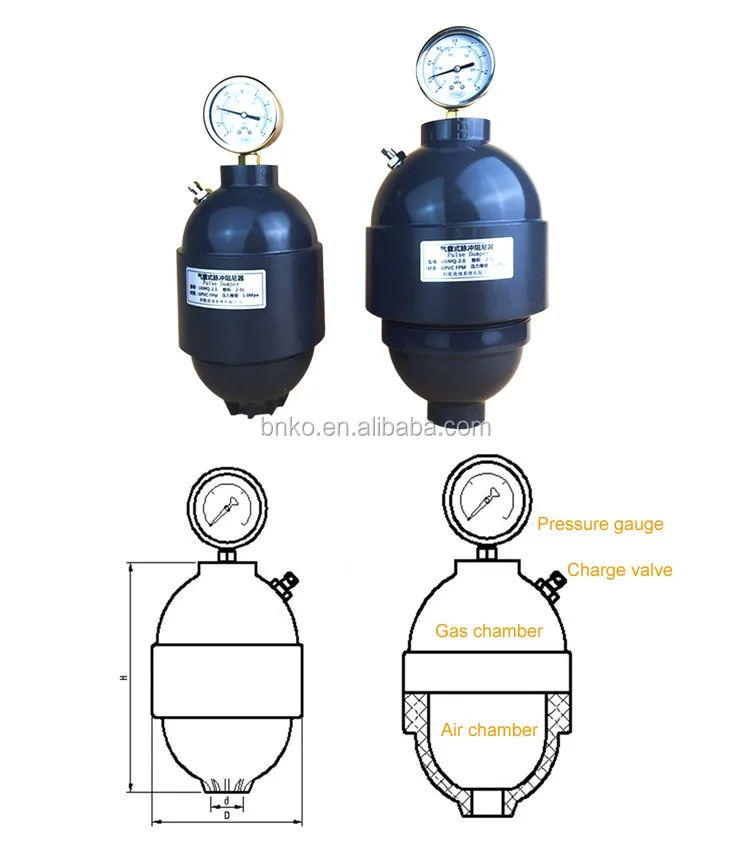

Air Pulsation Damper: It is a empty container with pressure gauge on the top. It works by the air in the damper chamber. When the air in the damper is dissovled into the liquid, the efficency of the damper will be reduced. It is recommended to drain the liquid out of damper. The size air pulsation damper should be 26 times of each metering pump stroke capacity at least.
