metal stone glass cutting 3 axis and 5 axis waterjet cutting machine stone
Features Of Product:
1. It has the cutting ability of full direction ,can carry out any plane curve cutting.
2.The structure of platfrom is specially reinforced,it will not be shaking when the cutting head is running,and the cutting speed is fast and the precision of machining is strong.
3.The screw mandrel and the lead rail are provided by taiwan's manufacturers,the X axis and the Y axis with the oil-immersed,it has the effect of lubricating,with the structure of water-proof and dustproof,can make sure the machining precision of cutting platfrom,and improve the lifetime of the screw mandrel and lead rail.
4.The cutting head is equipped with the pneumatic water switch that can improve the productive efficiency.
5.The stainless steel protection cover is dust-proof,waterproof,rustproof,erosion proof,making the platform bright all year.
After-Sale Services
1.Installation and training: we can send technician to your place for the complete installation and training. The buyer must paid in advance for all the expense include travelling, visa, hotel, and meals etc.
Item
waterjet cutting machine stone
Model
YL2515
Structure
Cantilever
Cutting table size
2600*1600mm
Stroke
X-axis
2500mm
Y-axis
1500mm
Z-axis
150mm

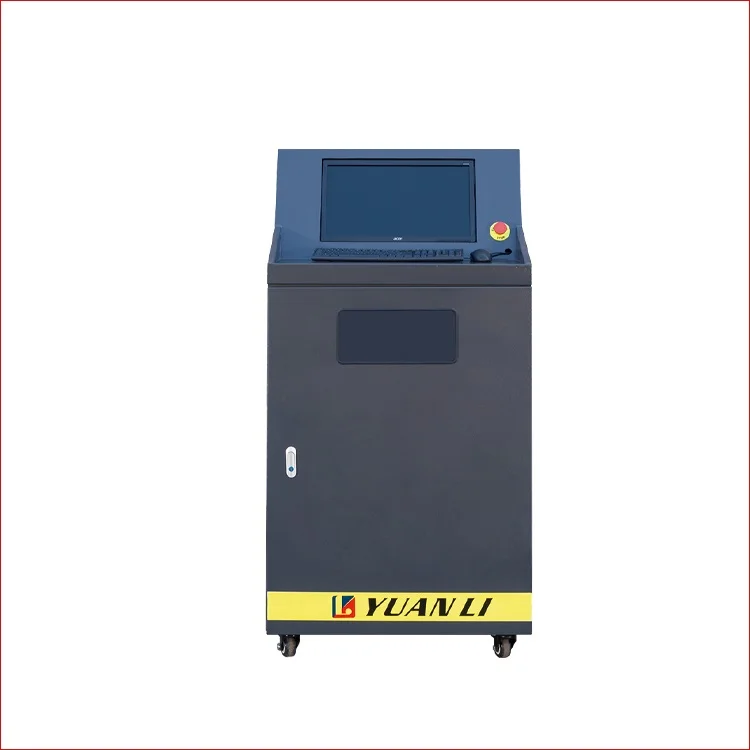

CNC Controller
Step System / AC Servo System
Accuracy
±0.1mm
Cutting
Repeatability
±0.05mm
Traverse speed
6500/15000 mm/min
Power supply
220V/380V/415V AC,50Hz
Turbocharger parameters
Item
Waterjet cutting machine
Model
Maximum pressure
450Mpa
Normal operating pressure
350-380Mpa
Main motor power
37KW /30KW
Gantry
Variable
Cooling
Wind/Oil/Water
High-pressure cylinder
Imported
Inlet valve
Imported
Ceramic rod
Imported
Accumulator
Single taper
Power supply
415/380/220V AC 3P
COMPANY PROFILE
Foshan Yuanli Precision Machinery Co.,LTD.CNC water jet can cut on any plane and material such as glass,granite, marble and steel plate etc., the cutting materials' thickness can be reached to 150mm maximum; It can enhance the productivity efficiency substantially by installing the reliable pneumatic high pressure water switch control device on the cutting head;and the unique sand valve design makes the sand flow more smoothly and easier to be cleaned.Our company can customize different sizes according to user requirements;and our products and design can also ment the traditional consumers' habits,The pursuit of high-quality low-consumption products, to provide a wide range of after-sales service is our commitment to each client.
