Product Overview

Description

1.Introduction:

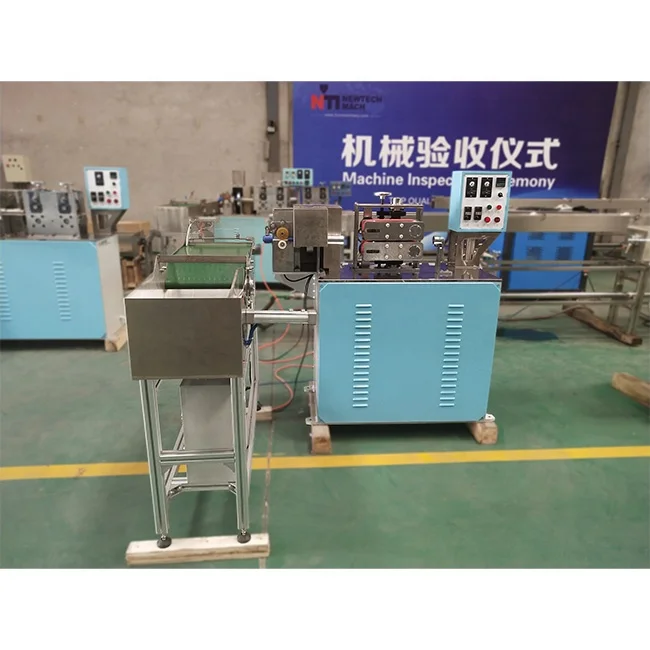

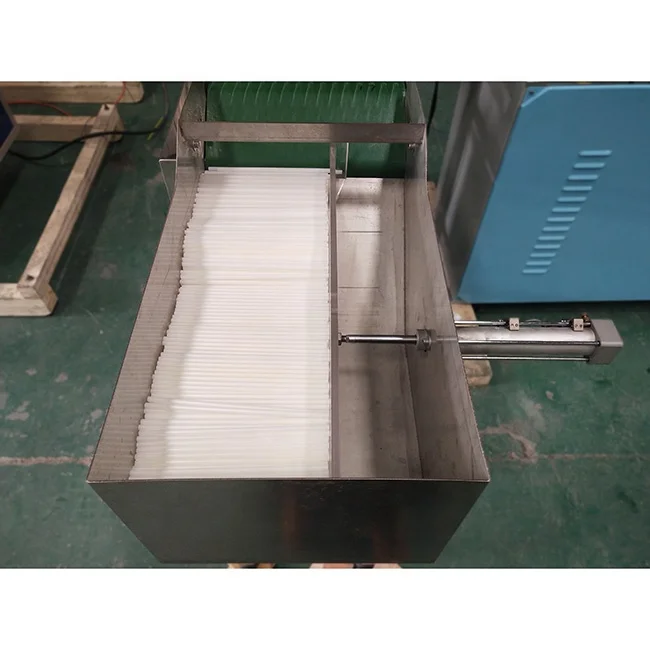

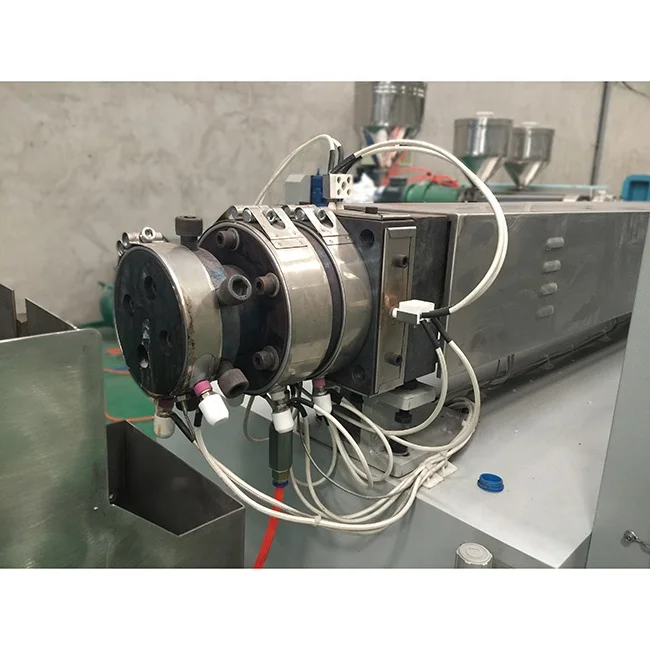

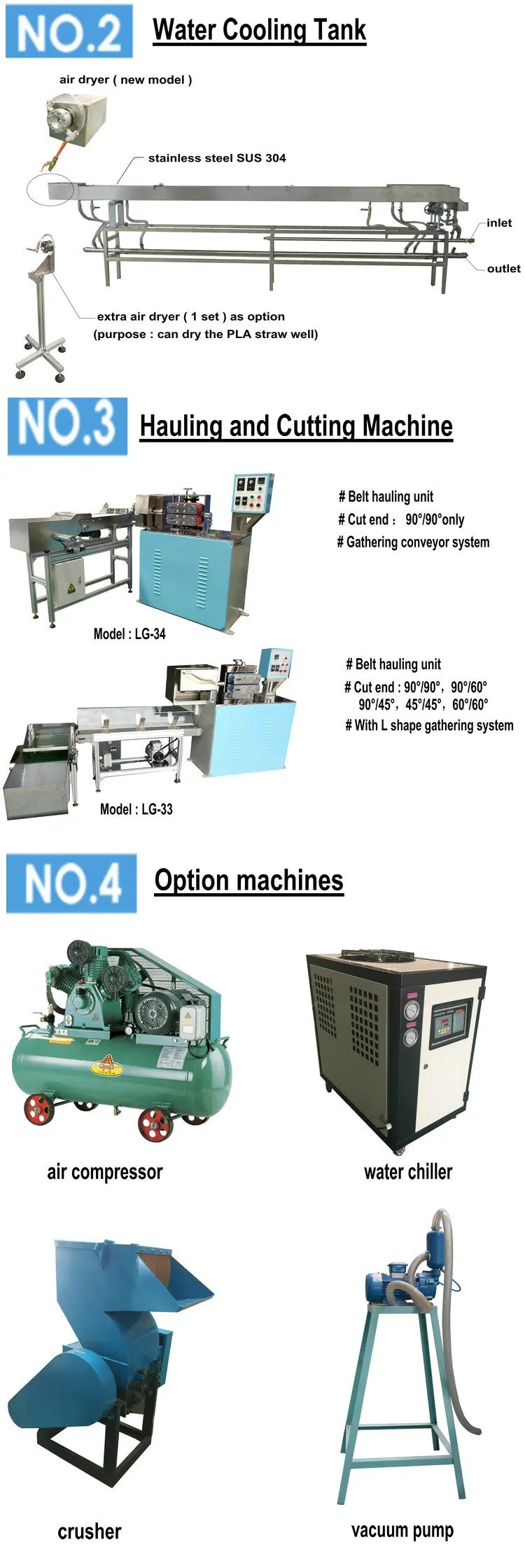

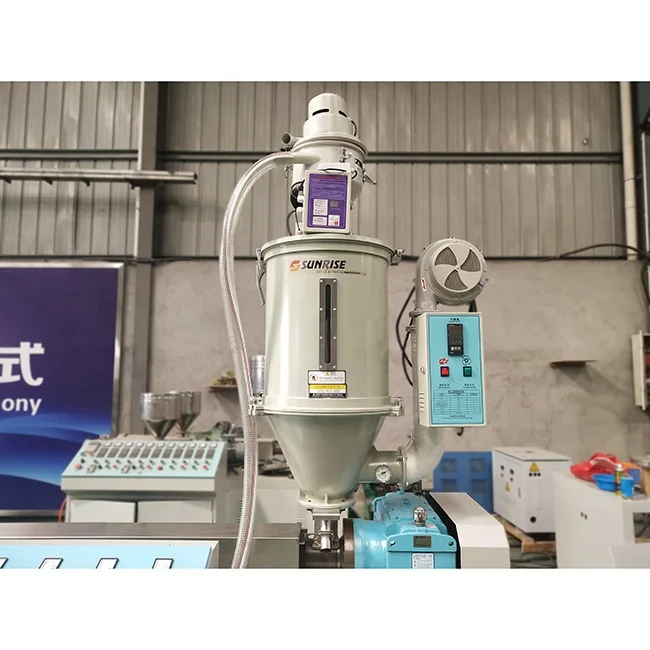

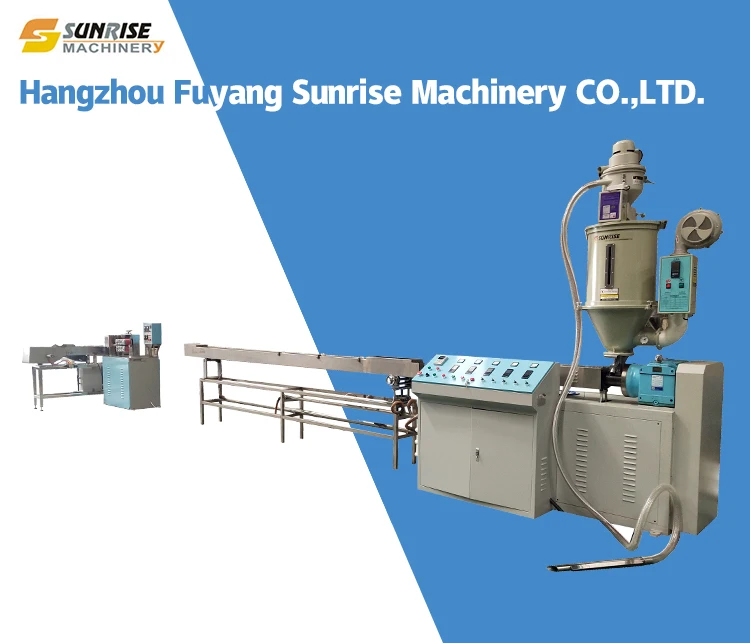

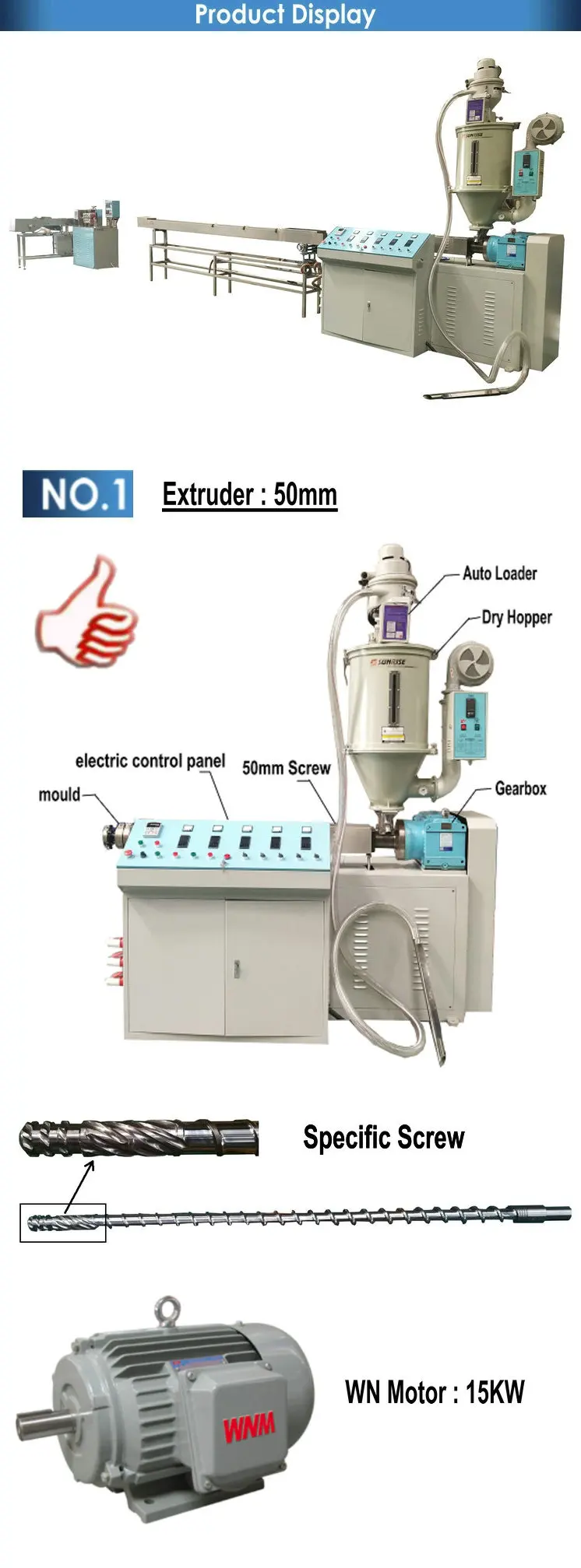

Biodegradable Drinking Straws making machine is our standard machine for making the PLA straw.The machine are comprised by PLA straw extruder,Water cooling bath, 2 sets super air knifes dryer,Straw hauling and cutter,L type gathering belt,and others accessorial machines,such as:Hopper dryer with material auto loader ,Air compressor, Water cooling chiller and Water constant temperature system.

2.Features:

1-It is popular model for making the PLA straw ,and more cost effective.

2-Water constant temperature system makes the quality of PLA straw.

3-Omron temperature controller makes the temperature more precise ,SMC air regulator makes the straw diameter more precise



3-Technic data :

Colour	Single	Two	Three
Diameter of screw:	50mm	50mm+1x25mm	50mm+2x25mm
L:D	28:1	28:1 / 20:1	28:1 / 20:1/20:1
Max. extrusion capacity	32-35kgs/h
Material	PLA / PBAT / PHA ...ect
Specification of straw	Diameter.:φ3- φ 12mm
	Length tolerance:± 0.1 -1mm
	Thickness:0.05-1mm
Capacity	30000-60000pcs/h
Power of extruder	15kw	15kw+0.75kw	15kw+2x0.75kw
Power of hauling machine	0.75kw,380v,50hz
Power of cutter	0.75kw,380v,50hz
Power of gathering system	0.18kw,380v,50hz
Temperature controlling	5 sections	8 sections	11 sections
