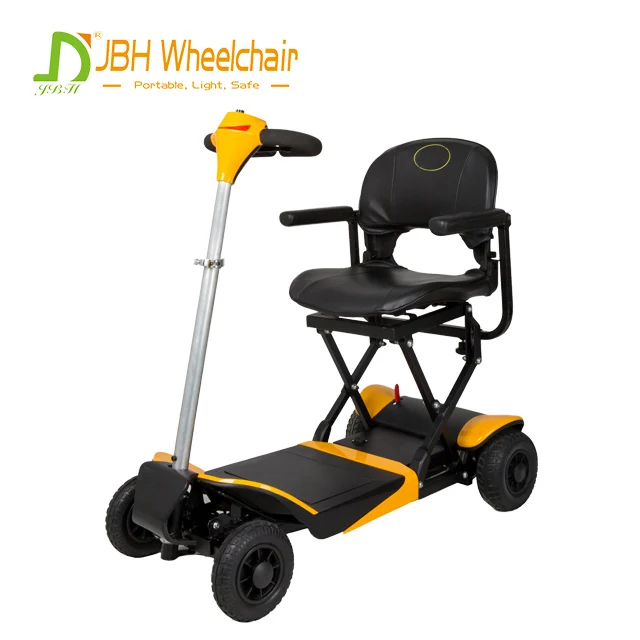

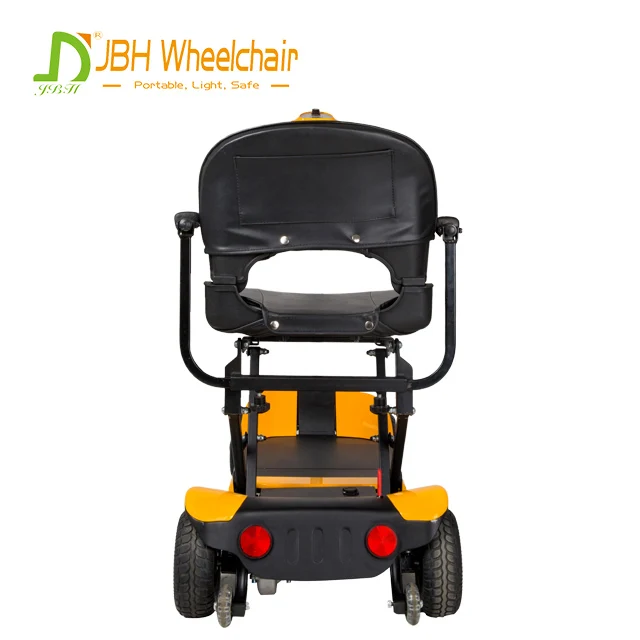

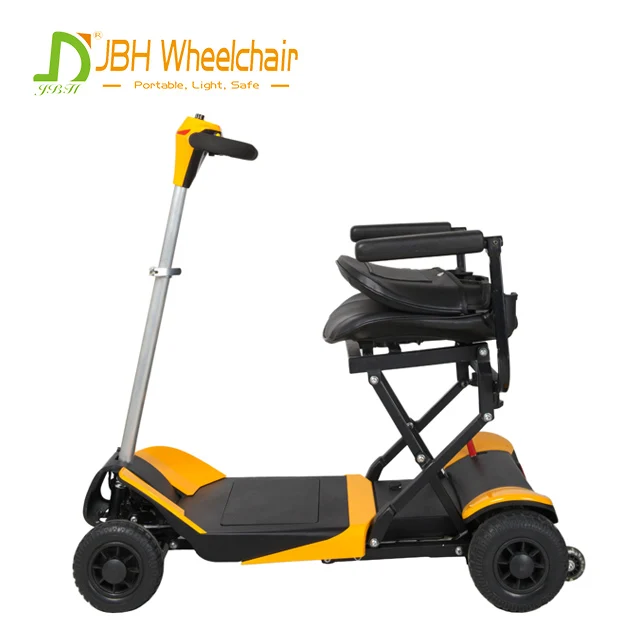

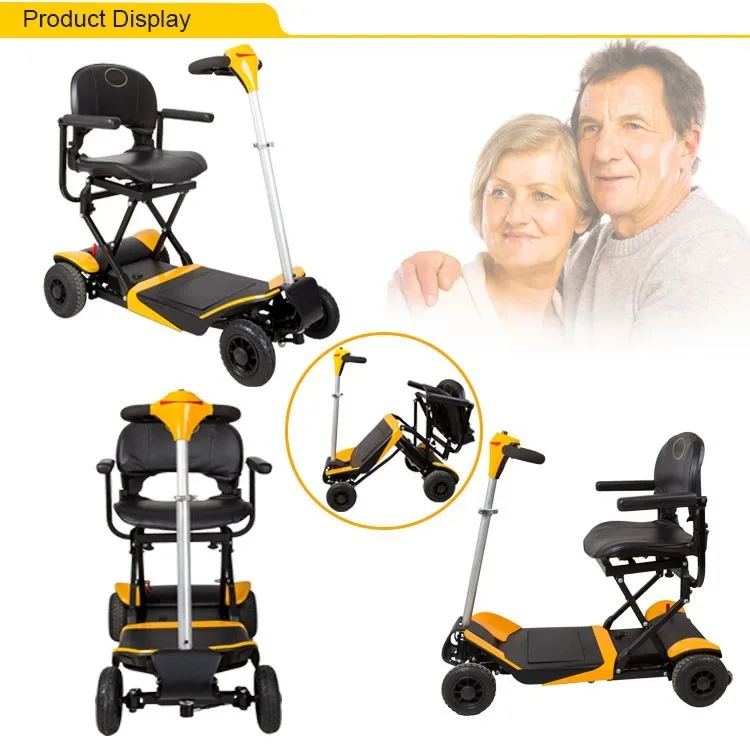

JBH 24V 180W 4 wheel 6km/h foldable electric mobility scooter for elders
- Category: >>>
- Supplier: Nanjing Jin Bai He Medical Apparatus Co. Ltd.
Share on (62069407897):
Product Overview
Description
OUR VALUE MESSAGE IS “QUALITY IS OUR CULTURE”
“WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE”
Competitive Advantage Products
Quality Assurance
After Sales Services 24*7
Product Description
2018 new model electric 4 wheel disabled elderly used portable electric mobility scooter

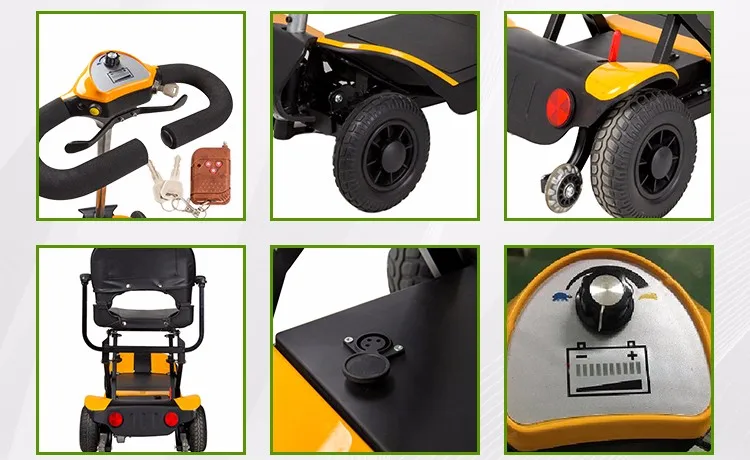

Feature:

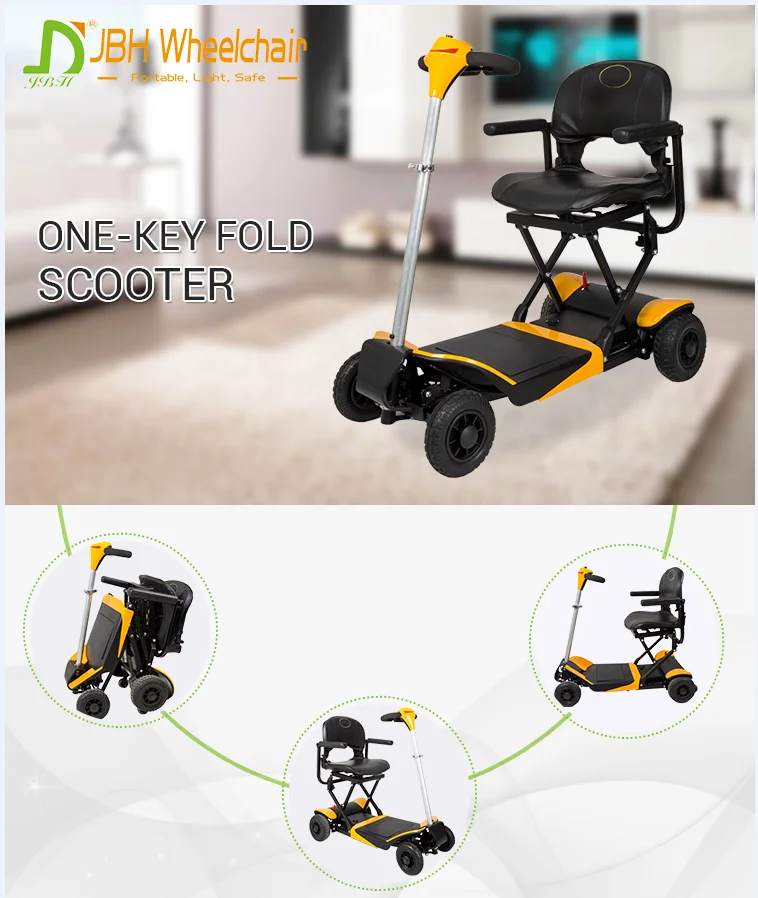

1.One-key automatic fold, no need handle fold, easy for elder or disable people.
2.Mini type folding electric scooter, folding volume only 0.2cbm.
3.PG controller, quality ensure.
4.Electromagnetic brakes, scooter will be stop instantly when hand off.
5.The folding electric scooter can be put into trunk, easy to transport.

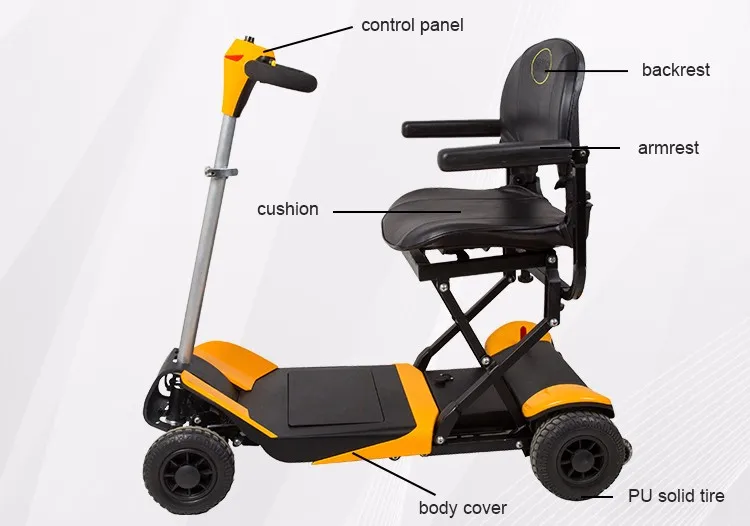

Specification
Material | Aluminum Alloy Frame |
Unfolded Dim(LxWxH) | 1050×500×870mm (without armrest) |
1050×550×870mm (with armrest) | |

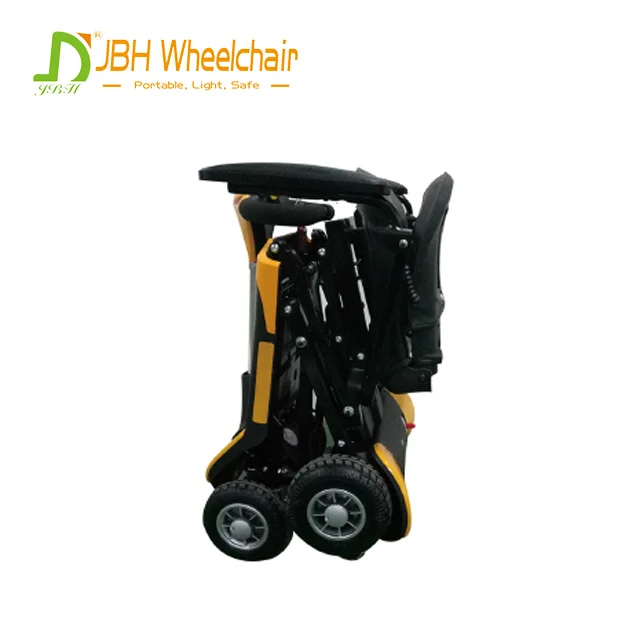

Folded Dim(LxWxH) | 480×500×790mm (without armrest) |
480×550×790mm (with armrest) | |
N.W. (without battery) | 26.5kg / 58.3lbs |
N.W. (with battery) | 29kg / 63.8lbs |
Motor | DC Brush Motor 180W DC24V |
Battery | Lithium battery DC24V 6Ah * 2 pcs |
Controller | PG DC brush controller DC24V/45A |
Driving Range | 15.5miles / 25km |
Loading Capacity | 264lbs / 120kg |
Max Speed | 3.7mph (6km/hr) |
Front Tires | 7" PU Solid Tire |
Rear Tires | 8" PU Solid Tire |
Climbing Slope | 8° |
Charging Time | 6 to 8 hr |
Width of Armrests | 16.9'' / 430mm adjustable |
Seat Width | 16.9'' / 430mm |
Seat Depth | 15'' / 380mm |
Seat Height | 22.8 / 580mm |
Drive Mode | Rear Drive |
Braking System | Intelligent Electromagnetic Brake |
Braking distance | 59" / 1.5m at Max Speed |
Highest Obstacle Height | 1.57" / 40mm |
Turning Radius | 47.2'' /1.2m |
GW | 77lbs / 35kg |
Packing Carton(LxWxH) | 22.4x20.5x31.9inch / 570x520x810mmm |
Color | Yellow, Red, White, Blue |
Warranty | 3 months for wheels and cushion, 12 months for controller, battery and motor, 36 months for frame |
Contianer | 20" Contianer=108 pcs, 40" Container= 228 pcs |
Company Information
JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.
Our Services
OEM services:
(1) put logo on the products.
(2) printing logo on the carton box ,if color box ,each item MOQ is 1000pcs
(3) we can change the accessories according to customer’s request .
After-sale Service:
1. One year warranty under normal use.
2. If the quality problem, please contact us within 24 hours after received of the goods, we'll solve it immediately.
3. Under special circumstances, we'll re-send the spare parts or new products to the customers.
4. Keep the best service in the business, we'll get more cooperation with you.
We care from every detail and keep close contact with customers for the process. Our goal is to make customers happy and proud of us!
