Specification Price XSHF for MA5800 16 Port Symmetric 10G GPON Interface Board
- Category: >>>
- Supplier: Shenzhen Cool Life Technology Co. Ltd.
Share on (62069452952):
Product Overview
Description
Product Description

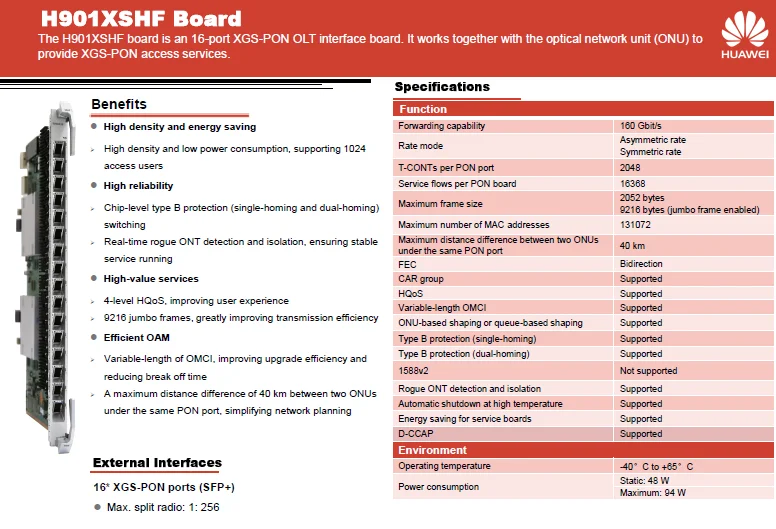

The H901XSHF board is a 16-port XGS-PON OLT interface board. It works together with the optical network unit (ONU) to provide XGS-PON access services.
Table 1 Differences between XGS-PON interface boards
Board Specifications | H901TWED | H901XSHF | H902XSHD | H902TWHD |
|---|---|---|---|---|
Port quantity | 8 | 16 | 8 | 8 |
Forwarding capability | 80 Gbit/s | 160 Gbit/s | 80 Gbit/s | 80 Gbit/s |
Rate mode | Supports two modes:
| Supports two modes:
| Supports two modes:
| Supports two modes:
|
Port rates |
|
|
|
|
Maximum split ratio | 1:64 | 1:256 | 1:256 | 1:256 |
T-CONTs per PON port | 2048 | 2048 | 2048 | 2048 |
Service flows per PON board | 16376 | 16368 | 16376 | 16376 |
MAC addresses | 131072 | 131072 | 131072 | 131072 |
Maximum distance difference between 2 ONUs under the same PON port | 40 km | 40 km | 40 km | 40 km |
Supported ONU rates |
|
|
|
|
FEC | Bidirection | Bidirection | Bidirection | Bidirection |
CAR group | Yes | Yes | Yes | Yes |
HQoS | Yes | Yes | Yes | Yes |
PON ISSU | No | Yes | Yes | Yes |
Variable-length OMCI | Yes | Yes | Yes | Yes |
ONU-based or queue-based shaping | Yes | Yes | Yes | Yes |
Type B protection (single-homing) | Yes | Yes | Yes | Yes |
Type B protection (dual-homing) | No | Yes | Yes | Yes |
Type C protection (single-homing) | No | No | No | No |
Type C protection (dual-homing) | No | No | No | No |
1588v2 | No | No | Yes | Yes |
9216-byte jumbo frames | Yes | Yes | Yes | Yes |
Rogue ONT detection and isolation | Yes | Yes | Yes | Yes |
Automatic shutdown at high temperature | Yes | Yes | Yes | Yes |
Energy conservation for service boards | Yes | Yes | Yes | Yes |
D-CCAP | Yes | Yes | Yes | Yes |
Packaging & Shipping

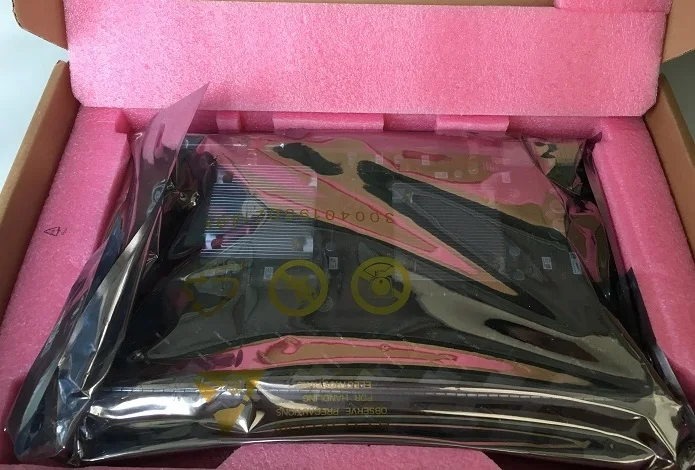

Packing Detail : Huawei orignal packing
- Port : Shenzhen
- Lead Time : 7days
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Warranty
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed Huawei product: 1 Year
The Support Contacts:
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Company Information
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers, Switches,Firewalls, Wireless APs & controllers, OLTs,GPON modems, optical transceivers. Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company, we can provide network design&planning, configration, troubleshooting, maintenance and training service in world wide.
