Heat shrink tubing inserting wire terminal crimping machine (WL D710)
- Category: Wires, Cables & Cable Assemblies >>>
- Supplier: Suzhou,Crown,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Automatic single-head wear heat shrinkable tube terminal (doubles single wear) WL-D710
Features:
The wire is cut to size, both ends are stripped, single-ended and half-skinned,
single-stranded single- and double-end crimped, automatically cut through the sleeve,
automatically baked sleeve, all digital touch screen control

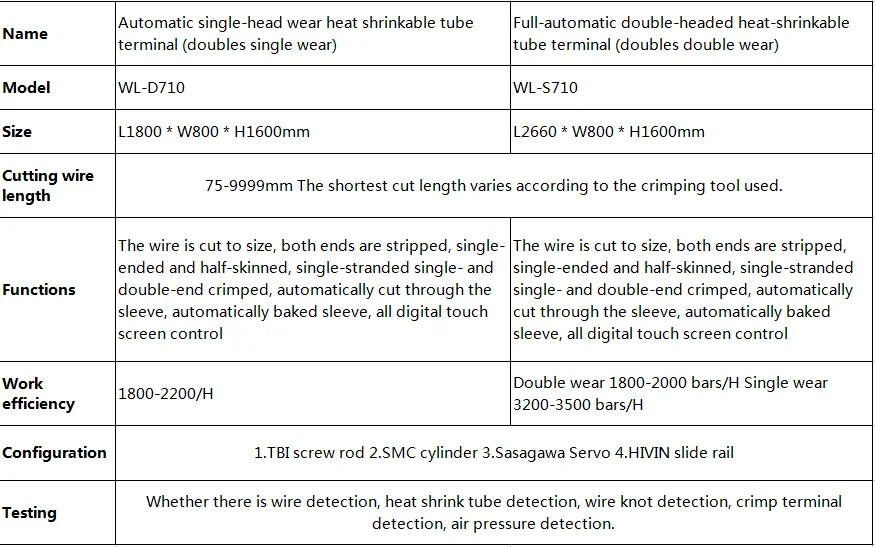

Specifications:
Wear heat shrinkable tube terminal crimping machine WL-D710
| Name | Automatic single-head wear heat shrinkable tube terminal (doubles single wear) |
| Model | WL-D710 |
| Size | L1800 * W800 * H1600mm |
| Cutting wire length | 75-9999mm The shortest cut length varies according to the crimping tool used. |
| Functions | The wire is cut to size, both ends are stripped, single-ended and half-skinned, single-stranded single- and double-end crimped, automatically cut through the sleeve, automatically baked sleeve, all digital touch screen control |
| Work efficiency | 1800-2200/H |
| Configuration | 1.TBI screw rod 2.SMC cylinder 3.Sasagawa Servo 4.HIVIN slide rail |
| Testing | Whether there is wire detection, heat shrink tube detection, wire knot detection, crimp terminal detection, air pressure detection. |
Product Description

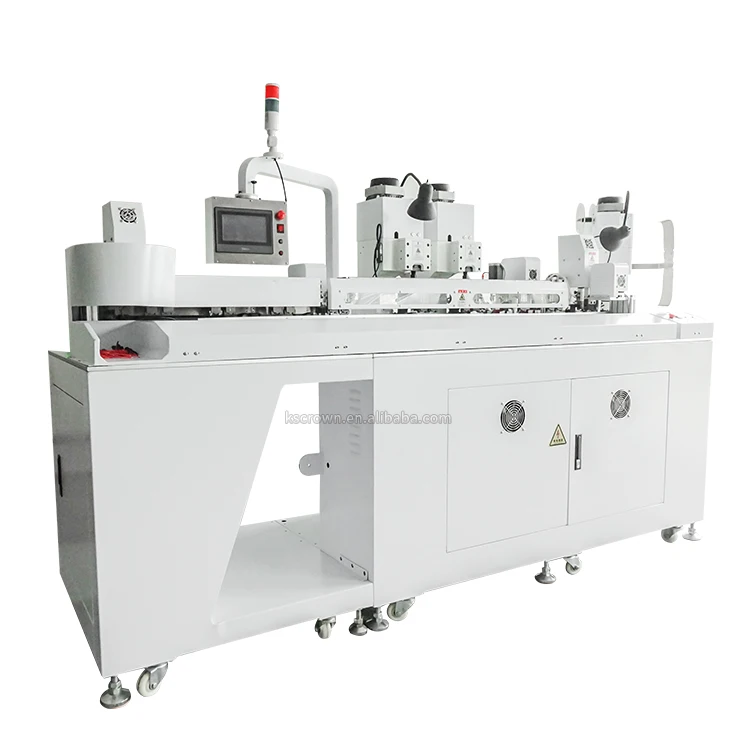

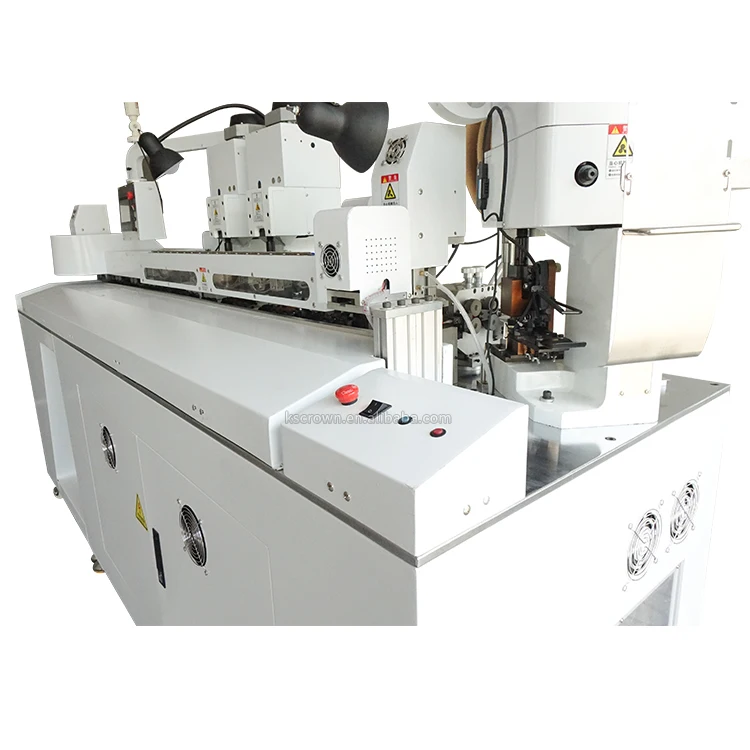

Single End Cable Stripping Cutting Twisting Terminal Crimping Machine below:

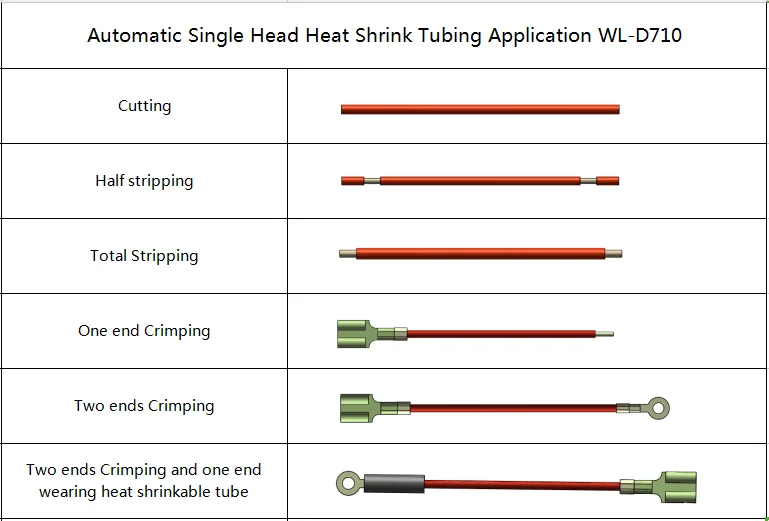

Single End Cable Stripping Cutting Twisting Terminal Crimping Machine Application Terminal:
Single End Cable Stripping Cutting Twisting Terminal Crimping Machine Packing Deaprtment:

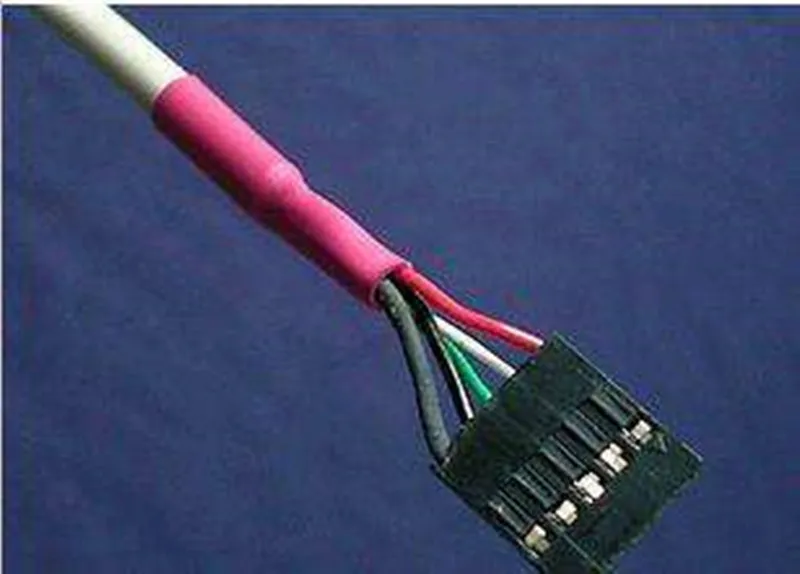

Finished Products
Related Products
Welcome to click for more machines:
Company Information
Certifications
Our Services
Our service
1, One year guarantee for the whole machine except blade and belt.
2, 24 hours technical support by email.
3, User-friendly English software and user manual.
---Purchase guidance
If you are not sure which model is the best option within your budget, please send us
the parameter or wire, it’s our pleasure to make a recommendation and comparison models
to you.
---After Sale Service
Don’t worry, we are here to help.CROWN provides lifetime after sale support to our customers
including operation guidance, parts replacement, maintenance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed, such as parameter meter set-up
for difficult-to process wires.CROWN engineers are here for your assistance.
---Others
Compensation: If any unqualified product is found, we’ll pay the compensation or send newly qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
