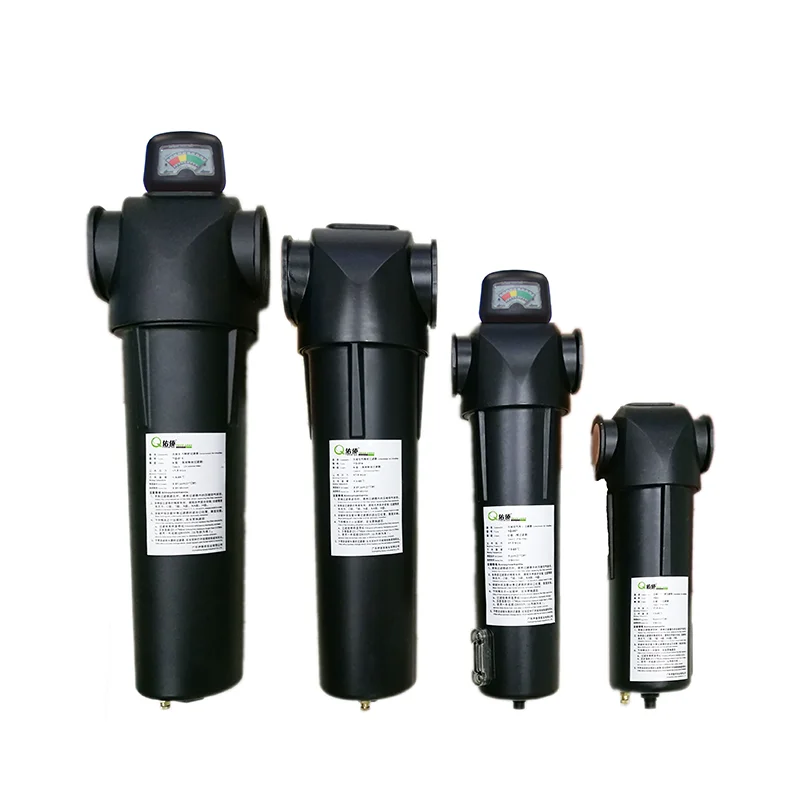

High efficient precise air compressor air intake coalescing filter

The grade of filter

performance date

illustration

C grade (E9)

pre-filter

Filtering the liquid and solid particles more than 3 micron.

Residual oil content:5ppm

Initial pressure drop:0.007Mpa

 pressure drop of saturated water vapor:0.01Mpa

The downstream of the after cooler

Directly used in working point

T  grade (E7)

main pipeline filter

Filtering the liquid and solid particles more than 1 micron

Residual oil content:5ppm

Initial pressure drop:0.007Mpa

 pressure drop of saturated water vapor:0.014Mpa

Shall be installed C level filter before this.

Upstream of Efficient degreaser

Downstream of adsorption type dryer

If installed after cooler or separator at upstream, will used in working point

A grade (E5)

Efficient oil removal  filter

Filtering the 0.01 micron or larger liquid and solid particles and the 99.99% oil mist.

Residual oil content:5ppm

Initial pressure drop:0.007Mpa

 pressure drop of saturated water vapor:0.02Mpa

Shall be installed T level filter before this.

Upstream of adsorption dryer

downstream of refrigerated dryer

At the downstream of variable pressure adsorption dryer is used to filter tiny particles.

used to working point

AA  grade (E3)

Super-efficient oil removal filter

Filtering the 0.01 micron or larger liquid and solid particles and the 99.99% oil mist.

Residual oil content:5ppm

Initial pressure drop:0.007Mpa

 pressure drop of saturated water vapor:0.04Mpa

Shall be installed A level filter before this.

Adsorption type dryer upstream; If there is a lot of liquid load, T level filter should be used as a pre-filter.

 refrigerated dryer downstream

H  grade (E1)

active carbon filter

Filtering the 0.01 micron or larger liquid and solid particles and the 99.99% oil mist.

Residual oil content:5ppm

Initial pressure drop:0.007Mpa

 pressure drop of saturated water vapor:0.01Mpa

Shall be installed AA level filter.

At the downstream of Super-efficient oil removal filter
