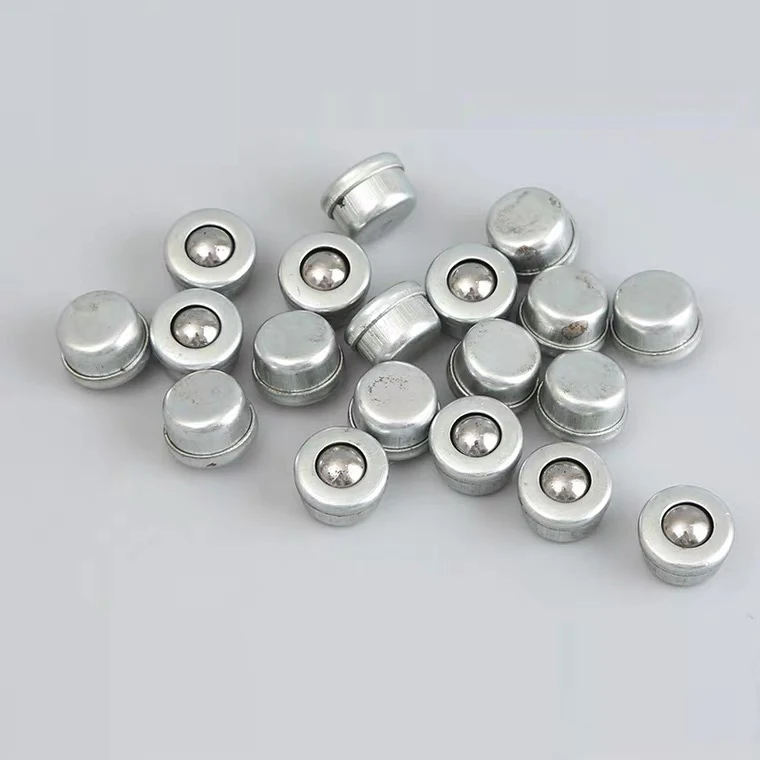

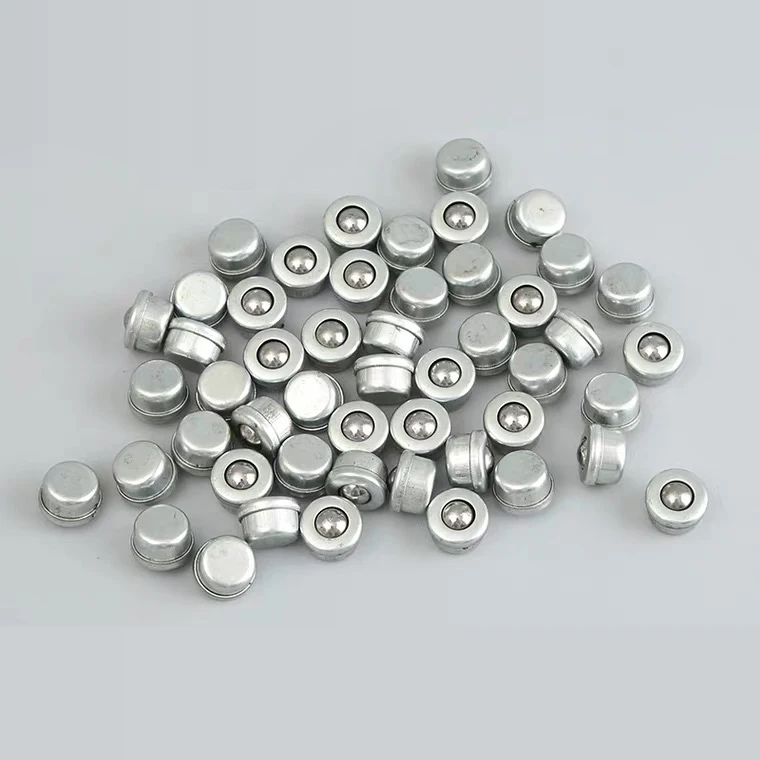

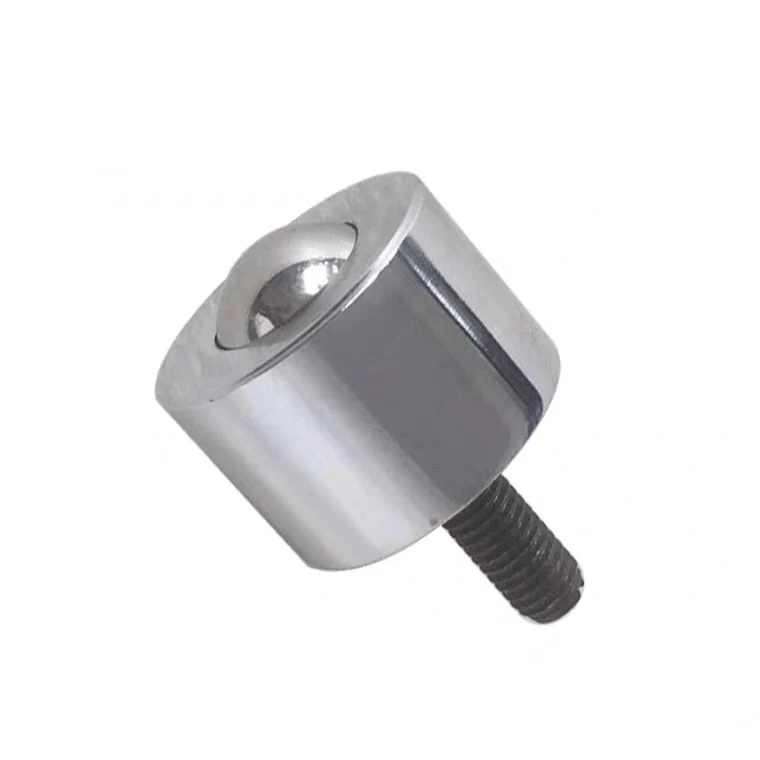

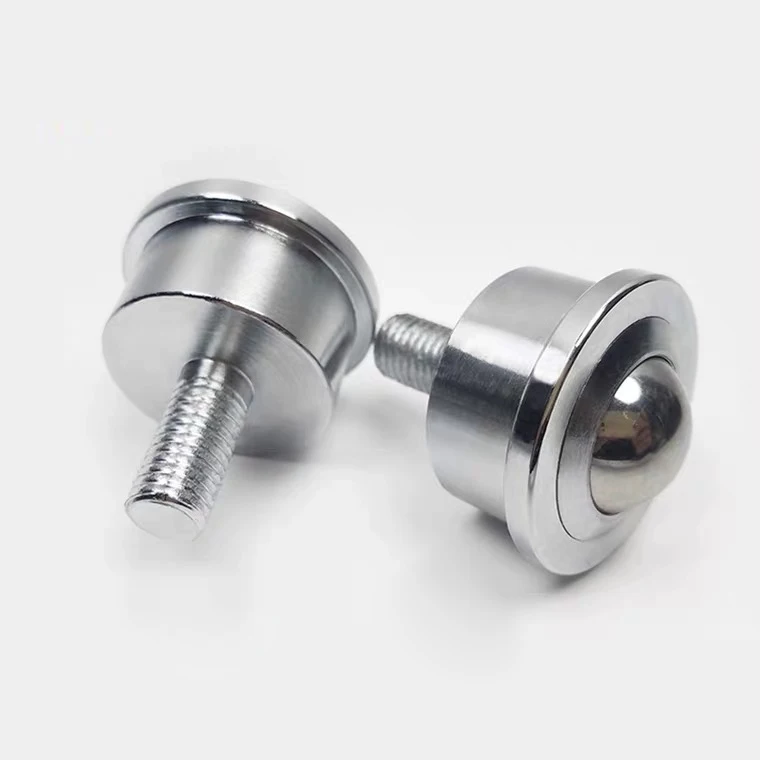

Item	Flange type stainless steel ball transfer unit
Casing material	Iron/ stainless steel
Ball material	201/304 stainless steel
Ball diameter	Customized
Static load	10-40kg
Dynamic load	10-40kg
Application	used for conveyor line transfer table







Application

They are used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters.However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor.





List of CY series-light & medium duty



Model No.	Ball size	Loading capacity Maximum/Breaking
CY-15A	15MM	10KG/15KG
CY-18A	18MM	20KG/25KG
CY-25A	25.4MM	25KG/30KG
CY-30A	30MM	40KG/50KG
CY-38A	38MM	60KG/80KG
CY-16B	16MM	10KG/15KG
CY-25B	25MM	25KG/30KG
CY-30B	30MM	35KG/40KG
CY-38B	38MM	45KG/55KG
CY-8H	8MM	3KG/5KG
CY-15H	15MM	15KG/25KG
CY-22H	22MM	40KG/55KG
CY-30H	30MM	70KG/85KG



small ball bearing casters,mini ball joint caster,conveyor roller ball transfer unit

Full Nylon or Ball Nylon Material Of Ball Transfers NL19C NL15N NL10M NL-10M NL-19B NL-8N NL-25C Nylon Ball Transfer Unit







Specification

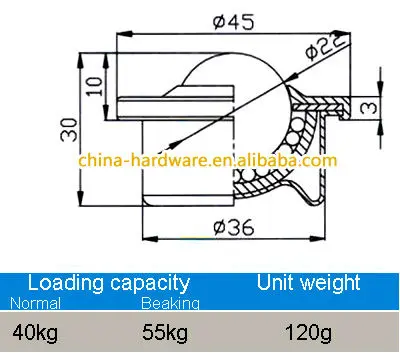

CY22H













• Maximum Spacing = (article width)/3.5; (article length)/3.5





How to arranging and installing ball transfer units?



• There are different arranging ways to fit for different moving requirements:







• There are different models of BTU fo choosing:







Applications

• Typical application in production lines:



Ball transfer units table in Dubai International Airport



Ball transfer units table in Dubai International Airport







Other models of ball transfer units:
