Hot sale 10/100/1000M 8 Ports PoE Switch Gigabit Ethernet Managed Smart Switch
- Category: >>>
- Supplier: Shenzhen Fengrunda Technology Co. Ltd.
Share on (62069662132):
Product Overview
Description
Hot sale 10/100/1000M 8 Ports PoE Switch Gigabit Ethernet Managed Smart Switch
Product Description

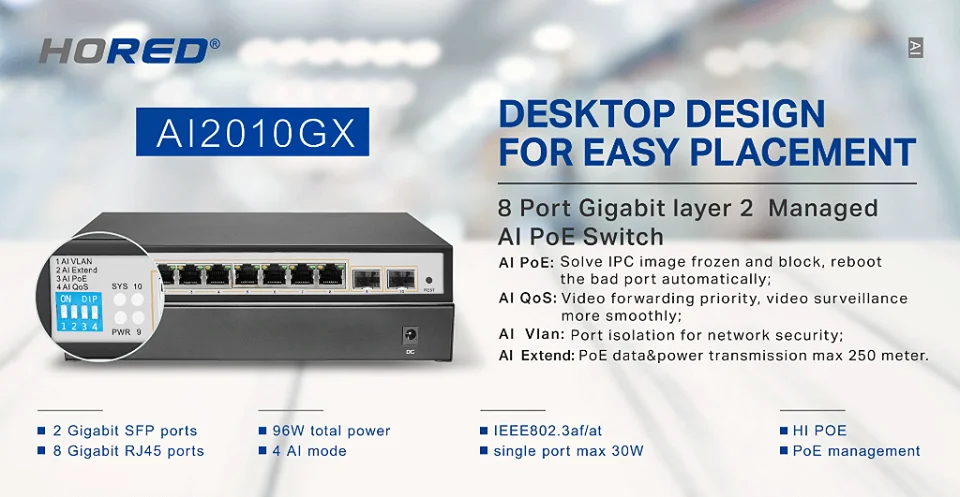

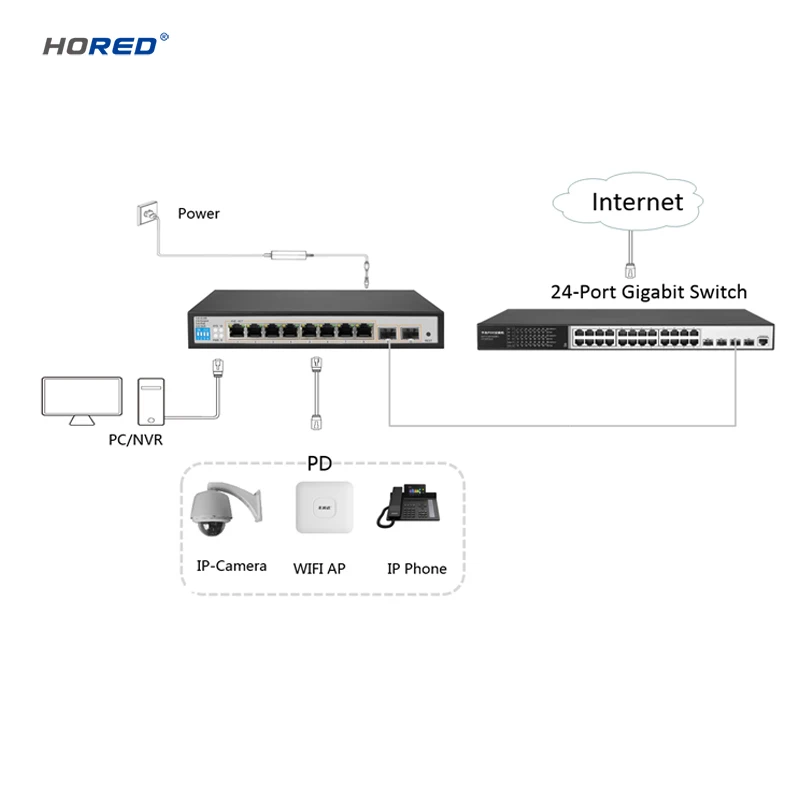

AI2010GX is managed AI PoE switch for security transmission and WIFI coverage, meet the WIFI AP, IP-camera, WIFI bridge, IP phones and other types of equipment PoE power supply needs. Products using a new generation of high-performance hardware and software platforms, providing flexible, cost-effective full Gigabit access and uplink ports, , complete security mechanisms, improved ACL / QoS strategy and rich VLAN capabilities, it is easy to manage and maintain , meet the users' requirements for network equipment easy to manage, high security and low cost. It is suitable for network access, aggregation and core applications in campus, hotel and enterprise campus.
PoE (Power over Ethernet) refers to the power over Ethernet technology. It refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access point AP, network cameras, etc.) and also provide DC power supply technology. These devices that accept DC power supply are called powered devices (PD).
Hardware Specifications
Network standard | IEEE 802.3:Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet IEEE 802.3z:1000BASE-X gigabit Ethernet(fiber) IEEE 802.3ad: comply link aggregation standard IEEE 802.3x:flow control IEEE 802.1p: About the traffic priority of the second layer of Qos / Cos protocol (multicast filtering) IEEE 802.1q:VLAN Bridge operation IEEE 802.1d:STP spanning tree IEEE 802.1s:MSTP spanning tree IEEE 802.1w:RSTP spanning tree IEEE 802.3af IEEE 802.3at |

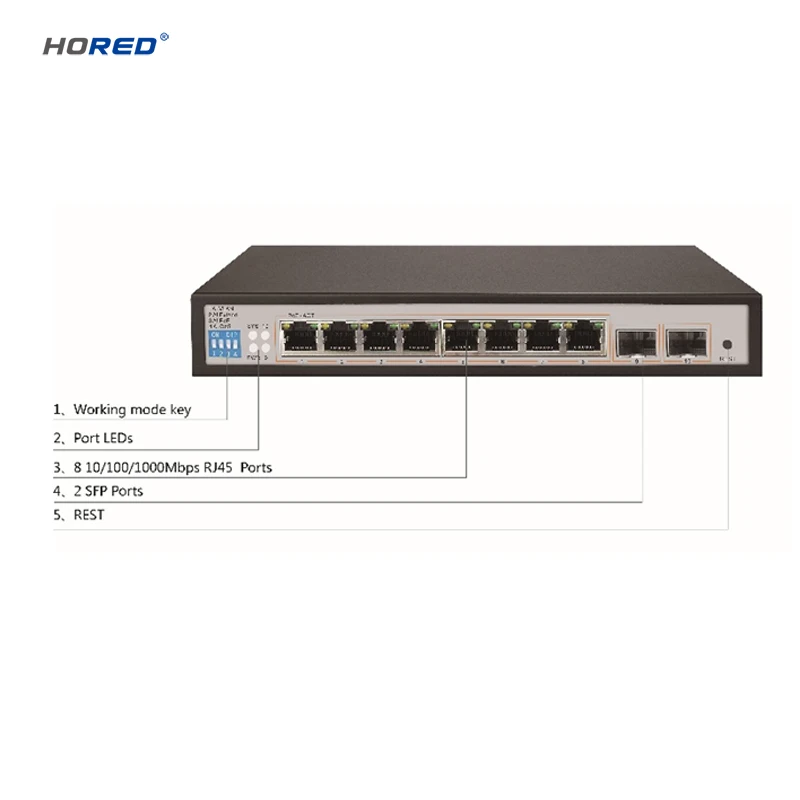

Port | 8 10/100/1000Mbps RJ45 port |
2 gigabit SFP fiber port | |
PoE | 8 10/100/1000Mbps RJ45 port support PoE |
Max 96W | |
Single port max 30W | |
LEDs | 10 Link/Act LEDs |
8 POE LEDs | |
1 Power LEDs 1 SYS LED | |
Performance | Forwarding mode: store and forward |
Switch Volume (Full-duplex) :20Gbps | |
Packet forwarding rate:14.88Mpps | |
8K MAC address table | |
Input | DC:48-56V |
Dimension (L×W×H) |
225mm×120mm×35mm |
Software Specifications
Shortcut function | AI VLAN |
AIExnted(1-8 port 250meters PoE distance) | |
AI Q0S (Video priority) | |
AI PoE | |
VLAN | Support 4K VLAN |
Support 802.1Q VLAN,Port VLAN,Voice VLAN | |
PoE | Support setting the PoE port priority |
Support setting PoE power supply period | |
Support setting port power | |
MAC address table | Comply the IEEE 802.1d standard |
Support MAC address learning and aging automatically | |
Support static, dynamic, filter address table | |
Based on user rating management and password protection | |
Support based on the port number, IP address, MAC address restrictions on user access | |
Icmp-echo,DoS protection | |
Support DHCP Snooping,DHCP attack protection | |
Support port security, port isolation | |
Access control (ACL) | Support L2(Layer 2)~L4(Layer 4) packet filtering function |
Support port mirroring, port redirection, flow rate limit, QoS re-marking | |
Multicast | Support IGMP v1/v2 Snooping |
Support static multicast | |
Support multicast VLAN | |
QoS | Support 8 port queue |
Support port priority, 802.1p priority, DSCP priority | |
Support SP,WRR,WFQ Priority scheduling algorithm | |
Spanning Tree | Support STP(IEEE 802.1d),RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol |
Support loop protection, BPDU protection | |

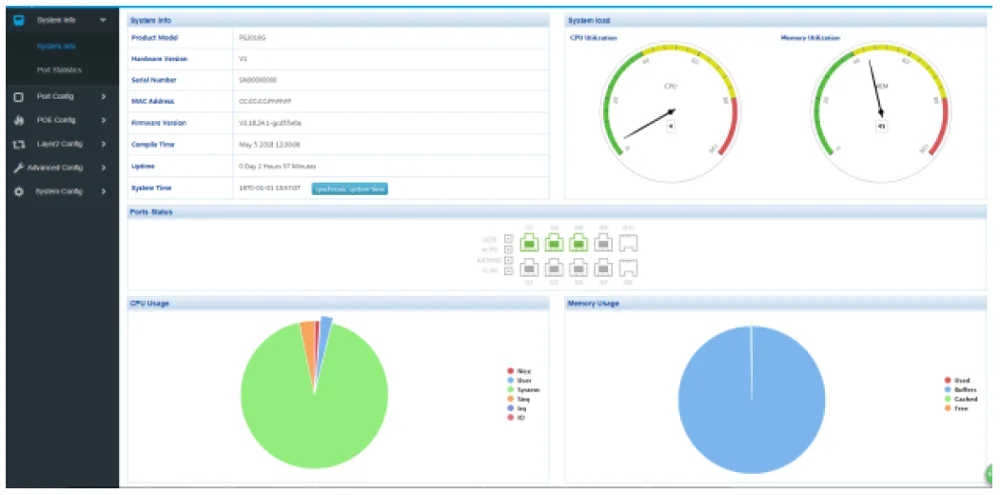

Management and maintenance | Support WEB management(HTTP) |
Support CLI(Telnet,local serial port) | |
Support SNMP V1/V2/V3,Compatible with public MIBS | |
Support LLDP,RMON | |
Support IP Source protection,DoS protection | |
Support CPU monitor,memory monitoring | |
Support system log | |
Support cable testing | |
Multicast | Support IGMP v1/v2 Snooping |
Support static multicast | |
Support Multicast VLAN |
Related Products:
Packaging & Shipping
Shipping Methods:
Shipping By Sea or Air.
Shipping By Express DHL / UPS / FEDEX / TNT / EMS.
Shipping By Customer's Agent.
Our payment terms: T/T HSBC, Western Union, Alipay (Escrow).30% deposit and 70% balance before shipping.
Certifications
Company Information

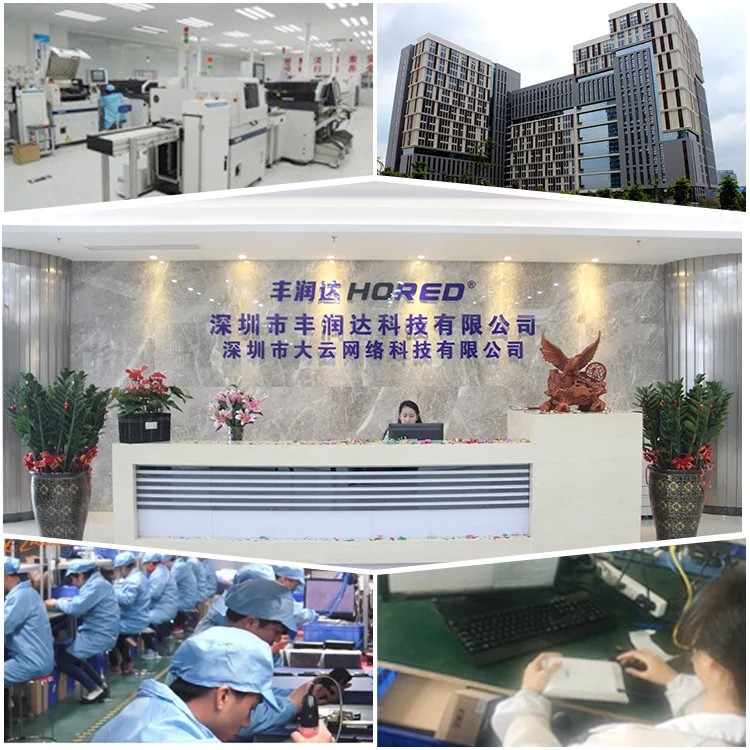

Shenzhen Fengrunda Technology Co., Ltd (HORED) is a global leader in PoE devices supply. Established in 2011, we has been committing to R&D on PoE devices and solutions, we have obtained many national patents. We offer full line products and high quality and cost-effective solutions. Besides PoE switches, produces also covers ethernet switches, power line communication, wireless access points.
We are devoted to research & design, production & processing, sales & marketing, integrating global resources to keep us a leading position. HORED is a worldwide leading brand in network and communication field.
At present, we use chipset solution is Broadcom, RTK, TI(Texas Instruments) etc.
Our factory size about 3,000 square meters, No. of production lines above 10. Production capacity is 2000pcs every week, total employees 201-300 people.
QC department seriously control all products quality from material to finished products. Our product can be inspected by the third inspection part, all the products passed certificate, FCC, RoHS, CE...
Honesty is the business basis.
FAQ
1). OEM/ODM Service: Customized package/front panel/label(your logo and model).
2). Quality&RMA: Good quality control system, 100% test before shipment, RMA less than 1%
3). After service: One year warranty, will replace new parts for RMA if it is within warranty
4). Fast delivery: Sample within 2 day; Mass order depends on order quantity.
5). MOQ: 1pcs also welcome
