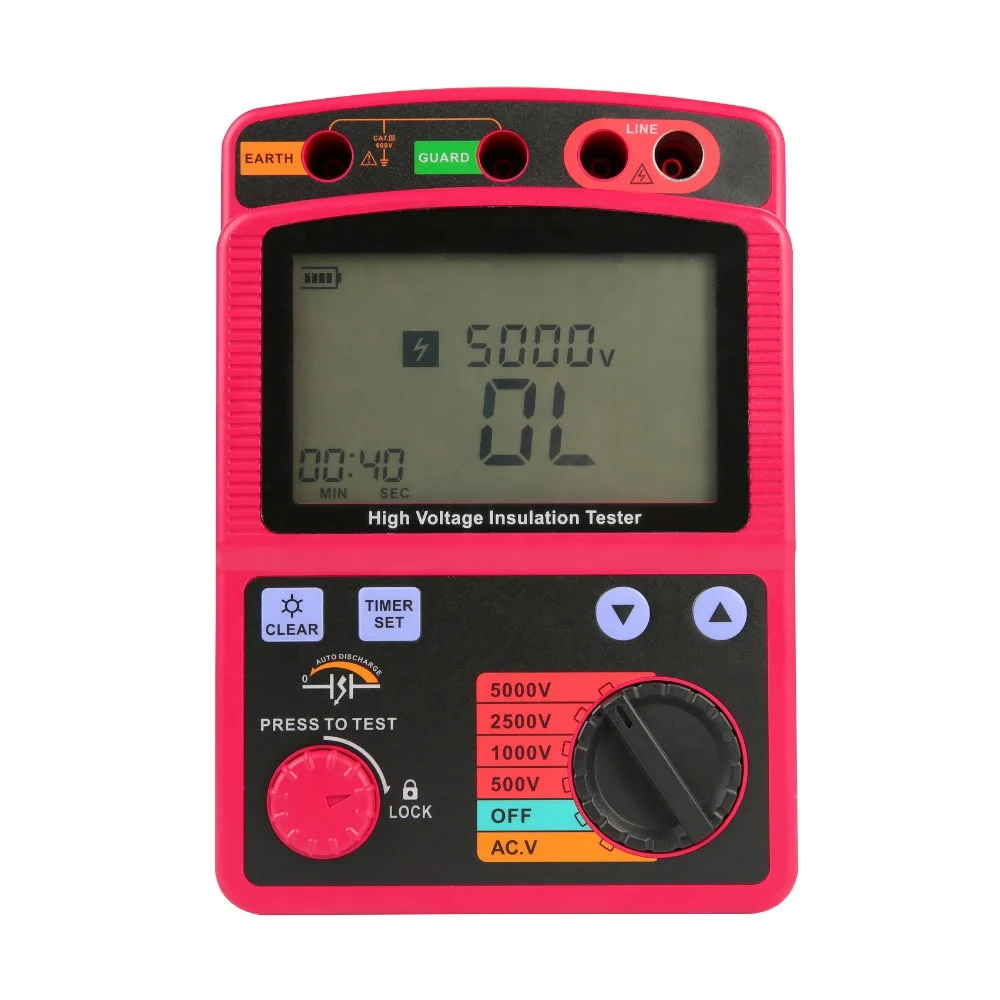

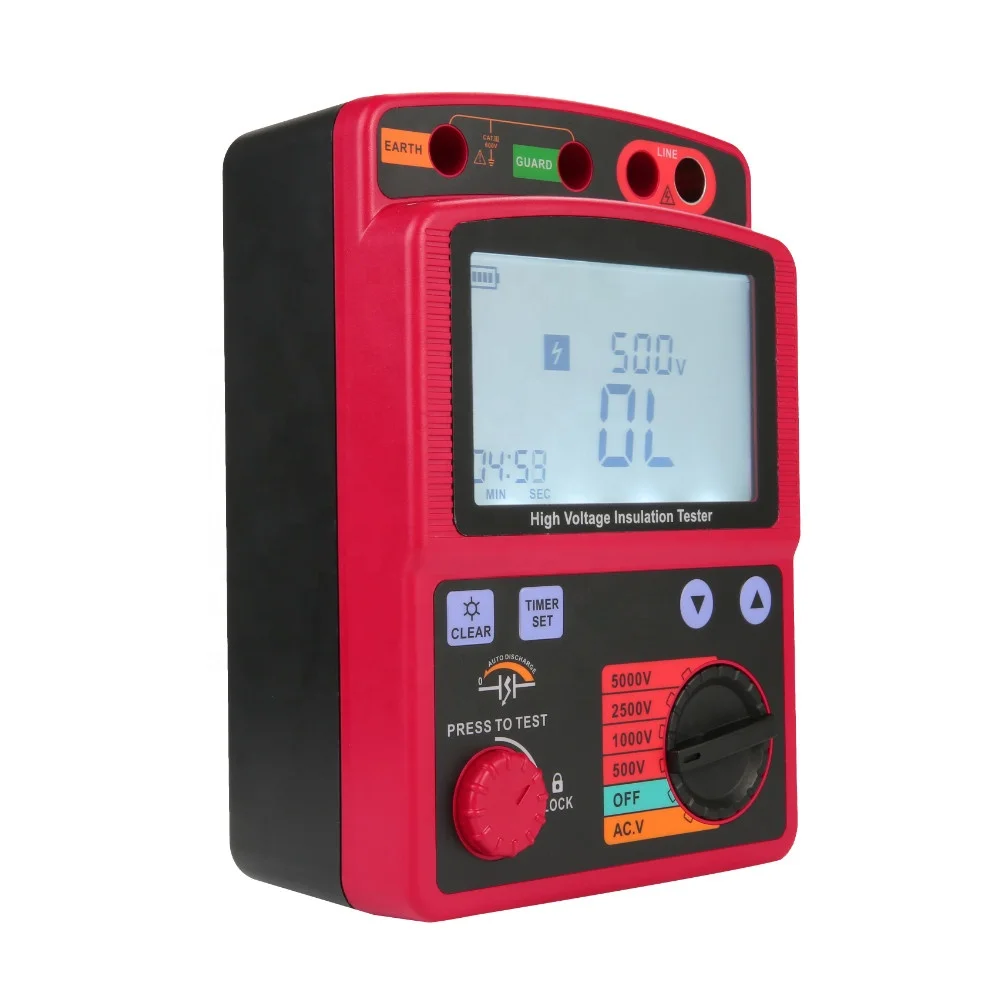

Insulation Resistance Tester
Range | 500V | 1000V | 2500V | 5000V |
Test Range | 0.0~99.9MΩ 100~999MΩ | 0.0~99.9MΩ 100~999MΩ 1.0~1.99GΩ | 0.0~99.9MΩ 100~999MΩ 1.0~1.99GΩ 10.0~99.9GΩ | 0.0~99.9MΩ 100~999MΩ 1.0~1.99GΩ 10.0~99.9GΩ 100~1000GΩ |
Open-circuit voltage | DC 500V +30%, -0% | DC 1000V +20%, -0% | DC 2500V +20%, -0% | DC 5000V +20%, -0% |
Current | 0.5MΩ loading 1mA~1.2mA | 1MΩ loading 1mA~1.2mA | 2.5MΩ loading 1mA~1.2mA | 5MΩ loading 1mA~1.2mA |
Short-circuit current | Approx. 1.3mA | |||
Accuracy | ±5% rdg ± 3dgt (0~99.9GΩ) ±20% rdg ± 3dgt (above 100GΩ) | |||
Voltage Tester
| DV | AV |
Measuring range | ±30~ ± 600V | 30~ 600V (50/60Hz) |
Resolution | 1V | |
Accuracy | ±2% rdg ± 3dgt | |
1. Auto discharge function
2. LCD backlight,PI measurement
3. Live circuit warning symbols with audio sounds
4. Auto-power off cuntion
For small items, we will fully pack with Yellow Tape to protect water.For standard carton we will pack with stretch film and psate with client's shipping mark mentioning company name,carton number.
We have all items in stock, for sample we can send out within 3 working days, for OEM we can send within 35 working days,mosty depends on the quantity and our sales season!
