Hot sale 2KW variable 1000v 2a ac to dc power supply stabilized voltage 1000 volt power supply
- Category: >>>
- Supplier: Guangzhou Wemaxpower Technology Co. Ltd.
Share on (62069808159):
Product Overview
Description
Hot-sale 2KW variable 1000v 2a ac to dc power supply stabilized voltage
1000 volt power supply
>> 1000V 2A Variable DC Power Supply <<
1000 volt power supply is widely applied into industrial control, electronic power, electroplating, communication, scientific research, instrument, military, medical, ship, railway and other high-tech fields.
The details are as below:
1. Electric tools: LED test and aging, energy-saving bulb testing and aging, lamp testing, tungsten gasification.
2. Automobile: automobile electronics, high power dc motor, automobile motor controller, car lighting, cigarette lighter, automobile audio and video.
3. Electronic devices: capacitors, resistors, relays, transistors, sensors.
4. Motor: electric motor, electric vehicle controller, dc motor test.
5. Display: display screen, liquid screen, touch screen, on-board DVD, mobile phone display.
6. Electrochemical class: electrolysis, electroplating, anodic oxidation, nonferrous metal research.
Brand | WEMAXPOWER |
Model | WMX-ASD 1000 2 1000---Output Voltage ;2---Output Current |
Input Voltage | Option : 1 Phase: AC110V /AC120V±10%,50Hz/60Hz; 1 Phase: AC220V / AC230V / AC240V±10%,50Hz/60Hz; (Standard) 3 Phase: AC208V / AC220V±10%,50Hz/60Hz; 3 Phase: AC380V / AC400V±10%,50Hz/60Hz; If need 110vac /380vac input, the price is different , please contact us. |
Output Voltage/Current Customize range | 0~1000V,Stabilizer value. 0% to 100% adjustable 0.2~2A,Constant current value. 10% to 100% adjustable Option, Free combination of voltage and current according on user request If the current need adjustable 0~100% , please contact us |
Output Power | 2000W |
Output mode | Constant voltage & Constant Current |
Load Regulation | ≤0.5%+30mV |
Ripple | ≤0.5% + 10mVrms |
Power supply stability | ≤0.3%+10mV |
Voltage | Current Display Accuracy | Precision of 4 digit table : ±1%+1 word (10%-100% rating) |
Voltage | Current value display Format | Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A; |
Output Voltage Overshoot | Build in O.V.P Protection with a rate of + 5% |
Operation Temperature| Humidity | Operation Temperature : (0~40)℃; Operation Humidity : 10% ~ 85% RH |
Storage Temperature | Humidity | Storage Temperature : (-20~70)℃; Storage Humidity :10% ~ 90% RH |
Over-Temperature Protection | (75~85) C. |
Heat Dissipation Mode/ Cooling mode | Forced air cooling |
Efficiency | ≥86% |
Start-up Output voltage setting time | ≤3S |
Protection | lower voltage, over voltage, over current, short circuit, overheating Protection Noted : if need addition Reverse Connection & Polarity reversal protection should be contact factory customized |
Insulation Strength | Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
Insulation Resistance | Input-Output ≥20MΩ; Input-Output ≥20MΩ; Input-Output ≥20MΩ. |
MTTF | ≥50000h |

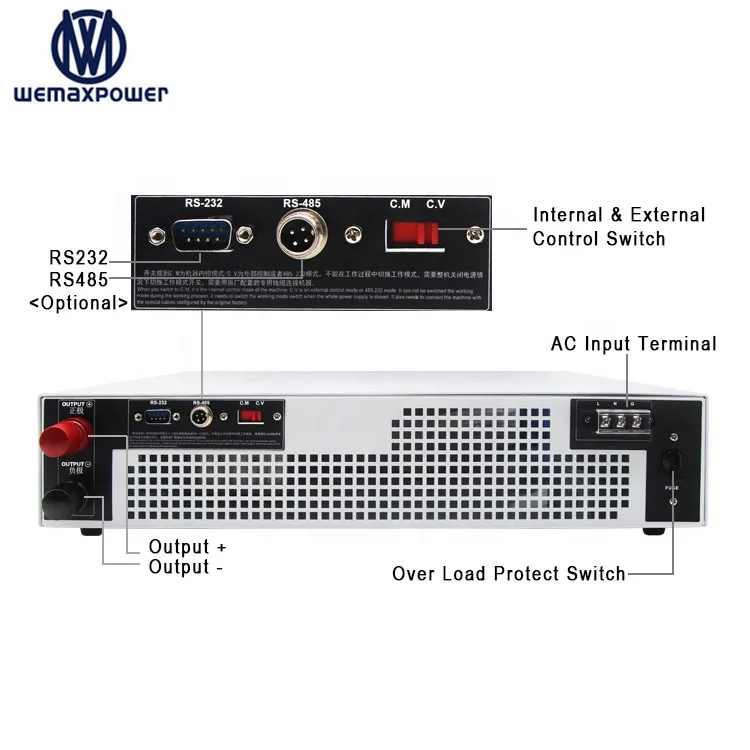

Remote Control Function (Option) | 0-5Vdc /0-10Vdc analog signal control output voltage & current |
0-5Vdc /0-10Vdc analog signal to read-back output voltage & current | |
0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF | |
4-20mA analog signal control output voltage & current | |
RS232/RS485 Communication port control by computer | |

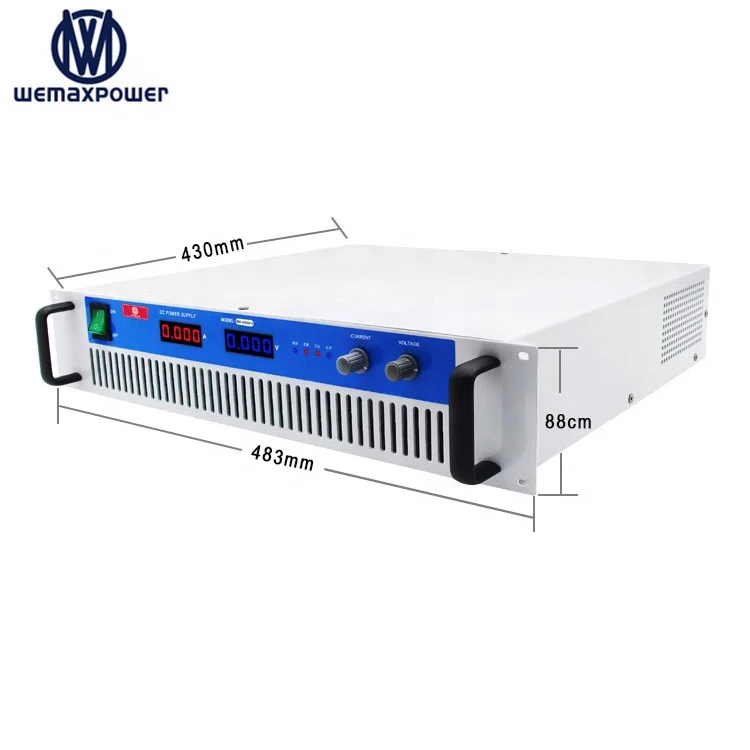

Dimension /Net Weight | 483*430*90mm 19INCH 2U , NW: 17kg |
Product Description
1. Small size and light weight, suitable for working table and rack installation.
2. Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3. Carefully designed electronic technology circuit, forced air cooling heal treatment, with a very low temperature coefficient.
4. Low noise and low ripple.
5. High gain amplifier circuit design, with good rapid response characteristics.
6. Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
7. Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
8. WMX-ASDXXX YYY Series Adjustable DC power supply designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
Regard as the 1000 volt power supply, We can customize many other kinds of specifications according to your requirement. Such as:
1. Input voltage: 1 phase 110VAC/220Vac or 3 phases 380Vac;
2. Output voltage: 0~3000V adjustable or appointed;
3. Output current: 0~2000A adjustable or appointed.
FAQ
Q: Why choose us?
A: Guangzhou Wemaxpower technology Co., Ltd offer you the best quality products and service. Win to win business is our first principle.
Q: Whom we are ?
A: Guangzhou Wemaxpower technology Co., Ltd is a professional manufacturer which combine production and trade. The products series contain DC DC Converter,AC DC Converter,DC power supply,Battery Charger etc. The products is highly used for home applications, motor, photovoltaic panel, car, etc.
Q: Are you a factory or trading company?
A: Yes, we are the direct manufacturer, supply OEM/ODM service.
Q: How about your After sales-service?
A: 1.Guarantee time: 12 Months
2.Return policy: we can exchange goods if quality problem.
Q: Our Payment & Logistics?
A: 1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypal,etc.
2.Shipping terms: DHL, UPS, FedEx, TNT, EMS.
3.Sample order delivered within 24 hours , order lead time within 3 days.
Q: What can you get from us?
A: 1.Excellent products (unique design, strict quality control )
2.Great service(OEM,ODM, after-sales services, fast delivery)
3.Professional business consultation.
Q: What is the MOQ of the 1000 volt power supply?
A: Low MOQ, 1 set for sample testing is available.
