5kw 50ohm high voltage high frequency water cooled resistor
- Category: >>>
- Supplier: Xianyang Qinhua Special Electronic Components Co. Ltd.
Share on (62070012384):
Product Overview
Description
5kw 50ohm high voltage high frequency water cooled resistor
Product Description
 |  |
1. Description :
1.Small volume;Enduring large power 33KW.
2.High frequency is excellent.
3.Good overload , Water cooled
4.Water cooled resistor is one of the Exclusive products in the resistor fields
2.Technology Standard :
1. GJB3017--97
2. QJB/QH1619--2007
3.Contour Drawing :

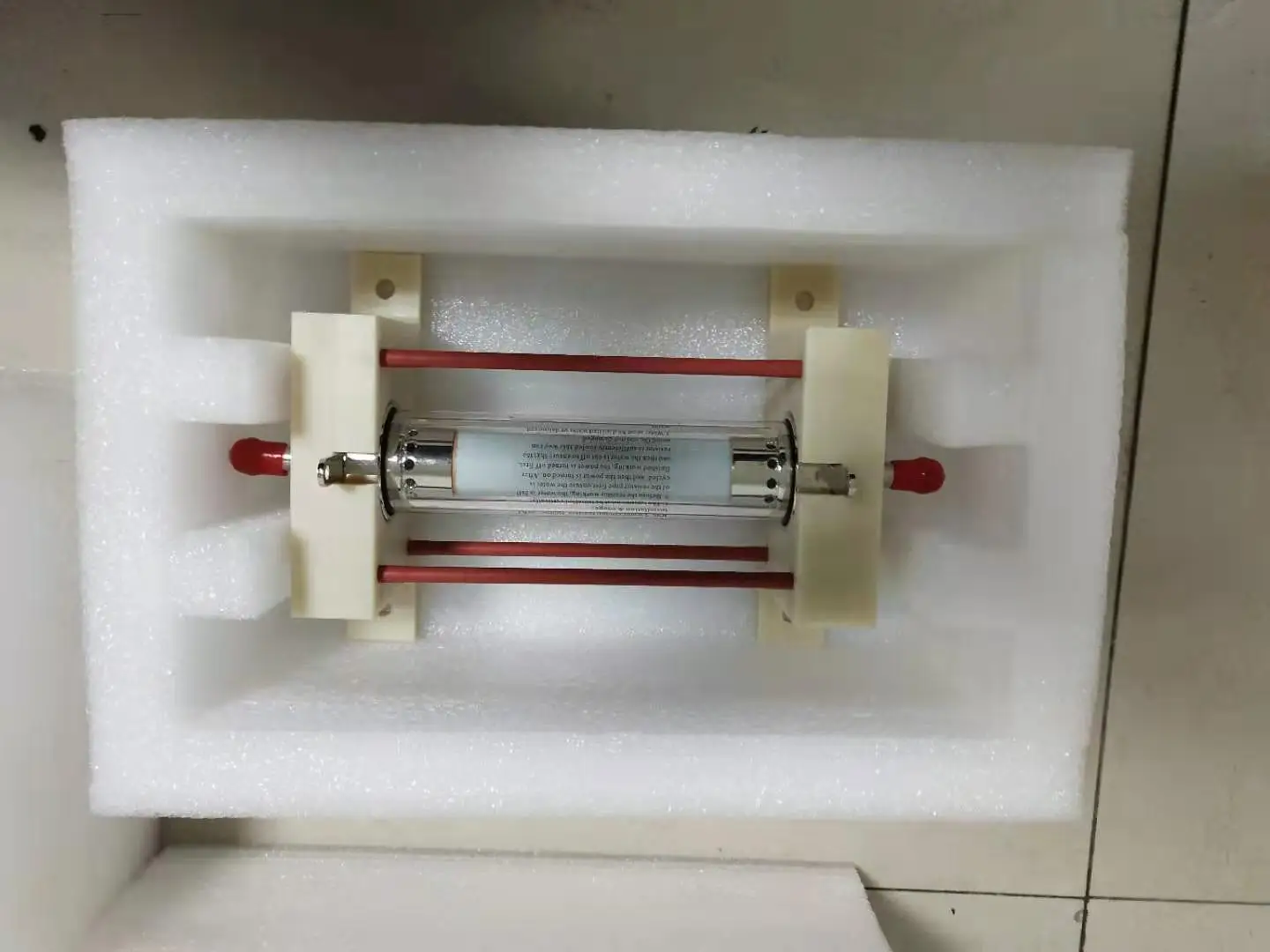

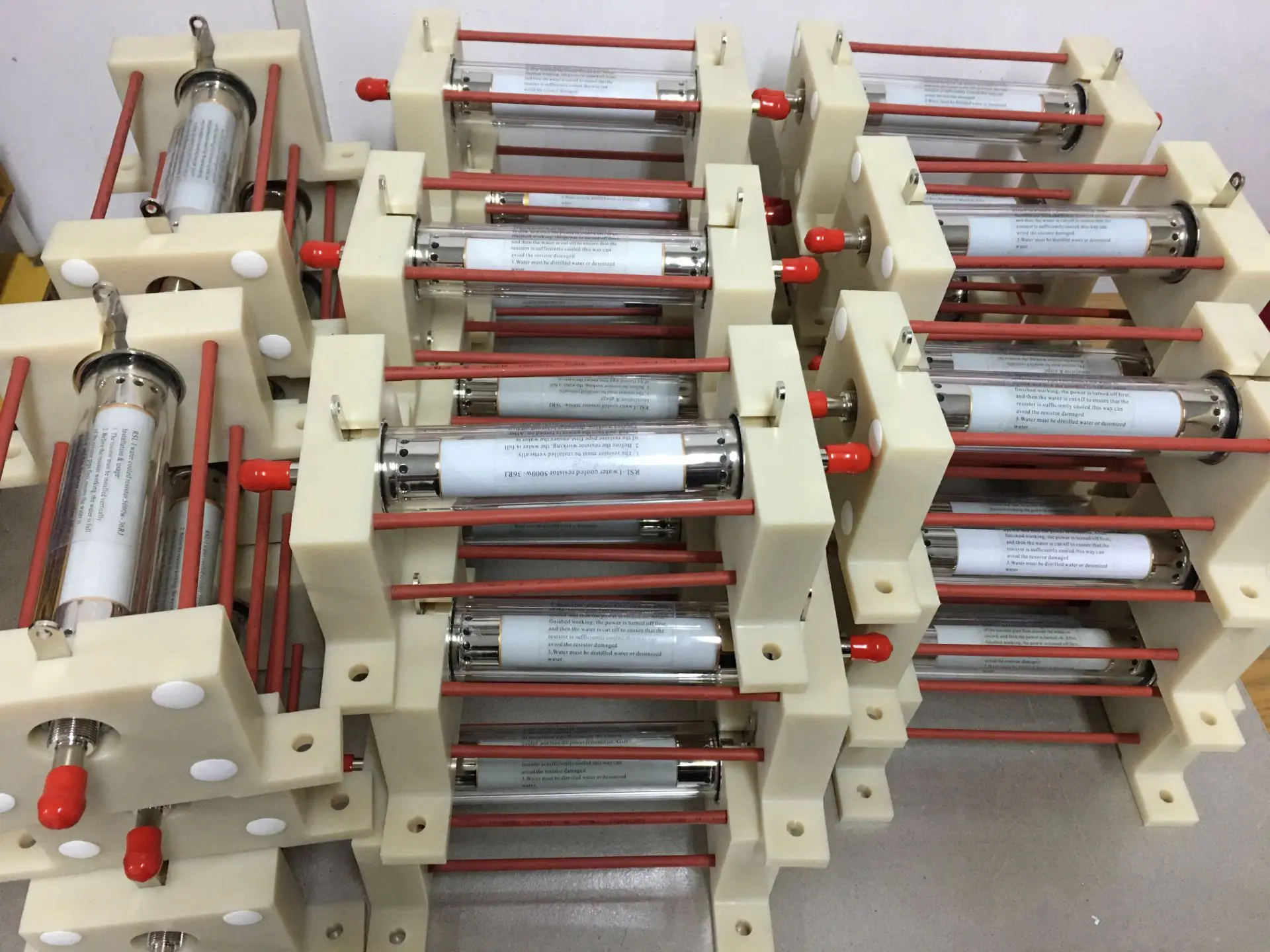

The resistor are wrapped plexiglass tube to make the water flowed,taking away the heat.
4.Chief Technology Parameters & Contour Dimensions:
Type | Power (W) | Resistance Range (Ω) | Resistance Tolerance (%) | Temperature Coefficient(PPM) | ΦD × L (mm) | Note |
SL-I | 5000 | 5-1000 | ±10 |
±400
| 46×(182±1) |
|
SL-II | 10000 | 10-3000 | ±10 | 46×(400±2) |
| |
SL-III | 33000 | 10-10000 | ± 5 | 90×(860±3) | in series |
Remarks:
1.The resistor only allowed the vertical installation,water inlet,outlet in.
2.Resistor per 1kw power consumption,water should not be less than 1liter per minute.But reduced power use,in terms of its water:5kw resistor not less than 5 liters per minute;10-20kw resistor not less than 10 liters per minute;25kw resistor not less than 15 liters per minute.
3. If using circulating water cooling system, the water must be treated with cooling before use.
4.Go beyond the afore cited scope,we can provide the products according to the user's requirements.
5.Applications scope:
1.They are used extensively high frequency power supply equipments of metal thermal treatment & false loads of the sender for the radio and television.
2.Principally used in electronic test equipment,high voltage switch, high voltage electric transport,large power electrical, electronic specialized precision instrument, new type medical equipment manufacture and high voltage electrostatic precipitator etc.
3,Broadcasting
4,DC accelerator
5,Pulse Grounding testing
6,Medical equipment
Company Information
1.Company Profile :
Xianyang Qin Hua Specialized Electronic Components Factory engages for the all kinds of specialized electronic components producing .Our factory mainly produce metal glaze film resistor,oxide film resistor and wire wound resistor.Our factory have strong capacity to develop specific electronic devices.In December 2010,we have got GB/T19001-2008 & ISO9001:2008 Quality Management Systems Certificate.
2.About Our Company :
Our Services
1.We can provide the samples for you if need.
2.We can produce kinds of the high voltage resistor according to the user's requirements.
3.We dedicate the majority of users with a comprehensive after-sales service and technical support.
FAQ
1. How to choose the resistor ?
1 We would like to commend the wirewound resistor for you when it will be used in low voltage(220v-3.5kv).
2 It is better to use glass glaze resistor in high voltage(above 5.0kv).
3 For high-frequency circuits,to recommend oxide film resistor or glass glaze resistors.The resistance of the structure body,determines that it has a low inductance.There are requirements on the circuit inductance,film resistor is your best choice.
2. Resistor structure model and parameters characteristics ?
2.1 Glass Glaze Resistor:It is extremely stable chemical properties resistor paste coated on 95%AL2O3 ceramic tube,high temperature resistance film formed after firing.In order to guarantee stable electrical performance parameters,the surface to be coated with a protective lacquer.Its characteristics:
Resistance Range:Ω--G Ω
Power Range:0.5--500W
Frequency Response:less oxide film resistor ideal,but much better than wire wound resistors.(Called non-inductive resistor)
2.2 Oxide Film Resistor:It is the liquid chemical reagent injected into the high pressure borrow about 800°C 95%AL2O3 ceramic tube,in the high temperature generated in the resistive film.Surface without protective lacquer coating.Its characteristics:
Resistance Range:1 Ω --5K Ω
Power Range:10W--500W
Frequency Response:≥100MHz Truly non-inductive resistor
Water cooled resistor is one of the oxide film resistor.It is used in water and cooled by water cycle.So it can improve the working power 3~5 times than the ordinary resistor cooled in the air.The large power can reach 5000w,10000w and 33000w.It can be used as dummy load resistor.
2.3 Wire Wound Resistor:Alloy resistance wire is wound on an insulating substrate for the endurance temperature,the surface protective layer coating made of resistive components.Because the different of the coated and package,it can divided into paint type,glaze type,metal shell type,porcelain shell type.Its characteristics:
Resistance Range:0.15 Ω --20K Ω
Power Range:1W--500W
Frequency Response:inability to completely eliminate inductive factors,the frequency characteristics of the worst of the three resistors
3.High voltage resistors abide by electronics basic formula yet Using in the equipment circuit ?
Ohm Law
V=IR
Here:
I-Flowed Resistor Current,Dimension:A.
V-Voltage Exerted Resistor,Dimension:V.
R-Resistor’s Resistance,Dimension: Ω .
4. How to choose the resistor power?
Power is larger (≥ 20W) of the load resistor at full power for a long (more than 2 hours) work surface will produce 300°C temperature of around. And safe use of the resistor surface temperature is preferably maintained at less than 200°C. Therefore, when the choice of the resistor, reduced power in using should be considered.
5. Withstanding Voltage?
China National Standard GB/T5729-2003/IEC60115-1:2001 in on the withstand voltage so provides:”In addition to surface mount resistors for all except resistors,test voltage shall be applied to the following two electrodes between:two resistors connected together as a lead-out electrode,V-block,a metal foil or mounting member as the other electrode,test voltage is AC(40Hz-60Hz),the peak of about 100v/s rate of rose from zero detailed specification insulation voltage worth 1.42 times the specified voltage is reached after keeping 60s(±5s).
Obviously,this is the measurement resistor resistance of the insulation coating layer or carrier(such as porcelain) the withstand voltage performance.Therefore,the Withstanding Voltage are not necessarily linked with the resistor’s other technical parameters,like power,resistance,etc.
6. Using note?
The resistor is a heating component. During use, please pay attention to whether the surface temperature rise have effect on other elements. Of course, when choosing resistor, we will provide all technology parameters of the product for you to ensure your using. Please use according to technology parameter!
7. Why ask the working voltage, resistance value, resistor tolerance, temperature coefficient, contour dimension, main use of the resistor for the buyers every time?
Our company offer products in multiple dimensions, types, uses. According to that data you providing, we will choose optimum resistor for you. The optimum resistor will bring to the good influence for your produce, reducing power consumption and extending use life.
