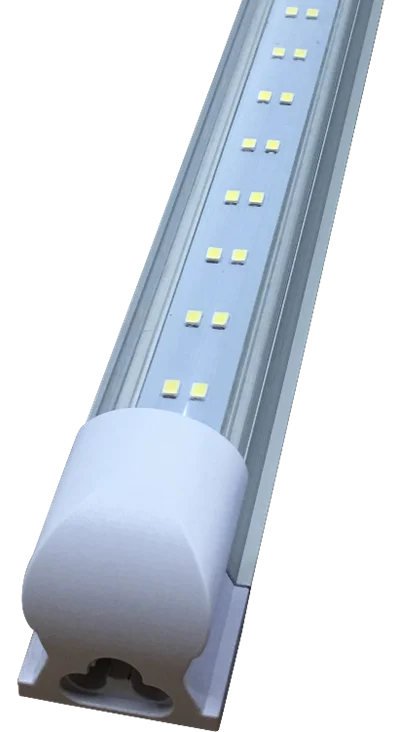

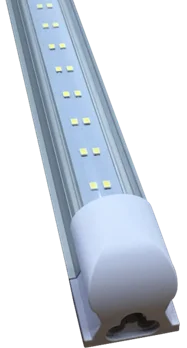

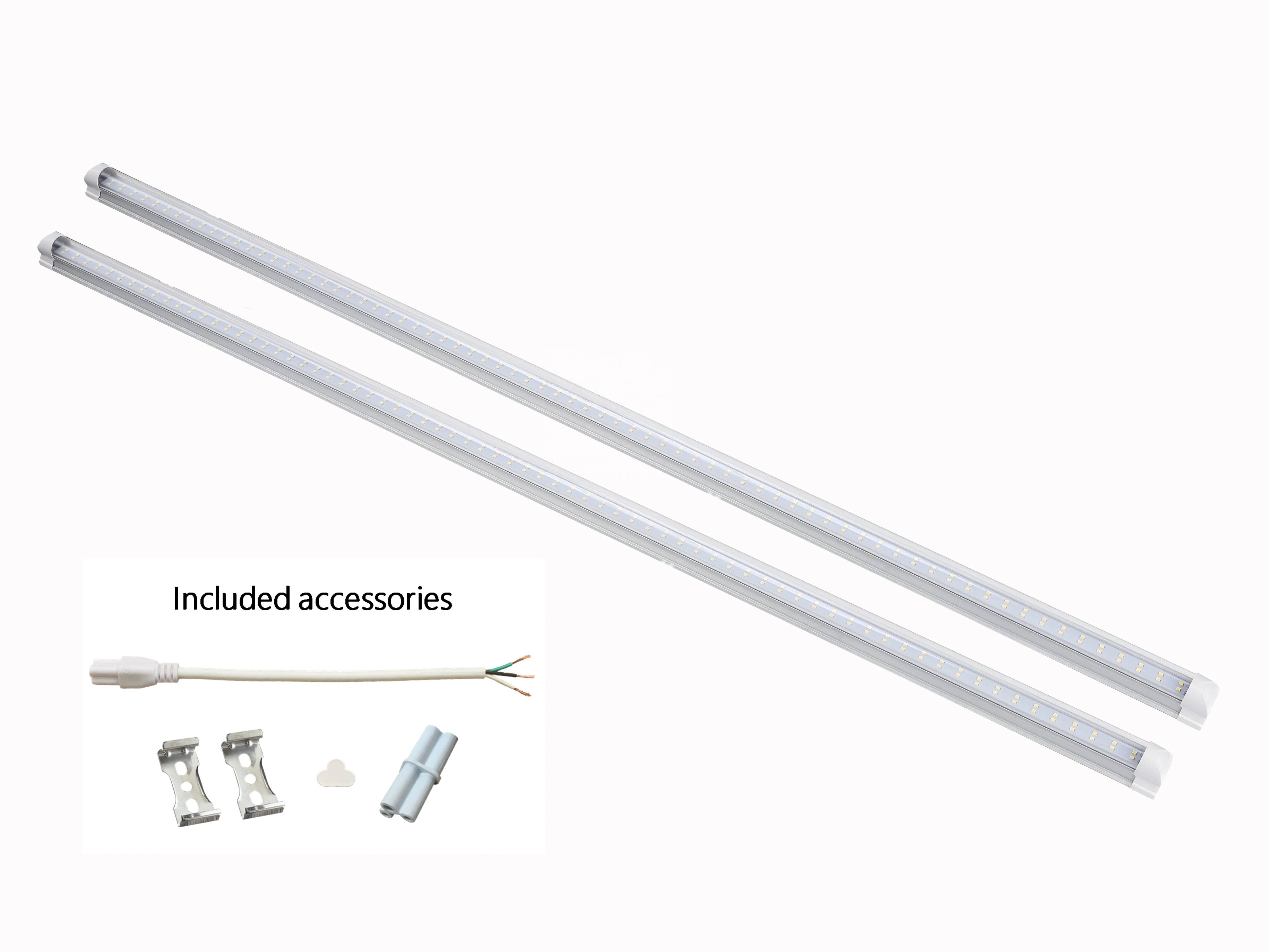

4FT 8FT LED Integrated light led tube light for warehuose 130LPW ETL DLC

Product Overview

Description

Product Description:

Standard Configuration:



Available  in 3 PC cover: Frosted, Clear, Stripy

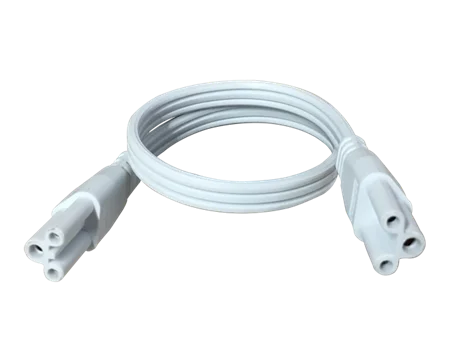

Optional accessories, UL 18# extension cables:

Aavailable length: 0.25m,0.5m,1m,2m

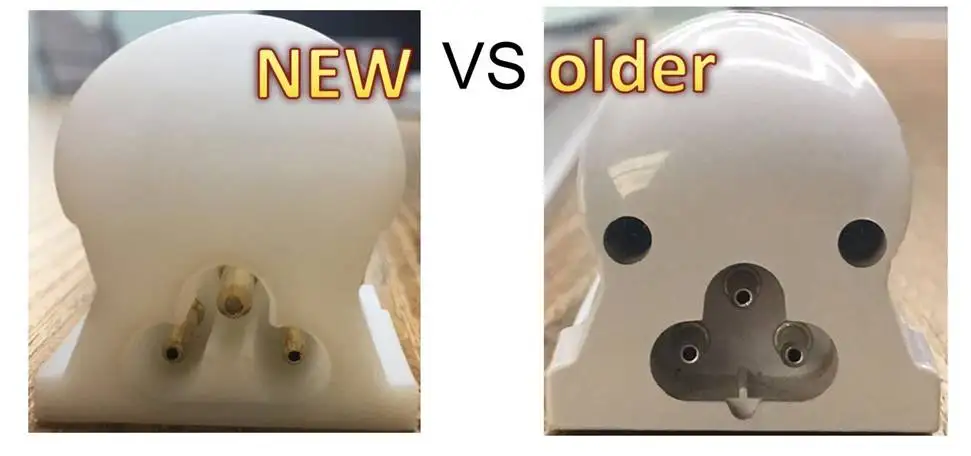

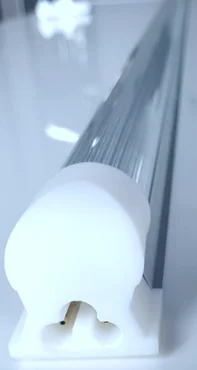

NEW Safety end caps, 3mm SAFE distance from metal pin to the caps.

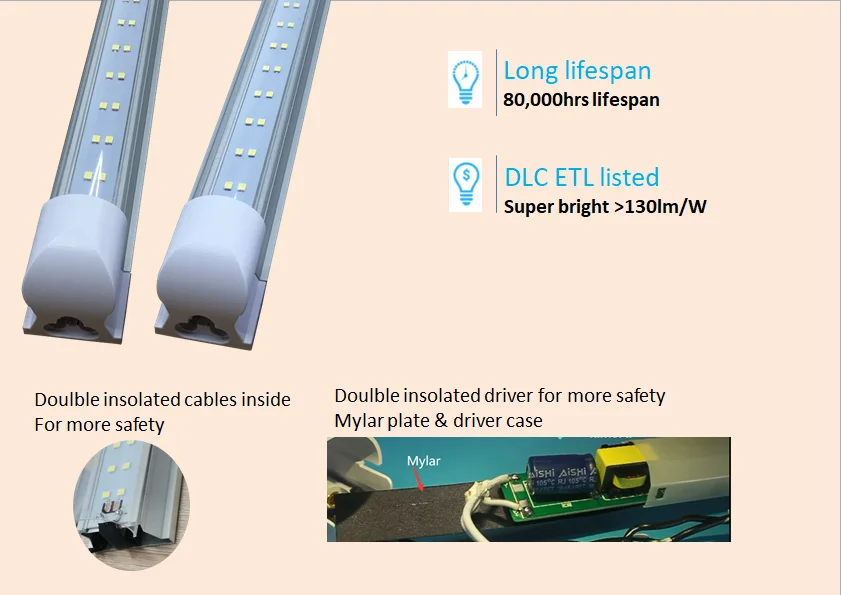

Hilux’s integrated tube adopts new design end caps, compared with the common older connector on the market, it is safer, can protect you well, and reduce defective rates.

It is screw-free, can avoid the screws hurt the cables inside the tubes.

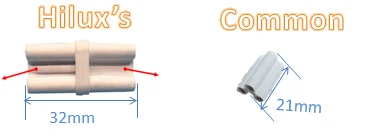

Longer connector

Longer connector design, connect tubes tightly, won’t get loose.



Data Sheet:

Model	Length	Power	Efficacy	CCT	CRI	Beam Angle	Input	Certificate
MC-INT4F-18XX	4ft	18W	>130lm/W	3000-6500K	>80	120°	100-277V	ETL,cETL
MC-INT4F-22XX	4ft	22W	>130lm/W	3000-6500K	>80	120°	100-277V	ETL,cETL
MC-INT4F-24XX	4ft	24W	>130lm/W	3000-6500K	>80	120°	100-277V	DLC Premium ETL,cETL
MC-INT4F-30XX	4ft	30W	>130lm/W	3000-6500K	>80	120°	100-277V	ETL,cETL
MC-INT4F-40XX	5ft	40W	>130lm/W	3000-6500K	>80	120°	100-277V	ETL,cETL
MC-INT4F-48XX	6ft	48W	>130lm/W	3000-6500K	>80	120°	100-277V	ETL,cETL
MC-INT4F-60XX	8ft	60W	>130lm/W	3000-6500K	>80	120°	100-277V	DLC Premium ETL,cETL
MC-INT4F-72XX	8ft	72W	>130lm/W	3000-6500K	>80	120°	100-277V	DLC Premium ETL,cETL

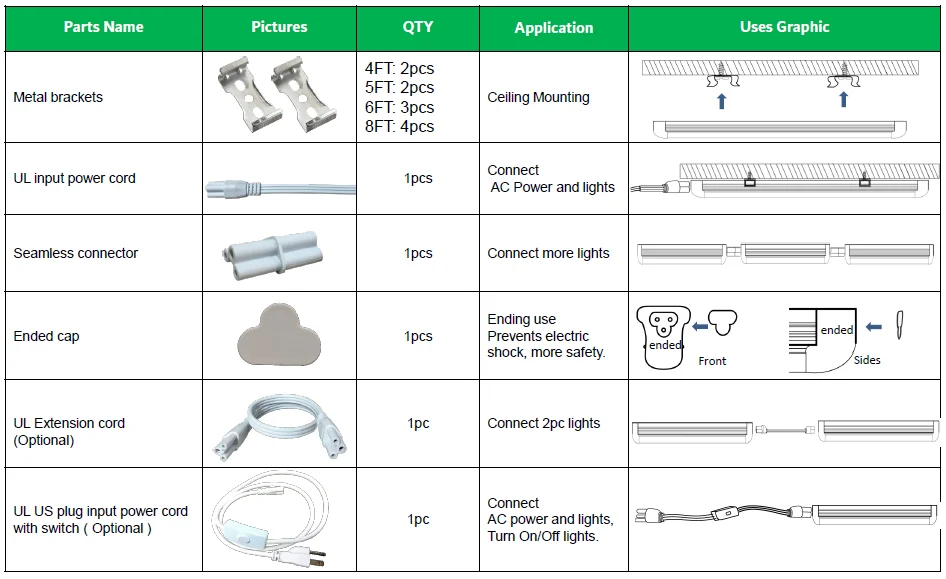

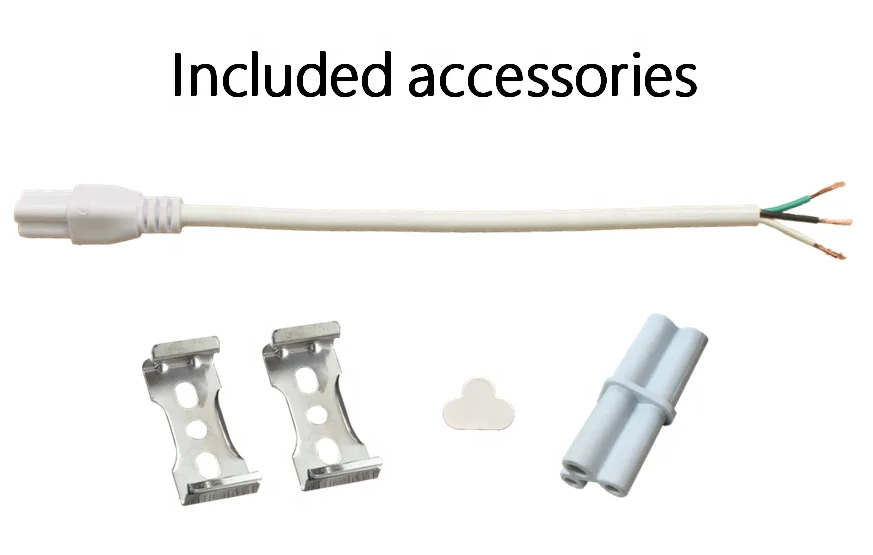

Accessories:

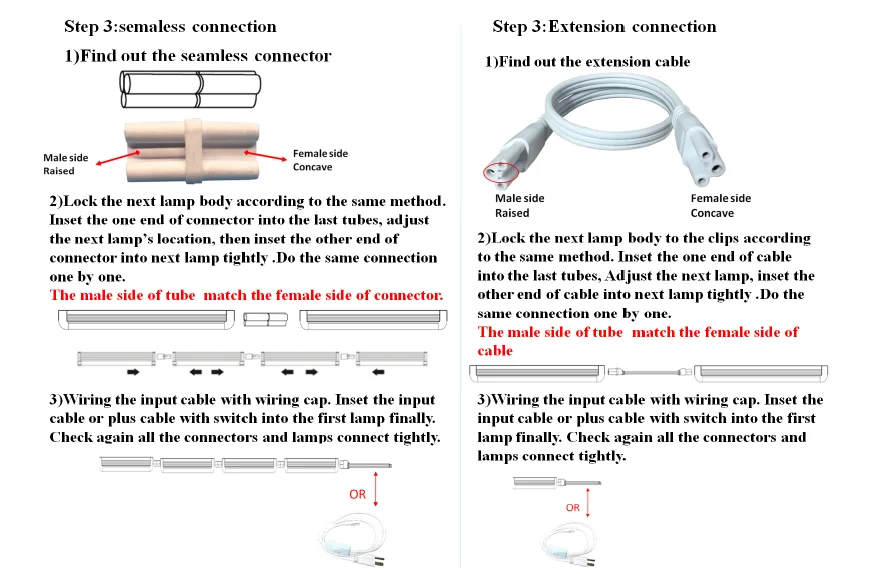

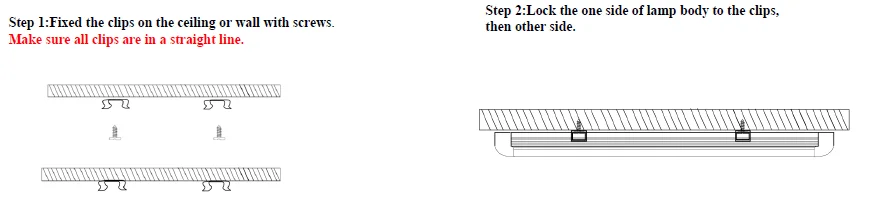

Installation:
