UL 817 Road Vehicles Wire or Cable Bending Test Apparatus
- Category: >>>
- Supplier: Dongguan Zonsky Instrument Co. Ltd.
Share on (62070053211):
Product Overview
Description
Product Description

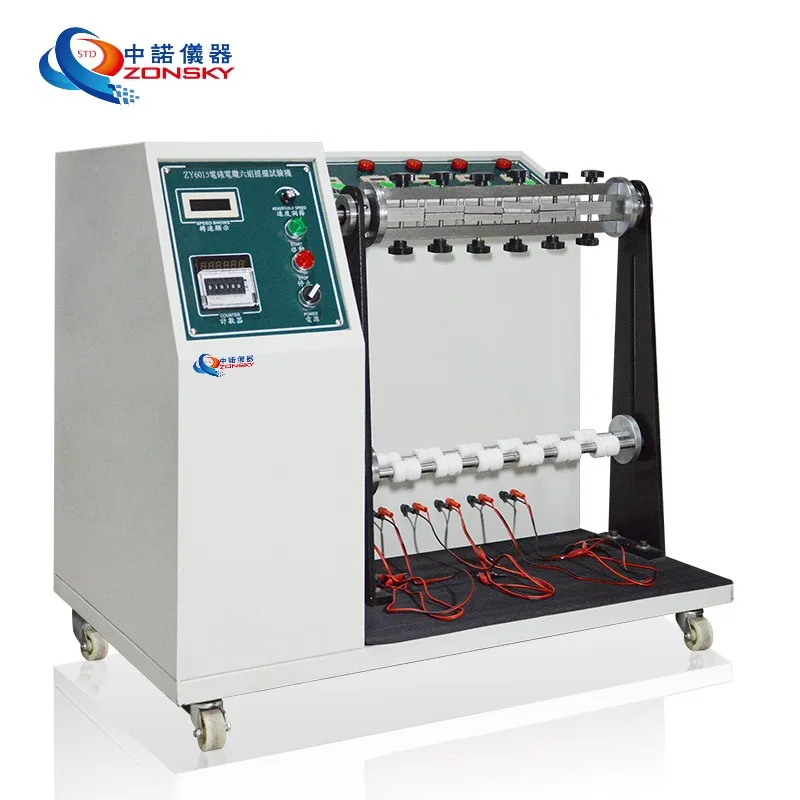

UL 817 Road Vehicles Wire or Cable Bending Test Apparatus
1. Application
It is suitable for bending, rocking test of round, shielded and unshielded multi-core sheathed cables for road vehicles.
2. Standards
Meet the requirements of GB/T25087-2010 standard.
3. Technical parameters | ||||||||
Working power supply | AC220V 50Hz | |||||||
Test speed | 10-60 times / minute Adjustable | |||||||
Bending angle | 30°, 45°, 60°, 90° can be set | |||||||
Test sample | 6 sets of wire tests are performed at the same time. | |||||||
The total number of swings is 7 counters | One of which is the total number of swings 0-999999 can be preset, the other 6 are one per workpiece, used to count the number of times each sample of the workpiece from the start of the test to the time of the bend. | |||||||
Weight | 36 pcs for each of 12.5N, 20N, 30N, 50N, 80N, and 125N | |||||||
Conductor continuity detection | Wire current 100mA, voltage 12V | |||||||
Fixture curvature | R4.5mm, R5.6mm, R6.9mm, R10mm, R12.75, R16mm | |||||||
Certifications
Exhibition
Canton Fair
Place: Guangzhou
Brand: Zonsky
Original: China
Canton Fair is a wonderful platform for our company to promote our test instruments, welcome to visit our booth.
Electric Wire And Cable Exhibition
Place: Shanghai
Brand: Zonsky
Original: China
Shanghai Electric Wire and Cable Exhibition is a big fair, and very popular in Wire & Cable Industry.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine & use the machine.
* Engineers available to service machinery overseas.
* After sales consulting support.
Packing & Delivery
Packaging | ||
Size | W1150 * D700 * H1000 mm | |
Weight | 200 KGS | |
Packaging Details | The normal package is wooden case (Size: L*W*H). If export to european countries,the wooden case will be fumigated. Generally, we will use PE film for packing or pack it according to customers special request. | |
Delivery | ||
Vehicle | Tow Truck | |
Size | 20ft or 40ft Container | |
Transit | Our factory is about 50km to the nearest port. It is very convenient for the long vehicle sending our products to the seaport for declaration and export. As we are near to Shenzhen, Guangzhou and Hongkong, the customers can choose any one if they have special requirement. | |
