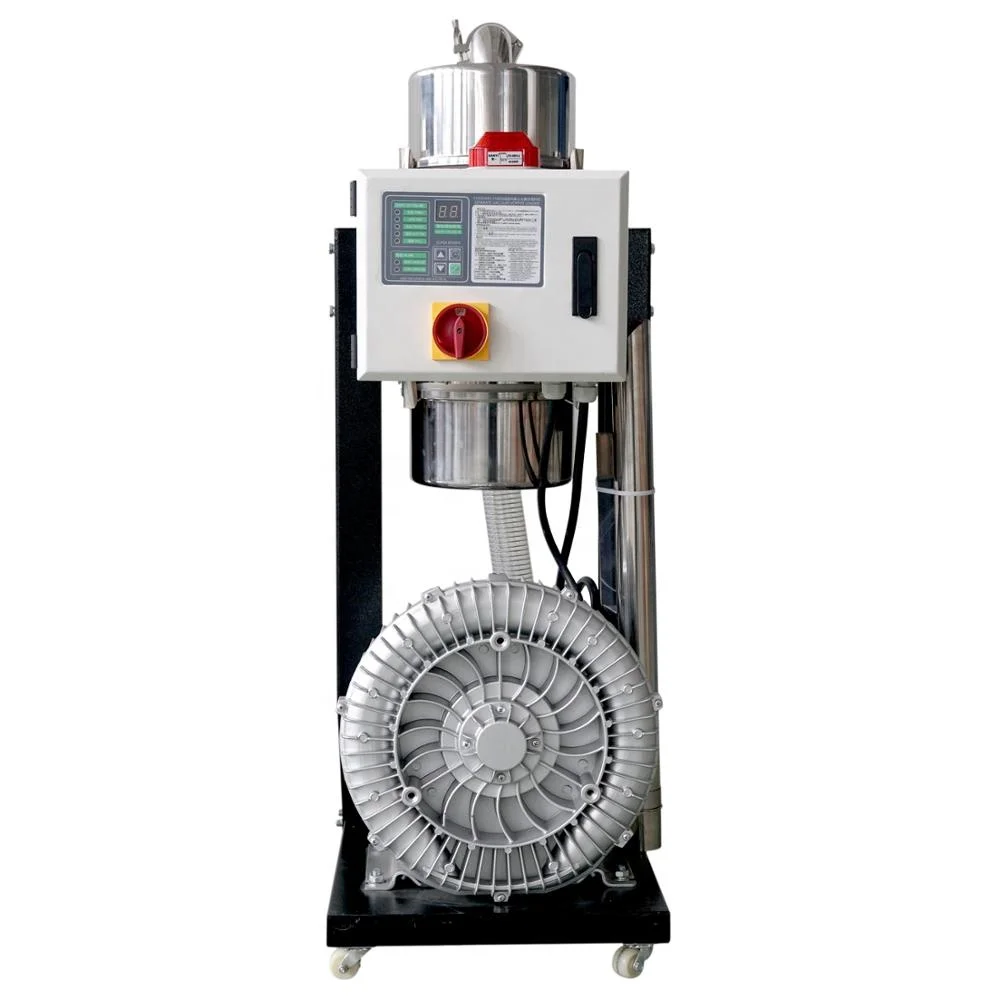

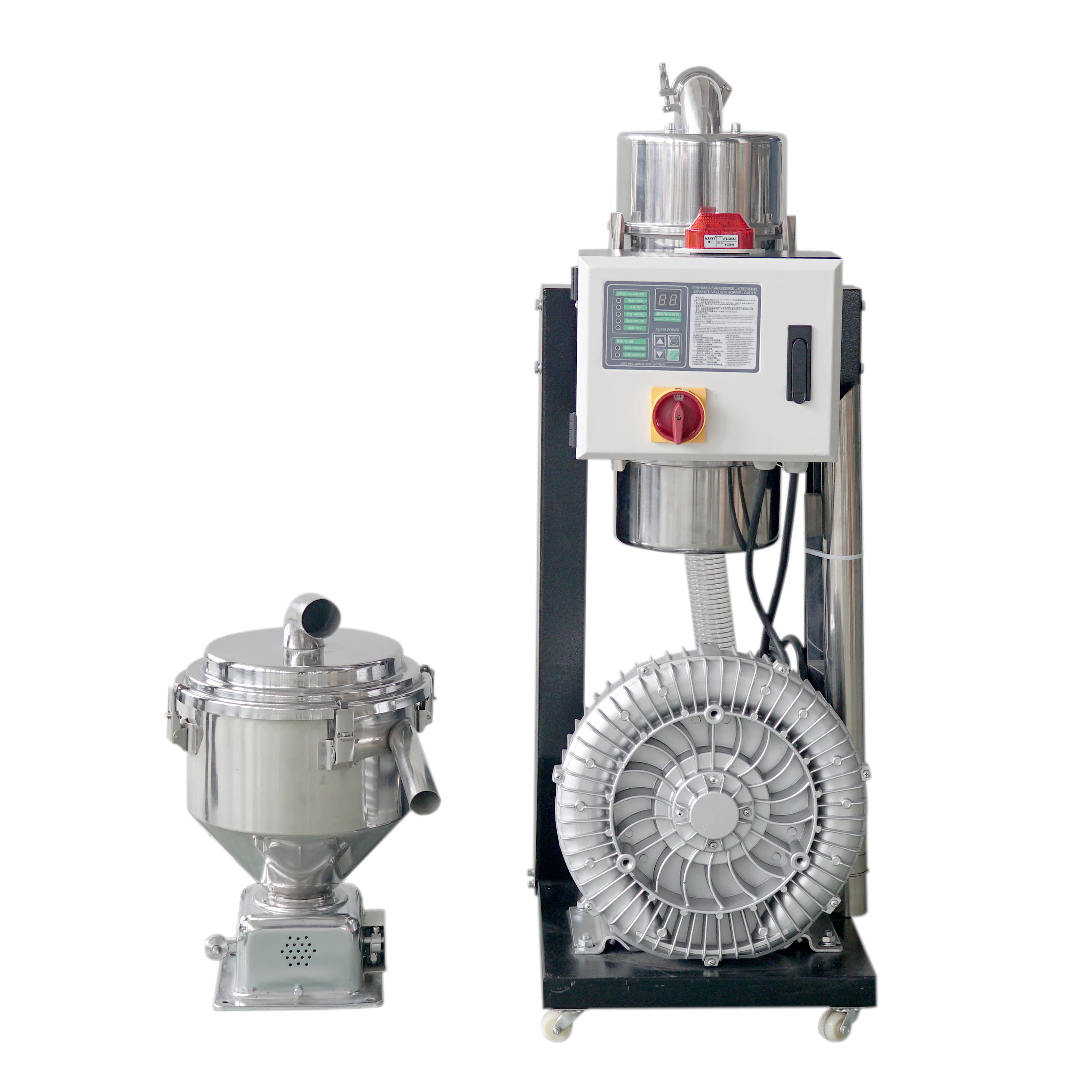

WOLTER FS-S European Separated Vacuum Auto Loader
This series powder loader adopted vacuum absorption transported principle, can be make the particle diameter and all kinds of
powder and original granular,which greater than a micron
sent to specified equipment from all kinds of storage containers. Using with profile unit, mixing system, chemical processing
equipment, replace
artificial feeding completely, this is the ideal environmental protection powder conveying equipment.
powder and original granular,which greater than a micron
sent to specified equipment from all kinds of storage containers. Using with profile unit, mixing system, chemical processing
equipment, replace
artificial feeding completely, this is the ideal environmental protection powder conveying equipment.
Feature
1.This series on the basis of absorbing the advantages of import prototype design and manufacture
2.Adopting imported cutting dust filter, high strength, good effect of cutting dust, no pollution.
3. Vibration discharge system can prevent powder bypass, make it more smoothly.
4. Adopting pulse compression air blowback cleaning device, port explosion shock the filtering surface, cleaning effect will be
better.
5. The aspiratory inlet and suction inlet will be close automatically when counter blowing, without contamination of the
environment and human populations.
6. This series adopts absorption and counter blowing clean up at a time, make conveying more efficient, and can be extend the
service life of the filter unit.
2.Adopting imported cutting dust filter, high strength, good effect of cutting dust, no pollution.
3. Vibration discharge system can prevent powder bypass, make it more smoothly.
4. Adopting pulse compression air blowback cleaning device, port explosion shock the filtering surface, cleaning effect will be
better.
5. The aspiratory inlet and suction inlet will be close automatically when counter blowing, without contamination of the
environment and human populations.
6. This series adopts absorption and counter blowing clean up at a time, make conveying more efficient, and can be extend the
service life of the filter unit.
Host | Hopper | Dimensions | ||||||||
Host Type | Blower Power | Conveying Volume | Conveying Pipe Size | Capacity | Main Control | Hopper | ||||
FS-0.85S | 0.85 kW -3Ø | 7.5 L | Ø 38 mm | 300 kg/h | 430x550x1150 mm | 380x280x460 mm | ||||
FS-1.1S | 1.1 kW -3Ø | 7.5 L | Ø 38 mm | 410 kg/h | 430x550x1150 mm | 380x280x460 mm | ||||
FS-1.5S | 1.5 kW -3Ø | 7.5 L | Ø 38 mm | 510 kg/h | 430x550x1150 mm | 380x280x460 mm | ||||
FS-2.2S | 2.2 kW -3Ø | 7.5 L | Ø 38 mm | 630 kg/h | 430x550x1150 mm | 450x330x500 mm | ||||
FS-3S | 3.0 kW -3Ø | 7.5 L | Ø 38 mm | 750 kg/h | 430x550x1150 mm | 450x330x500 mm | ||||
FS-4S | 4.0 kW -3Ø | 24 L | Ø 51 mm | 860 kg/h | 430x550x1150 mm | 370x330x500 mm | ||||
FS-5.5S | 5.5 kW -3Ø | 30 L | Ø 51 mm | 950kg/h | 430x550x1150 mm | 450x330x500 mm | ||||
FS-7.5S | 7.5 kW -3Ø | 40 L | Ø 51 mm | 1150 kg/h | 430x550x1150 mm | 740x330x900 mm | ||||
FS-5.5S-T | 5.5 kW -3Ø | 30x2 L | Ø 51 mm | 1200 kg/h | 430x550x1150 mm | 740x330x900 mm | ||||
FS-7.5S-T | 7.5 kW -3Ø | 40x2 L | Ø 51 mm | 1500 kg/h | 430x550x1150 mm | 740x330x1200 mm | ||||
FS-11S-T | 11 kW -3Ø | 40x2 L | Ø 51 mm | 1600 kg/h | 430x550x1150 mm | 740x330x1200 mm | ||||

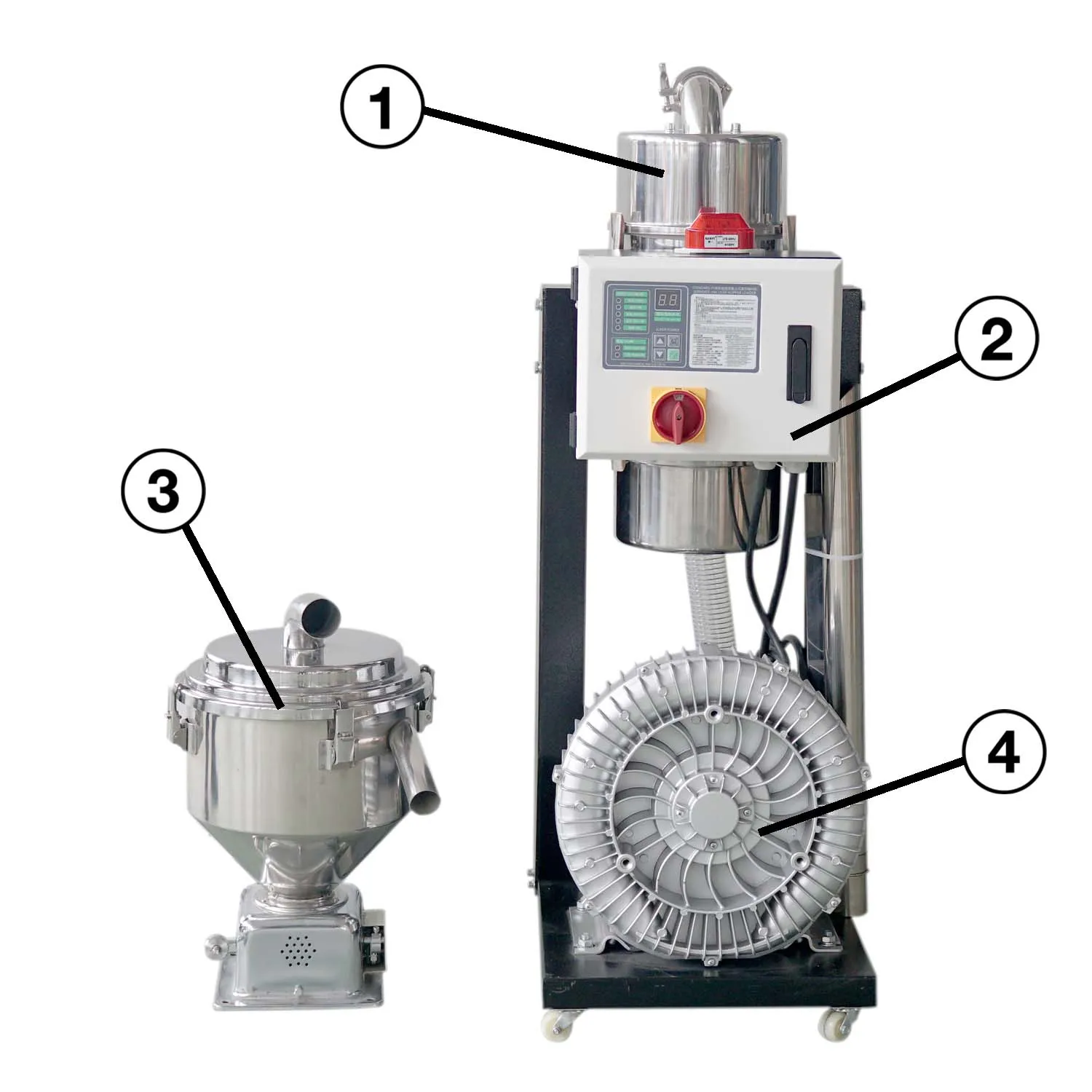

1.The Filter
Dust collecting bucket with filter, effectively filter dust, prevent single blocking
2.New LCD Controller
The whole series of models adopt LCD controller, new man-machine interface, with functions such as material shortage and
overload alarm
overload alarm

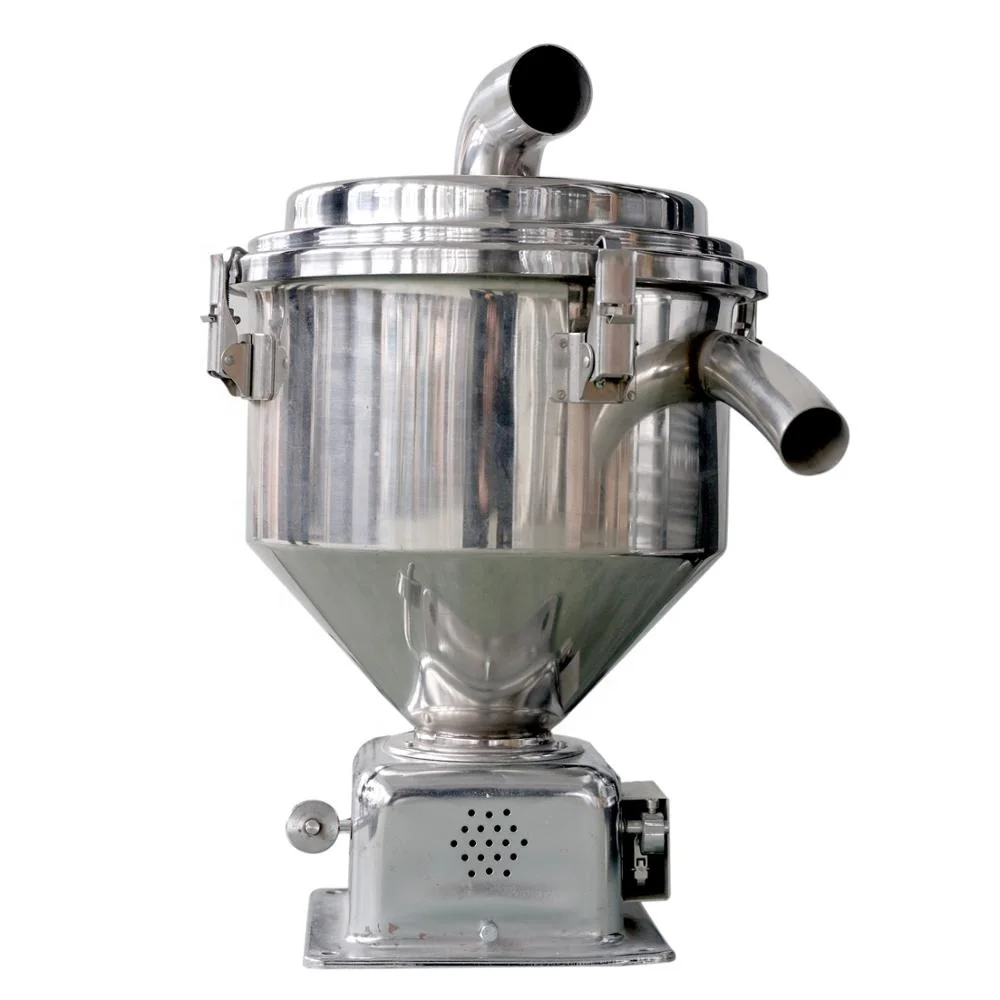

3.Reed Hopper
Equipped with reed hopper, the induction is sensitive, the quality is stable, the base can be adjusted according to the customer's
demand arbitrary direction, and the hopper has an independent switch, can be closed independently
demand arbitrary direction, and the hopper has an independent switch, can be closed independently
4.High Pressure Air Blower
Induction motor has positive and negative blowing function, low noise, strong suction;
The motor power, feeding pipe diameter and hopper capacity are all configured to meet the demand
The motor power, feeding pipe diameter and hopper capacity are all configured to meet the demand
