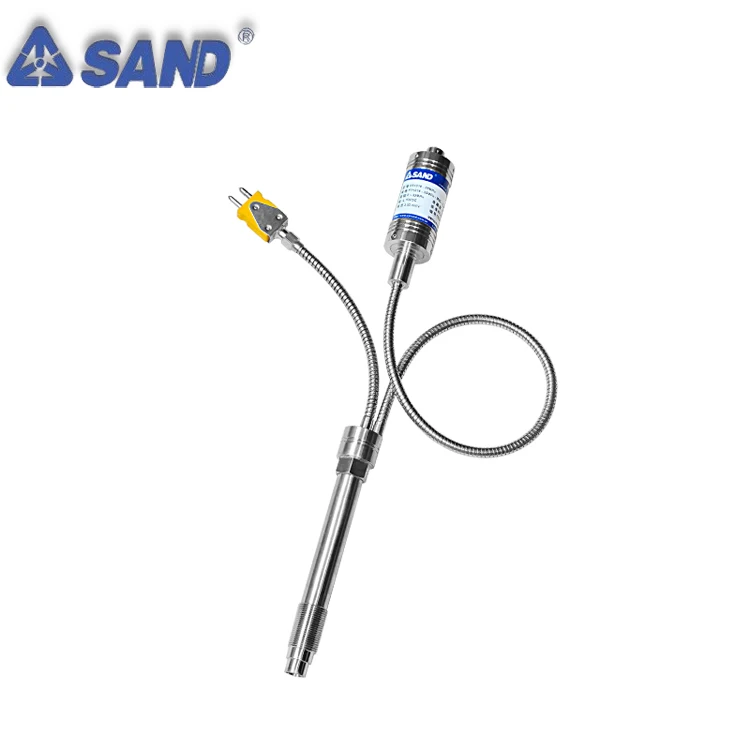

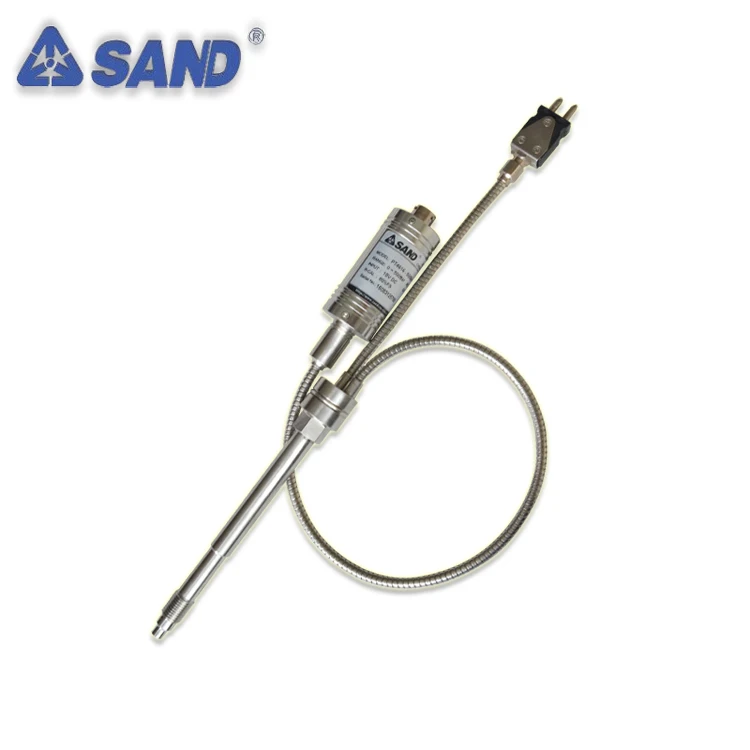

SAND C E PT612 Melt Pressure Transducer Transmitter
- Category: >>>
- Supplier: Chengdu Sand Electronic Co. Ltd.
Share on (62070204378):
Product Overview
Description
Product Description
Our company developed the PT611,PT612,PT623 Series melt pressure sensor/transmitter in full compliance with C E certification requirements. The component selection and circuit design have passed the rigorous performance testing ,It's obtained the permits to enter the European market .C E certification.
Detailed Images
Performance
1 Adopt safe structure & non-toxic, pollution-free transmission medium;
2 Comply with U.S. F D A standards and the EU R O H S directive;

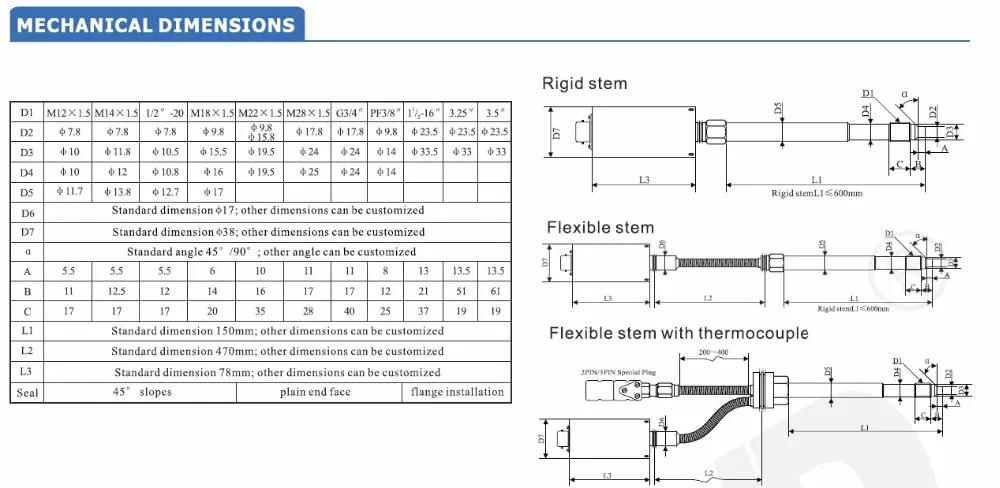

3 1/2 "-20, M14 x 1.5, M22 x 1.5, G3 / 4" a variety of mounting dimensions to facilitate the user to select;
4 Accuracy: ± 1.0% FS, ± 1.5% FS (default);
5 Green shell, elegant appearance;
6 Output signal:Pressure sensors; 2.0mV / V, 3.0mV / V, 3.33mV / V; Pressure transmitter: 0 ~ 10V, 4 ~ 20mA;
7 Corrosion resistant coating to extend the service life of3 to 5 times; (optional)
8 Thermometric Config:
Thermocouple: E, J, K type, etc., Thermal resistance: Pt100 etc. (Optional)
Order Format:
Example:
PT612-5000psi-M18-1/2"-20-380/470-3.33mV/V
Note:
Product design Model "PT612".
Function code "Null" stands for melt pressure transducer.
Coating code "Null" stands for without coating .
Pressure range: 0 ~ 5000psi.
Thread size : 1/2"-20UNF.
Rigid stem length:380mm .
Pressure output signal: 3.33mV/V.
Example:
PT612-5000psi-M18-1/2"-20-380/470-3.33mV/V
Note:
Product design Model "PT612".
Function code "Null" stands for melt pressure transducer.
Coating code "Null" stands for without coating .
Pressure range: 0 ~ 5000psi.
Thread size : 1/2"-20UNF.
Rigid stem length:380mm .
Pressure output signal: 3.33mV/V.
Packing & Delivery
Certifications

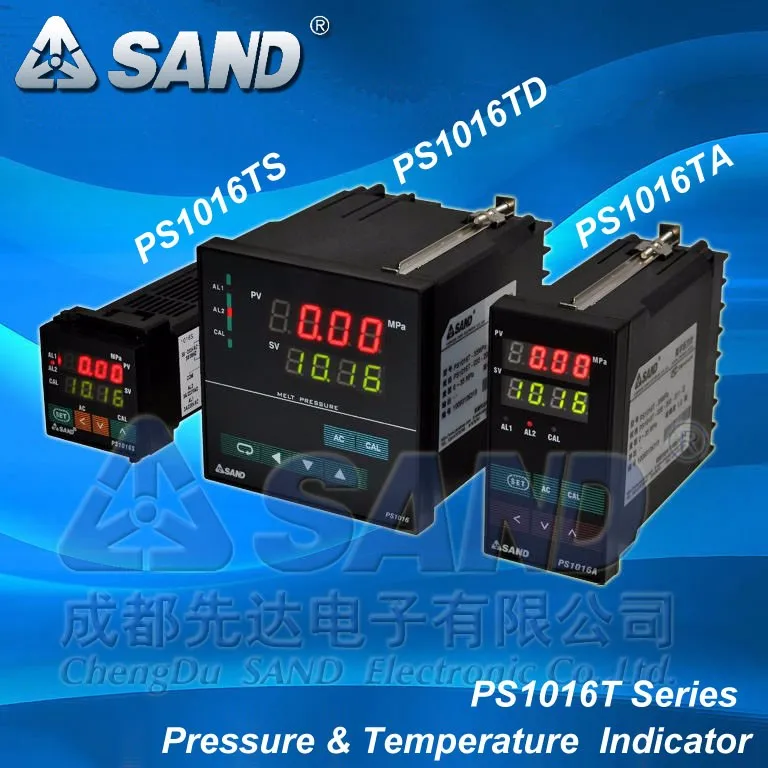

Related Products
Our Service
3 YEARS WARRANTY!
