Product Overview
Description

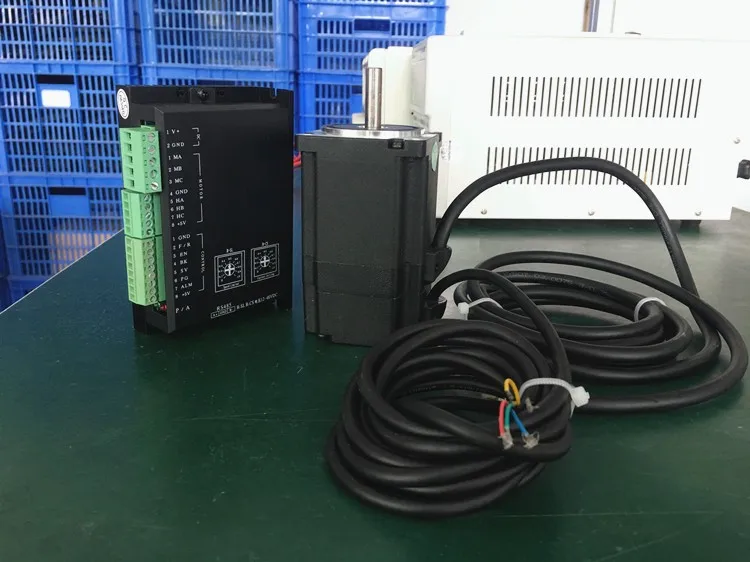

Product Description
Summary

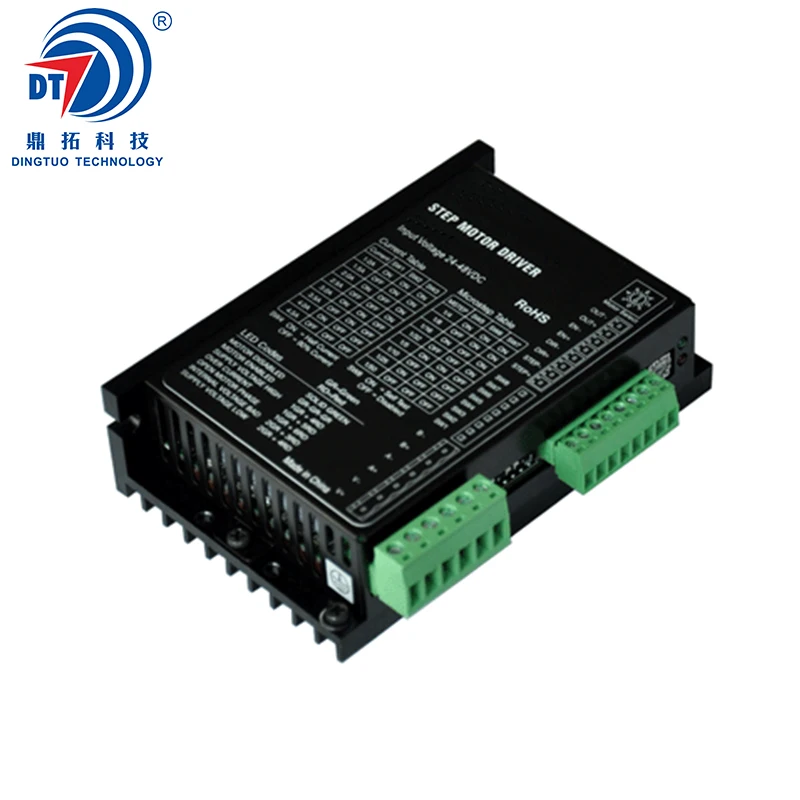

The DT series drives are cost-effective, high performance 2 phases step drives. The design is based on PID current control technology, and feature high torque, low noise, and low vibration. The running current and microstep resolution are switch selectable.
Feature
-Control Mode-Step& Direction or CW/CCW pulse
-High performance, low price
-8-speed current selection
-8-microstepping selection
-Automatic semi-flow setting
-Self Test-switch selectable, the drive will perform a 2 rev, 1rps, CW/CCW move test
Product Characteristic
-Control signal supports 5-24V input
-Power Supply--operates from a 24-48 volt DC power supply
-Output Power-- position switch selectable, 8 settings, maximum 4.5 amps peak-Current Control-advanced digital current control provides excellent high speed torque, low shock, low noise, low temperature rising
-Microstepping Resolution-position switch selectable, 8 settings: 800, 1600, 3200, 6400, 1000, 2000, 5000, 10000.
-Speed Range-speeds up to 3000rpm
-Speed Range-speeds up to 3000rpm
-Anti Resonance-raises the system-damp ratio to eliminate midrange instability and allow stable operation throughout the speed range of the motor
-Auto Setup-measures motor parameters and configures motor current control and anti-resonance gain settings
-Microstepping Emulation-performs high resolution stepping by synthesizing coarse steps into fine micro-steps
-Input Digital Filters-2 MHz digital filter for high speed inputs
-Motor Type Select-a 16 bit rotary switch is used to select the desired motor database which is pre-loaded at the factory
-Load Inertia Select-as part of the motor database each motor can be selected for use with low or high load inertia
-Idle Current-switch selectable for 50%-90% idle running current reduction 1 second after low or high load stops
| Parameters | Min. | Typical | Max. | Unit |
| Output current (Peak) | 1.0 | | 4.5 | A |
| Supply voltage | 20 | | 55 | VDC |
| STEP/DIR input signal current | 6 | 10 | 15 | mA |
| Step frequency | 2 | | 2M | Hz |
| Step minimum pulse width High and Low | 250 | | | NS |
| DIR minimum pulse width | 50 | | | US |
| Under voltage protection | | 20 | | VDC |
| Over voltage protection | | 60 | | VDC |
| STEP/DIR input signal voltage | 4.0 | | 28 | VDC |
| Driver initialization time | | | 2.5 | S |
Enviroment Specification
| Heat sinking method | Natural cooling or fan-forced cooling |
| Surrounding air conditions | Avoid dust, oily mist and corrosive air |
| Operating temperature | 0-40℃(32-104℉) |
| Maximum Ambient humidity | 90% non-condensing |
| Shock | 5.9m/s 2maximum |
| Storage temperature | -10-70℃(14-158℉) |

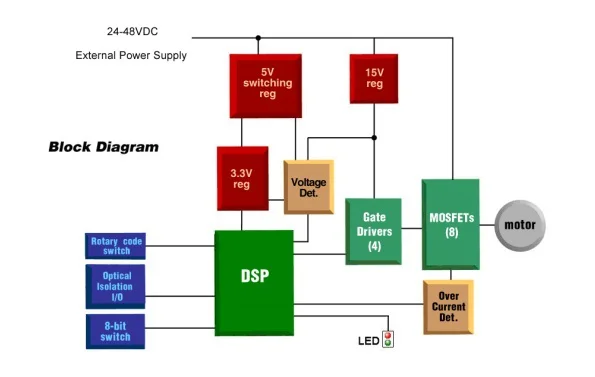

Block Diagram

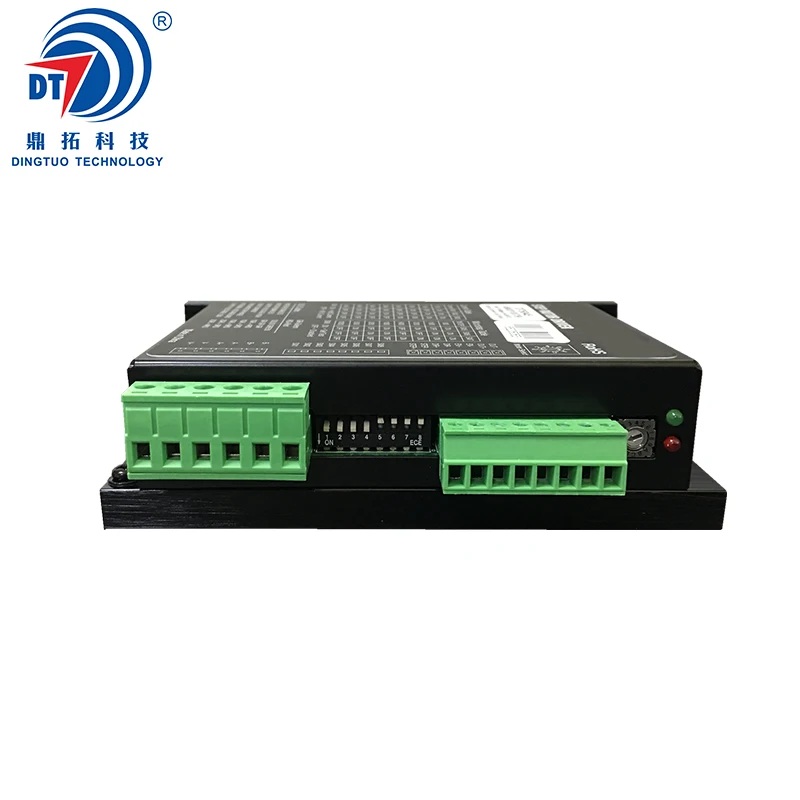

Connections

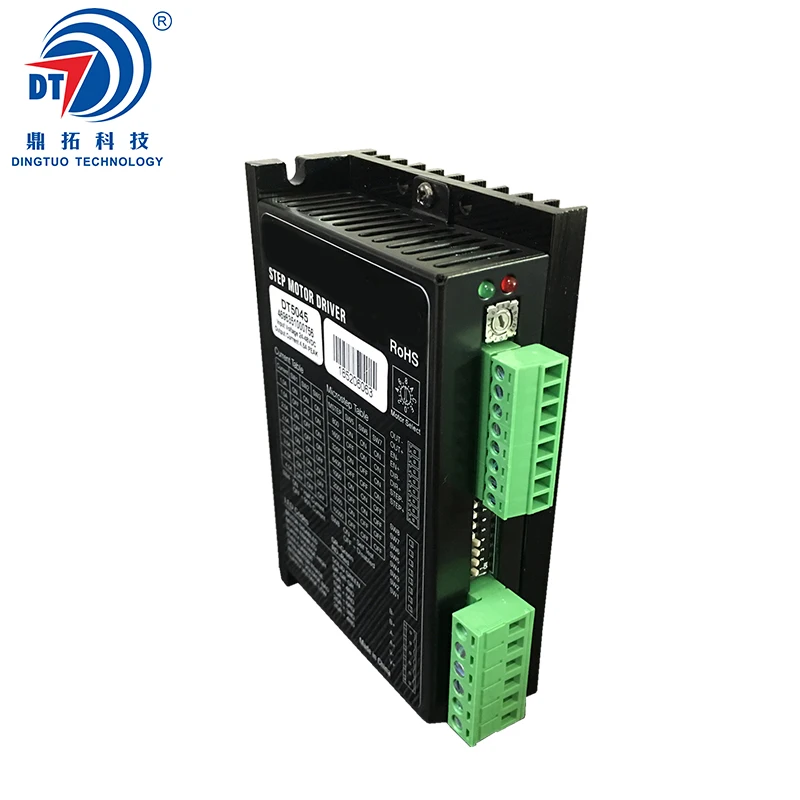

To use the DT5045 step drive, the following items are needed:
. A power supply(24-48VDC)
. Pulse & Direction signal
. A compatible step motor
Connecting to the power supply
If the power supply does not have a fuse on the output or some kind of short circuit current limiting device, a fast acting fuse is required. An 10 amp fast acting fuse should be installed in line with the "+" power supply lead.
Connect the motor power supply "+" terminal to the drive terminal labeled "V+", connect the power supply "-" to the drive terminal labeled "V-".
BE CAREFUL NOT TO REVERSE THE WIRES

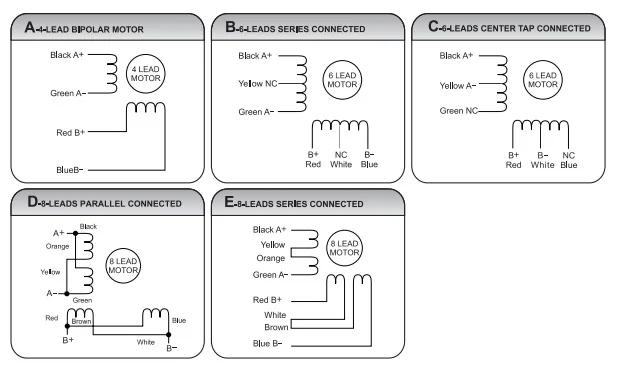

Connectong to a motor

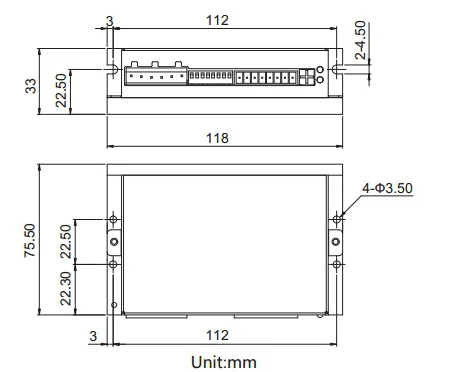

Dimension
Application
Customized Application Case
Certificates
As CE, ROHS, National Hi-tech Enterprise certified quality company, we strictly abide by Quality Control System, pursuing continuous improvement of products quality.
CE Declaration
DINGTUO' assures that our motors meet the European Norm Standard.
RoHS Compliant
DINGTUO' is committed to offering products compliant with the EU RoHS directive.
National Hi-tech Enterprise
DINGTUO continues to carry out research and development and transformation of technological achievements in the "High-tech Fields Supported by the State", and forms core intellectual property rights of the enterprise, and conducts business activities based on this.
Computer Software Copyright Registration
DINGTUO obtained the computer software copyright registration certificate issued by the Copyright Bureau to realize the protection of computer software developed independently.
Customer Evaluation
Customer satisfaction is DINGTUO's primary aim, our drives and motors are designed to your exact specifications and we choose the right materials for client's samples.
