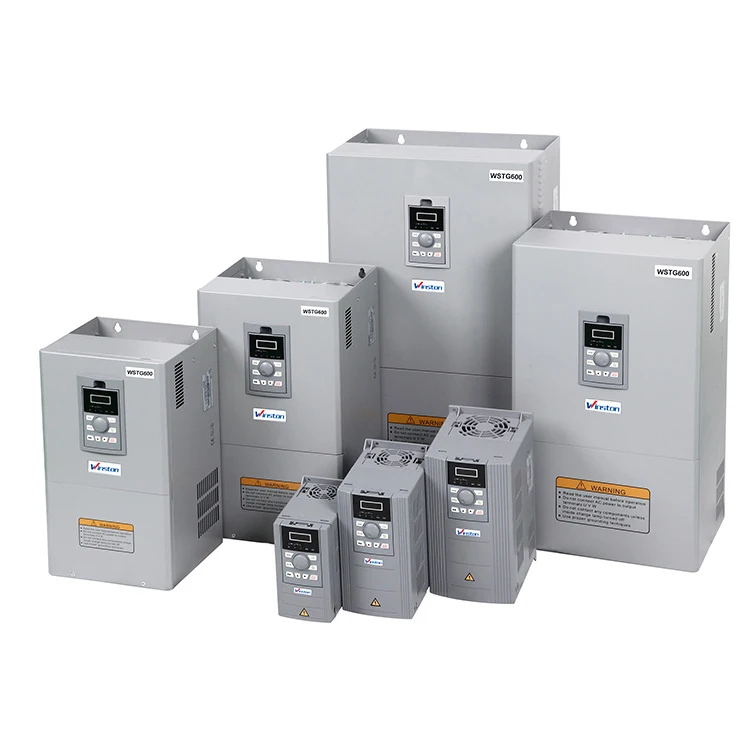

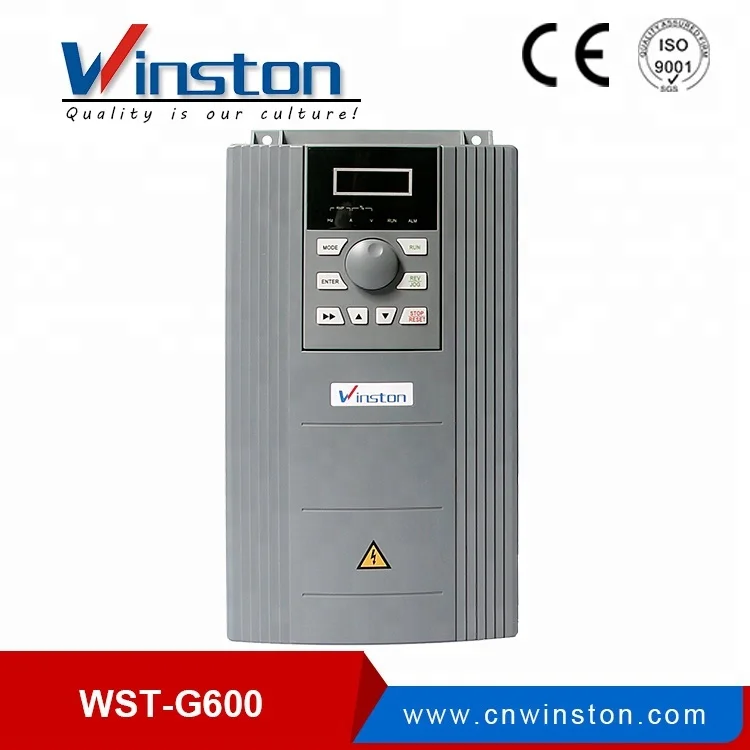

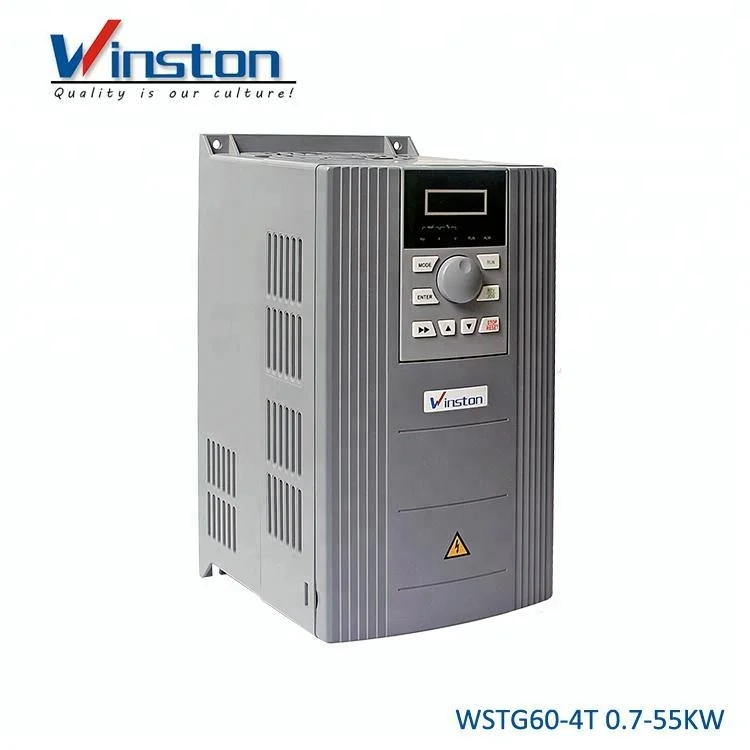

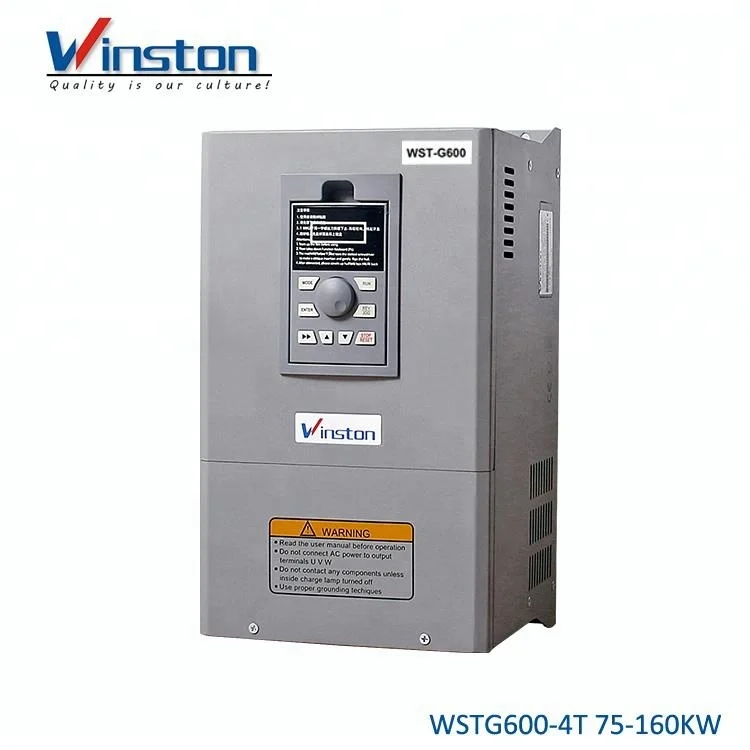

VFD 220v 380v AC однофазный 50hz 60hz 0.4KW to 450kw частотный инвертор цена скоростной привод
- Category: Power Supplies >>>
- Supplier: Yueqing Winston Electric Co. Ltd.
Share on (62070377538):
Product Overview
Description
Product Description

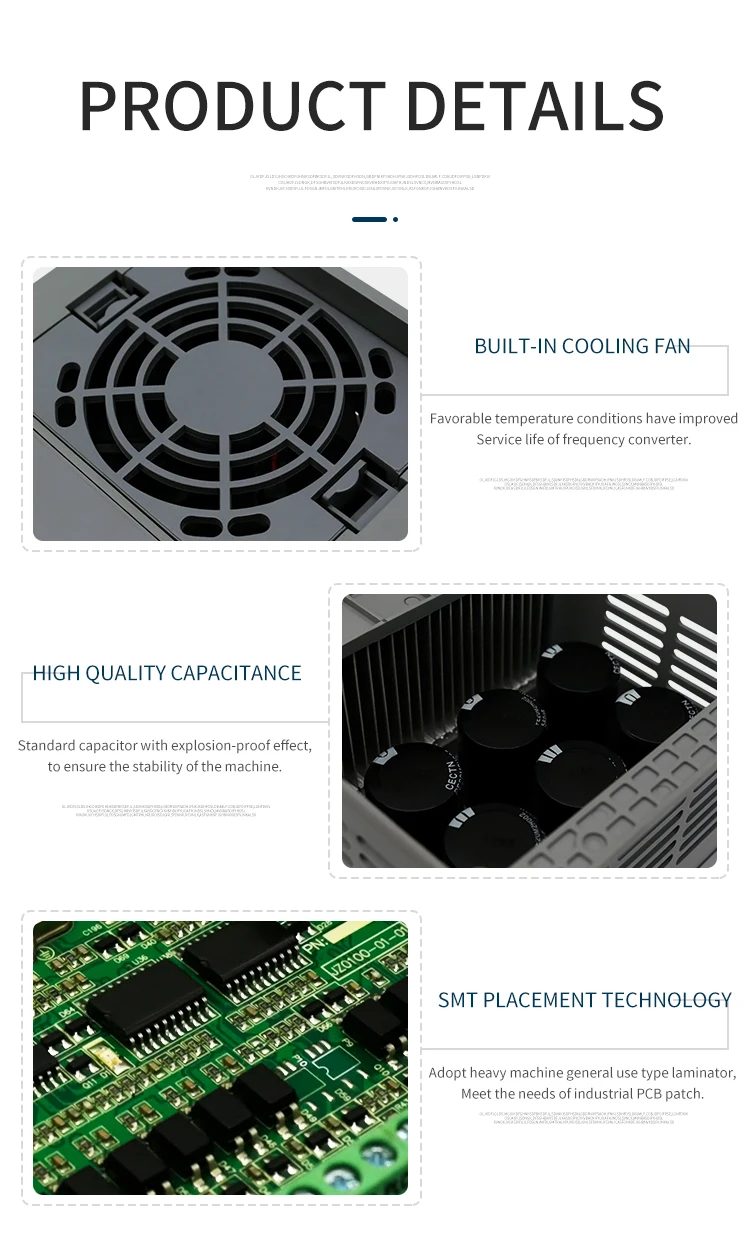

Details Images

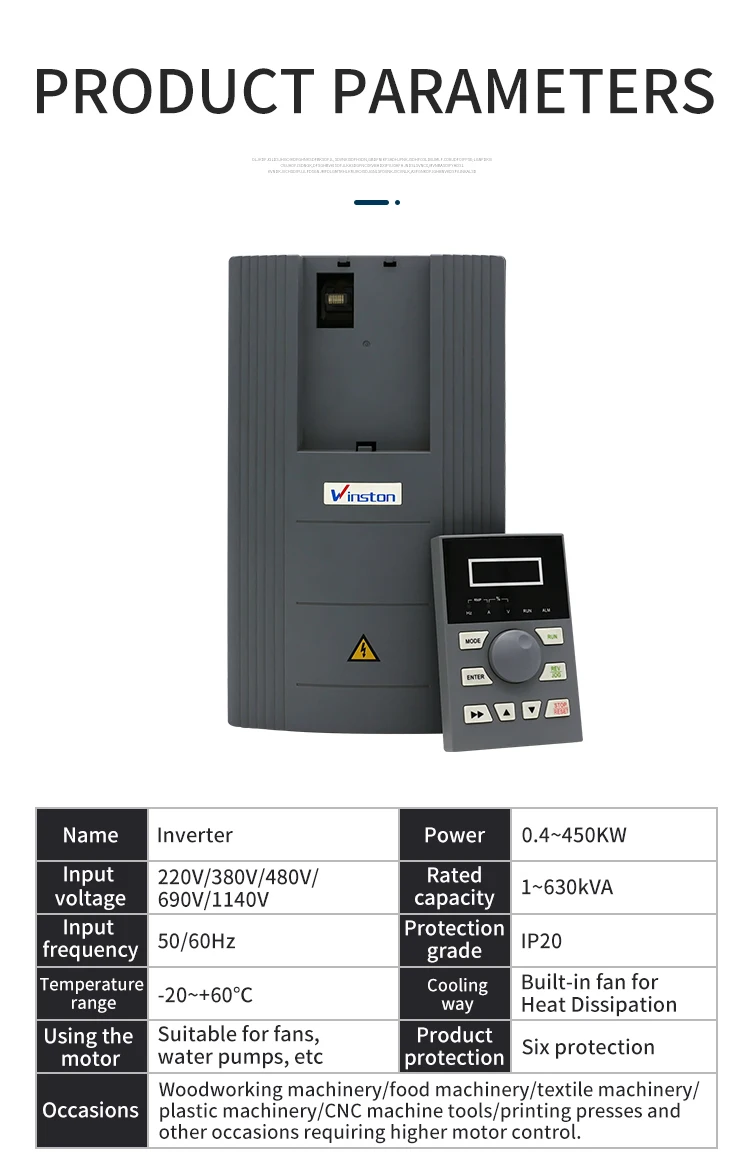

Product Paramenters

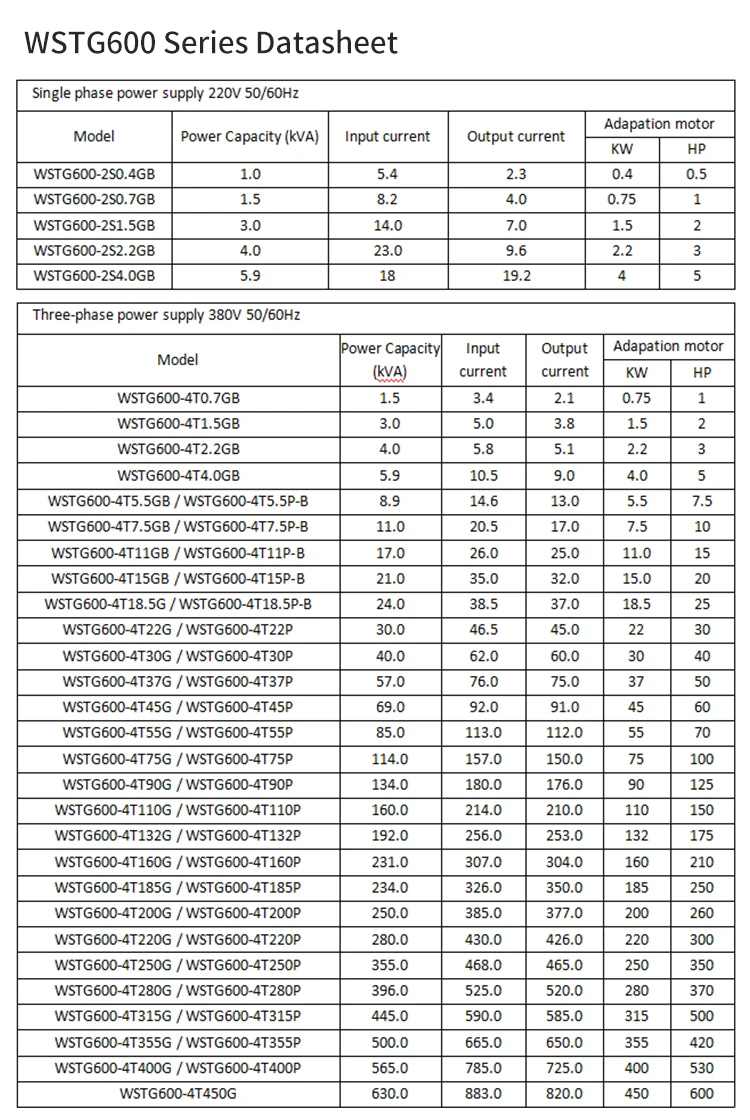

Specification
Busic functions | ||
Start frequency | 0.00Hz~600.00Hz | |
Accel/Decel time | 0.00s~60000s | |
Carrier frequency | 0.5KHz-16КHz | |
Frequency command modes | Digital setting+Keyboard Up/Down;Digital setting + terminal Up/Down. Communication setting.Analog setting:AI1/AI2/AI3. Terminal pulse setting. | |
Start methods | Start from starting frequency. DC injection braking at start:Flying start. | |
Stop methods | Ramp to stop. Coast to stop. DC injection braking at ramp stop. | |
Dynamic brake capability | Braking unit triggered voltage:650-750V. Service time:0.0s~100.0s. Brake units of G600-4T75 and below are optionally inbuilt. | |
DC braking capability | DC braking start frequency: 0.00Hz~600.00Hz. DC braking current: constart torque 0.0%~100.0%. DC braking time:0.0s-100s. | |
Input terminals | Seven digital input terminals, one of them can be used for pulse input. Support dry contact active PNP and NPN input. Three analog input terminals, one of them is voltage only and the other two are voltage/current programmable | |
Output terminals | One high-speed pulse output (0kHz~50kHz square wave output) and two analog outputs (voltage/current programmable), can output signals such as command frequency,output frequency etc.One digital output. One delay outputs. | |
Encode input terminals | One high-speed pulse output (0kHz~50kHz square wave output) and two analog outputs (voltage/current programmable), can output signals such as command frequency,output frequency etc.One digital output. One delay outputs. | |
Features
*Support Synchronous and Asynchronous motor
*Speed-sensor control and speed-sensorless control programmable
*Position control,speed control and torque control programmable
*Speed-sensor control and speed-sensorless control programmable
*Position control,speed control and torque control programmable

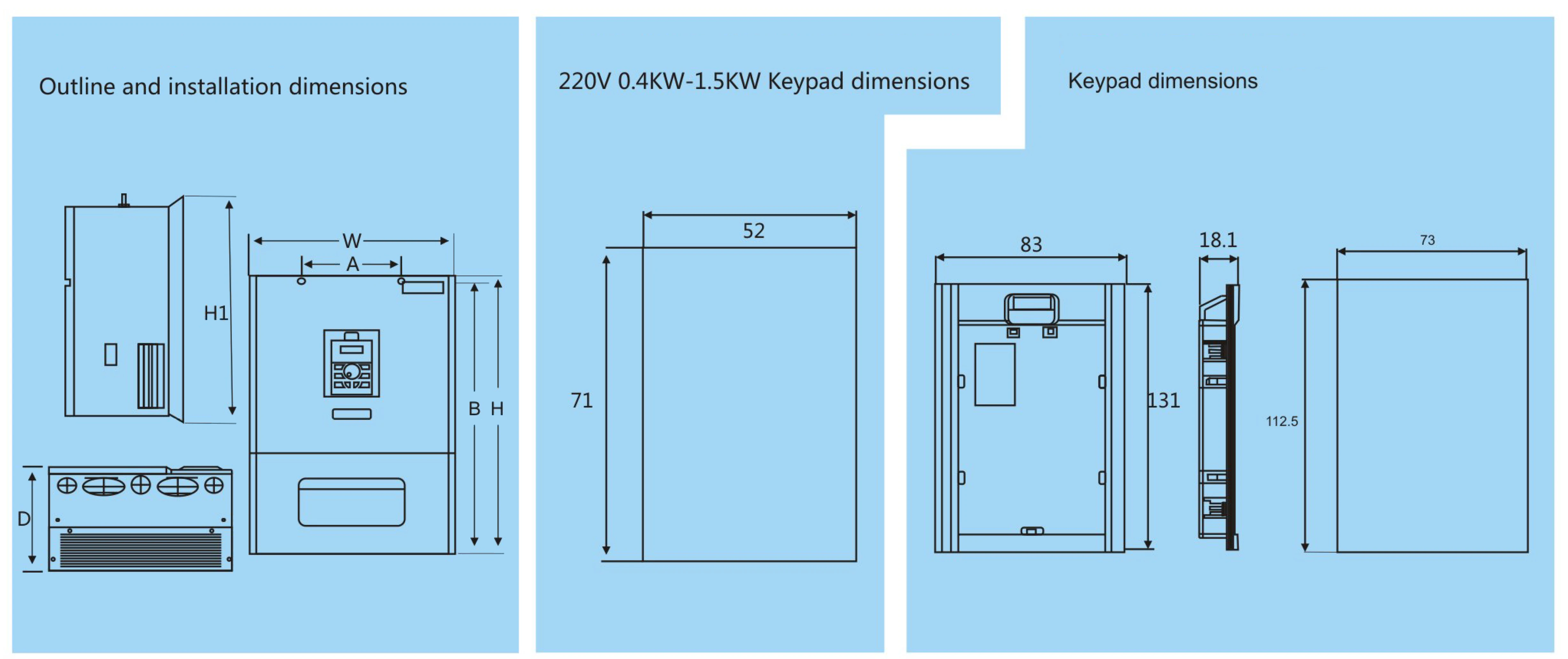

Dimension
Company Profile
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Proximity Sensor Switch,Switching Power Supply,Frequency Inverter,Motor Soft Starter,AC Contactor
3. Why should you buy from us not from other suppliers?
Quality is our Culture. 24*7*365 Service on line. With us,your Money will be safe as in your own pocket. Free samples could be
provided. Trade assurance order accept. Having a 10 person superb technical team. Fast delivery & best after
sell service.
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Proximity Sensor Switch,Switching Power Supply,Frequency Inverter,Motor Soft Starter,AC Contactor
3. Why should you buy from us not from other suppliers?
Quality is our Culture. 24*7*365 Service on line. With us,your Money will be safe as in your own pocket. Free samples could be
provided. Trade assurance order accept. Having a 10 person superb technical team. Fast delivery & best after
sell service.
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
