Factory direct No finger touch door emergency push door release access control no touch exit button






Product Introduction


 Different sizes, lanauges and symbol options for Factory direct switch emergency push door release access control no touch exit button

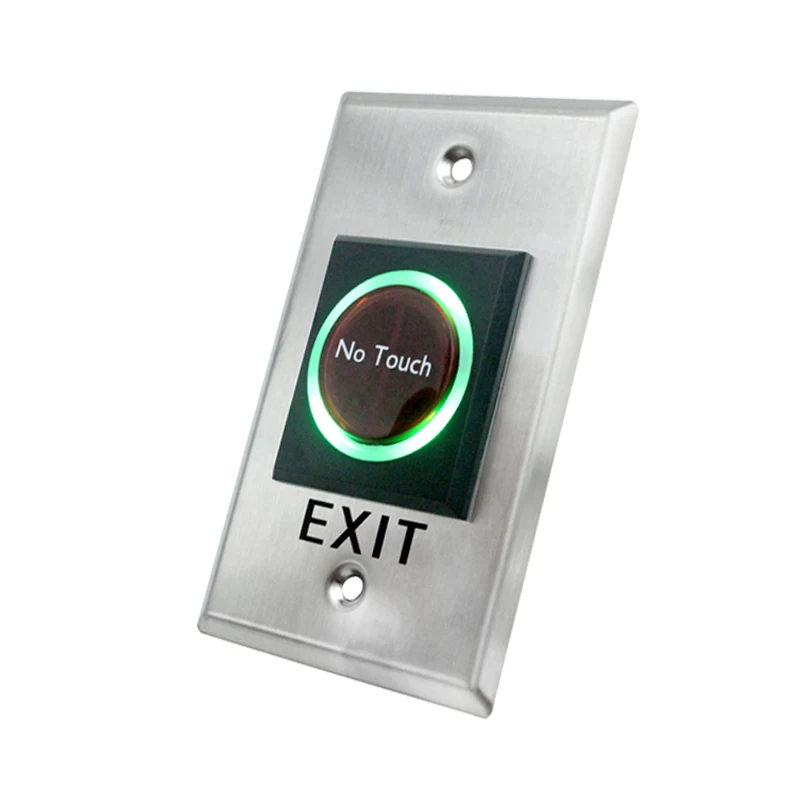

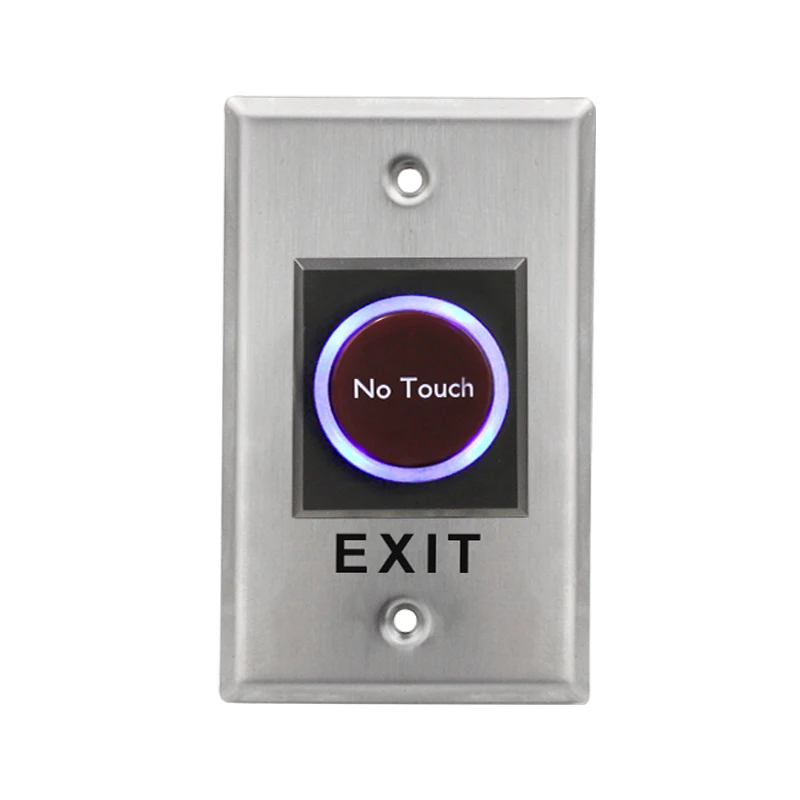

K1-1 series IR Sensor No Touch Touchless exit button is casted by 304 stainless steel plate. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years, becoming a classic style.

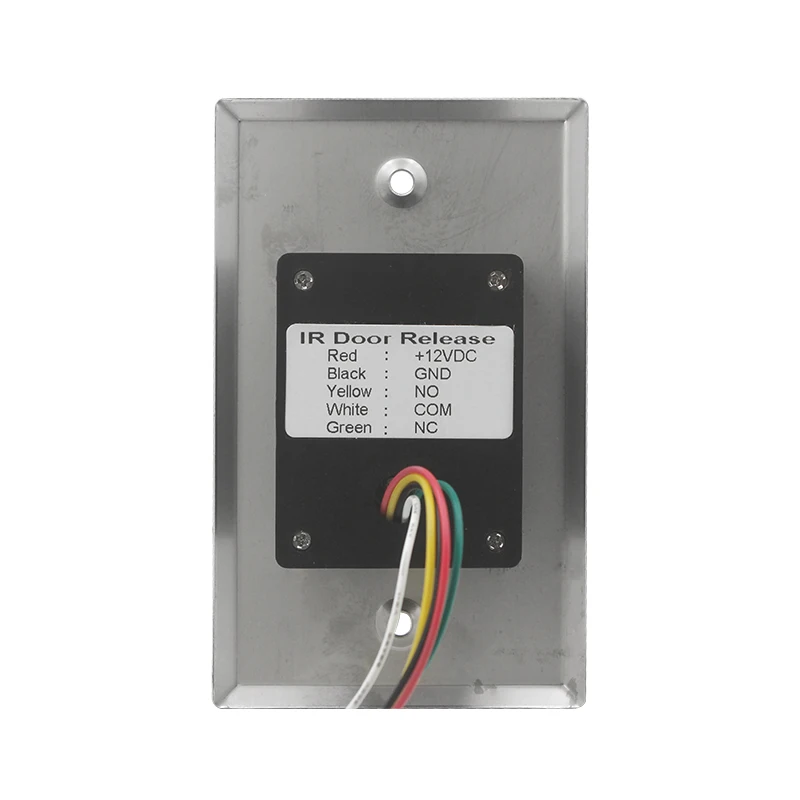

K1-1 series touchless exit button is IR Sensor technology with 5 cables included for NO (Normal Open), NC (Normal Close) and COM (Common) and +12V DC and GND, it has blue and green 2 colors LED indicator. Blue color when standby ang Green color when actived.








Our standard version is 2 types of switch content for options. Type A is No Touch letters with EXIT. Type B is Hand Symbol with EXIT. OEM your language or logo will meet our great care and fast answer.

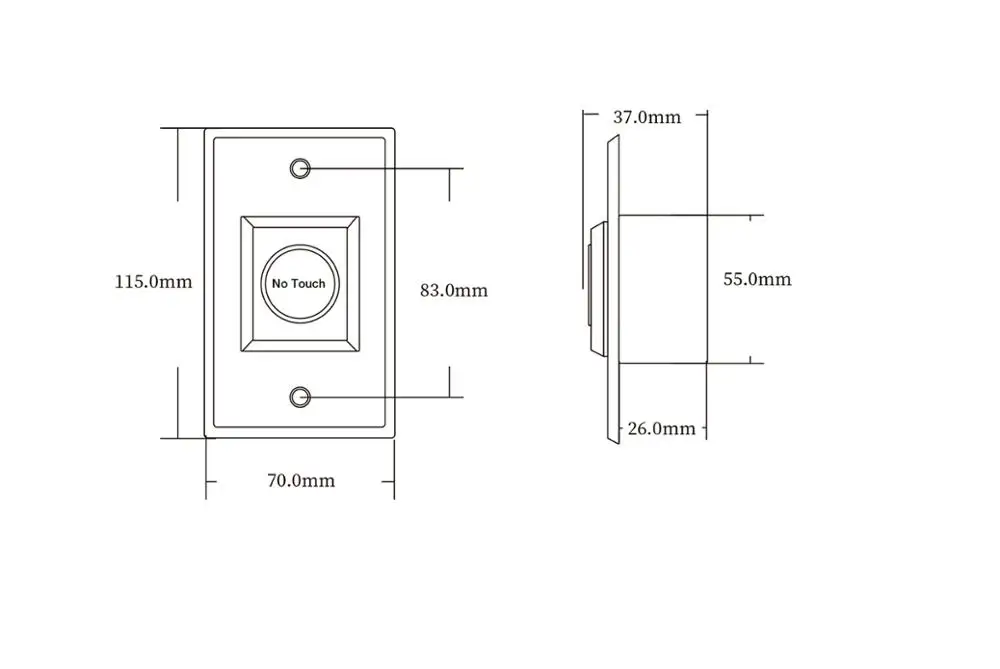

115*70mm size is popular in American countries.









Technical Parameter


 Datasheet for Factory direct switch emergency push door release access control no touch exit button



















































ParameterDescription
Size115*70mm
Standard Structure304 Stainless Steel Panel, IR Sensor Button
Panel Material304 Stainless Steel Panel, Sandblast Finished
Current3A @ 12V DC, 24V DC Available
Output ContactNO/NC/COM /LED
Mechanical Life100,000 tested
Operating Temperature10-55℃ (14-131F)
Operating Humidity0-95% (non-condensing)
Weight0.13kg

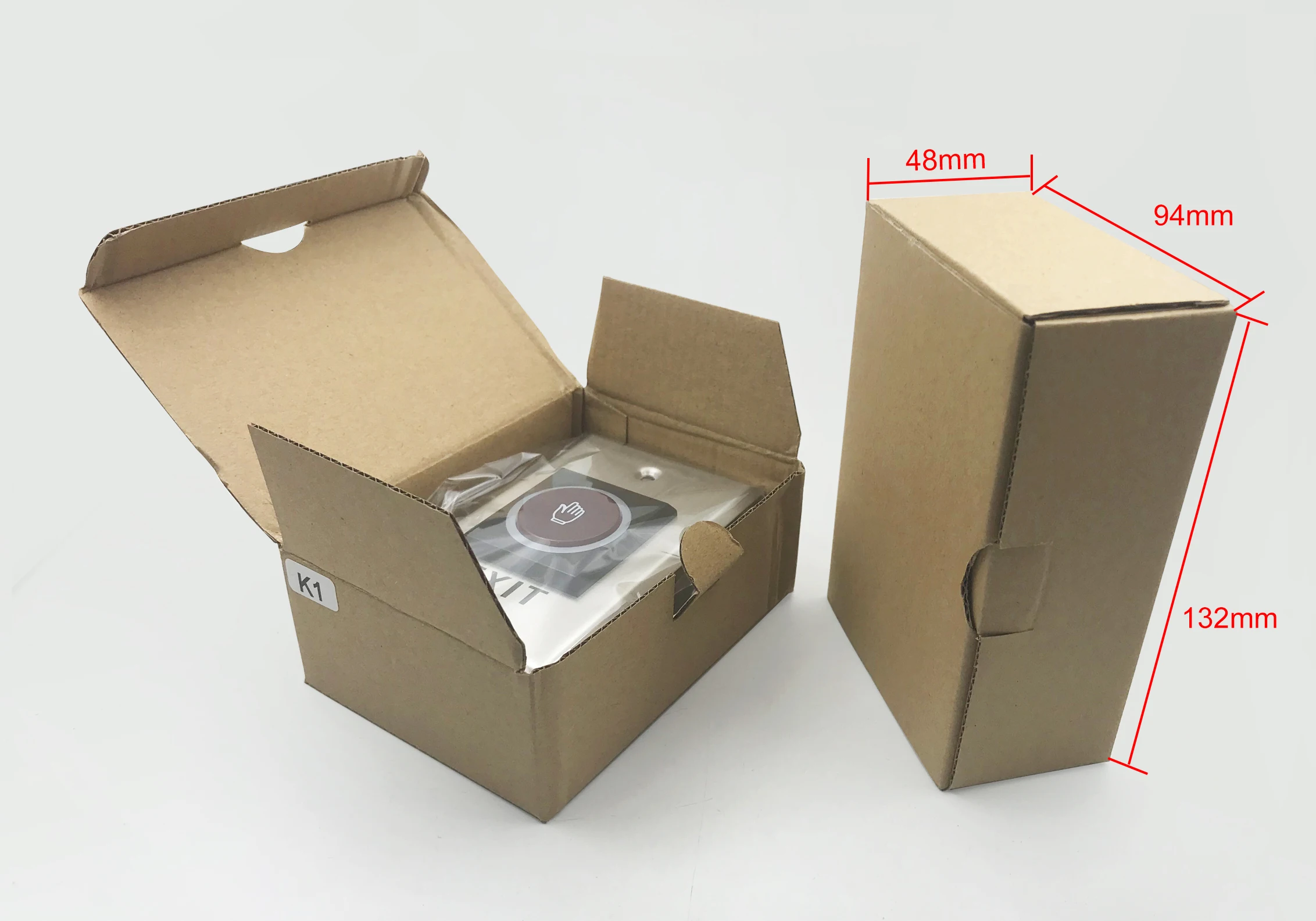

Package100pcs/11kg/51*43*33cm/ctn










































Features


 More options for Factory direct switch emergency push door release access control no touch exit button12002037255.jpg




1, Different sizes available for different countries: European size 86*86mm, ANSI Size 115*70mm





2, No Touch sign or Hand Symbol, different facelates to meet different requirements





3, Blue and Green colors LED indicator, blue color when standby, green color when actived





4, 304 Stainless Steel Faceplate, elegant design with safety handle. It is same material used for turnstile gate barrier. 304 Stainless steel is much better than 201 stainless steel, which other factory used.





5, CE RoHS Certification, we are honered to provide CE RoHS Certifications





6, 3 years warranty to ensure you after sales service





7. OEM/ODM experiences for top ranking brands, customization available.






Application


 Application for reference using the Factory direct switch emergency push door release access control no touch exit button


no touch sensing.jpgapp no touch.jpg

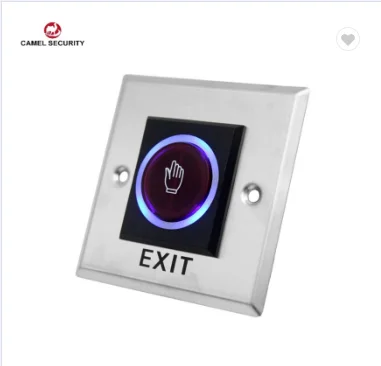

More no touch exit button push exit door release buttons are available for your options:
