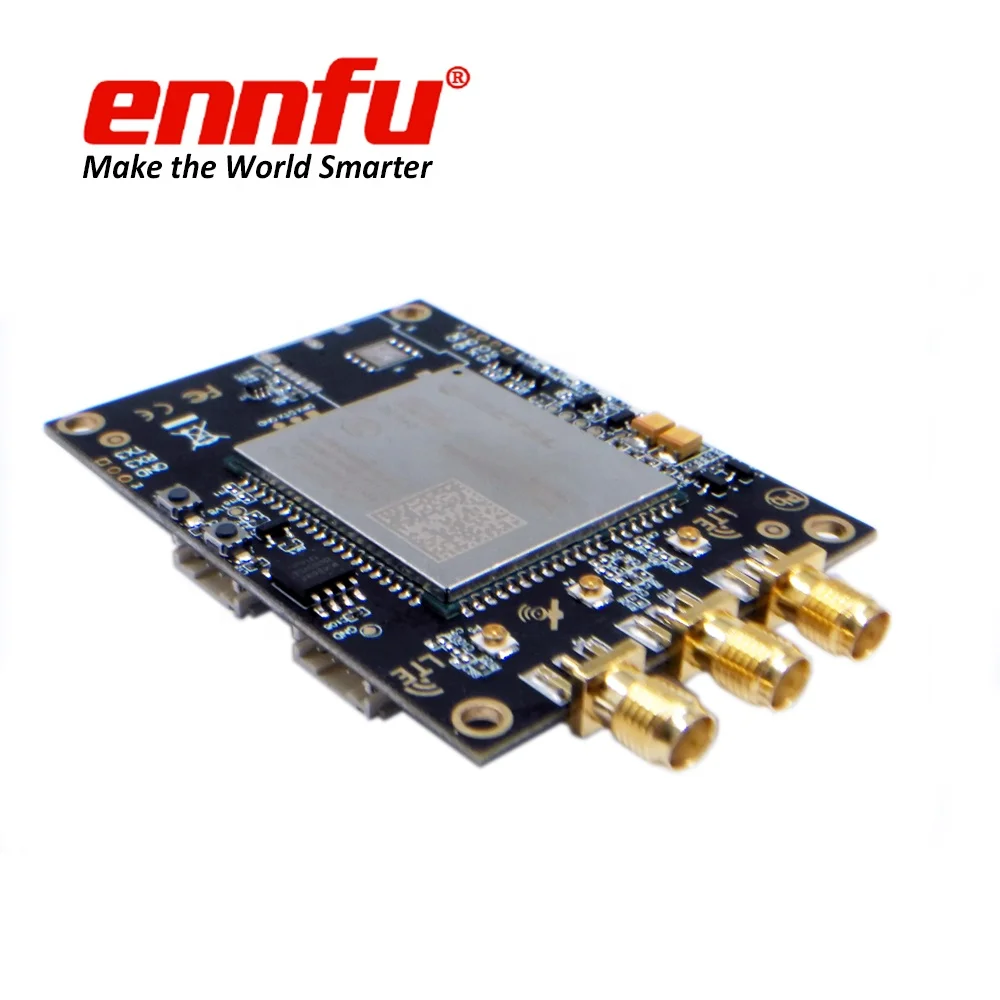

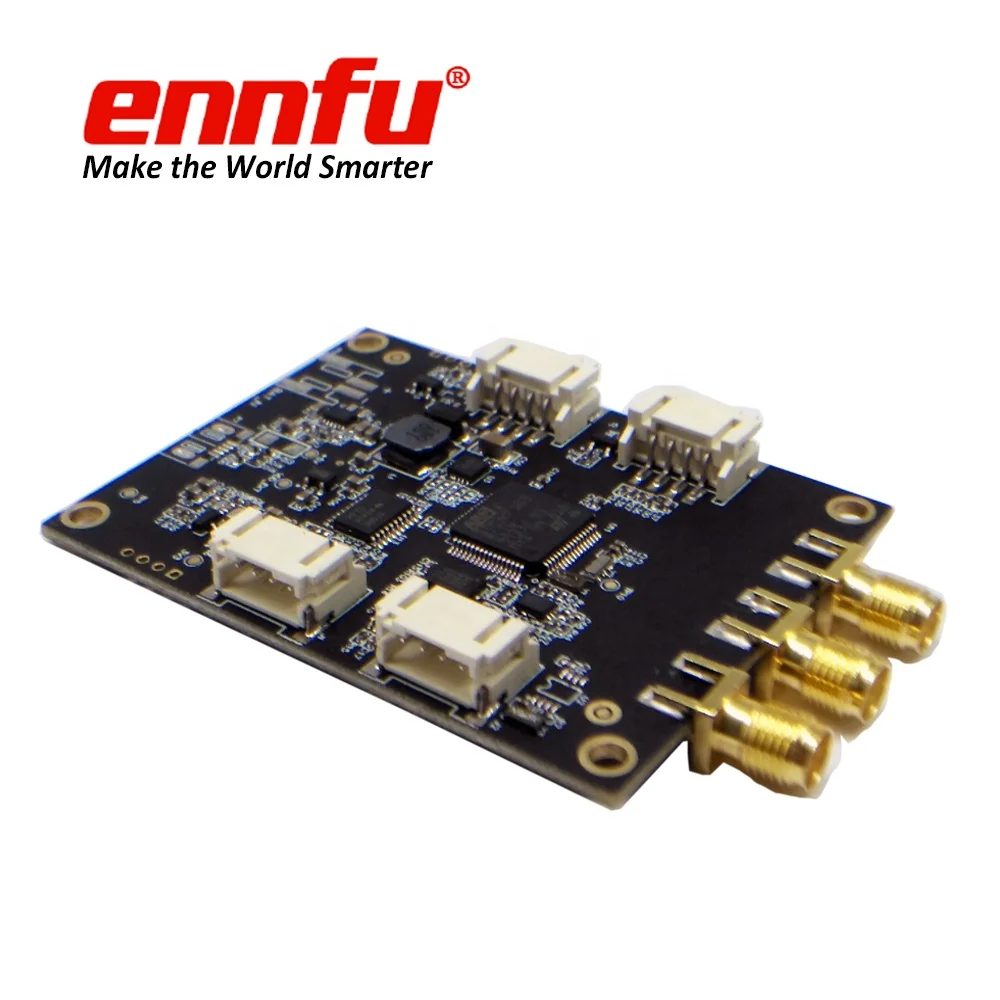

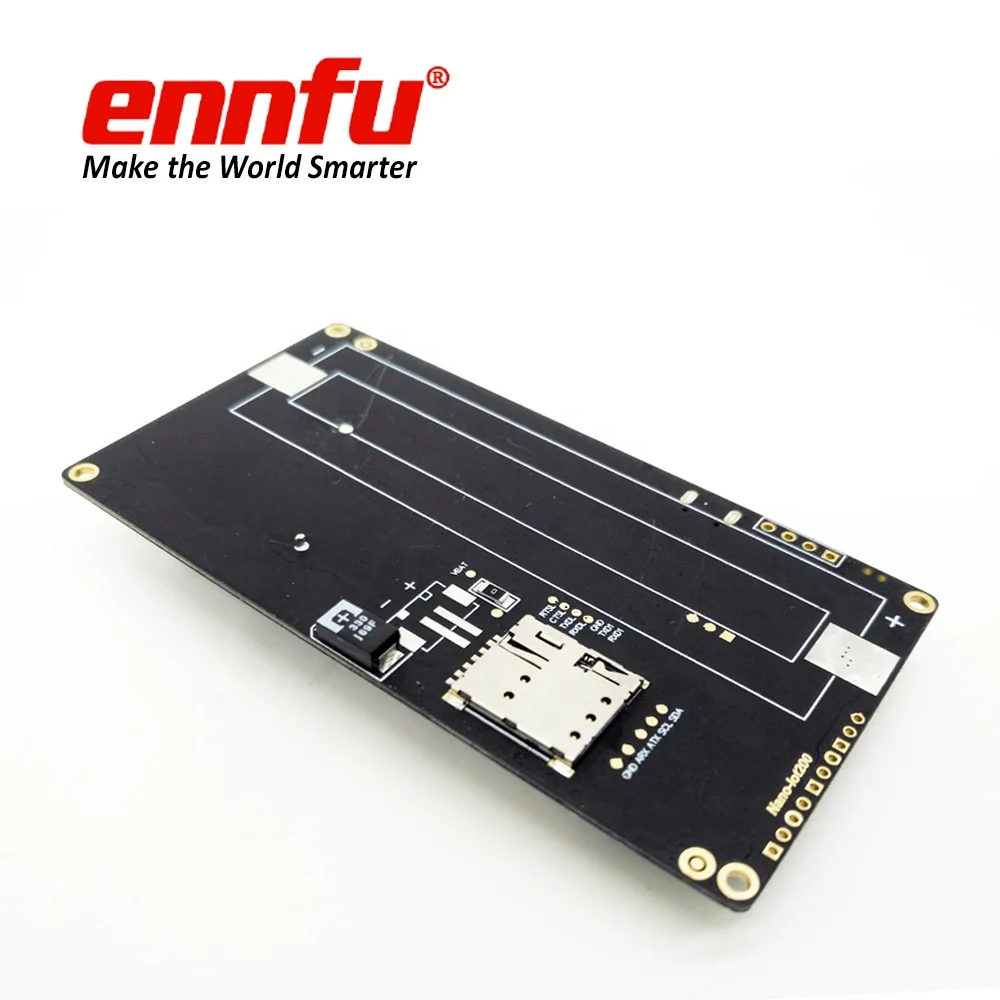

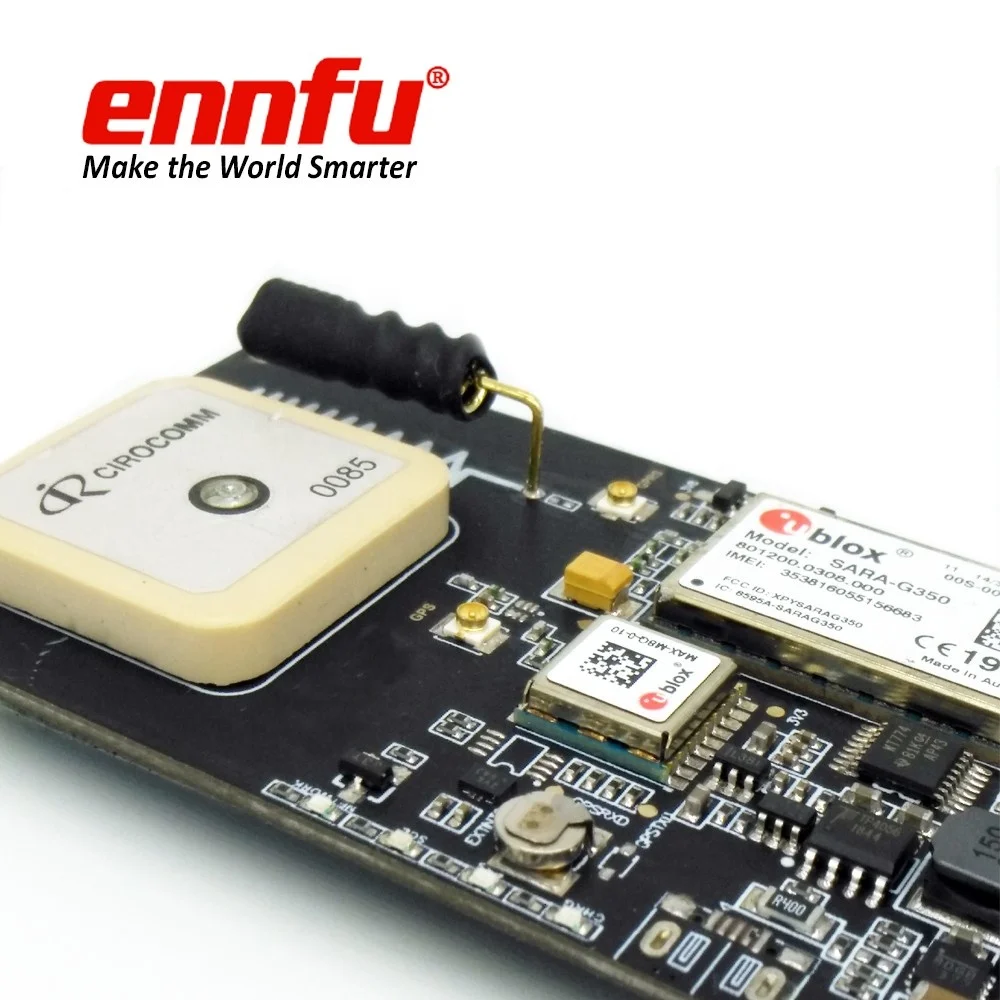

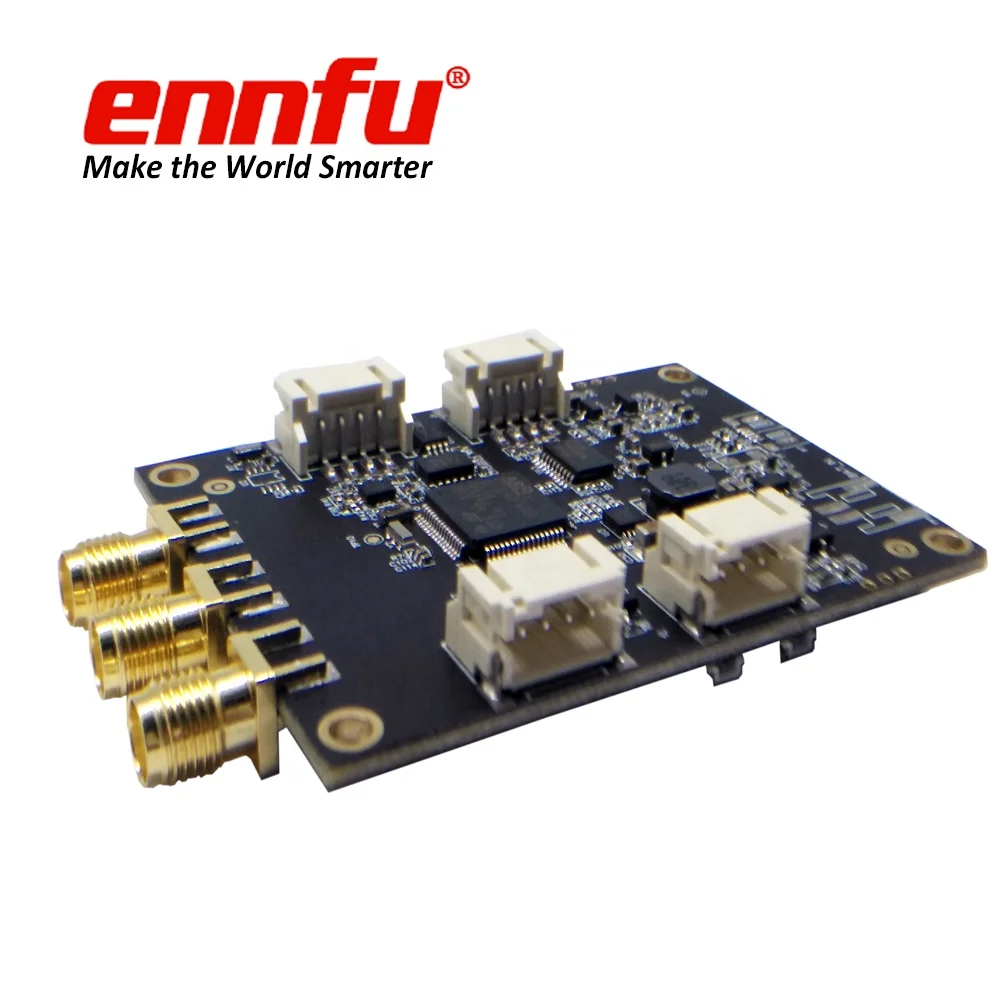

- BeiDou B1I, Galileo E1B/c - SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN • 3.6V~4.2V Battery powered;/5v solar powered support • With 18650 Li-battery slot on board and one extra power port input; • With STM32 MCU processor; • With 5 Status LED display(pps, sda,network,uart and test) • With 3-Axile Digital Accelerator for detecting the motion; • External IPEX for GPS and GSM antenna; • 2 Reset Button(Eternal reset input and Power-on input), • One(1) Micro sim card slot,and support eSim. • Active strengthen GPS antenna and 3dbi GSM antenna on board;
Perfomance:
• Compact integrated module Design,4-layers;
• μA power consumption in standby,super long work standby • Acquisition: Cold starts: 26 s
Aided starts: 2 s Reacquisition: 1 s • Sensitivity: Tracking : −167 dBm
Cold starts: −148 dBm Hot starts: −157 dBm • Embedded firmware and TCP/IP protocol; • Rapid Poisoning performance; • Up to 2.5meter positioning Accuracy; • Over 100 position records in flash when off-line; • Enhancement anti-jamming (A.J.) and spoofing detection; • Industry leading -167dBm navigation sensitivity. • Supports all satellites augmentation systems. • Battery capacity detection function • 1 Battery connector+5v solar powered support+external power in
• Data format: IMEI+Battery Voltage+UTC0 time+Lat.+Lng.
