Цифровой мультиметр RD Type C USB 2,0 UM25C с цветным ЖК дисплеем, тестер постоянного тока, вольтметр, амперметр, измеритель напряжения
- Category: >>>
- Supplier: Hangzhou Ruideng Technology Co. Ltd.
Share on (62070521438):
Product Overview
Description
Product Description
1.Technical parameters:
Product Model:UM25/UM25C
Voltage measurement range:4-24.000V
Current measurement range:0-5.0000A
Capacity accumulation rannge:0-99999mAh
Energy sccumulation range:0-99999mWh
Load impedance range:0.8Ω-9999.9Ω
Temperature range:-10℃~100℃/0℉~200℉
Screen brightness setting:0-5 levels
Voltage graphing range:0-24.00V
Refresh rate:2Hz
Voltage measurement range:4-24.000V
Current measurement range:0-5.0000A
Capacity accumulation rannge:0-99999mAh
Energy sccumulation range:0-99999mWh
Load impedance range:0.8Ω-9999.9Ω
Temperature range:-10℃~100℃/0℉~200℉
Screen brightness setting:0-5 levels
Voltage graphing range:0-24.00V
Refresh rate:2Hz
Display screen:1.44 Inch color LCD display
Voltage measurement resolution:0.001V
Current measurement resolution:0.0001A
Voltage measurement accuracy:±(0.5‰+2digits)
Current measurement accuracy:±(1‰ +4 digits)
Time measurement range:0-99h59min59s
Temperature measurement error:±3℃/±6℉
Auto screen off time:0-9mins
Current graphing range:-5.0000A
Voltage measurement resolution:0.001V
Current measurement resolution:0.0001A
Voltage measurement accuracy:±(0.5‰+2digits)
Current measurement accuracy:±(1‰ +4 digits)
Time measurement range:0-99h59min59s
Temperature measurement error:±3℃/±6℉
Auto screen off time:0-9mins
Current graphing range:-5.0000A
Quick charge recognition mode:QC2.0,QC3.0,APPLE 2.4A/2.1A/ 1A/0.5A,Android DCP,SAMSUNG
Product size:71.2mmx30.5mmx12.4mm(UM25C)/71.2mmx30.5mmx11.3mm(UM25)
Product weight:23.74g(UM25C)/19.26g (UM25)(No packaging);54.56g(UM25C)/50.08g (UM25)( With packaging)
Product size:71.2mmx30.5mmx12.4mm(UM25C)/71.2mmx30.5mmx11.3mm(UM25)
Product weight:23.74g(UM25C)/19.26g (UM25)(No packaging);54.56g(UM25C)/50.08g (UM25)( With packaging)
2.INTRODUCTION DOWNLOAD LINK:
//www.mediafire.com/folder/q2b8h079hpywq/UM25 3.NOTE
①UM25 is no communication version, UM25C is conmmunication version by Bluetooth connection.
②PC software support PC window (Win 7 and above) and Phone Android and IOS (Android 5.0 and above, IOS 8 and above ,
support 14 kinds language, chinese, english and Russia .... ) (some brand phone android system belongs to custom-built system, our APP will not compatibility, eg xiao mi, Nokia and other brand, so please download and test before buying, Cautious to buy).
③USB2.0 support Huawei quick charge. there is type-c in and type-c ouput port, it can measure type-c cable , support type-c
charge , but not tuype-c charger identify resistance , not tigger.
4.RELATED PRODUCTS:
UM24C
UM25C
UM34C
5.PRODUCT DESCRIPTION

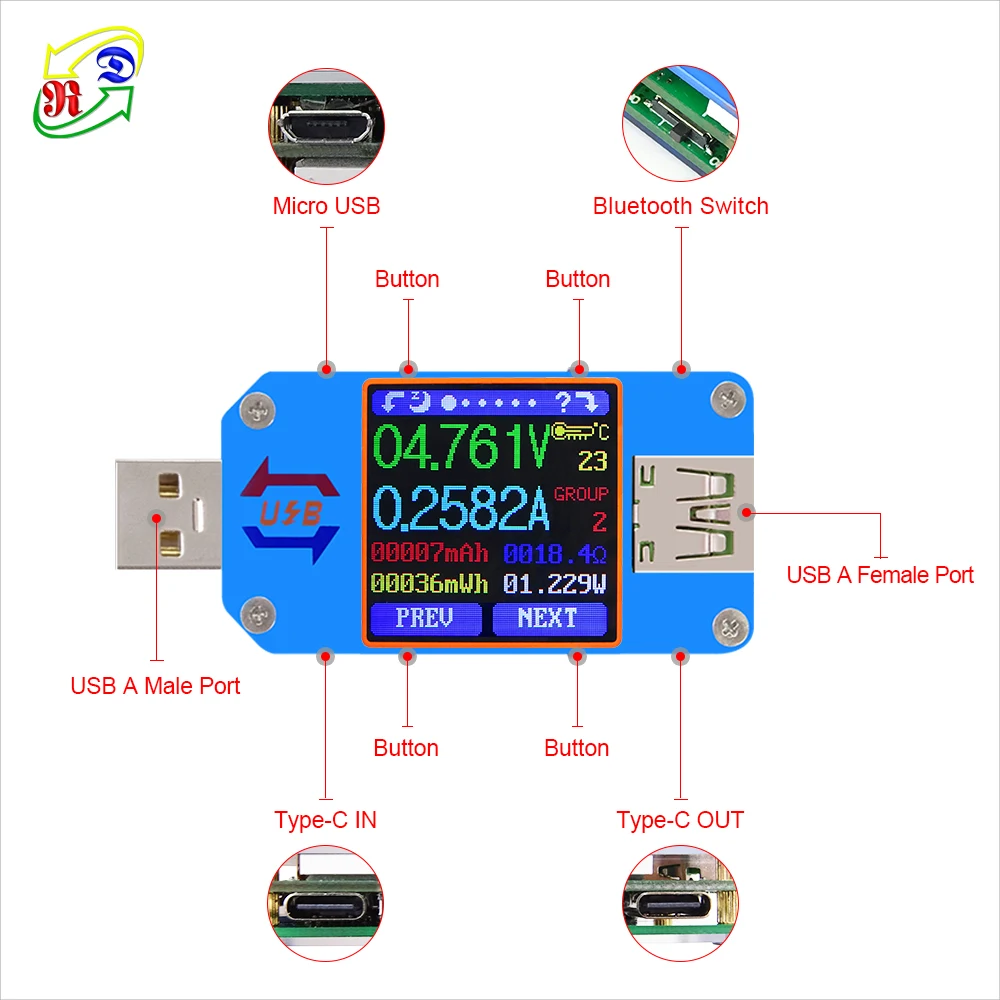

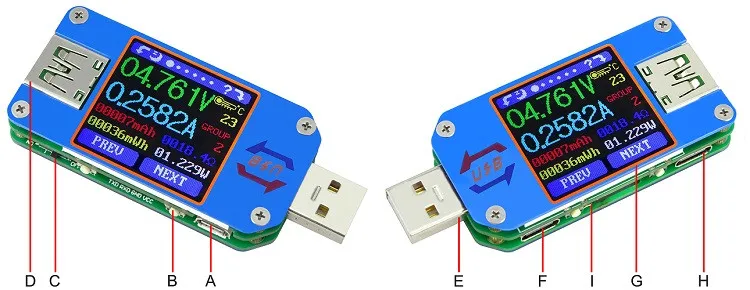

Button Instruction:
A:Micro USB Port
B:Multifunction buttons (4)
C:Bluetooth Switch
D:USB A Female Port
E:USB A Male Port
F:Type-C Input Port (Only VBUS,GND,CC1,CC2 four wires)
G:1.44 Inch Color Screen
B:Multifunction buttons (4)
C:Bluetooth Switch
D:USB A Female Port
E:USB A Male Port
F:Type-C Input Port (Only VBUS,GND,CC1,CC2 four wires)
G:1.44 Inch Color Screen
H:Type-C Output Port (Only VBUS,GND,CC1,CC2 four wires)
I:Bluetooth Indicator: When connected to the host
computer control software, the Bluetooth indicator
changes from flashing to steady state. When connecting,
the Bluetooth icon is displayed on the screen. (Bluetooth
communication version only).

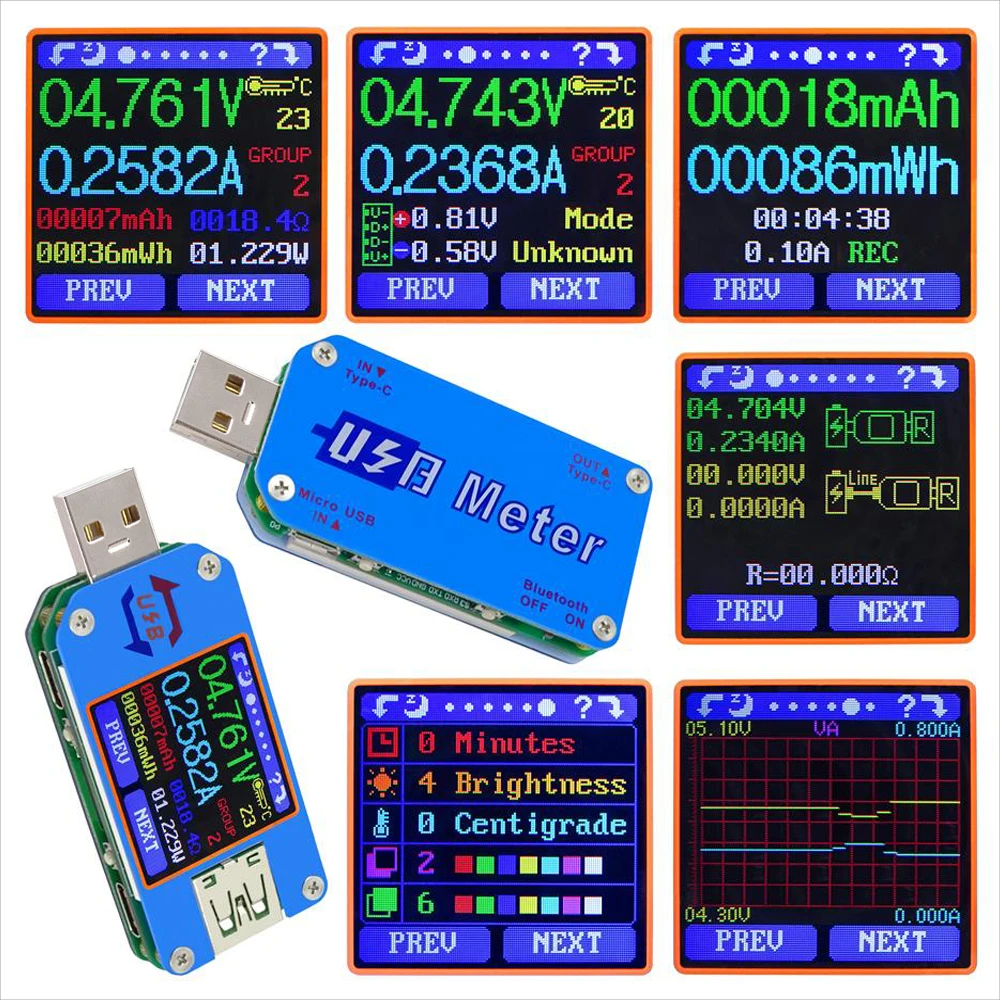

Six Function Interfaces:
Measurement Main Interface
Quick Charge Recognition Interface
Data Recording Interface
Data Connection Cable
Impedance Measurement Interface
Measurement Graphing Interface
System Parameter Setting Interface

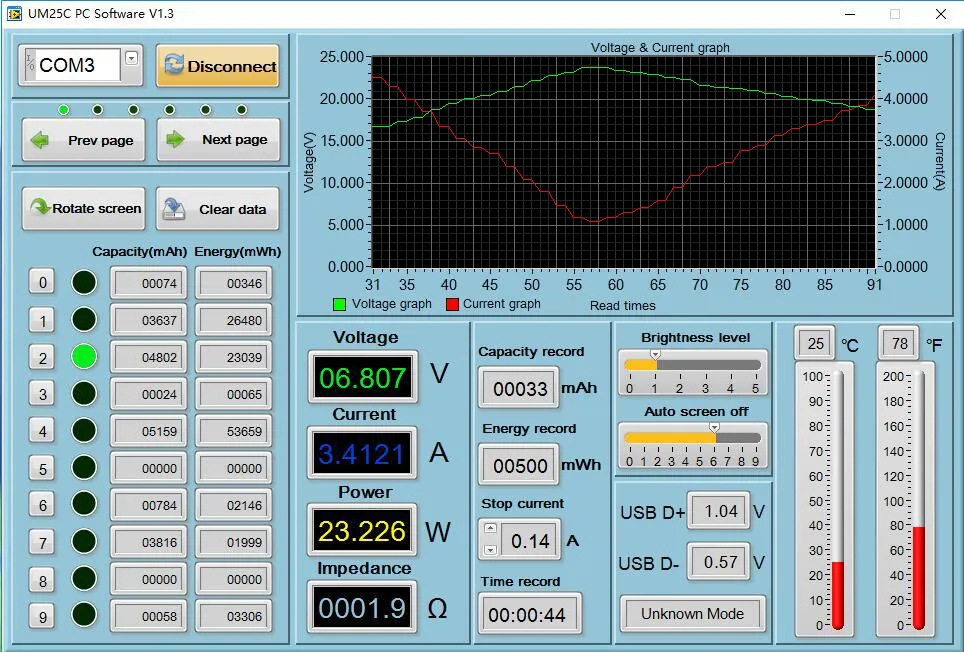

PC Software:
1.Basic functions: Previous page, Next pages, Rotate screen
2.Data group: data group switch,data group data clear
3.Graphing and Data Export(Automatically adjust the X axis,Export data to the clipboard, Export data to Excel,Export
simplified images,Clear chart)
COMPARISON CHART:
UM24(C) | UM25(C) | UM34(C) | |||
USB port | USB2.0 | USB3.0 | |||
Voltage measurement range | 4.5-24.00V | 4-24.000V | 4-24.00V | ||
Current measurement range | 0-3.000A | 0-5.0000A | 0-4.000A | ||
Supported fast charge protocol | QC2.0,QC3.0,FCP, AFC,PE2.0 | QC2.0,QC3.0,FCP, AFC,PE2.0 Huawei SCP Huawei40W quick charge OPPO VOOC SuperVOOC flash charge OnePlue DASH quick charge | QC2.0,QC3.0,FCP, AFC,PE2.0 OPPO VOOC flash charge OnePlue DASH quick charge | ||
APP | Support IOS8.0 or above / Android5.0 or above | ||||
PC Software | Support WIN7 or above | NO | |||
Download | IOS APP : search UM meter on iphone APP store to download Android APP : search UM meter at Google play to download or use our file link to down load | ||||
Feedback
Our Youtube channel RD tech:
https://www.youtube.com/channel/UCy73jJ5-ZqhPzT7wJ6KTIaw
Introduction Video:
https://www.youtube.com/watch?v=rNDMIFiWq64
Official Test:
1. https://www.youtube.com/watch?v=GPZww4ejkG0&t=964s
2.https://www.youtube.com/watch?v=K_IpRdneCwY

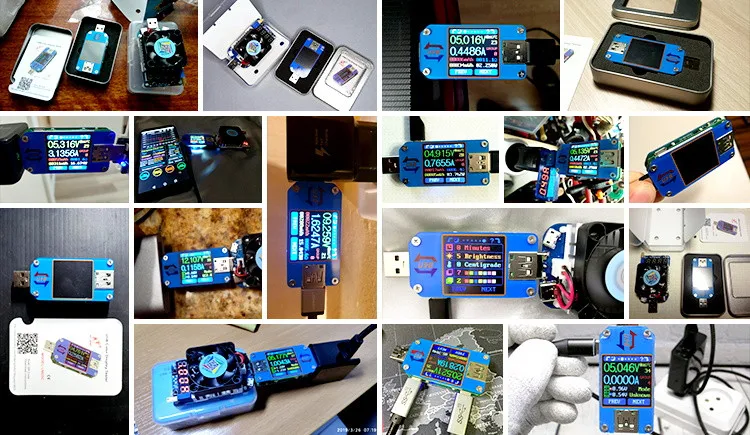

Customer Feedback:
