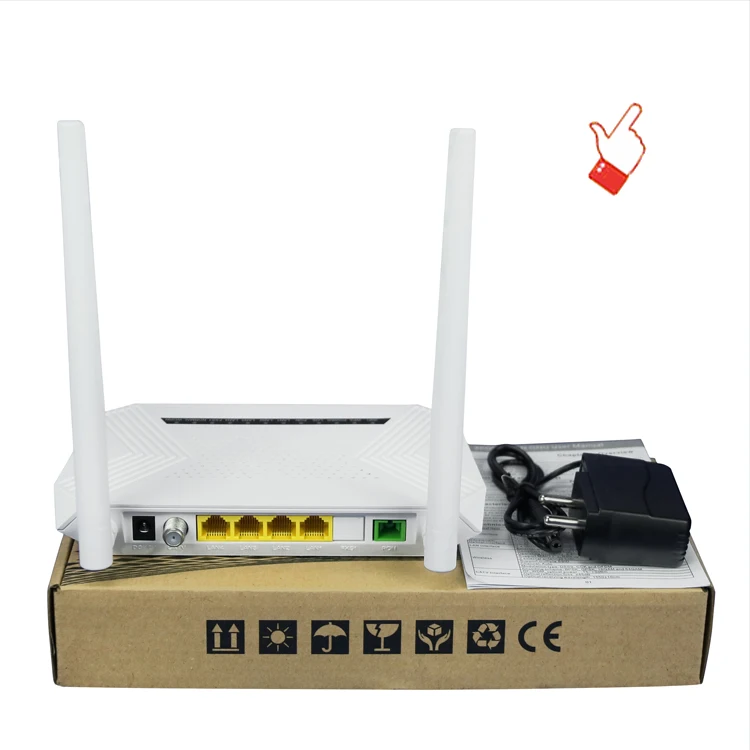

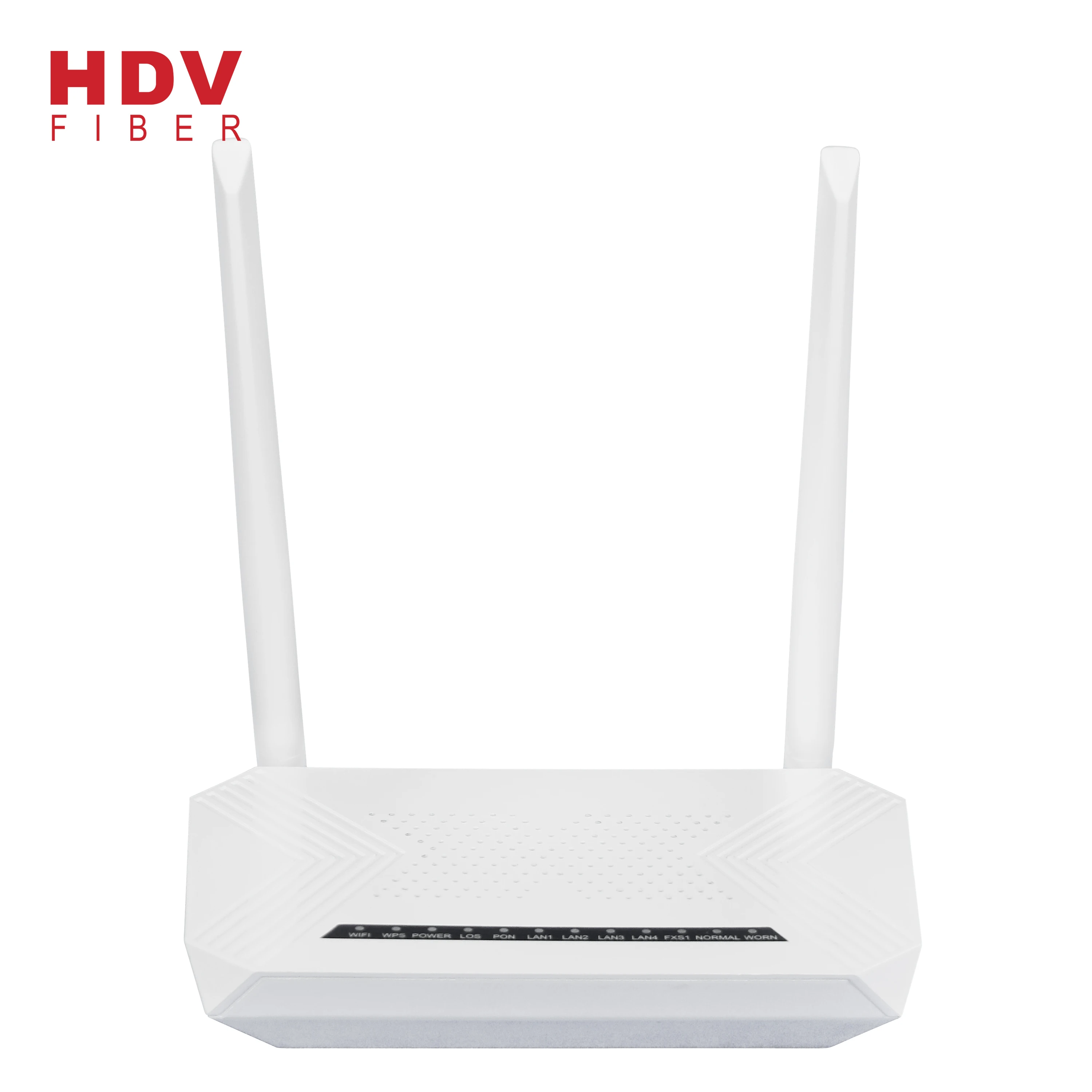

ONU WIFI Modem 1GE 3FE CATV EPON GPON ONU FTTH ONU With RF Output
ONU WIFI Modem 1GE+3FE+CATV EPON GPON ONU FTTH ONU With RF Output
ONU WIFI Modem 1GE+3FE+CATV EPON GPON ONU FTTH ONU With RF Output
ONU WIFI Modem 1GE+3FE+CATV EPON GPON ONU FTTH ONU With RF Output
ONU WIFI Modem 1GE+3FE+CATV EPON GPON ONU FTTH ONU With RF Output
ONU WIFI Modem 1GE+3FE+CATV EPON GPON ONU FTTH ONU With RF Output
ONU WIFI Modem 1GE+3FE+CATV EPON GPON ONU FTTH ONU With RF Output

ONU WIFI Modem 1GE 3FE CATV EPON GPON ONU FTTH ONU With RF Output

Share on (62070574127):


Price:$23.10 - $30.80

Quantity:


Product Overview

Description


ONU WIFI Modem 1GE+3FE+CATV EPON GPON ONU FTTH ONU With RF Output

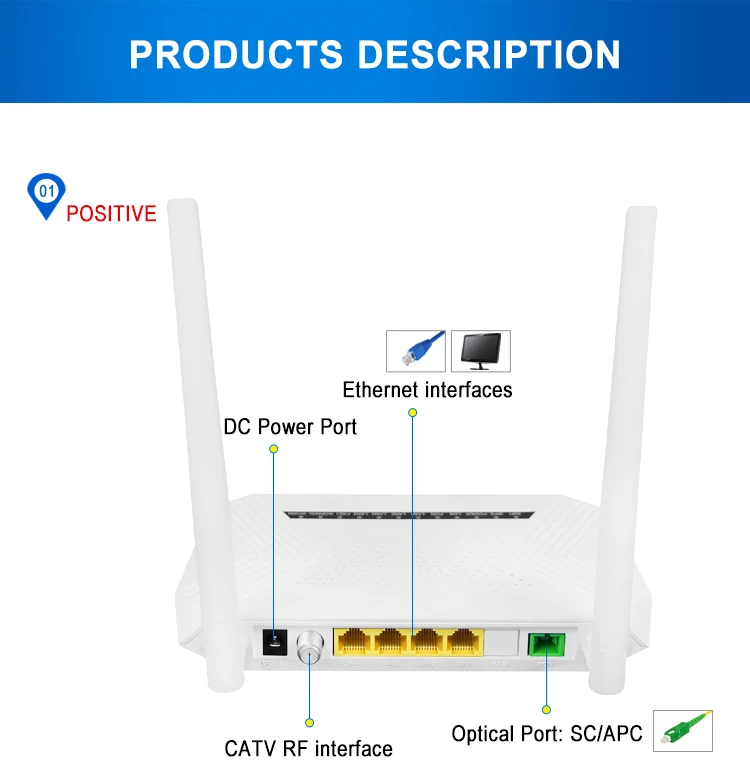

1G3F+CATV_01

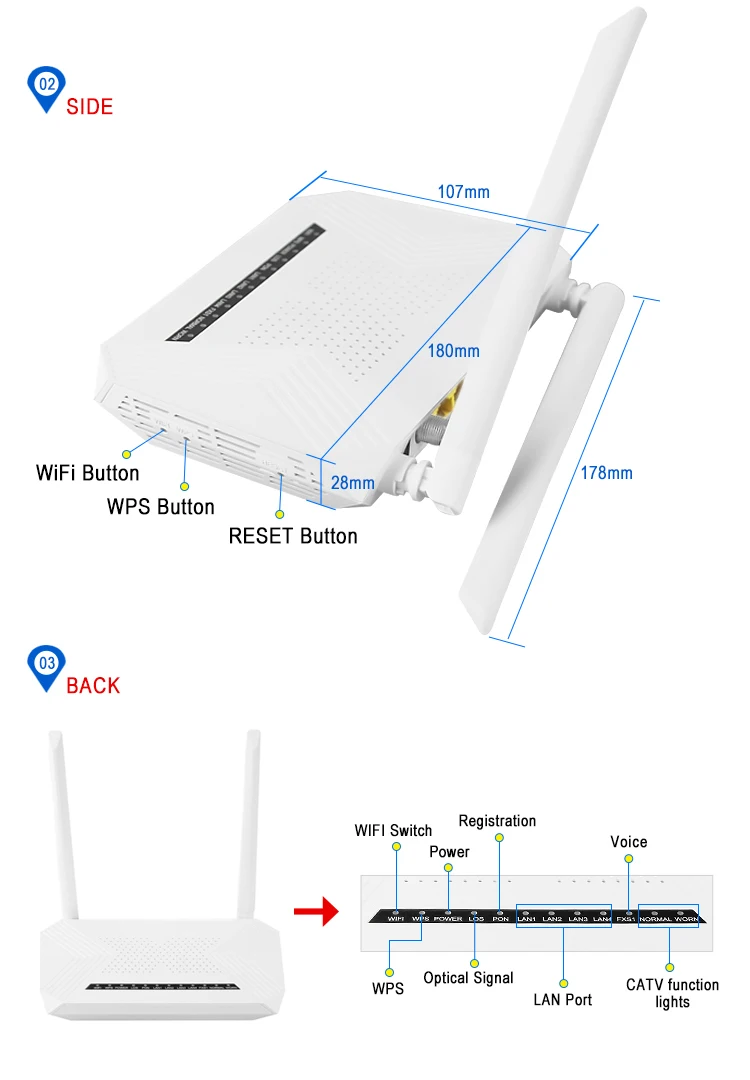

1G3F+CATV_02

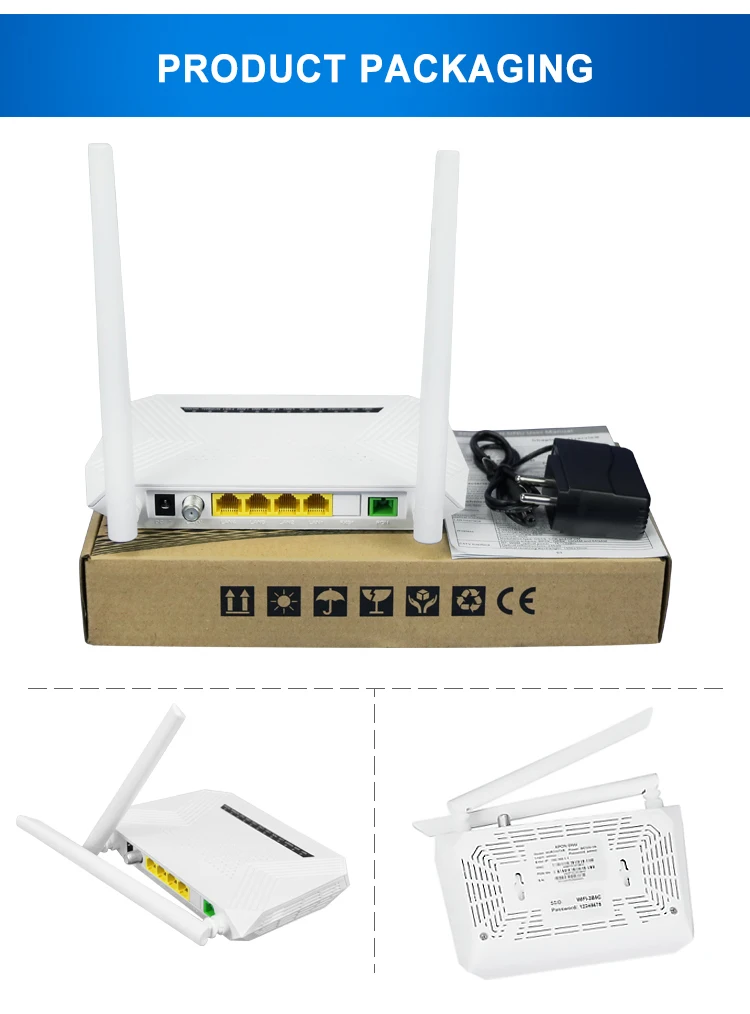

1G3F+CATV_03









Power adapter


.jpg

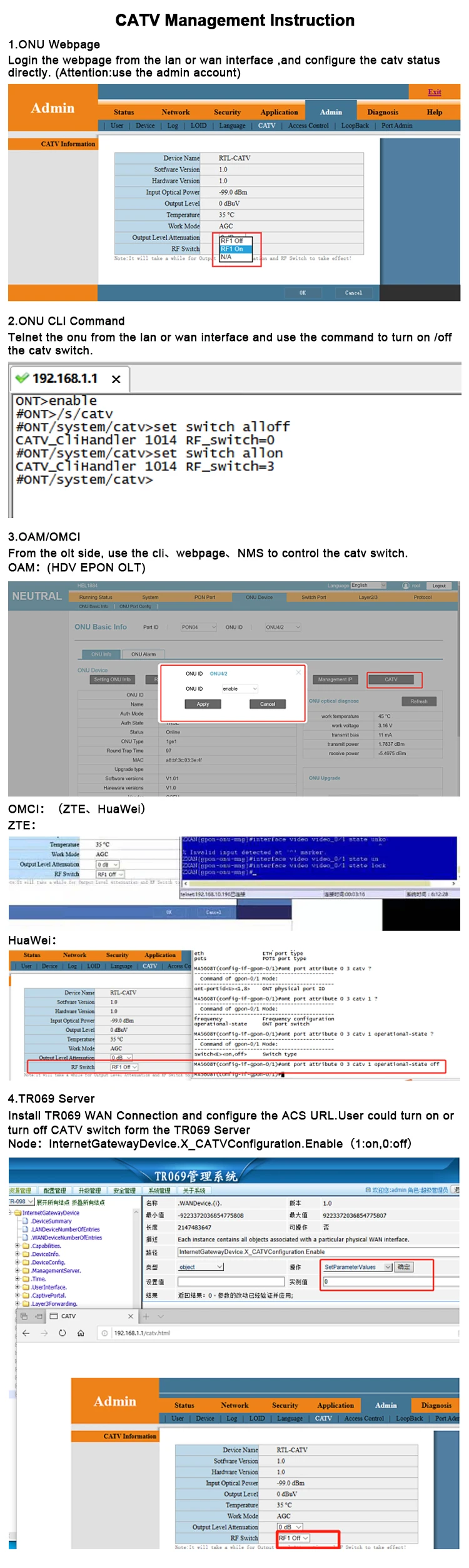

CATV





1. Overview


* HUR3103XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR3103XR is based on mature and stable, cost-effective XPON technology.
* HUR3103XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.

2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 2.4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mappingand Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system

3. Hardware Specification




































































































































Technical item


Details




PON Interface


1 GPON BOB (Class B+/Class C+)


Receiving sensitivity: ≤-27dBm/≤-29dBm


Transmitting optical power: +0.5~+5dBm/+2~+7dBm


Transmission distance: 20KM


Wavelength


TX: 1310nm, RX: 1490nm


Optical Interface


SC/APC Connector


Design Scheme


RTL9603C+RTL8192FR BOB(i7525BN)


Chip Spec


CPU 950MHz,DDR2 128MB


Flash


SPI Nor Flash 16MB


LAN Interface


1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector




Wireless


Compliant with IEEE802.11b/g/n,


Operating frequency: 2.400-2.4835GHz


support MIMO, rate up to 300Mbps,


2T2R,2 external antenna 5dBi,


Support: Multiple SSID


Channel: Auto


Modulation type: DSSS, CCK and OFDM


Encoding scheme: BPSK, QPSK, 16QAM and 64QAM




CATV Interface


RF, WDM, optical power : +2~-15dBm


Optical reflection loss: ≥45dB


Optical receiving wavelength: 1550±10nm


RF frequency range: 47~1000MHz, RF output impedance: 75Ω


RF output level: 78dBuV


AGC range: -13~+1dBm


MER: ≥32dB@-15dBm


LED


11 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4, Worn, Normal(CATV)


Push-Button


3,For Function of Reset, WLAN, WPS




Operating Condition


Temperature: 0℃~+50℃


Humidity: 10%~90%(non-condensing)




Storing Condition


Temperature: -30℃~+60℃


Humidity: 10%~90%(non-condensing)


Power Supply


DC 12V/1A


Power Consumption


≤6W


Dimension


180mm×107mm×28mm(L×W×H)


Net Weight


0.2Kg

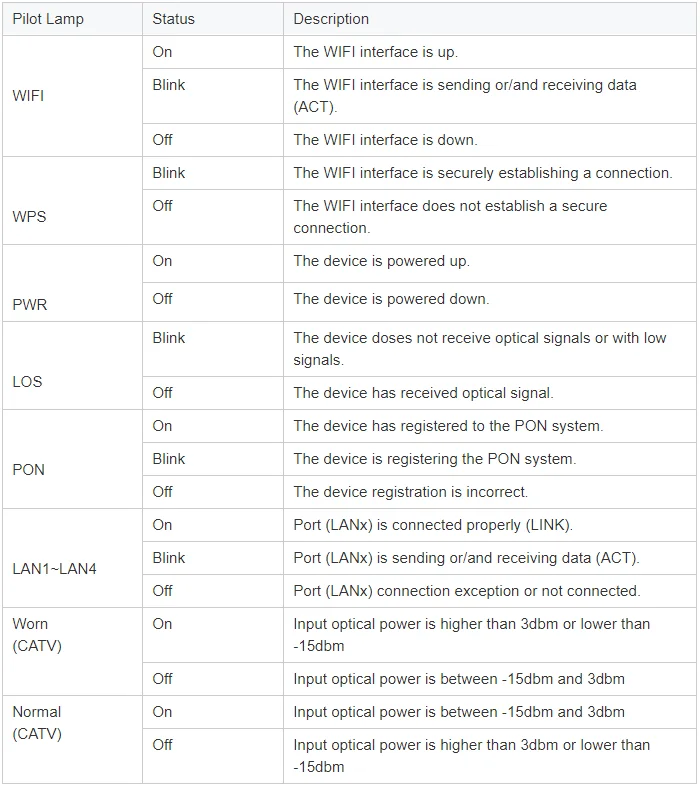

4. Panel lights Introduction


1G3F+CATV+WIFI

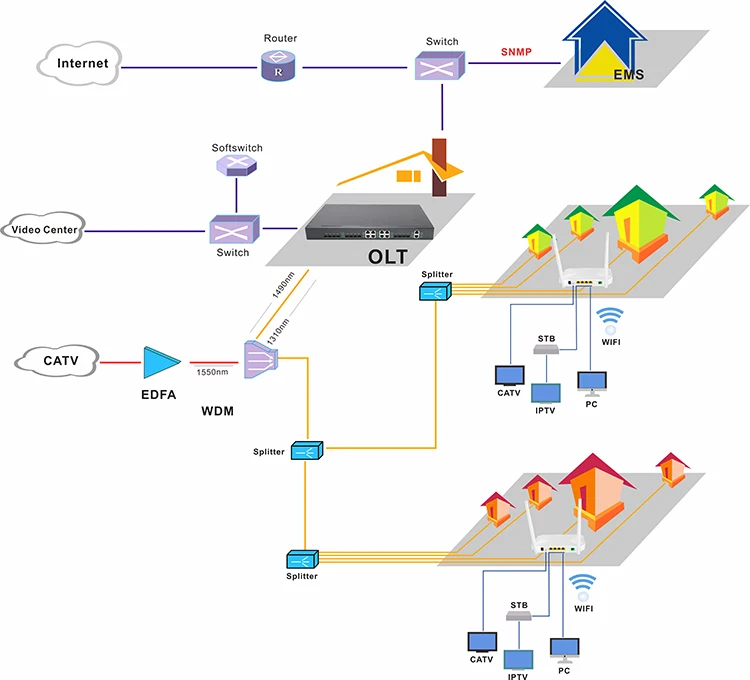

5. Application
Typical Solution:FTTH(Fiber To The Home)


Typical Business:INTERNET,IPTV ,WIFI ,CATV etc

1G3F+CATV+WIFI
