CNC machining center machine TVK1050 VMC1050 vertical CNC milling machine price Taiwan disk armless 24T tool magazine for metal
- Category: >>>
- Supplier: Shandong Tsinfa CNC Equipment Co. Ltd.
Share on (62070796935):
Product Overview
Description
Product Description
Application
CNC machine tool structure and shape optimization design, compact, reasonable, rigid strengthening.
Can be achieved for a variety of plate, plate and shell, complex parts, such as CAM, mold processing,
can complete drilling, milling, tapping and other processes, is suitable for batch production of products,
can meet the drilling, tapping, milling process of small and medium-sized workpiece processing.
1. High-precision castings, quenched to eliminate internal stress and ensure accuracy
2. CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor

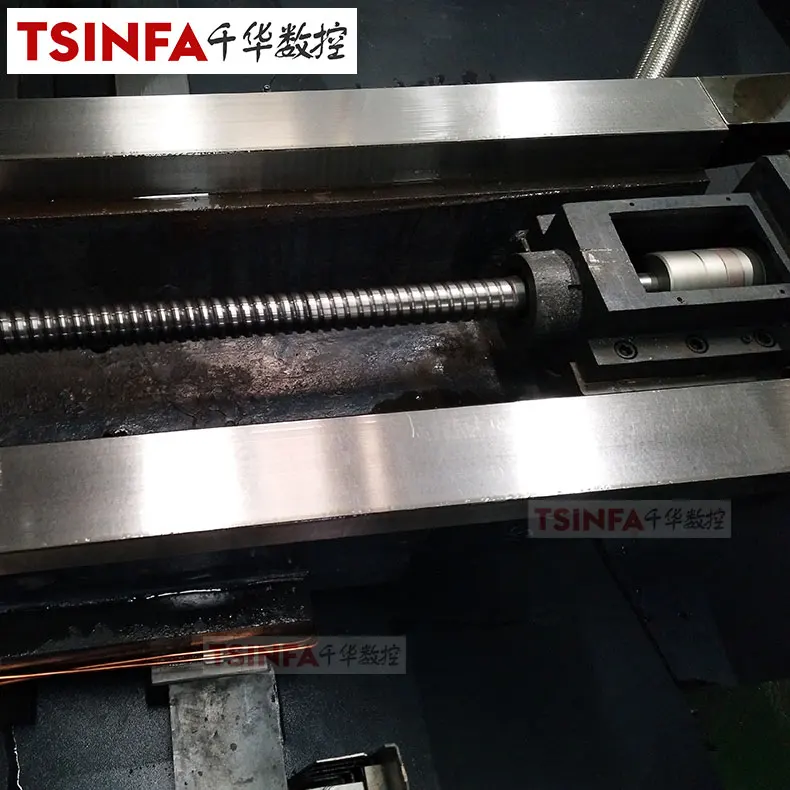

3. The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure
that the backlash and thermal deformation of the machine are kept low for a long time.
4 . The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the
bearing life.
2. CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3. The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure
that the backlash and thermal deformation of the machine are kept low for a long time.
4 . The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the
bearing life.
5. High-precision Taiwan spindle, good stability and long life

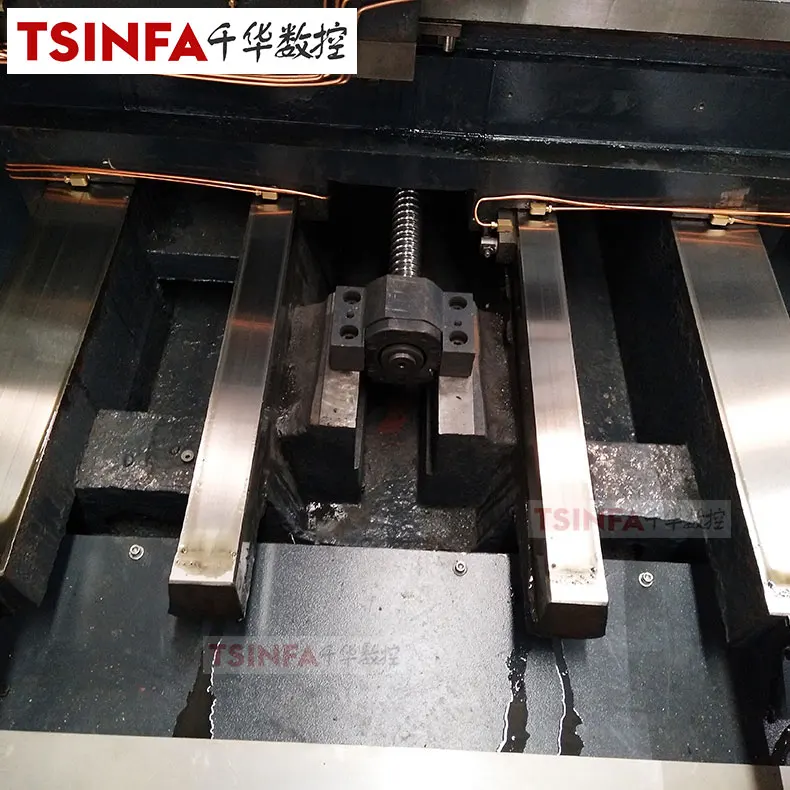

6. Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics,
6. Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics,
can do rapid displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Related Products
Product Paramenters
Specification | Units | TVK1270 | TVK1370 | TVK850 | TVK1160 |
Table size | mm | 1360*700 | 1360*700 | 1000×500 | 1200x600 |
T-solt(NO.×width×pitch) | mm | 5x18x152.5 | 5x18x152.5 | 5×18×90 | 5×18x100 |
Max. table load | kg | 1000 | 1000 | 600 | 800 |
Guide rail type | / | X/Y linear guideway , Z box guideway RGH45/55 | X/Y/Z linear guideway RGH45/55 | X/Y/Z linear Guideway RGH35 | X/Y/Z linear Guideway RGH45 |
X/Y/Z axis travel | mm | 1200x700x600 | 1300x700x650 | 800×500×500 | 1100×600×600 |
Distance from spindle nose to worktable | mm | 70-720 | 70-720 | 120-620 | 120-720 |
Distance from spindle center to column | mm | 780 | 780 | 540 | 650 |
Spindle taper | / | BT40-150 | BT40-150 | BT40-140 | BT40-150 |
Spindle speed | rpm | 8000 | 8000 | 10000 | 8000 |
Spindle motor | kw | 15 | 15-18.5 | 7.5 | 11 |
X/Y/Z axis motor | NM | 23+23+23N | 23+23+27N | 15/15/23 | 18/18/27 |
X/Y/Z Ballscrew (diameter×pitch) | mm | 5010/5010/5010 | 5010/5010/5010 | 4012/4012/4012 | 4012/4012/4012 |
X/Y/Z axis rapid feed speed linear guideway | m/min | 24/24/18 | 24/24/18 | 36/36/36 | 36/36/36 |
Tool Magazine type | / | Armless/Disc | Armless/Disc | Armless/Disc | Armless/Disc |
Tool Magazine Capacity | tools | 24T | 24T | 16/24 tools | 16/24 tools |
Positioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
Repositioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Overall size(L×W×H) | mm | 3400x2600x2950 | 3400x2600x2950 | 2650x2260x2400 | 3100x2550x2650 |
Machine weight | T | 12 | 12 | 5.5 | 7.5 |
Packing&Shipping
Company Profile
Shandong Tsinfa CNC Equipment Co., Ltd
Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines, radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural mechanization equipment and so on. .
Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving, high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
Certifications
FAQ
Q:Your company's delivery time?
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accept T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer training free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A: 1. Technician available for training and installation at customer’s company
2. 1 Year warranty. We will sent damage of the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accept T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer training free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A: 1. Technician available for training and installation at customer’s company
2. 1 Year warranty. We will sent damage of the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
