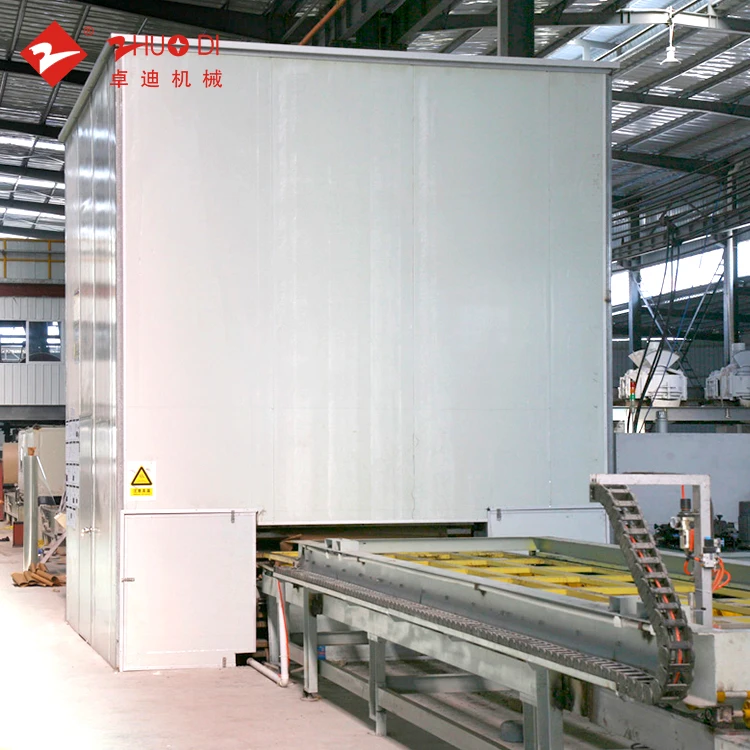

zhuodi numerical control machine industrial electric furnace hardening oven for stone slab

Product Overview

Description

Equipment name	Splint curing oven (iron splints)		Splint curing oven (aluminum splints)
Curing time	45-70 Min		45-70 Min
Curing temperature	45-150 ℃		45-150 ℃
Layers	10-16		14-18
Lifting mode	Cylinder		Screw
Curing mode	1 slab with 2 heating plates		1 slab with 2 heating plates
Total power	174.7-214.7kw		184.2-224.2kw
Dimension	3750*3050*5000mm		3750*3050*6000mm

















1. Can you provide me with the product parameters

one polishing line two press lines semi-Auto distribution.

full production line dimension:117800*76840*14300mm(L*W*H)

Final slab dimension:760*2440mm;800*3100mm

thickness:10-30mm

daily capacity:360 slabs/day(20 hours)

annually capacity:260.000sqm/year



3. What is the size of the whole factory



one polish line can support 2 press lines

whole line dimension:136250*98280*10500mm(L*W*H)

Final slab dimension:1600*3200mm

thickness:10-40mm

daily capacity:480 slab/day(20hours)

annual capacity:720.000sqm/year

4. Do you have a perfect after-sales service system

with professional R&D team,providing pre-sales services,and timely solution.

12 year in engineered quarts stone production experiences,we can provide full training and technical support for our customers.we will

grow with our customers and develop new products with our customers.

with zhuodi machinery ,it's possible to produce any design of quartz.we also can customize and design the machine according to the actual demand,

ensure the easy operation during the production with the low cost,high production and high quality.
