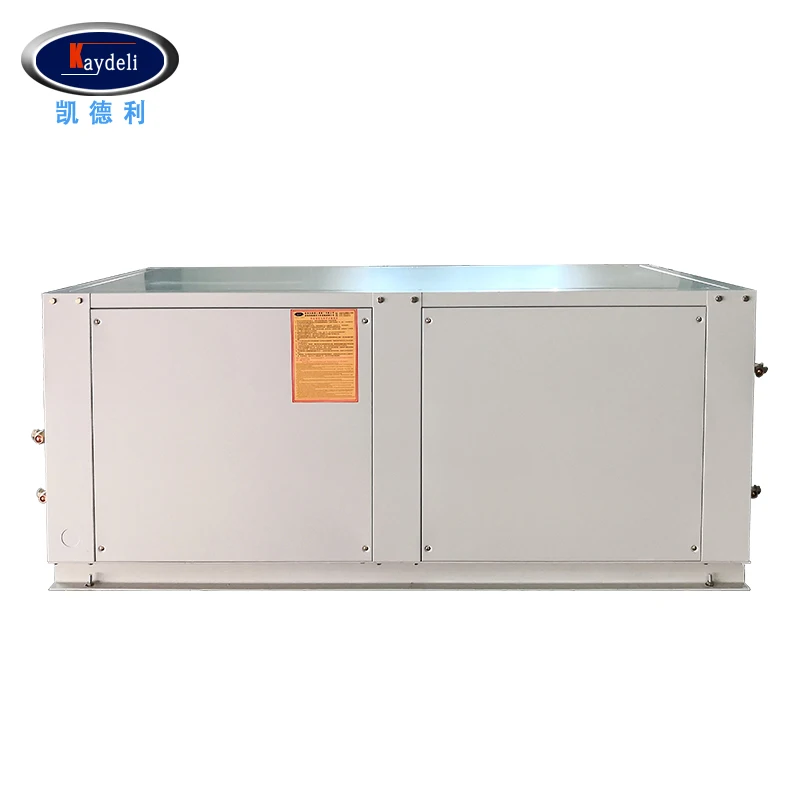

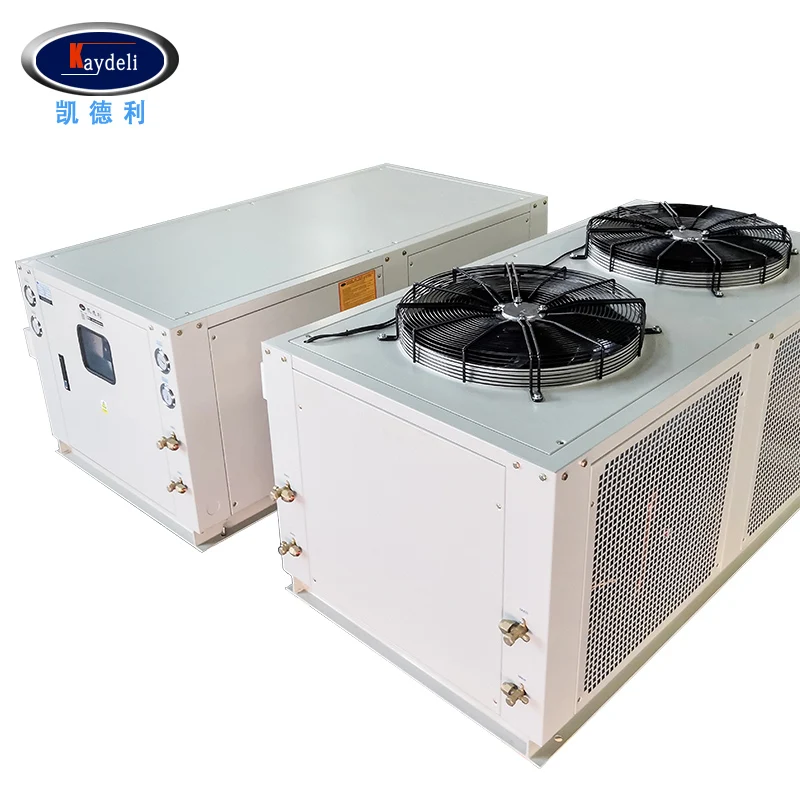

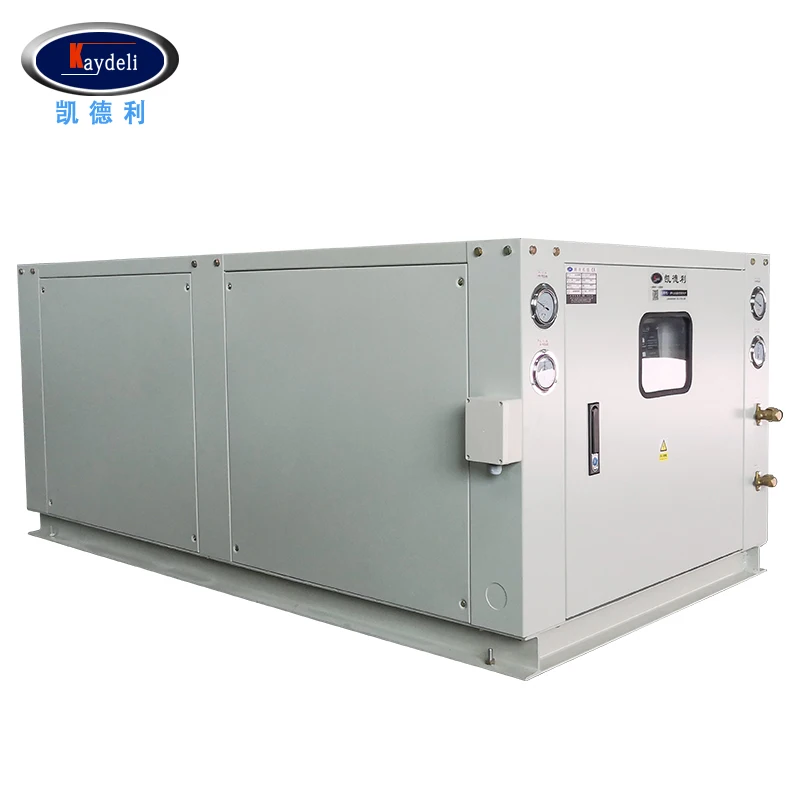

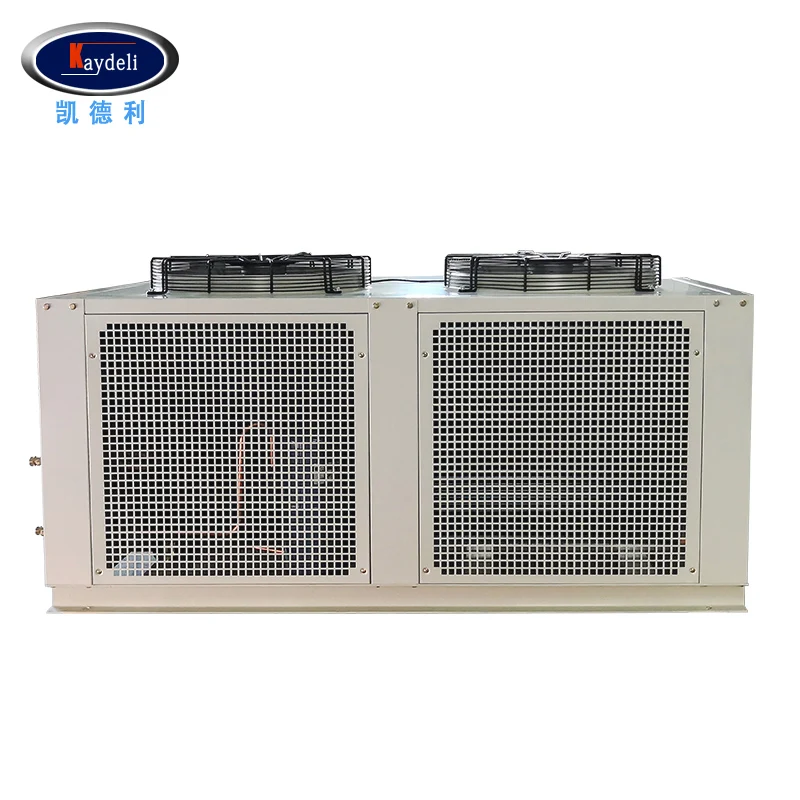

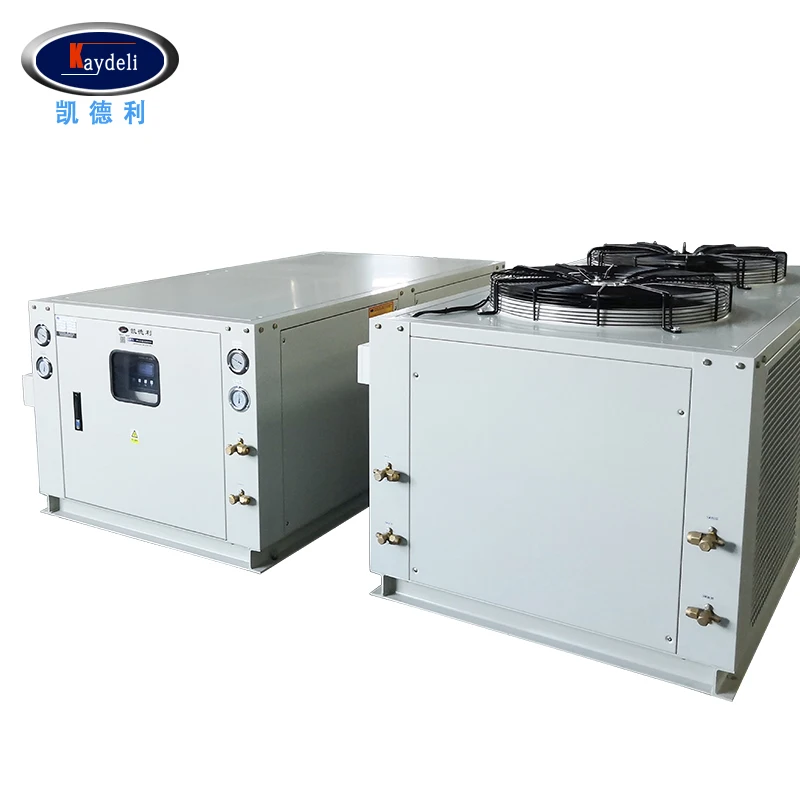

Kaydeli 20HP chiller working principle Compressor Hermetic scroll type Air cooled Industrial hospitalar chiller

Product Overview

Description







Model			KC-020DB
cooling capcity		kW	56.5
		50HZ/60HZ	67.8
		kcal/h	48,590
		50HZ/60HZ	58308
Iput power		kW	17.6
Chilled fluid flow		m3/h	10.8
			12.96
Power			3PH-380V-50HZ(200V/220V/415V   50HZ/60HZ)
Compressor	Type		Hermetic scroll type (Piston)
	Start-up mode		Sequential start
	Power(kW)		15.0
Refrigerant	Type		R-22(R407c/R134a)
	Control mode		Expansion valve
	Filling amount(kg)		13.3
Evaporator	Type		Shell and Tube(Water tank with coil)
	Pipe	B	PT 2"
Condenser	Type		High efficient finned copper tube
	Surface area / row(M2)		3.06/3R
Cooling fan	Type		Low noise axial flow(Low noise outer rotor fan)
	Air wolume(CMM)		390
	Power(kW)		0.55x2
*                      Tank volume		L	180
*                      Water pump power		kW	1.5
Protective device			Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing.
Dimension	L	mm	1900
	W	mm	990
	H	mm	860
Dimension	L	mm	1900
	W	mm	990
	H	mm	800
Weight		kg	760



FAQ:
Q1. Do you have any MOQ limit for air conditioner?
A: Low MOQ, 1pc for sample checking is available.



Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship bu DHL, UPS, Fedex or TNT. It usually takes 10 days to arrive. Airline and sea shipping are also available.



Q3. Do you offer guarantee for the products?
A: Yeas, we offer 12 months warranty to our products.



Q4: Where the application?
A: Our products have been widely used in many industries, like machine tool, data processing, telecommunications, financial, metallurgy, medical, building material, cars and war industry and etc.



Q5: Are your products can be customized?
A: Yes. Also welcomed to customized non-standard products, can achieve to -180 degree Celsius.



Q6: Whats your payment term?
A: International term-30% deposit for production, 70% balance before shipment.
