  • OX 188B Progressive Elevator Safety Gear High Speed Safety Gear for Small Residential Lift
OX 188B Progressive Elevator Safety Gear High Speed Safety Gear for Small Residential Lift
OX-188B Progressive Elevator Safety Gear High Speed Safety Gear for Small Residential Lift
OX-188B Progressive Elevator Safety Gear High Speed Safety Gear for Small Residential Lift

OX 188B Progressive Elevator Safety Gear High Speed Safety Gear for Small Residential Lift

Share on (62071584680):


Price:

Quantity:


Product Overview

Description



Product Description


Elevator Safety Gear, Elevator Safety Gear Device, Progressive Elevator Safety Gear, Elevator Safety Gear Price, OX-188B Safety Gear for Passenger Elevator or Freight Elevator, Elevator Parts

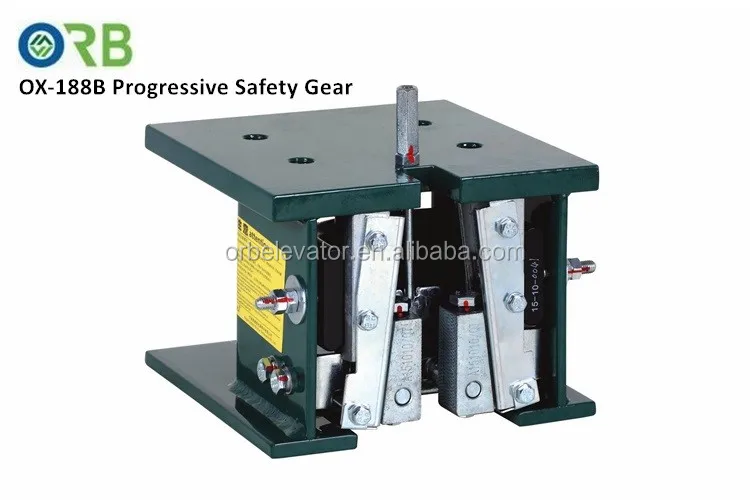

OX-188B Progressive Elevator Safety Gear

1. Applicable for Elevator Speed: ≤2.5m/s

2. Applicable for Guide Rail Width: K=10mm, 16mm

3. Applicable for System Weight (P+Q): 565KG to 3240KG

4. Applicable Standard: GB, EN81


For more detail, please contact us directly.


As for material, labor, transportation cost and exchange rate are changing, and the elevator safety gear model is different, the price for this OX-188B progressive elevator safety gear is just for reference only, and the price does not contain the linkage device. Please contact us beforehand if you are interested.


Recommendation Form



Model
Type
Speed
System Weight
(P+Q: KG)
Applicable
For Guide Rail
Installatioin
Position
OX-188
Progressive
≤2.5
809 to 5125
K=10, 16
Car
Counterweight
OX-188A
Progressive
≤2.5
1143 to 6292
K=10, 16
Car
Counterweight
OX-188B
Progressive
≤2.5
565 to 3240
K=10, 16
Car
Counterweight
OX-210A
Progressive
≤2.5
947 to 4122
K=9, 10, 16
Car
Counterweight
OX-210B
Progressive
≤2.5
538 to 3480
K=10, 16
Car
Counterweight
OX-288
Instantaneous
≤0.63
≤8500
K=16
Car
OX-388
Instantaneous
≤0.63
≤12500
K=16
Car
OX-088
Instantaneous
≤0.63
≤1271 (K=10mm)
≤1627 (K=16mm)
K=10, 16
Car


Reference Pictures

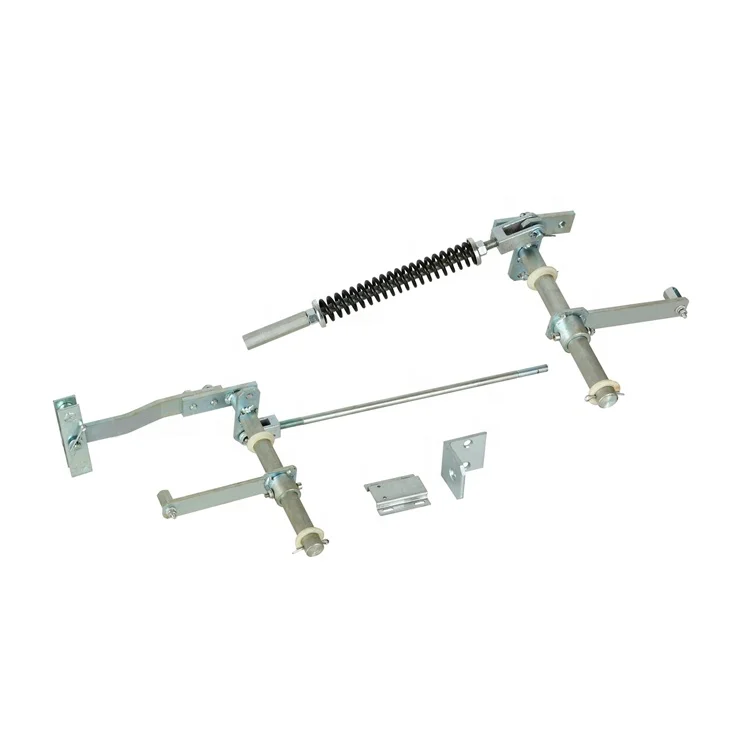

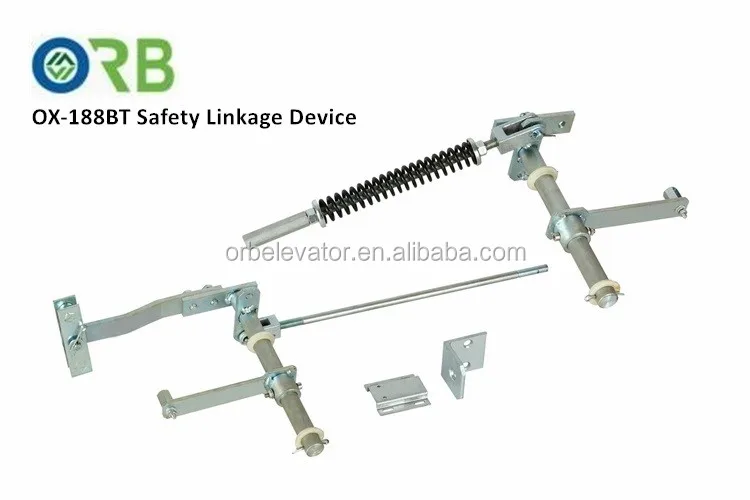

Optional Linkage Device





ORB Lift Safety Part


Suzhou ORB Elevator has various elevator Safety parts. We have different elevator limit switch, elevator leveling switch, elevator guide shoe, elevator overspeed governor, elevator safety gear, elevator rope brake, elevator buffer, etc.


We have been supplying various types of elevator parts with competitive price and top quality, you are cordially invited to browse our website, contact us by phone or email, and visit us directly.
