Non Paronite Gasket Composite Punched Sheet Working as Industrial Sealing Gasket
- Category: >>>
- Supplier: Dalian Shangdu WJH Co. Ltd.
Share on (62071747408):
Product Overview
Description
Product Description
Our company provides different kinds of Non asbestose sheet,rubber sheets and packing products. We have various sizes,shapes,colors, textures products. They are widely used in sealing field, national defense, electricity machinery, petroleum, chemical ,metallurgy, shipbuilding, transportation fields, and you can also use the rubber flooring in gym, cowshed, horse stall, boat surface, or some general walkways and so on. SBR Rubber Sheet, with high hardness, middle pressure, can used as sealing, cushioning, flooring, economical and popular one.
Product Name | Non Asbestos Composite Sheet |
Density(g/cm³) | 2.0 |
Burning Loss≤% | 30/28 |
Rebound Degree(%) | 35/40/45 |
Temperature(℃) | 100-550 |
Aging coefficient≥% | 0.9 |
Vapour Pressure(MPa) | 1-15 |
Pliability | No crack |
Thickness | 0.4mm--6.0mm |
Weight and Size
Non -Asbestos Jointing Sheet | 1.27m*1.27m | 1.52m*1.52m | 1.52m*2.02m | 1.52m*1.02m | 1.52m*1.36m | 4.58m*1.55m | 4.12m*1.54m | 3.8m*1.33m |
0.4mm | 1.37kg | 1.85kg | 2.45kg | 1.24kg | 1.65kg | 5.68 kg | 5.08 kg | 4.04 kg |
0.5mm | 1.71kg | 2.31kg | 3.07kg | 1.55kg | 2.06kg | 7.10 kg | 6.34 kg | 5.05 kg |
0.6mm | 2.05kg | 2.77kg | 3.68kg | 1.86kg | 2.48kg | 8.52 kg | 7.61 kg | 6.06 kg |
0.7mm | 2.41kg | 3.23kg | 4.3kg | 2.17kg | 2.9kg | 9.94 kg | 8.88 kg | 7.08 kg |
0.8mm | 2.7kg | 3.7kg | 4.91kg | 2.48kg | 3.3kg | 11.36 kg | 10.15 kg | 8.09 kg |
1mm | 3.43kg | 4.62kg | 6.14kg | 3.1kg | 4.13kg | 14.20 kg | 12.69 kg | 10.11 kg |
1.5mm | 5.14kg | 6.93kg | 9.21kg | 4.65kg | 6.2kg | 21.30 kg | 19.03 kg | 15.16 kg |
2mm | 6.86kg | 9.24kg | 12.28kg | 6.2kg | 8.27kg | 28.40 kg | 25.38 kg | 20.22 kg |
3mm | 10.29kg | 13.86kg | 18.42kg | 9.3kg | 12.4kg | 42.59 kg | 38.07 kg | 30.32 kg |
4mm | 13.71kg | 18.48kg | 24.56kg | 12.4kg | 16.54kg | 56.79 kg | 50.76 kg | 40.43 kg |
5mm | 17.15kg | 23.1kg | 30.7kg | 15.5kg | 20.67kg | 70.99 kg | 63.45 kg | 50.54 kg |

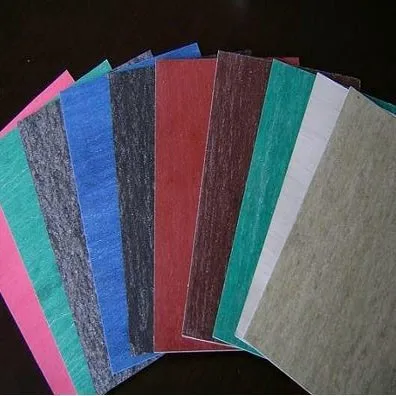

Products Show
Usage

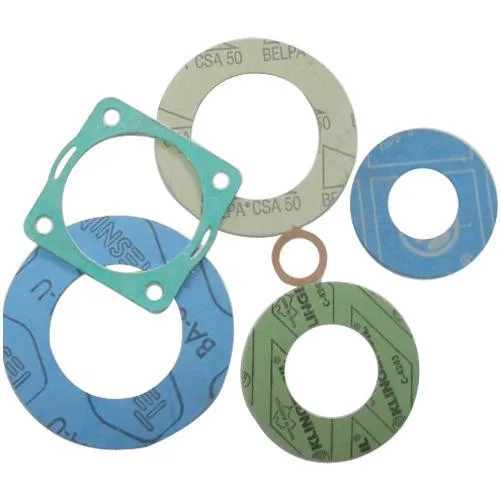

Sealing Gasket
The non asbestos sheet is mainly used in machine sealing and pipe sealing projects. You can also use it in national defense, electricity machinery, petroleum, chemical ,metallurgy, shipbuilding, transportation fields.
Our Company
Dalian Shangdu WJH Co, Ltd
Our company is a high-tech enterprise specialized in non asbestos rubber sheet, industrial rubber sheet, non asbestos products and sealed gasket materials. In order to produce good quality products that we are equipped with the most advanced machines and test facilities.
Our company was estabilished in 1992s. We are one of the three biggest companys in sealing materials. The non asbestos rubber sheet's annual output is 5400 tons and the industrial rubber sheet's annual output is 7200 tons.
With so many years' efforts, we have built long term cooperations with customers who are from Russia, Ukraine, USA, Southeast Asia, the Middle East, North America, South America, Turky, Africa.
Factory
Warehouse
Office
Team
Certifications
Packing & Delivery
Package: Non asbestos jointing sheets shall be packed in boxes or bundles lined with moisture-proof paper or plastic paper. Net weight deviation shall not exceed +/-2%.
Delivery: Non asbestos rubber sheets should be transported by rain-proof and sun-proof means of transportation.
Storage: Non asbestos rubber sheets should be stored in warehouses with rain-proof and moisture-proof facilities at temperatures of 0-30 degrees Celsius. No direct sunlight is allowed. The distance from heat source should be 1.5 m, and the distance from ground and wall should be more than 10 cm. When stacking in batches, if the outer packing is soft material, the stacking height should not exceed 10 layers.The storage life of non asbestos rubber sheet is 24 months from the date of manufacture.
Customer Photo
We are very appeciated for that we have many old friends who are from all over the world. We always believe that "Credit is the most improtant element for cooperation". Win-win is the real win, please come and join our family!
FAQ
Q: Are you trading company or manufacturer ?
A.We are factory. We have been built up for almost 24 years.
Q: How long is your delivery time?
A.Generally it is 10-15 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Can we visit your factory?
A: Warm welcome! If you want to be here, please tell us your schedule in advance so that we can pick you up. About the detial we can talk at the right time.
