Water separation machine daf unit dissolved air flotation in Oil water separator

Product Overview

Description

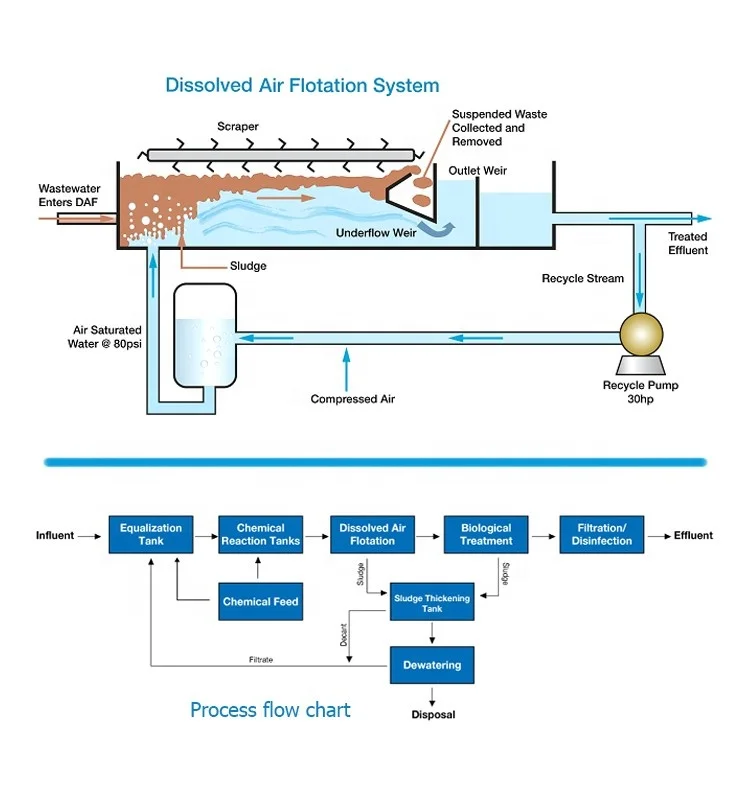

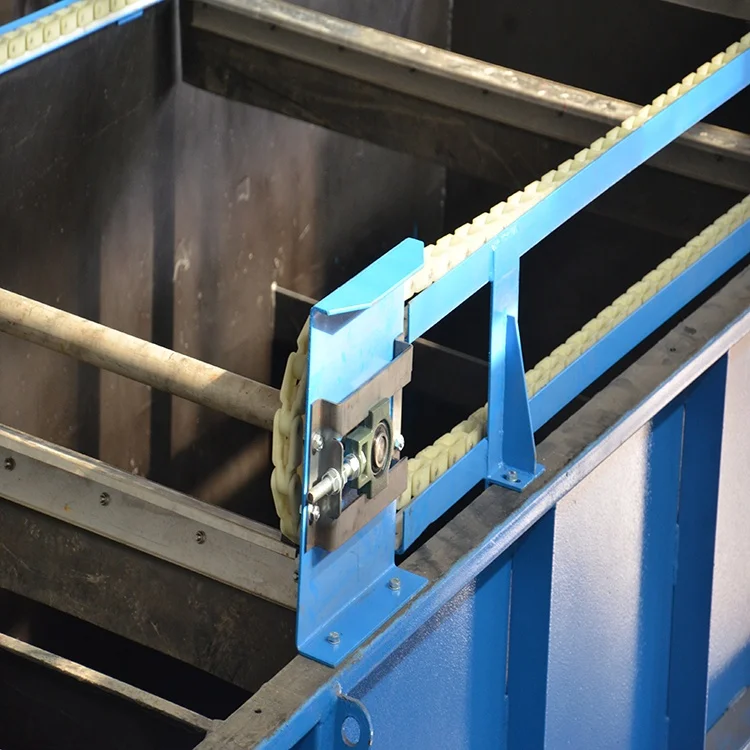

Dissolved Air Flotation is the process of removing grease, oils and other fineSuspended solids and reduces COD and BOD device. the use of air bubble flotation. Air was dissolved into water, the air -saturated water generated from dissolved air micro bubbles attach to the surface of solids,The light of solids(less dense than water)lifting them to the surface.distributed over the whole tank width,make suer optimum phase separation. Mechanical skimmer remove the floating sludge layer and thepurified wastewater discharges to sewer.

Yosun dissolved air flotation solutions provide high-quality, high-capacity, and efficient clarification.

DAF Model	Capacities (m3/h)	Piping Connections()				Physical Dimensions(m)			Weight (Kg)	Operating Weight(kg)	Power(kw)			Weight KG
		Inlet(a)	Effluent(b)	Sludge(c)	Vent(d)	L/L1	W/W1	H/H1			Reflux pump	Air compressor	Skimmer
DAF-002	2	DN50	DN50	DN100	DN100	3.4/2.5	3.4/1.16	2.2/1.7	1300	4000	0.75	0.55	0.2	1200
DAF-003	3	DN50	DN50	DN100	DN100	3.7/2.8	2.4/1.16	2.2/1.7	1500	5000	0.75	0.55	0.2	1300
DAF-005	5	DN80	DN80	DN100	DN80	4/3	2.4/1.16	2.2/1.7	1600	7000	1.1	0.55	0.2	1336
DAF-010	10	DN100	DN100	DN100	DN100	4.65/3.8	2.7/1.36	2.4/1.9	2000	12000	1.5	0.55	0.2	1784
DAF-015	15	DN125	DN100	DN150	DN100	5.6/4.5	2.9/1.66	2.5/2	2200	18000	2.2	0.75	0.2	1904
DAF-020	20	DN150	DN150	DN150	DN100	5.9/4.8	3.2/1.96	2.5/2	3000	22000	3	0.75	0.2	2847
DAF-030	30	DN150	DN150	DN150	DN100	6.8/5.5	3.2/2.16	2.7/2.2	3800	32000	3	0.75	0.4	3642
DAF-040	40	DN200	DN150	DN150	DN100	8/6.7	3.6/2.6	2.7/2.2	5000	45000	5.5	0.75	0.4	4742
DAF-050	50	DN200	DN150	DN150	DN100	8.4/7	3.6/2.6	2.7/2.2	5500	55000	7.5	0.75	0.4	5283
DAF-060	60	DN250	DN200	DN150	DN100	9.9/8.4	3.8/2.8	2.9/2.4	6000	66000	7.5	1.5	0.4	5605
DAF-070	70	DN250	DN200	DN150	DN100	10.4/9	3.8/2.8	2.9/2.4	6500	75000	11	1.5	0.4	6382
DAF-080	80	DN250	DN250	DN150	DN100	10.8/9.4	4/3	2.9/2.4	7500	100000	11	1.5	0.4	7257
DAF-100	100	DN300	DN250	DN150	DN100	12.1/10.6	4.2/3.2	2.9/2.4	9000	110000	15	1.5	0.4	8419
DAF-120	120	DN300	DN250	DN150	DN100	12.5/11.4	4.4/3.4	2.9/2.4	10000	130000	15	1.5	0.4	10000
