Автоматический фильтрующий пресс для камня, гранита, мрамора

Filter Press Overview:

Filter press is a batch operation, fixed volume piece of equipment ranging from 0.1m³  -20m³  that separates liquids and solids using pressure filtration. Slurry is pumped into the filter press and dewatered under pressure. A filter press can be used for process, water/liquid and wastewater treatment in a variety of different industries and applications, such as mining, metallurgy, petrol, chemical, medical, dyeing, paper, food, alcohol, textile production, etc..

Frame:                The steel frame acts as a clamping device for the filter plates.

Filter Plates:      A filter cake forms in the chambers between filter plates.

Filter Cloth:       A cloth filter that is attached to both sides of a filter plate. Solids build up on cloth to form a filter                              cake, separating liquids from solids.

Available options according to:

Closing mode:              manual, gear drive, hydraulic;

filter plate structure:    recessed plate, plate &frame, diaphragm squeeze (membrane) plate;

filter plate material:      PP, rubber, cast iron, stainless steel;

Filter Plate size(mm):  320, 450, 630, 800,1000, 1250, 1500,2000

Instruction of Code Names:

How Does It Work?

1.) Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle.

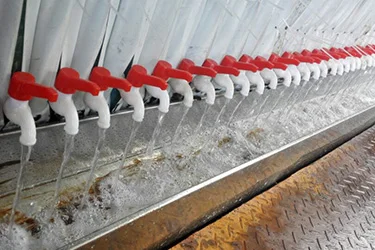

2.) Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold.

3.) When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.

4.) Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.

Applications:

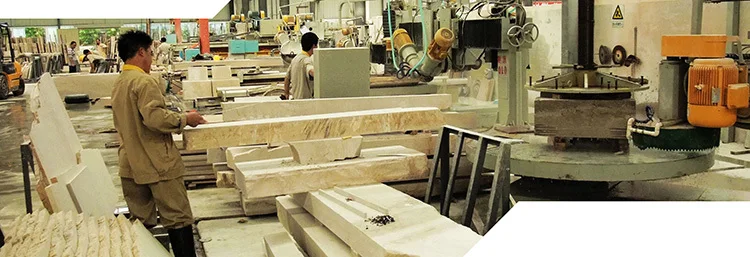

• Stone fabrications


• Metal Finishing



• Mining & Energy



• Power



• Industrial Wastewater



• Municipal Wastewater



• Lime Softening



• Chemical Processing



• Ready Mixed Concrete



• Car & Truck Washes

Our Filter press for granite slurry treatment is optimized on the basis of regular used filter press, making it more efficient and reliable in the harsh working conditions.	Example: water before and after treatment with our filer press.

Typical Filter Press Models & Technical Data

How to Order?

1.Firstly, please refer to technical data of filter press, choose a suitable model, plate material, plate closing mode, filtration flow mode.
2.Based on production requirements, please choose between: open-flow, close-flow; cake washing, non-washing before ordering.
3.Slurry feeding pump, squeezing pump(or air compressor) is not included in the filter press machine by default, please add them to your purchase order if they are requested from us.
4. Customized filter press for special working conditions are available, please feel free to present your requirements.
5. Due to upgrade of machines, all technical data are subject to change without prior nofications.
