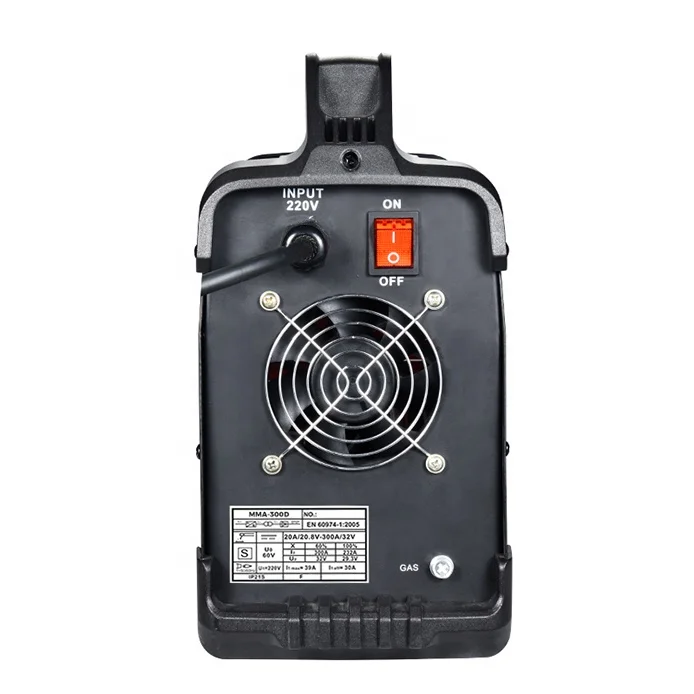

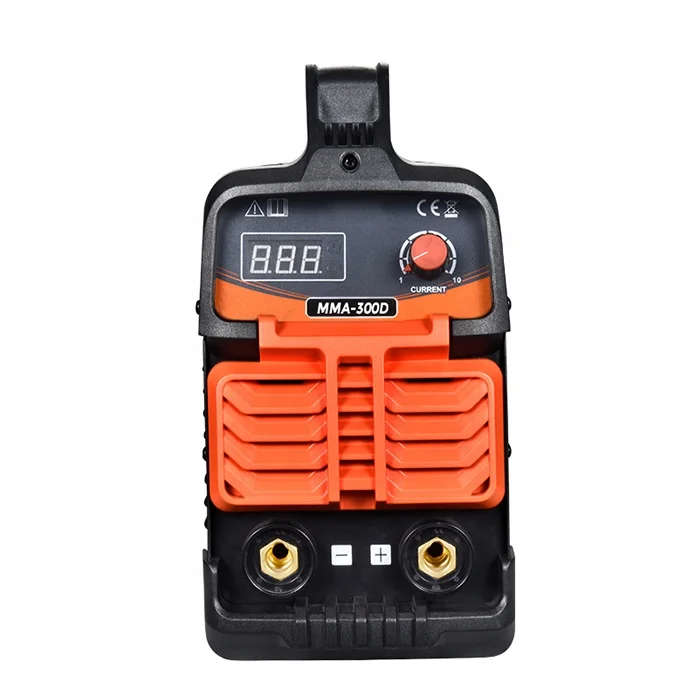

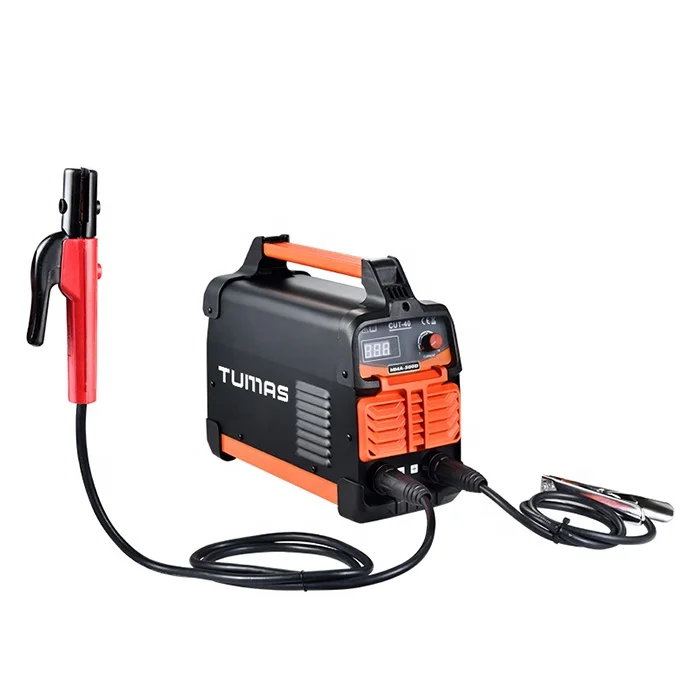

Hot ! AC DC plasma cutter inverter CO2 gas shielded ARC pulse TIG MIG MAG MMA IGBT MOSFET welding machine plasma welding machine
- Category: Manual Metal Arc Welder >>>
- Supplier: Wenling Tumas Machinery Co. Ltd.
Share on (62071865320):
Product Overview
Description
| Model | MMA-200D | MMA-250D | MMA-300D |
| Type | IGBT 1 PCB | IGBT 1 PCB | IGBT 1 PCB |
| Rated Input Voltage(V) | 220V(110V Support) | 220V(110V Support) | 220V(110V Support) |
| Rated Input Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Rated Input Power(KVA) | 5 | 5.7 | 6.6 |
| Non-load Voltage(V) | 60 | 60 | 60 |
| Output current range(A) | 20-200 | 20-250 | 20-300 |
| Rated Duty Cycle(%) | 60% | 60% | 60% |
| Efficiency(%) | 85% | 85% | 85% |
| Class of Insulation | F | F | F |
| Shell protection grade | IP21 | IP21 | IP21 |
| Suggested Electrode Max.(mm) | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 |
| Connector Size | 35-50mm | 35-50mm | 35-50mm |
| Input power cable | 1.8m | 1.8m | 1.8m |
| N.W./G.W.(kg) | 4.3/6.1 | 4.5/6.3 | 4.7/6.5 |
| Machine Size(LxWxH mm) | 380*155*260 | 380*155*260 | 380*155*260 |
| Package Dimension(LxWxH mm) | 470*210*335 | 470*210*335 | 470*210*335 |
| Package | color box+foam | color box+foam | color box+foam |
| Accessories | 1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual | 1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual | 1.8m 16mm 300A holder 1.2m 16mm 300A clamp mask, brush, manual |
