Industrial Hot Air Sewing Machine for Watertight Outdoor Clothes

Share on (62071882004):


Price:$2,800.00

Quantity:


Product Overview

Description



Product Description

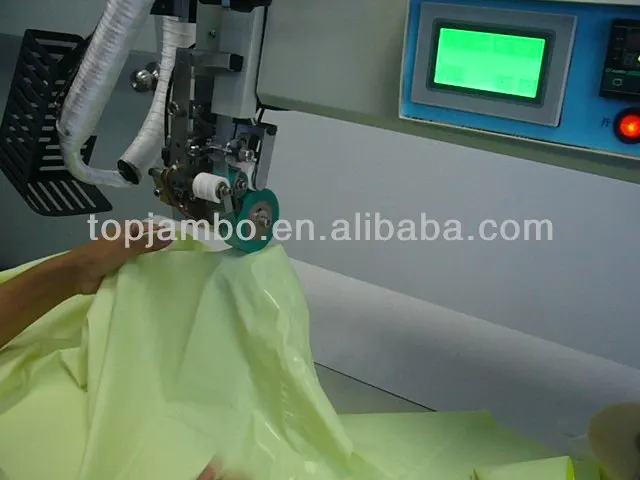

Hot Air Seam Sealing Machine T-2





t2


==Product Features==





1.Main parts with complete a set of highly reliable imported electrical components,panasonic's PLC and programmable LCD, high quality guarantee.

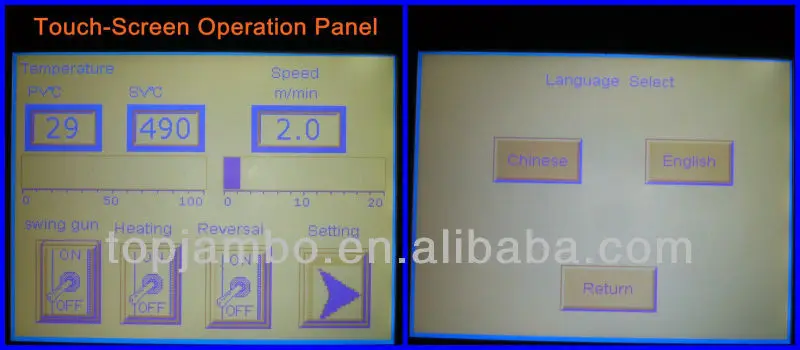

2.Easy using , programmable setting, LCD and visible adjustment improve production efficiency.


3.Auto controllable temperature ,highly stability temperature adjustment between±2°C, temperature maximum limit alarm is installed to protect heating wire.


4.Special fever tube construction,blowing wind machine runs independently, liquid and oil are never preserved.


5.Auto mechanical operation for cutting tape, sending tape and ending tape and reduces tape material spending.


6.Improvement by customers usage from oversea and country, adopting of mature and advanced technique in machine and electrics.


7.Improve production efficiency,24 hours running machine is possible.











==Product Application==



Outdoor Garment and Other Weatherproof Products Such As Raincoat, Weatherproof rain jacket, Softshell Jacket, Down Puffer Jacket , Mountain Windproof Rain Jacket, Wetsuit,  Swimming Jumpsuit, Tents, car covers, etc. Seam Sealing Applicable to A large variety of fabrics


such as pu,pe,pvc,neoprene,ac,etc,can be used for long,straight and curved seams of all kinds


on sheeting and coated materials with A thickness of 0.2mm and more.








23





==Technical parameter==

























































Model:



T-2



Power cosumption:



AC~220V 50Hz 2500W Abt



Heater power:



2000W of special heating elements



Heater control:



Infinitely variable up to 700oC



Speed:



2~24m/min infinitey variable



Air supply:



0.35~0.5 Mpa

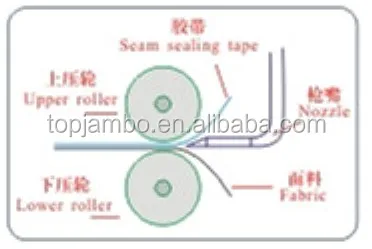

Width of pinch roller:



25mm standard with options for plain points engraved and striped


roller



Width of seam sealing tape:



Standard 14mm ~22mm ,other optional



Upper roller lift:



18mm~25mm



Exterior size:



(L)1300mm×(W)600mm×(H)1530mm



Net weight:



140kg



Prevention mechanism:



There are adjustable devices to prevent the gun from jumping over


 the seamed sections when the gun is  moving in ward with the idle


 wheel starting,or when the gun moving outward with the idle wheel


 stopping.
