China Factory Microstepping Driver Stepper Motor Controller

China Factory Microstepping Driver Stepper Motor Controller

Summary

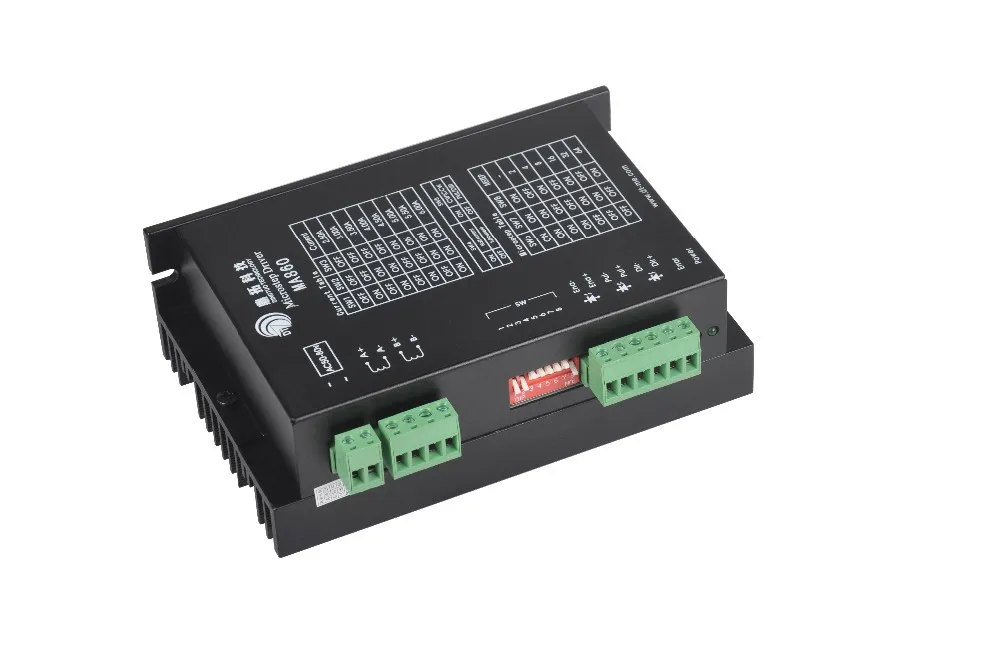

The MA860 is an economical high performance microstepping driver based on the most advanced technologies in the world today. It is suitable for driving any 2-phase and 4-phase hybrid stepping motors. By using advanced bipolar constant current chopping technique, it can output more speed and power from the same motor, compared with tradition technologies such as L/R drives. Its 3-state current control technology allows coil currents to be well controlled, with relatively small current ripple and therefore less motor heating.

Feature

-Small size, high power
- Supply voltage up to 90VAC
- 20KHz chopping frequency
- Half - static current automatically
- The maximum drive current is 6A
- Multilayer PCB technology, high reliability
- The subdivision precision can be adjusted up to 64 subdivision
- Over voltage, over current protection
- Small size(150x108x48cm)

Enviroment Specification

Pin Assignment and Description

Control signal connector P1 pins

Control signal connector P2 pins

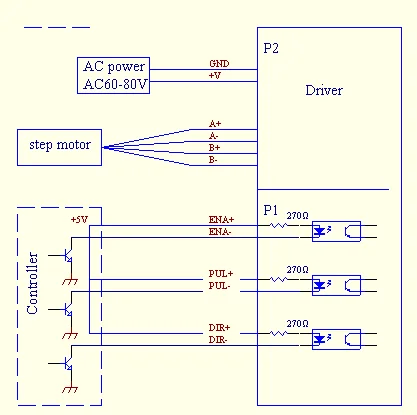

Wirng Connection

Customized Application Case
