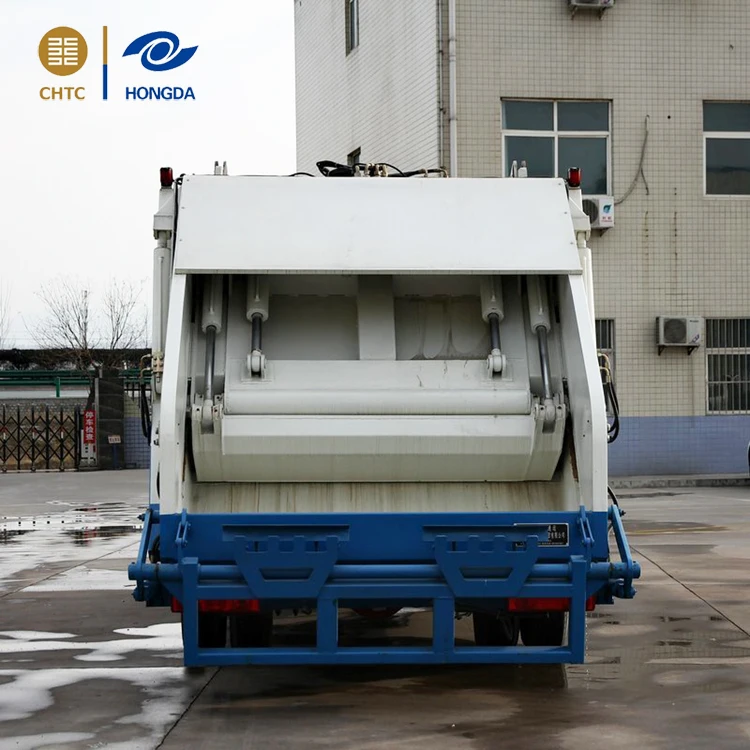

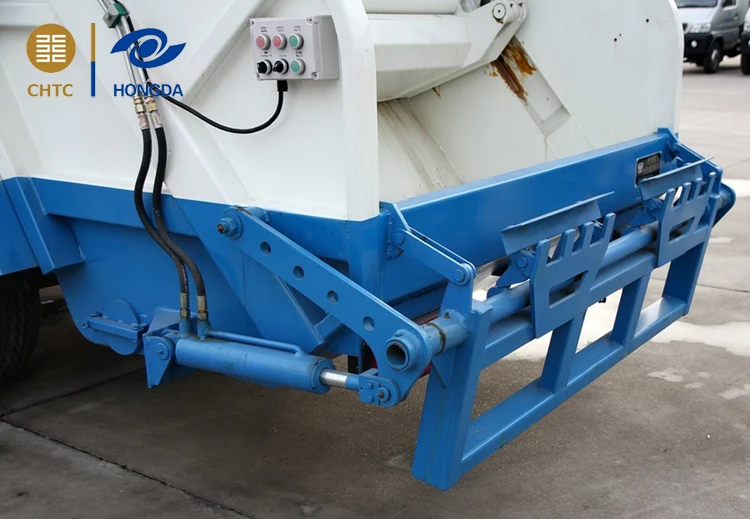

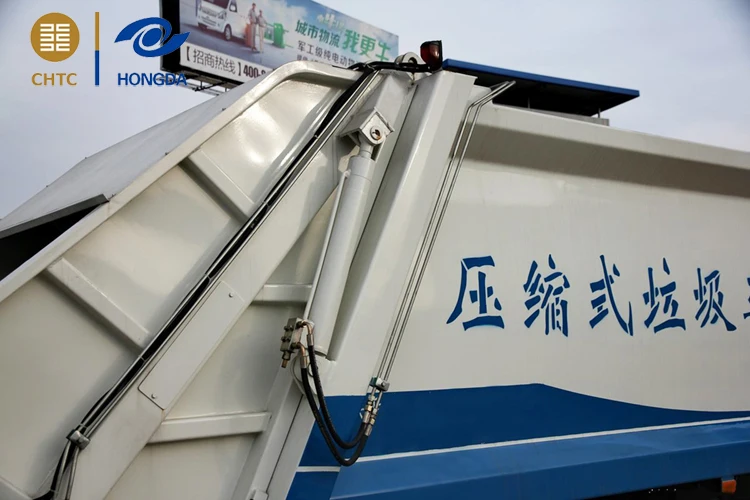

The compression mechanism consists of a pressure plate welded by a steel plate and a channel steel, a guide wheel and a cylinder block, and the garbage in the hopper is compressed into the vehicle body under the push of the oil cylinder. Compression cycle time: 25-30s, compression density: 0.6-0.8t/m3. The unloading mechanism is composed of a discharge cylinder and a discharge push plate. The discharge push plate is formed by welding the steel plate and the bracket, and is positioned by the guide groove. The cylinder is pushed out to push the discharge push plate to discharge the garbage, and the garbage time is pushed and unloaded: 40s.
Engine
Engine Model:
Chaochai CY4102-CE4C
Displacement:
3.856L
Maximum output power:
91kW
Maximum horsepower:
124 horsepower
Emission Standards:
State IV/Euro IV
Fuel type:
Diesel
Rated speed:
2800rpm
Chassis parameters
Chassis brand:
Dongfeng Dollyka
Chassis model:
DFA1080SJ12D3
Number of springs:
8/10+7
Track:
1770/1586mm
Number of tires:
6
Tire specifications:
7.50R16LT

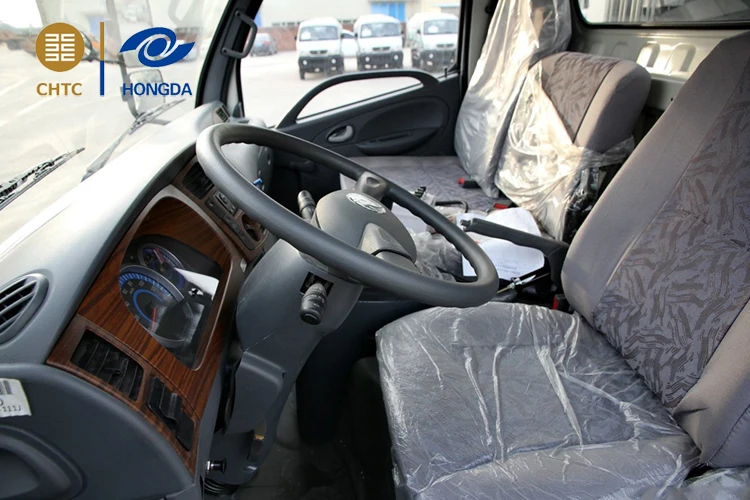

Cab:
Flat top
Basic parameters
Drive form:
4X2
Wheelbase:
3800mm
Body size:
7.31x2.3x2.7 meters
Total quality:
8.275 tons
Rated quality:
1.5 tons
Front overhang / rear overhang:
1.21/2.3 meters
Company Information
Our factory was founded in 1998 with registered capital of 180 million yuan as a national designated manufacturer for the special-purpose vehicles, which is located in the Economic and Technical Development Zone, Zhengzhou City, Henan Province of China. Enterprise covers an area of 400,000 square meters, adopts the automated high-level assembly line with professional and scale-up production, which can ensure the the annual production capacity of 6,000 units.
There are 5 series core products: Engineering Vehicles, Logistic-related Vehicles, Sanitation Vehicles, and New Energy Vehicles. The main products are Concrete Mixer Truck, Bulk Cement Truck, Dry-mixed Mortar Truck, Dump Truck, Sanitation Trucks and Facilities, Semi-Trailer Trucks, Wrecker Truck, Van Truck, Electric Cargo Truck, Recreational Vehicle and so on more than 20 series of more than 200 varieties. Our company has the strategic cooperation relationship with many famous chassis manufacturers in China, such as FAW, Shacman, Foton Auman, Dongfeng, Sinotruk, SAIC Hongyan, JAC and so on. There are more than 50 sales company jointly formed a sales network in China. Products have been widely exported to Australia, Germany, Saudi Arabia, Mongolia, Pakistan, Bangladesh, Vietnam, Myanmar and other countries.
Weclome to visit our factory
Certifications
Packaging & Shipping
1,Attached parts and tools put into standard export box.
2,Truck semi trailer will be cleaned and covered with wax before delivery.
3,Trucksemi trailer will be covered by waterproof cloth at the departure port.
4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers’requirements.
5,Some small trucksemi trailer can be put into container according to its overall dimensions.
We can ship construction machinery by various transportation tools.
(1) For 90% of our shipment, we will go by sea, to all main continents such as Middle East, Africa, Oceania and Europe, South America,etc. Either by container or RoRo/Bulk shipment.
(2) For neighborhood countries, such as Russia, Mongolia, Kazakhstan, Uzbekistanetc.
We can ship construction machinery by road or railway.
Our Services
1. Any inquiry will be replied within 24 hours.
2. Factory visit is welcomed and airport pick up service.
3. We can do the designs according to the customers' requirement.
4. We can offer you the high quality & reasonable price,and we have trade assurance.
5. 12 months super long time guarantee period.
FAQ
1. Where is factory located?
CHTC is located at Zhengzhou, Henan, China.
2. Can I visit your factory to see your equipment and products?
Yes, you are welcome to visit us at any time. We have staff and showrooms to accommodate you if you want to come and visit, also we can arrange a demo for you. You can also check all of our products and equipment on our website and we will be glad to speak with you in person regarding our products and equipment and provide detailed quotes.
3. Do you have a catalogue?
Yes, you can contact us to get a copy of our road maintenance products catalogue.
4. What about your operation hours?
CHTC is open from 8:30 am to 5:30 pm Beijing time. We also do weekend message checks for both e-mail and phone.
5. Where does CHTC ship from?
We ship from our factory located in Zhengzhou; the opitional ports areQingdao, Shanghai and so on.
