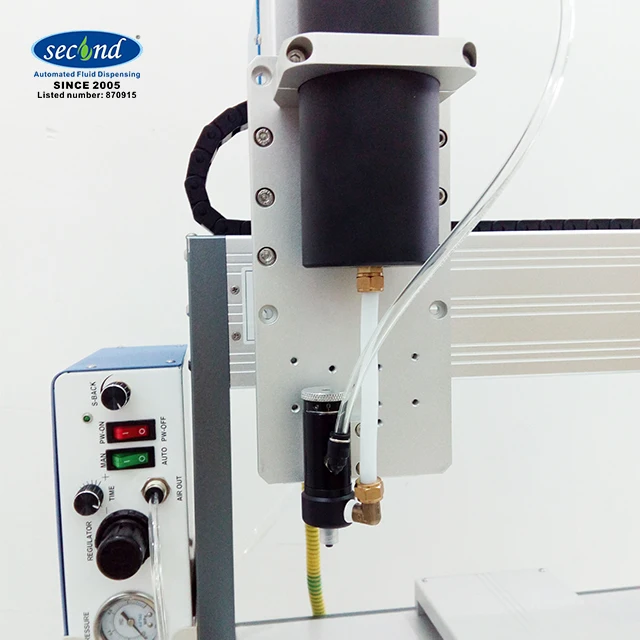

SMT automatic dispensing machine/glue dispenser/dispensing robot/system
- Category: >>>
- Supplier: Shenzhen Second Intelligent Equipment Co. Ltd.
Share on (62071954155):
Product Overview
Description

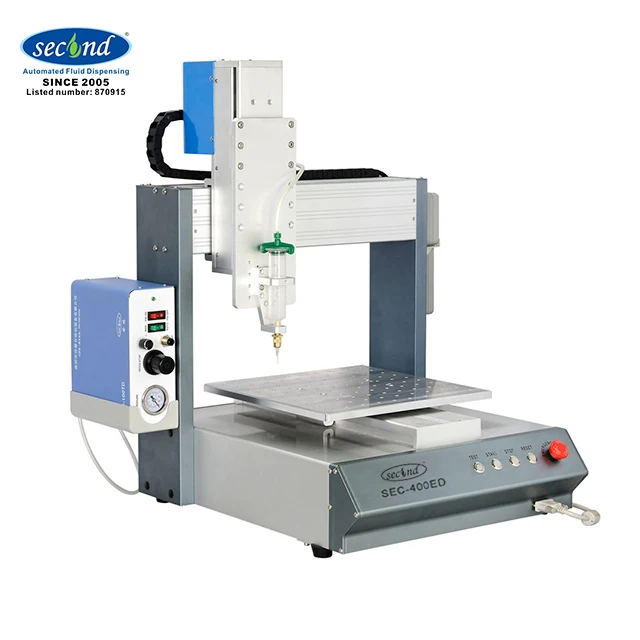

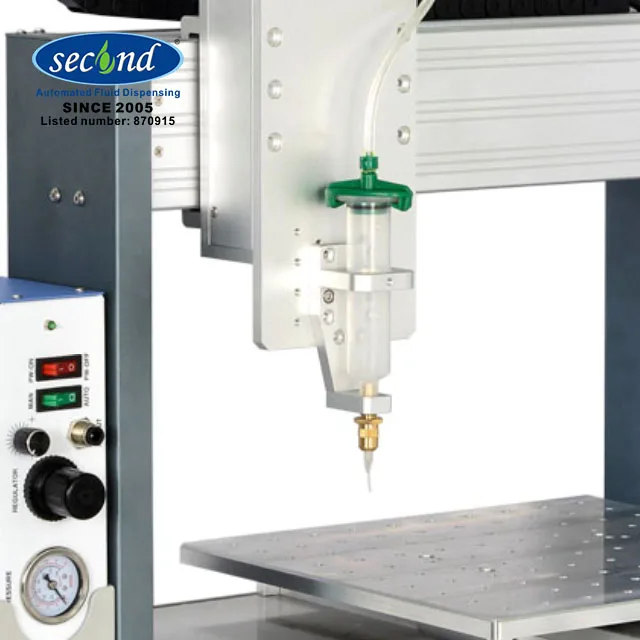

SMD SMT Assembly CE certified Desktop Automatic LED transparent liquid epoxy glue dispensing robot machine SEC-400EDN
Products Description
Model | SEC-300EDN | SEC-400EDN | SEC-500EDN | ||||
Work Area | 300(X)*300(Y)*100(Z)mm | 400(X)*400(Y)*100(Z)mm | 500(X)*500(Y)*100(Z)mm | ||||
Size | 490(L)*528(W)*679(H)mm | 590(L)*628(W)*679(H)mm | 690(L)*728(W)*679(H)mm | ||||
Max load | 7kg/3kg | ||||||
Travel speed | 400mm/sec(XY)/200mm/sec(Z) | ||||||
Drive mode | Stepping motor+belt+precise linear guide rail | ||||||
Repeatability | ±0.03mm | ||||||
Program capacity | 999 parameter files(65535 points per file) | ||||||
Operation system | LCD panel /Teach pendant | ||||||
Motor | Japan micro stepping motor | ||||||
Movement pattern | 3 axis point to point,continuous line, arc | ||||||
I/O signal ports | 4 inputs/4 outputs | ||||||
Power supply | AC220V 50/60Hz 0.5kw | ||||||
Work condition | Temperature 0-40°C;humidity 20-90% | ||||||
Weight | About 35kg | About 45KG | About 55KG | ||||
Configurations | Title | Unit | QTY | Remark | |||
Motor | kit | 3 | Micro stepping motor | ||||
(High precision dispensing valve) | pc | 1 | Optional | ||||

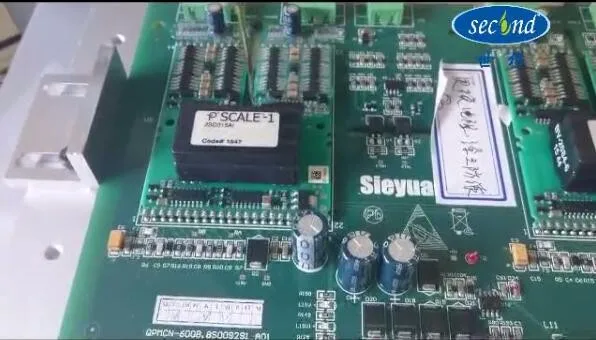

Movement controller | kit | 1 | Second automatic | ||||
Automatic dispensing software | kit | 1 | Second independent R&D | ||||
Precise dispensing controller | kit | 1 | Optional | ||||
Features | 1.High precision and stable feeding for glue dispensing; 2.Low glue consumption and high uniformity; 3.Apply three-axis robot to control the dispensing position to ensure high precision of glue dispensing; 4.Apply controller to control glue consumption to ensure low glue consumption and high uniformity; | ||||||
Related Products
Certifications
Cooperation brand
Company Profile
* Factory workshop
Second intelligent production line for freestanding potting machine and RO machine
Second intelligent desktop dispensing machine warehouse
Second intelligent production line for desktop dispensing machine
* Our Service
* Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.
Custom design
* After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
One year warranty.
* Global Exhibition
Second Intelligent exhibited EEIE 2018 in Hall2 2C 09 from 26-28 JULY in SHENZHEN!
Second Intelligent exhibited Metaltech 2018 in Malaysia Hall4 4600, see you next year!.
Second Intelligent exhibited Aquatech 2018 in Shanghai Hall8.1 828, see you next year!
Packing & Delivery
* Packaging
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.
If container is too tighter, we will use PE film for packing or pack it according to customers special request.
FAQ
Dear Customer,
Greetings from Second Intelligent!
As below Q&A to let you know more about Second Intelligent:
1 Are you factory or trade company?
We are manufacturer of fluid dispensing equipment since 2005, from desktop to freestanding big equipment, and RO roller machine.
2 What kind of glue can be applied into your machine?
We are professional fluid dispensing solution provider since 2005, and our suitable glue covers well-known glue and various glue from liquid to solid, our machine could be used into LED, Smartphone, Automotive and Appliance.
3 Could your machine help us improve the productivity?
High precision and easy operation system will definitely increase your daily capacity! You could send us your own glue and our technician will test your glue on our machine and provide better efficiency solution, that's free of charge!
4 What is your lead time?
For standard specification machine, we have inventory and could prepare the machine within 7 working days. For custom request, desktop machine 7-10 days, freestanding machine 20-40 days, RO roller machine 40-60 days.
5 Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.
