ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
- Category: >>>
- Supplier: Brightsail Industries Group Co. Ltd.
Share on (62072073831):
Product Overview
Description
Product Description

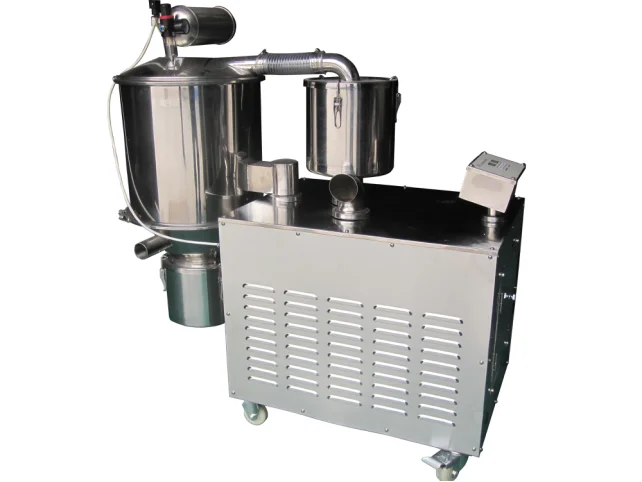

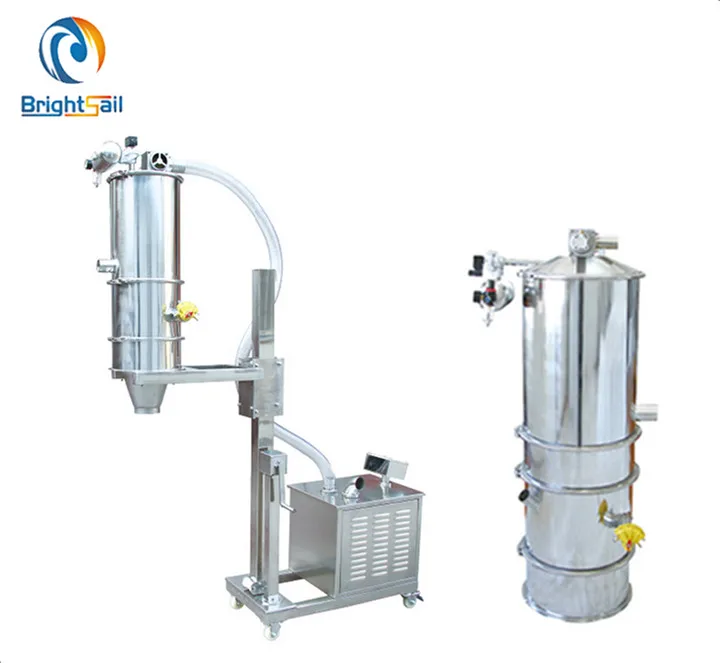

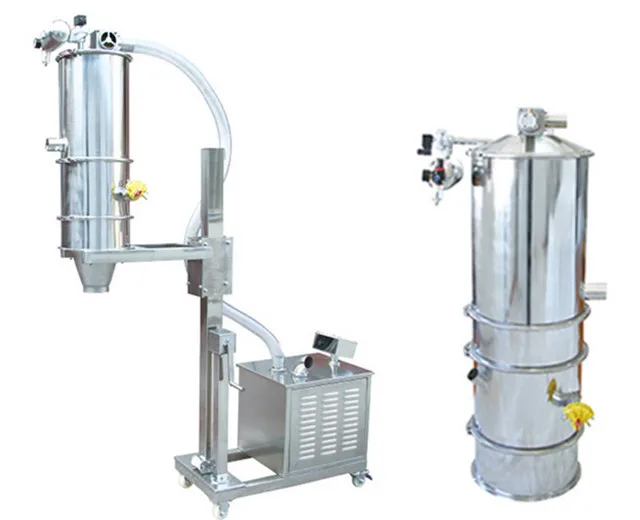

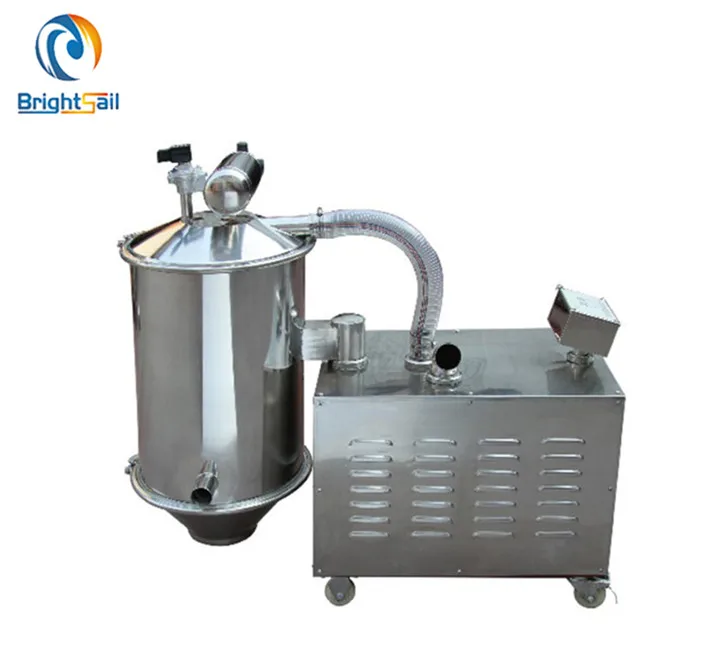

ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
Application:

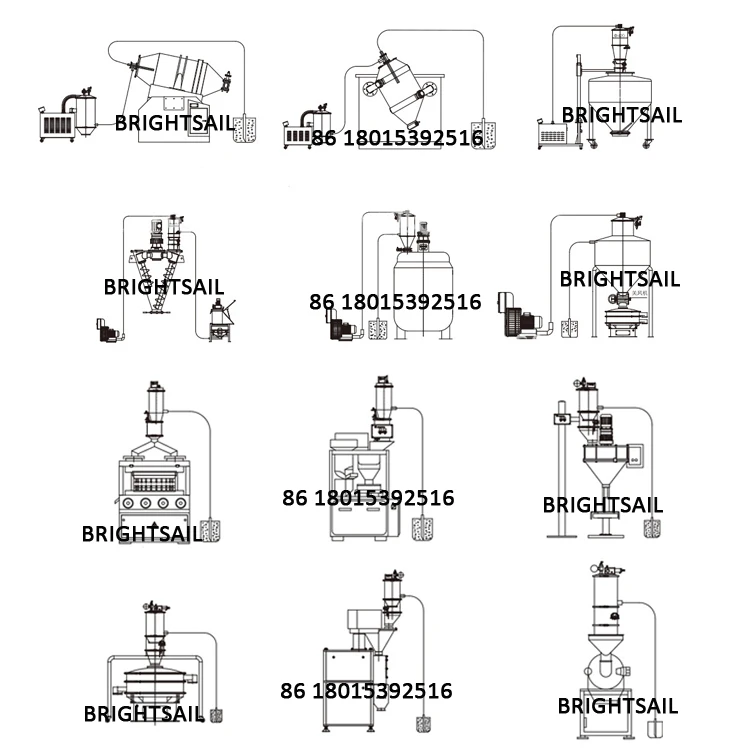

It is mainly used for conveying powder and granular materials in applications with high height and long distance. The vacuum feeder is a preferred machine for automatic feeding for tablet press, capsule filler, dry type granulator, packaging machine, crusher and vibrating screen. It is widely used in such industries as medicine, chemical industry, food, etc.
Working principle:
The vacuum feeder is also called vacuum conveyor, which is a kind of dust-free closed pipe conveying equipment that conveys granular and powder materials through vacuum suction. It uses the air pressure difference between the vacuum and atmosphere to form air flow inside the pipe and drive the materials to move so as to complete the conveying of materials.
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
Structure composition:
The vacuum conveyor is comprised of vacuum(no oil, no water), feeding tube, PE filter, vacuum hopper, automatic control device, pneumatic discharging device and compress air device, etc..
Remark:ZKS-5, ZKS-6 is the new developed product from 2004, the characteristic is Iow power, big capacity, low noise, long using time. It is the ideal feeding equipment for the mixer.
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
Main features:
1. The vacuum feeder adopts a quick installed structure. The parts that contact materials are made of high quality stainless steel.
2. It is provided with material level sensor with good sensitivity and stable quality.
3. It adopts unique high pressure vortex air pump, which is featured by small volume, low noise and long service life.
4. The automatic pulse back blowing system and automatic cleaning filter ensure that the equipment can run continuously without blocking.
5. Through automatic control, the repetitive work process such as feeding, discharging and back flowing are completed automatically.
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
Technical data:
Model | ZKS-1 | ZKS-2 | ZKS-3 | ZKS-4 | ZKS-5 | ZKS-6 | ZKS-7 |
Motor(KW) | 1.1 | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 |
Capacity(kg/hr) | 400 | 600 | 1200 | 2000 | 3000 | 4000 | 6000 |
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
Packaging & Shipping
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
Packaging Details:
Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.
Our Services
Pre-Sales Service
* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
After-Sales Service
* Instructing how to install and use the machine;
* One year warranty;
* Video support;
* Engineer is available to go to user's factory to help install and train.
Company Information
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Hengsheng Steel Structure Co.Ltd which is established in 2002. We provide professional powder processing overall solution, grinder, mixer, sifter, conveyor, welding service, welding machine, chemical powder...etc.
We have sent our products to more than 40 countries around the world for now.
Our certificate:
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
Our customers:
We have exported grinder and mixer equipment to more than 40 countries including Europe, America, Japan, Pakistan, Ukraine, Turkey, Burma, Thailand, Poland, Korea, Hungary, India, etc. And our products and services are well received in overseas markets.
FAQ
Frequently Asked Questions:
ZKS Series Vacuum Feeder Vacuum Feeding Machine for Powder Granule
Could you tell us:
1)What material do you need to convey?
2)What conveying capacity(kg/h)do you need?
3)What device do you need to convey the materials to?
For example: To tablet press machine, packing machine ,mixer, grinder....etc
