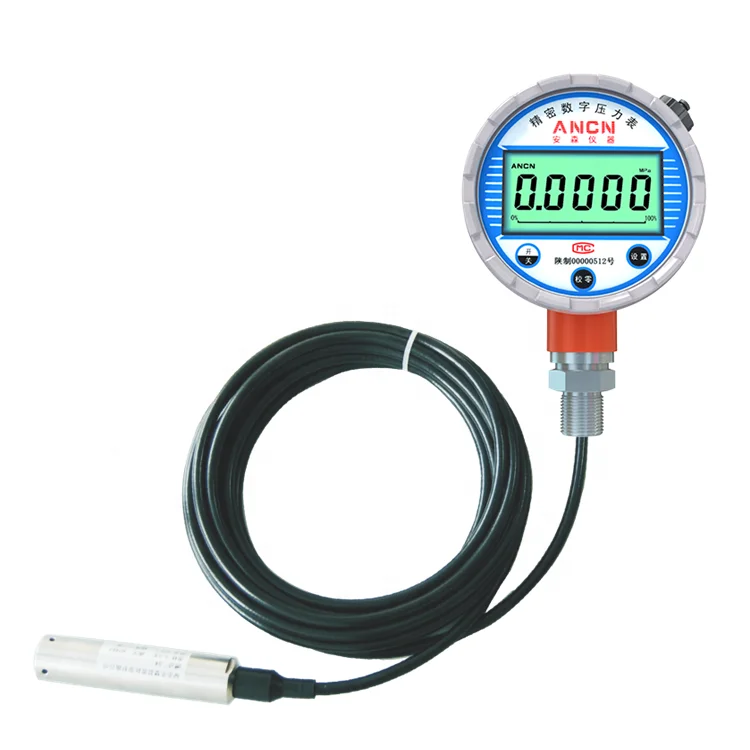

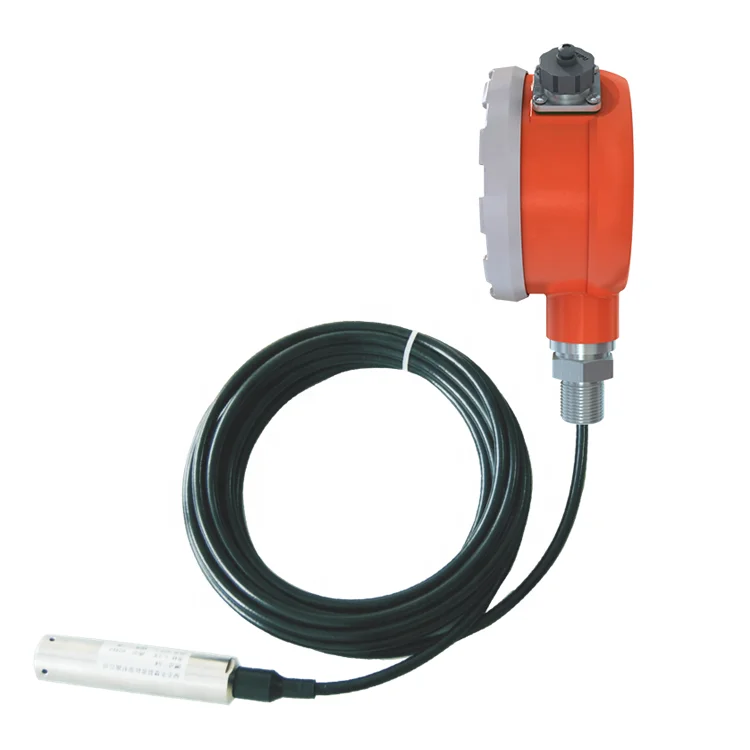

Digital Liquid level transmitter flow meter for all kinds of open tank

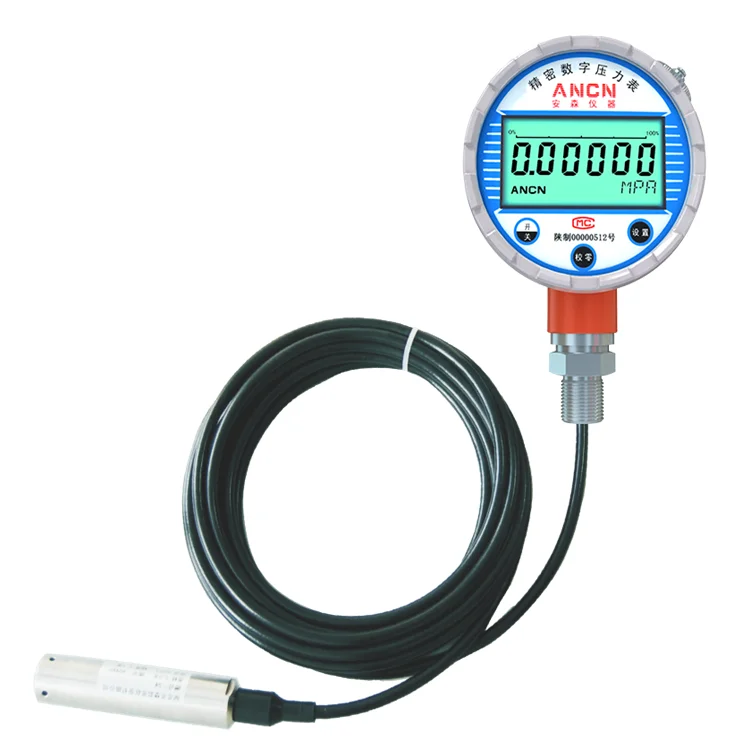

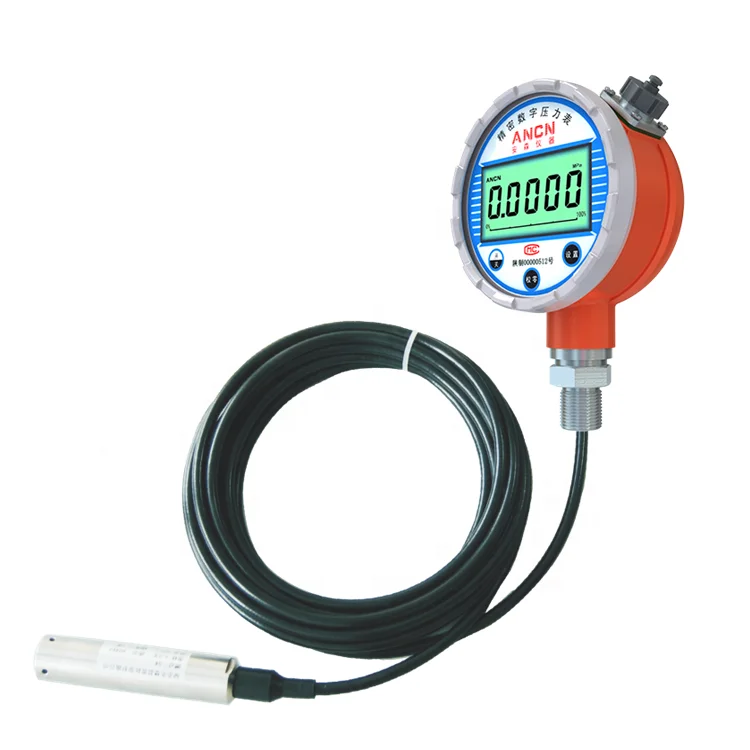

Brief Introduction

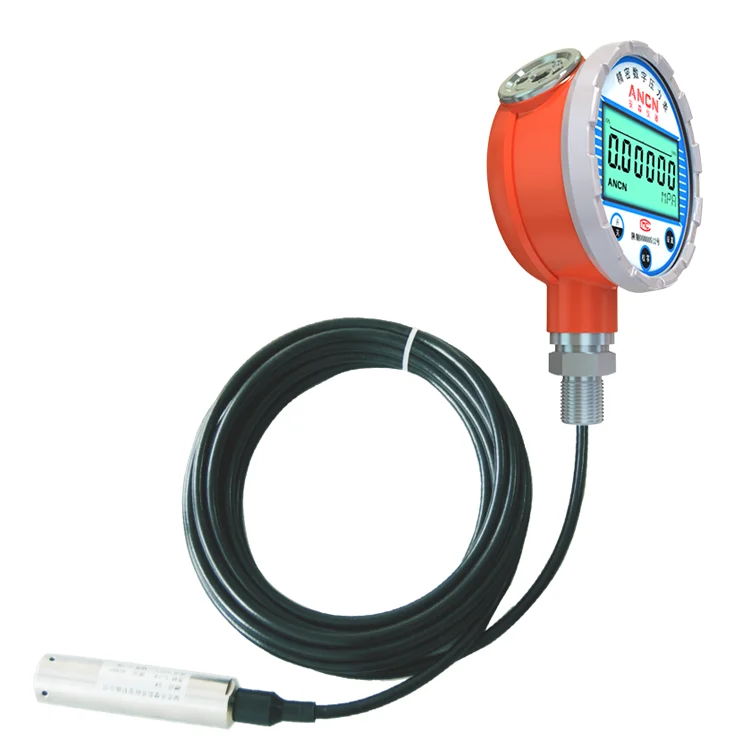

Based don Digital Liquid Level Meter of ACD-200L, we increase the remote transmission function which create a model Liquid Level Meter of ACD-201L. By adopting output communication module, RS485 communication, USB communication, (4-20) MA current signal output, ACD-201L can be directly read by monitoring PC through communication software to store, process and report output of the measure data. Signal isolated technology, reduce the interference. Built-in lithium battery can work for 5~8 years. ACD-201L Liquid Level Transmitter can acquire the level data consistently when external power off (communication function failed because of external power off). Installation of radial, axial and reel packing are available for choice.

Product Patent

Utility model patent certificate

ZL2008 2 0028605.1

digital instrument button and display device

ZL2009 2 0062360.9

micro power consumption and low pressure drop sensor constant current drive circuit

Patent for industrial design

ZL2008 3 0019531.0

instruments (pressure test gauge)

Application

For the level measure of well, pond, water tower, etc.

For the level measure and monitoring of water conservancy and hydropower

Water level measurement of urban water supply and sewage treatment

Liquid level measurement and control in industrial field

Liquid level measuring for all kinds of open tank, water tank and liquid tank

Characteristics

Support liquid density modification, can be directly measured in different media

Acquisition speed (0.25~10)S/A (S=second, A=acquisition ), settable freely

Its development design of battery power supply, is convenient to replace the battery at any time

RS485 communication,USB communication,(4~20)mA  electrical current output , available

Never Off-Line Communication technology, data bus can support 255 units of RS485 sub devices

Super Power Management Technology, battery life can be in service for 5~8 years

Signal-isolation technology, anti-electromagnetic and radio frequency interference technology

Buttons pressed with magnetic induction pen, exempt from interference, not easy to damage

Broad 5 digits LCD display, very clear for eye-catching

Visual Level percentage bar chart display, easy to understand

Automatic temperature compensation technology, to reduce the error in harsh environment

Zero Self-Stability technology, with temperature compensation automatically, stability reliable

Parameters

Measuring Range

0~1mH2O~200mH2O ( any scope within it )

Accuracy grade

0.05 / 0.1 / 0.2 / 0.5

Output Signal

(4~20)mA (24V DC, two wire); (1~5)V (24V DC, three wire)

Communication

RS485 / USB

Range Migration

Suggested not exceed  3:1 (to electrical current output signals)

Over Load Capacity

RL = U-12(V) / 0.02(A)

U— Loop voltage(V)

RL—Allowable Load Resistance (Ω)

Power supply mode

Inner: build-in one 3.6V high power lithium battery

External:(10~30)V  DC

Acquisition Speed

(0.25~10)S/A (S=second, A=acquisition),default is 0.5 S/A, time is settable

Stability performance

<0.1% FS per year

Battery life

Picking rate

4Hz

2Hz

1Hz

0.5Hz

Life time

2.8 yeas

5 years

5.5 years

7 years

Picking rate

1/3Hz

1/4Hz

1/(5-10)Hz

Life time

9 years

More than 10 years

Operating temperature

-30℃~70℃

Relative humidity

<90%

Barometric pressure

86-106KPa

Others

Calibration reference operating temperature 20℃±2℃

0.05 accuracy requires operating temperature 0-50℃

Medium Temperature

General temperature range

-40~120 ℃

Wide temperature range

-60~150 ℃

Display mode

five figures dynamic display and percentage bar chart

Protection Degree

IP65

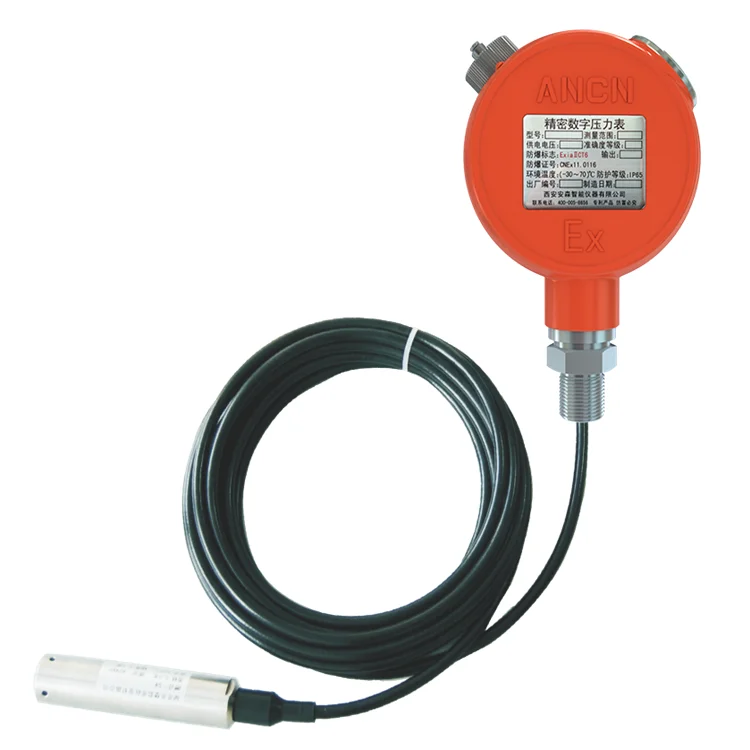

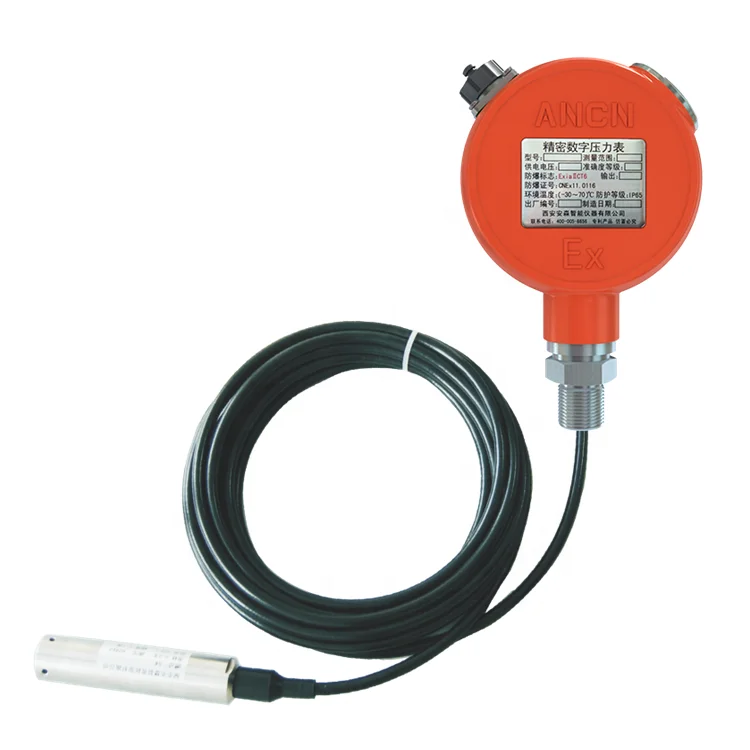

Explosion-proof grade

ExiaIICT4 Ga

Overload Pressure

1.5-3 times of measuring range, depending on the measuring range

Software

AncnView-T analysis software ( with USB communication), can Export instrument data, automatic storage, automatic drawing temperature curve, can be exported to Excel form, read, print, save.
