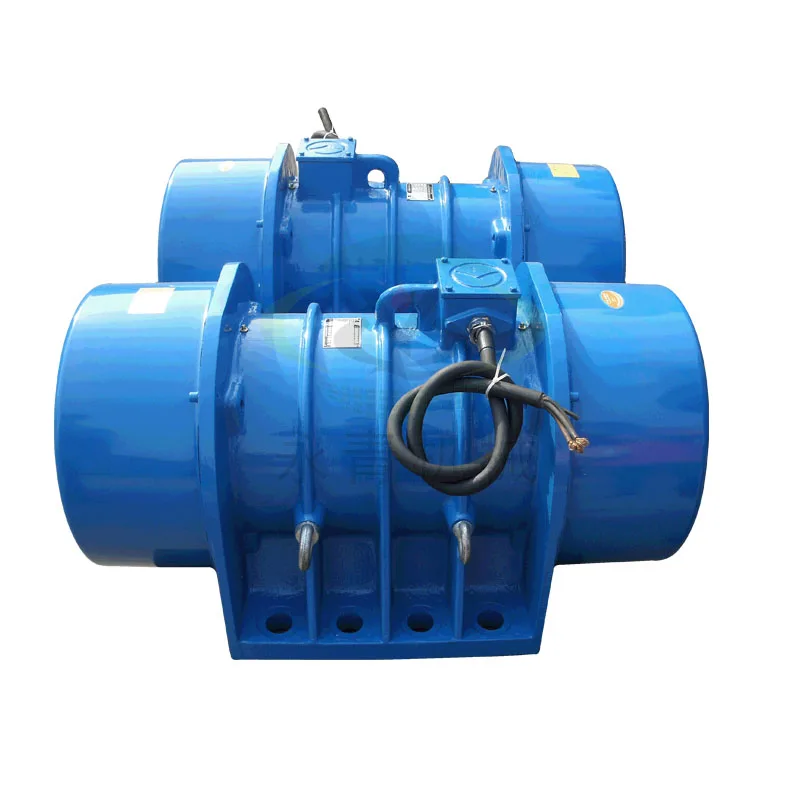

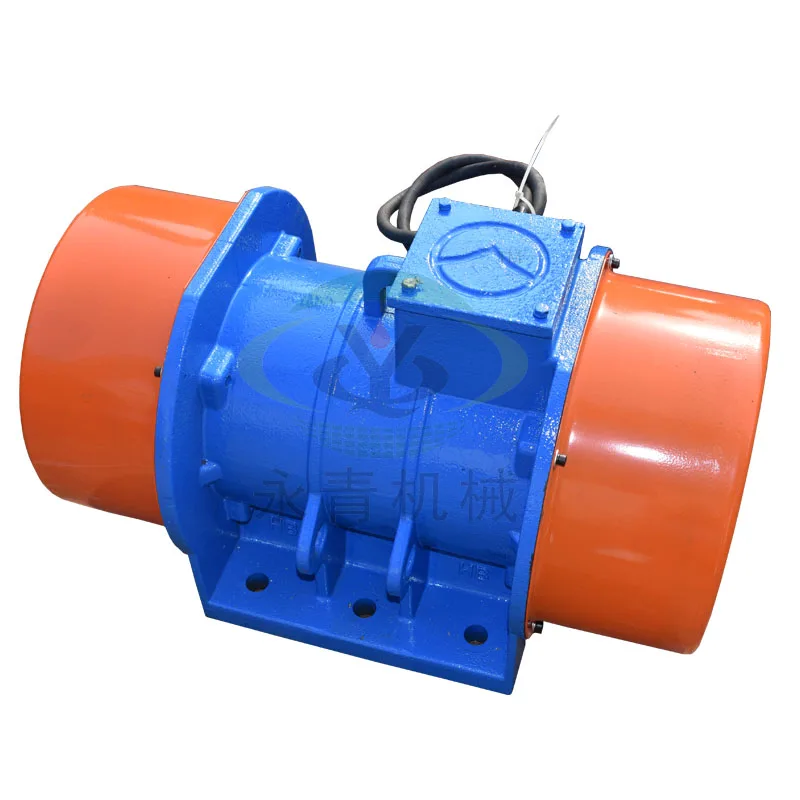

240V electric ac vibrating motor engine
- Category: >>>
- Supplier: Xinxiang Yongqing Screen Machine Co. Ltd.
Share on (62072122222):
Product Overview
Description

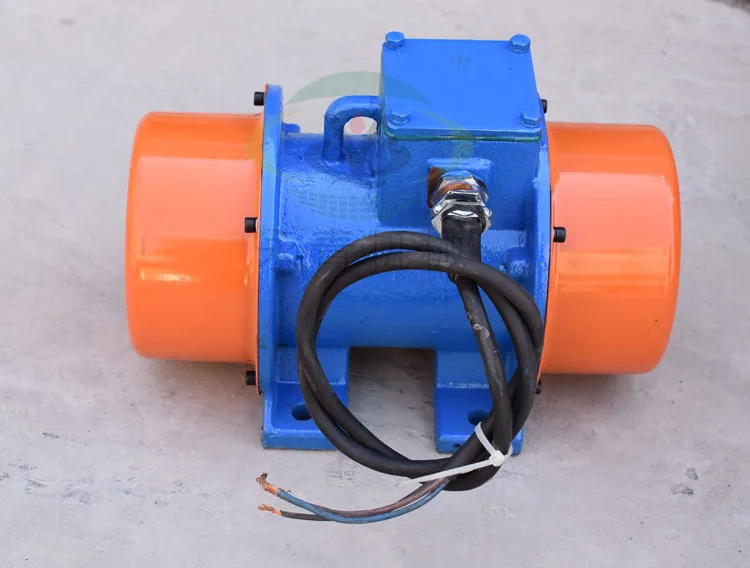

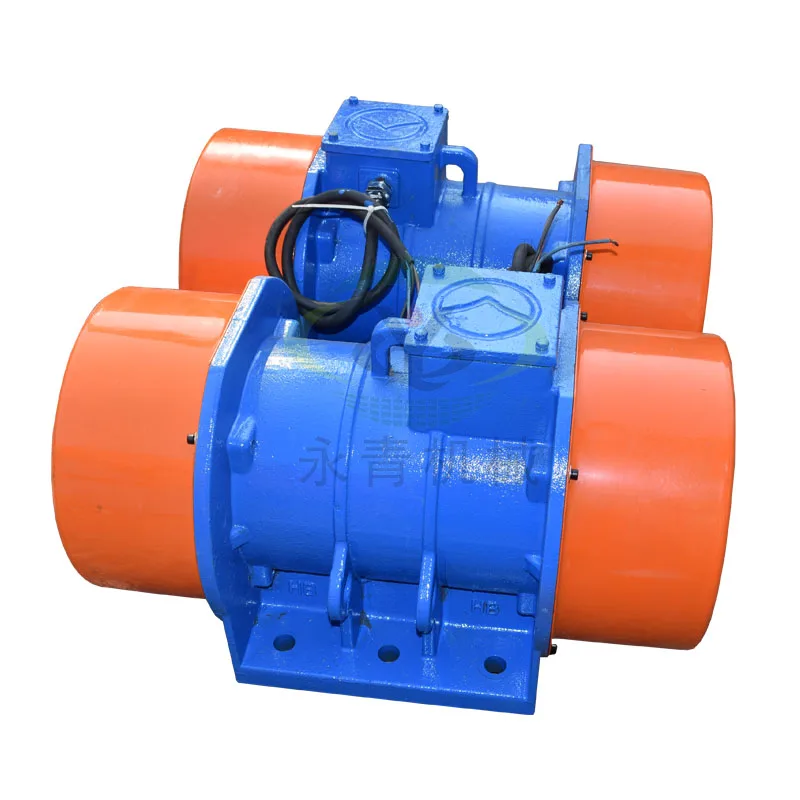

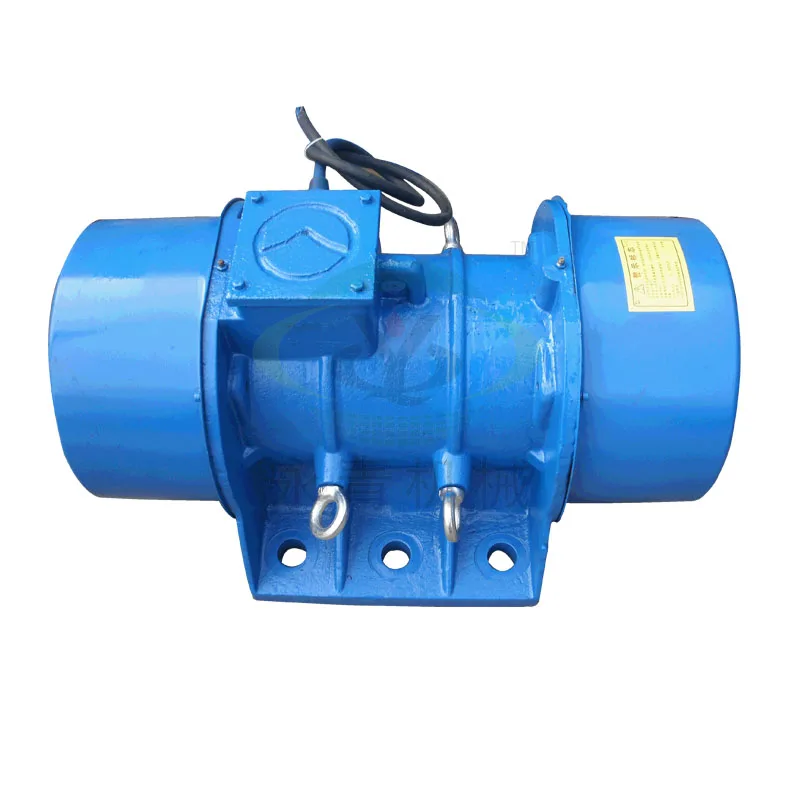

240V electric ac vibrating motor engine

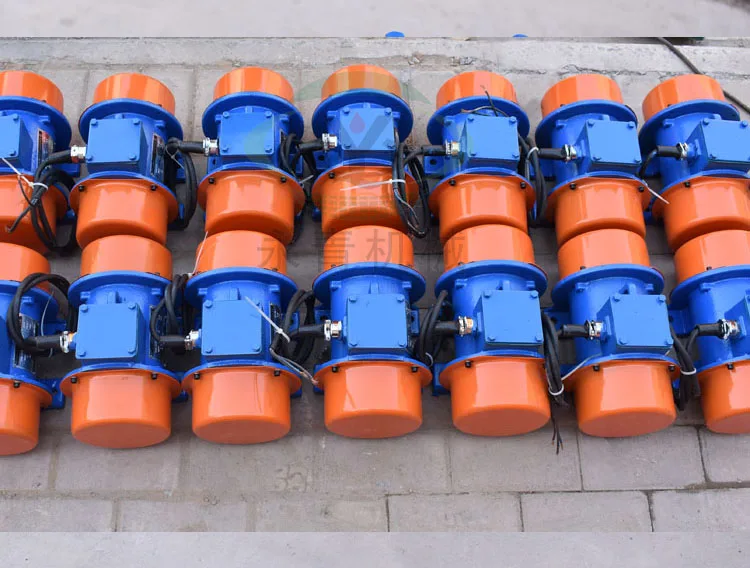

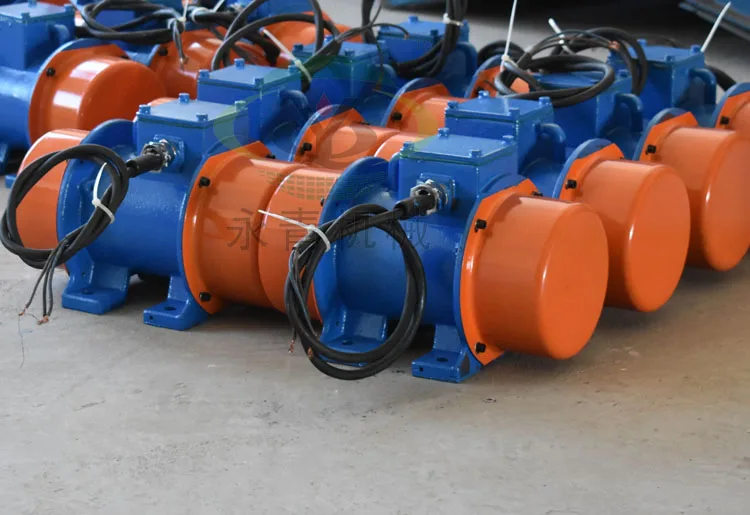

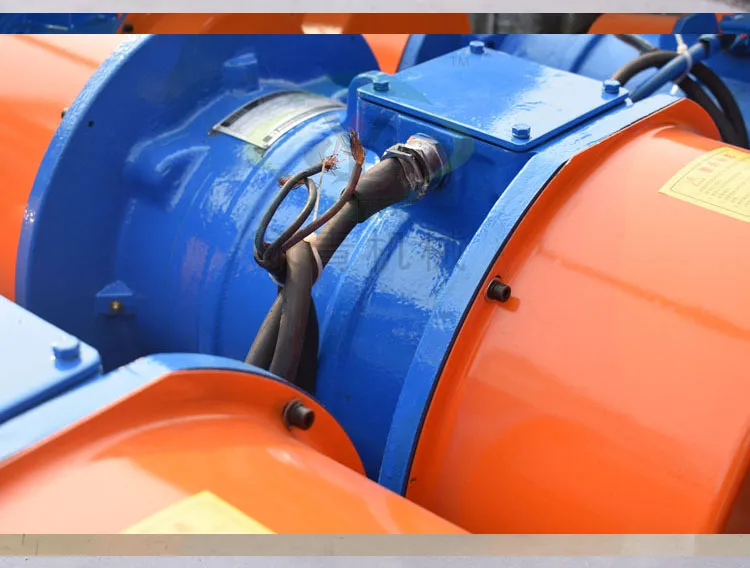

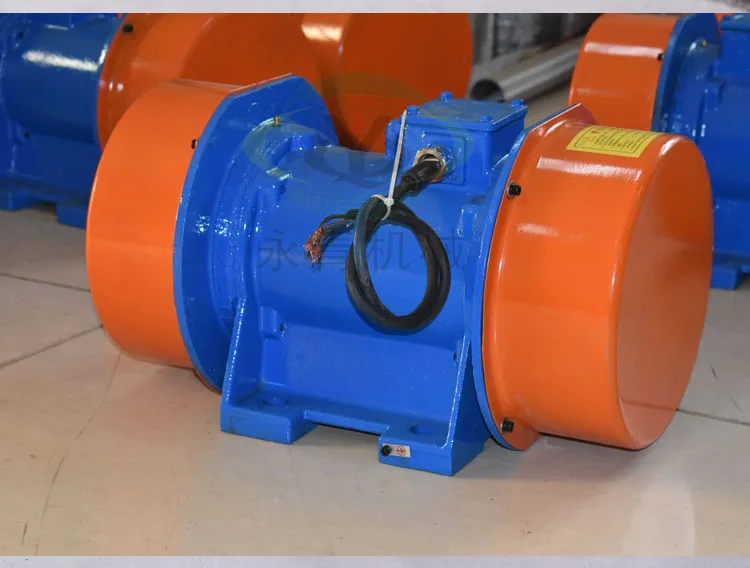

Vibrating Motor
Power: 0.2kw, 0.25kw, 0.55kw, 0.75kw, 1.1kw ,1.5kw, 2.2kw etc.
Electric Voltage: 110v/ 210v/ 240v/ 380v/ 415v,
Frequency: 50Hz/ 60Hz
Phase: 3ph
Rated speed: 3000rpm, 1500rpm, 960rpm, 740rpm
Protective grade: IP55;IP56
Color:
orange /blue/golden yellow or as required
Application:

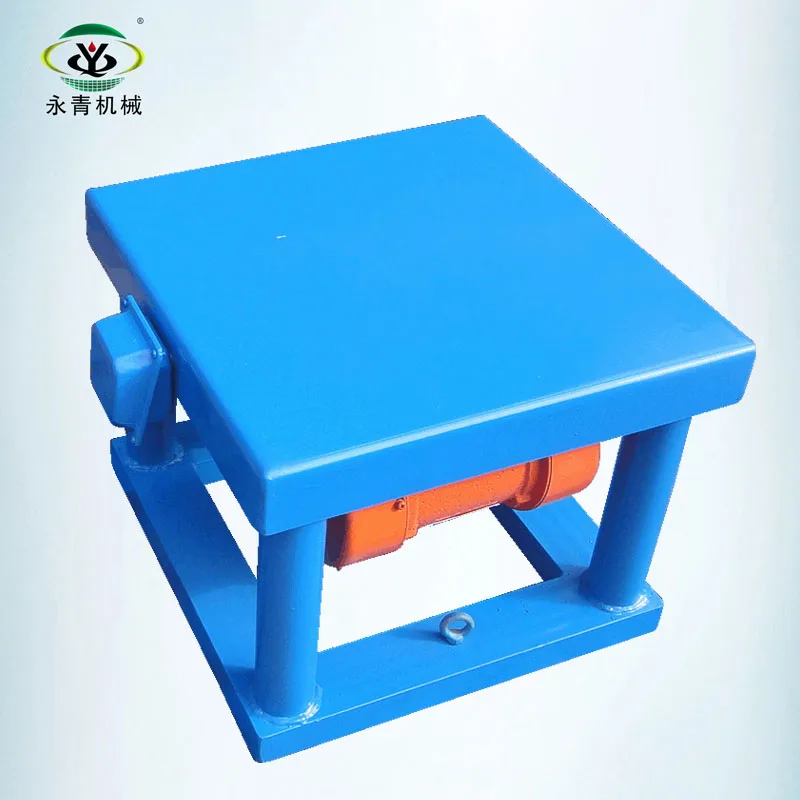

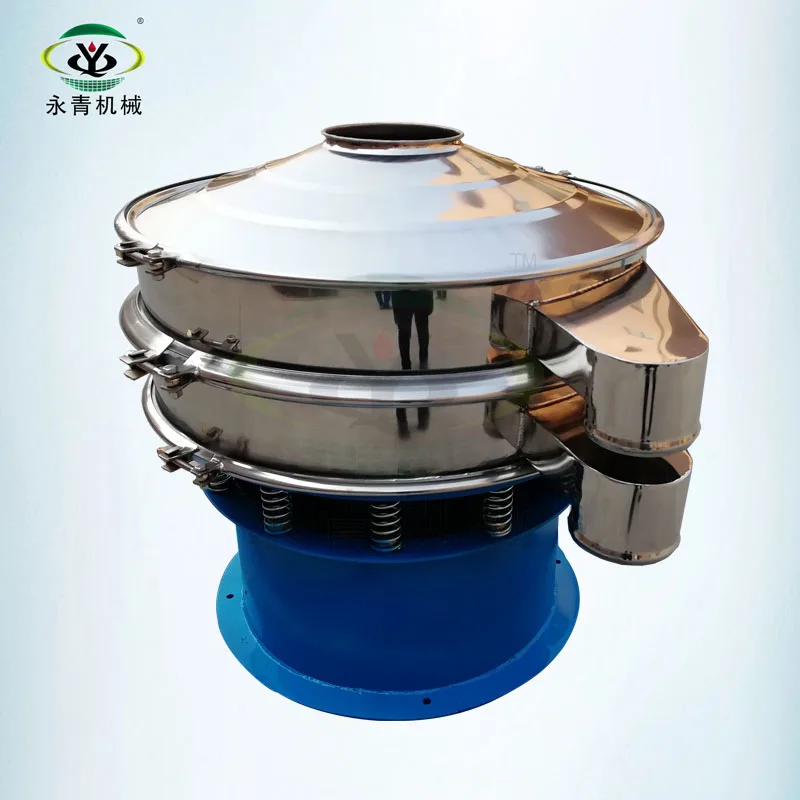

his motor vibrator is mostly used for vibrating screen machines, vibrating tables, vibrating feeders and other vibration machines.
To get an exact motor offer, please kindly inform:
1. the motor power you need;
2. the motor rated speed required, or what machines you will use the motor for;
3. how many units needed;
Detail parameters of vibrator motor
Model | Rated? speed | Vibrating power | Power | Current | efficiency | weight | Bolt |
XVM0.7-2 | 2900 | 0.7 | 0.15 | 0.38 | 70 | 14 | M12 |
XVM1.5-2 | 1.5 | 0.15 | 0.38 | 70 | 15 | M12 | |
XVM2.5-2 | 2.5 | 0.25 | 0.58 | 76 | 16 | M12 | |
XVM 5-2 | 5 | 0.40 | 1.01 | 72 | 23 | M16 | |
XVM 8-2 | 8 | 0.75 | 1.76 | 74 | 42 | M20 | |
XVM 16-2 | 16 | 1.10 | 2.80 | 70 | 58 | M20 | |
XVM 20-2 | 25 | 1.80 | 4.30 | 71 | 60 | M20 | |
XVM 30-2 | 32 | 2.20 | 5.10 | 73 | 95 | M20 | |
XVM 45-2 | 50 | 3.50 | 8.18 | 73 | 200 | M24 | |
XVM 1.2-4 | 1480 | 1.2 | 0.07 | 0.30 | 60 | 14 | M12 |
XVM 2.5-4 | 2 | 0.10 | 0.32 | 66 | 18 | M12 | |
XVM 5-4 | 5 | 0.20 | 0.65 | 70 | 27 | M16 | |
XVM 8-4 | 8 | 0.40 | 1.14 | 73 | 44 | M20 | |
XZM-10-4 | 10 | 0.5 | 1.14 | 74 | 46 | M20 | |
XVM 16-4 | 16 | 0.75 | 2.08 | 74 | 65 | M20 | |
XVM 20-4 | 20 | 1.1 | 2.6 | 74 | 67 | M20 | |
XVM 25-4 | 25 | 1.5 | 3.0 | 74 | 111 | M20 | |
XVM 32-4 | 32 | 2.00 | 4.73 | 77 | 116 | M20 | |
XVM-40-4 | 40 | 2.2 | 5.0 | 73 | 135 | M20 | |
XVM 50-4 | 5 | 2.50 | 6.25 | 73 | 240 | M24 | |
XVM 75-4 | 75 | 4.00 | 10.14 | 74 | 270 | M30 | |
XVM100-4 | 100 | 6.50 | 16.88 | 71 | 390 | M30 | |
XVM120-4 | 120 | 8.00 | 19.40 | 76 | 510 | M36 | |
XVM140-4 | 140 | 10.00 | 24.16 | 75 | 580 | M36 | |
XVM160-4 | 160 | 10.00 | 24.16 | 75 | 620 | M36 | |
XVM2.5-6 | 1000 | 2.5 | 0.20 | 0.70 | 71 | 28 | M16 |
XVM 5-6 | 5 | 0.40 | 1.23 | 74 | 37 | M16 | |
XVM 8-6 | 8 | 0.55 | 1.5 | 74 | 51 | M20 | |
XVM 10-6 | 10 | 0.75 | 2.18 | 78 | 69 | M20 | |
XVM 16-6 | 16 | 1.10 | 3.03 | 78 | 83 | M20 | |
XVM 20-6 | 20 | 1.50 | 4.10 | 81 | 117 | M20 | |
XVM 30-6 | 30 | 2.20 | 6.10 | 80 | 165 | M20 | |
XVM 40-6 | 40 | 3.00 | 7.40 | 84 | 189 | M20 | |
XVM 50-6 | 50 | 3.70 | 9.60 | 83 | 230 | M24 | |
XVM 75-6 | 7.5 | 5.50 | 12.60 | 81 | 290 | M30 | |
XVM100-6 | 100 | 7.50 | 17.93 | 81 | 450 | M30 | |
XVM120-6 | 120 | 9.50 | 21.70 | 83 | 550 | M36 | |
XVM140-6 | 140 | 9.50 | 21.70 | 83 | 615 | M36 | |
XVM160-6 | 160 | 12.00 | 27.37 | 81 | 675 | M36 | |
XVM 5-8 | 750 | 5 | 0.40 | 1.62 | 68 | 74 | M20 |
XVM 10-8 | 10 | 0.75 | 2.90 | 72 | 117 | M20 | |
XVM 16-8 | 16 | 1.50 | 4.02 | 80 | 172 | M20 | |
XVM 20-8 | 20 | 2.20 | 5.93 | 80 | 190 | M20 | |
XVM 30-8 | 30 | 3.00 | 8.10 | 82 | 230 | M24 | |
XVM 50-8 | 50 | 4.00 | 10.60 | 82 | 290 | M30 | |
XVM 75-8 | 75 | 6.50 | 17.10 | 81 | 450 | M30 | |
XVM100-8 | 100 | 8.50 | 21.80 | 81 | 690 | M36 |
